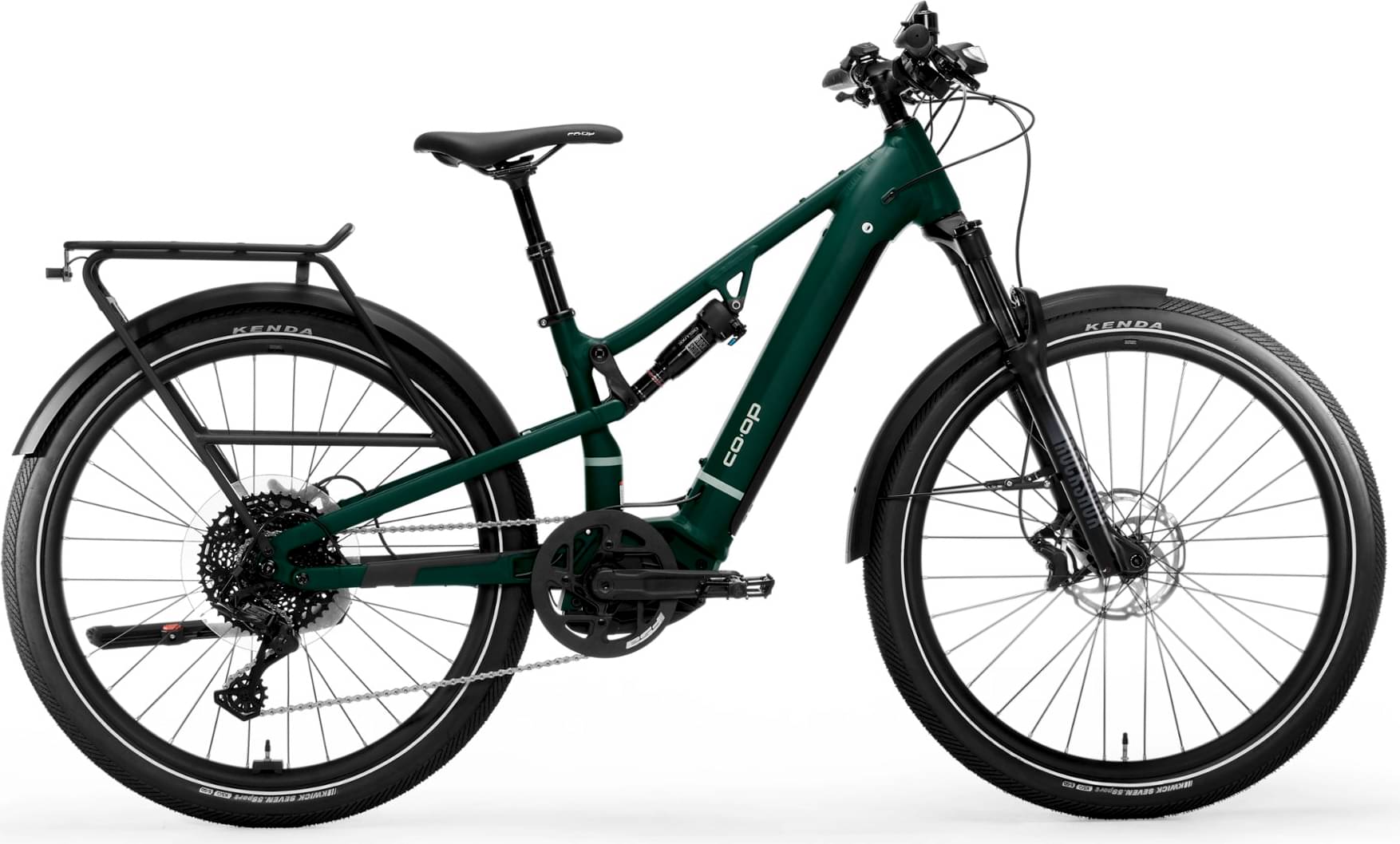

coop Co-op CTY e3.1 2024
2024 E-bike
Estimate price |
5,799$
Weight | 27.22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset microSHIFT Advent X -
Suspension Full -
Motor Bosch 600W 63Nm mid-drive -
Battery Lithium Ion, 625 watt hours -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Recon Silver RL Solo Air, 120 millimeters
Rear Shock
RockShox Deluxe Select Plus RL
Drivetrain
Rear Derailleur
microSHIFT Advent X
Shift Levers
microSHIFT Advent X Trai Pro 1 x 10-Speed
Cassette
microSHIFT Advent X CS-H10410-speed 11-48T
Crank
FSA Isis 44T
Bottom Bracket
Bosch
Chain
KMC E10 Turbo
Pedals
Wellgo aluminum platform with steel spindle
Wheels
Front Hub
Alloy Disc 15 mm thru axle
Rear Hub
Alloy 32H, 148 mm; thru axle
Rims
Co-op alloy double-wall, eyeleted, tubeless-ready
Tires
Kenda Kwick Seven.5 or Kwick Nine; 60 tpi; wire bead; K-Shield Plus Protection; reflective sidewalls
Brakes
Brakes
Tektro Gemini SL 4-piston hydraulic disc Hydraulic Disc Brake
Brake Levers
Tektro 2-finger hydraulic with reach adjust
Cockpit
Stem
31.8 mm; forged aluminum; 4-bolt
Handlebar
Co-op Riser, 15 mm rise, 9-degree sweep; 31.8 mm at center
Headset
FSA Orbit 1-1/8 in. to 1-1/2 in.
Seat
Saddle
Co-op steel rail comfort saddle
Seatpost
X Fusion Manic dropper with remote
Motor & Battery
Motor
Bosch Performance Line Speed, the smart system
Battery
Lithium Ion, 625 watt hours
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.503 mm | 1.448 mm | 1.449 mm | 1.391 mm | 1.319 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 601 mm | 601 mm | 630.5 mm | 639.7 mm | 639.7 mm |
| Reach | 400 mm | 415 mm | 435 mm | 460 mm | 485 mm |
| Top Tube Length | 536.8 mm | 552.3 mm | 581.5 mm | 609.3 mm | 634.2 mm |
| Seat Tube Angle | 72.8 ° | 72.7 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Seat Tube Length | 360 mm | 380 mm | 395 mm | 410 mm | 450 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 440 mm | 440 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1143 mm | 1158 mm | 1192 mm | 1221 mm | 1246 mm |
| Standover Height | 768 mm | 786 mm | 787 mm | 792 mm | 814 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
