coop Co-op DRT 1.1 2024

2024 Mountain
Estimate price | 599$
Weight | 14.34 kg
Open compare Use advisor

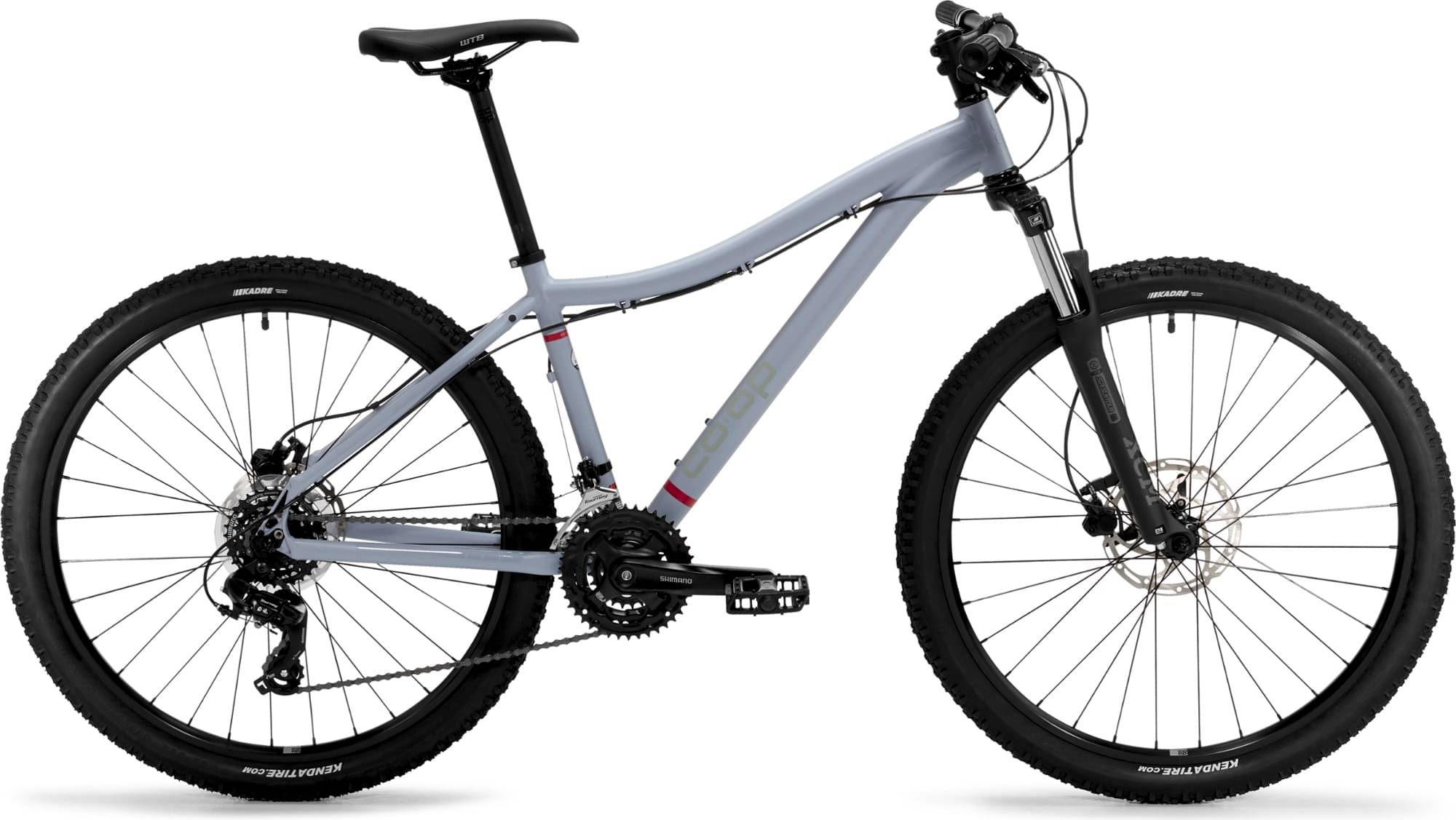

  • Co-op DRT 1.1 2024 - Ether

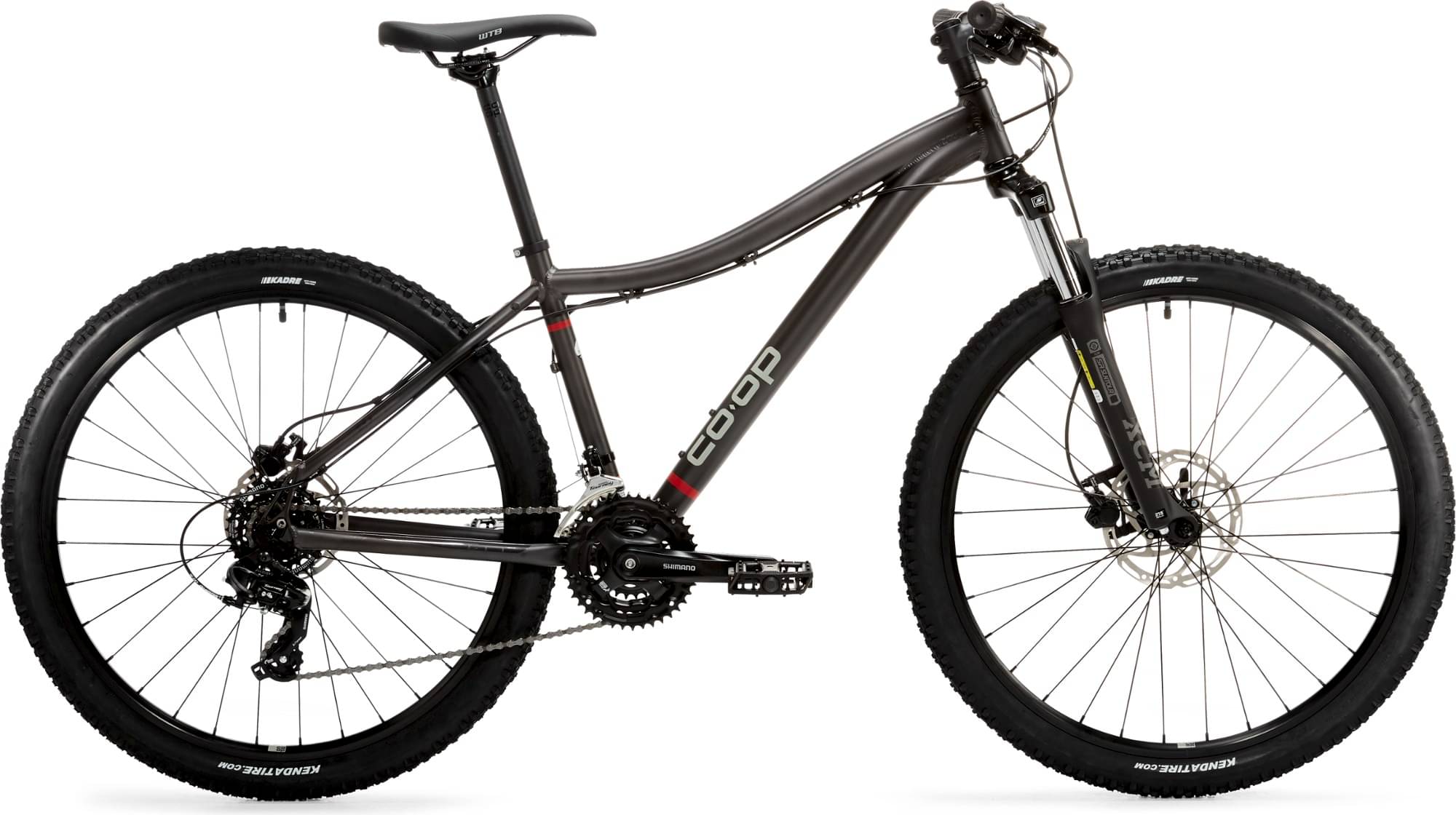

  • Co-op DRT 1.1 2024 - Pirate Black

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 100mm
  • Fork Suntour
  • Groupset Tourney
  • Suspension Hardtail
  • Drivetrain 3 × 7
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    152cm - 161cm

  • SM

    159cm - 169cm

  • MD

    166cm - 177cm

  • LG

    174cm - 184cm

  • XL

    181cm - 190cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Co-op Cycles 6061 aluminum

Suspension Fork

SR Suntour, 100 millimeters

Drivetrain

Rear Derailleur

Shimano Tourney

Front Derailleur

Shimano Tourney

Shift Levers

Shimano Rapidfire Plus

Cassette

Shimano 12-32, 7-speed

Crank

Shimano Tourney 42-34-24

Bottom Bracket

Cartridge bearing square

Chain

KMC 7-speed

Pedals

Co-op Cycles

Wheels

Front Hub

Shimano alloy

Rear Hub

Shimano alloy

Rims

Co-op Cycles 27.5, 32 H

Tires

Kenda Kadre

Brakes

Brakes

Tektro hydraulic disc Hydraulic Disc Brake

Brake Levers

Tektro

Cockpit

Stem

Co-op Cycles 6061

Handlebar

Co-op Cycles

Headset

External headset

Seat

Saddle

WTB Volt Sport

Seatpost

Co-op Cycles, 27.2 diameter

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXL
Stack Reach Ratio
1.383 mm1.367 mm1.32 mm1.305 mm1.321 mm
Stack
574 mm574 mm574 mm583 mm607 mm
Reach
415 mm420 mm435 mm446.7 mm459.5 mm
Top Tube Length
575 mm585 mm605 mm625 mm645 mm
Seat Tube Angle
74 °74 °73 °73 °73 °
Seat Tube Length
345 mm375 mm410 mm445 mm480 mm
Head Tube Angle
69 °69 °69 °69 °69 °
Chainstay Length
440 mm440 mm440 mm440 mm440 mm
Wheelbase
1094 mm1104 mm1119 mm1134 mm1156 mm
Standover Height
681 mm702 mm719 mm737 mm762 mm
Wheels27"27"27"27"27"
Rider Min Height152 cm159 cm166 cm174 cm181 cm
Rider Max Height161 cm169 cm177 cm184 cm190 cm
