coop Co-op DRT 4.1 Fat-Tire 2024

2024 Mountain
Estimate price | 1,499$
Weight | 17.69 kg
Open compare Use advisor

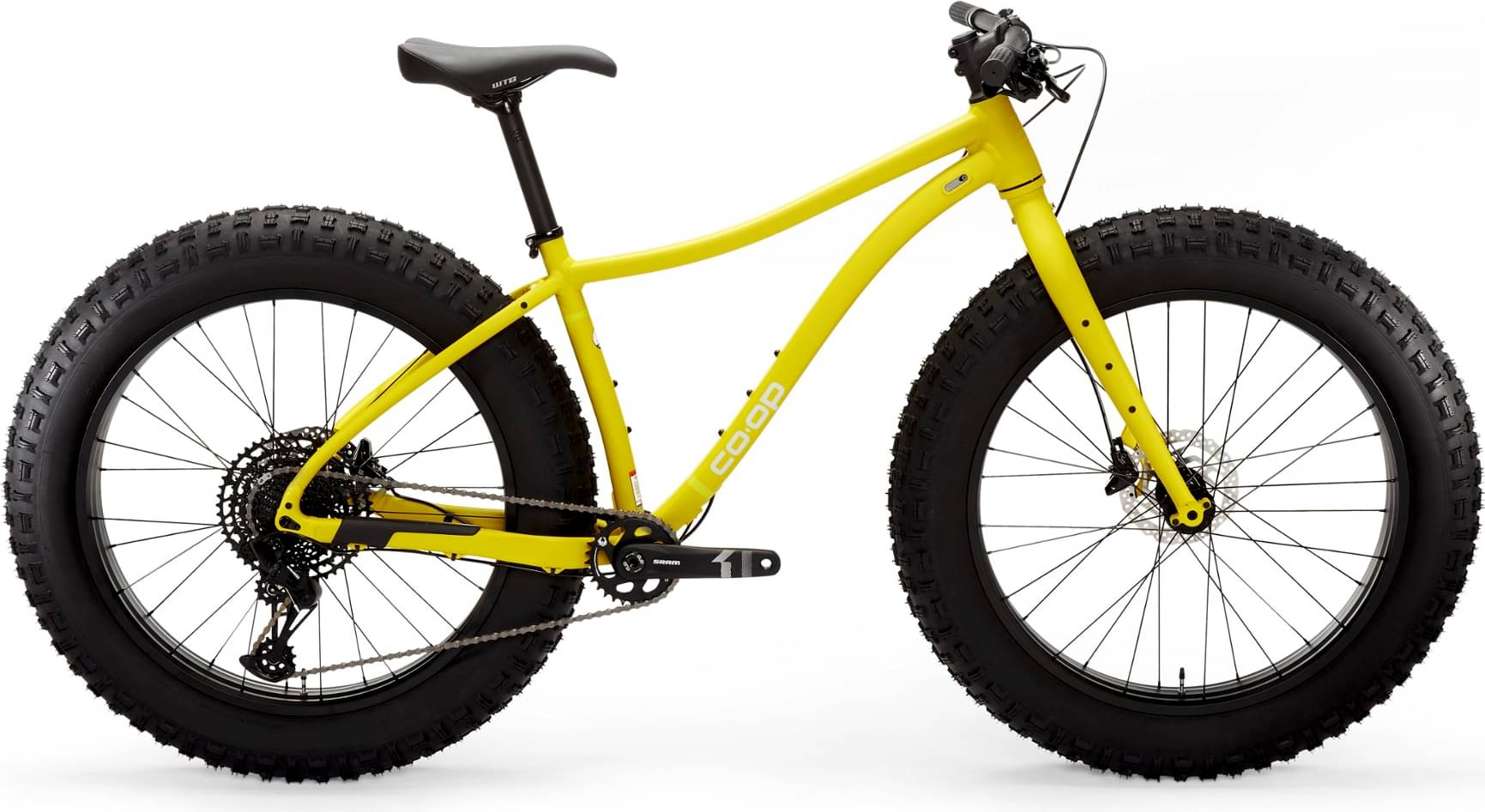

Coop Drt 4.1 Fat Tire 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset X1, SX Eagle
  • Suspension Rigid
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    156cm - 166cm

  • SM

    163cm - 174cm

  • MD

    171cm - 182cm

  • LG

    179cm - 189cm

  • XL

    185cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Co-op Cycles 6061 aluminum

Suspension Fork

6061 aluminum

Drivetrain

Rear Derailleur

SRAM SX Eagle 12-speed

Shift Levers

SRAM SX Eagle 12-speed

Cassette

SRAM Eagle, 11-50t, 12-speed

Crank

SRAM X1 1000 Eagle™ DUB fat 5

Bottom Bracket

SRAM DUB English BSA 100mm fat

Chain

SRAM SX Eagle

Pedals

Not included

Wheels

Front Hub

15mm thru axle

Rear Hub

12mm thru axle

Rims

26" aluminum

Tires

Innova 26 x 4.8 in.; 60 TPI

Brakes

Brakes

Shimano Acera MT-400 hydraulic disc Hydraulic Disc Brake

Brake Levers

Shimano

Cockpit

Stem

Co-op Cycles 6061 aluminum

Handlebar

Co-op Cycles alloy butted aluminum riser

Headset

Internal headset

Seat

Saddle

WTB Pure Sport

Seatpost

Co-op Cycles 6061 aluminum

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXL
Stack Reach Ratio
1.433 mm1.358 mm1.304 mm1.255 mm1.22 mm
Stack
573 mm577 mm587 mm596 mm610 mm
Reach
400 mm425 mm450 mm475 mm500 mm
Top Tube Length
564 mm591 mm618 mm646 mm675 mm
Seat Tube Angle
72 °72 °72 °72 °72 °
Seat Tube Length
360 mm395 mm430 mm465 mm500 mm
Head Tube Angle
68 °68 °68 °68 °68 °
Chainstay Length
445 mm445 mm445 mm445 mm445 mm
Wheelbase
1100 mm1127 mm1156 mm1185 mm1215 mm
Standover Height
704 mm728 mm750 mm773 mm795 mm
Wheels26"26"26"26"26"
Rider Min Height156 cm163 cm171 cm179 cm185 cm
Rider Max Height166 cm174 cm182 cm189 cm195 cm
