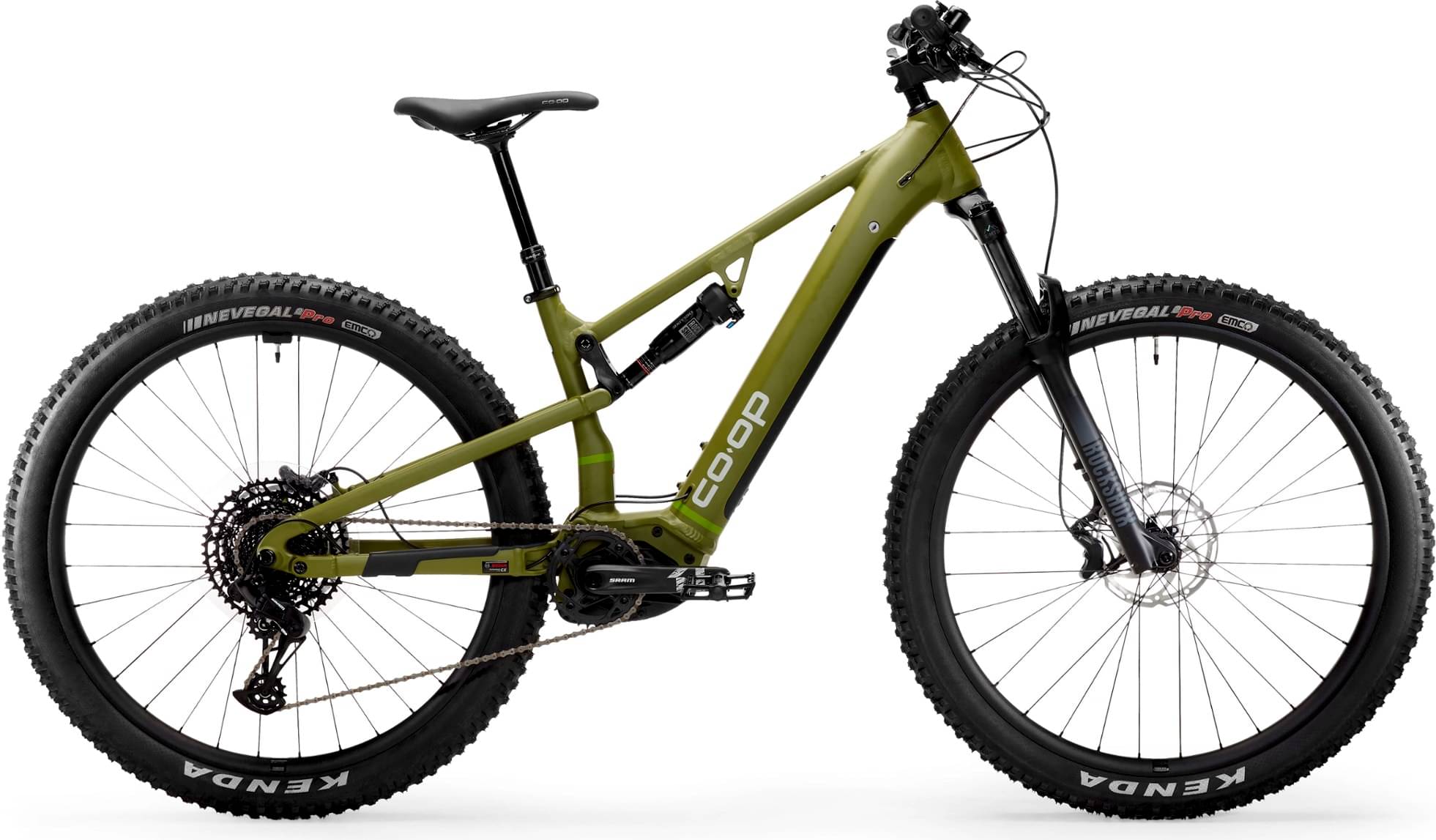

coop Co-op DRT e3.1 2023
2023 E-bike
Estimate price |
4,999$
Weight | 24.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, X1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery 625 watt hours -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon Silver RL Solo Air, 140 millimeters
Rear Shock
RockShox Deluxe Select Plus RT
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM SX Eagle 12-speed 11-50T
Crank
SRAM X1 34T
Bottom Bracket
Bosch
Chain
SRAM SX Eagle 12-speed
Pedals
Wellgo Alloy Platform
Wheels
Front Hub
Alloy Disc 15 mm Thru
Rear Hub
Alloy 32H, 148 mm Thru
Rims
Co-op Alloy Double-wall, tubeless-ready
Tires
XS: Kenda Nevegal e-bike tires, folding, 60 tpi, tubeless-ready, 27.5 x 2.6 in., S: Kenda Nevegal e-bike tires, folding, 60 tpi, tubeless-ready, 27.5 x 2.6 in., M: Kenda Nevegal e-bike tires, folding, 60 tpi, tubeless-ready, 29 x 2.6 in., L: Kenda Nevegal e-bike tires, folding, 60 tpi, tubeless-ready, 29 x 2.6 in., XL: Kenda Nevegal e-bike tires, folding, 60 tpi, tubeless-ready, 29 x 2.6 in.
Brakes
Brakes
Tektro 4-Piston Hydraulic Hydraulic Disc Brake
Brake Levers
Tektro Hydraulic
Cockpit
Stem
31.8 mm forged aluminum 4-bolt
Handlebar
Co-op Riser, 15 mm rise, 9 degree sweep
Headset
FSA Orbit 1-1/8"/1-1/2"
Seat
Saddle
Co-op Steel rail saddle
Seatpost
X Fusion Manic Dropper with remote, size-specific travel
Motor & Battery
Motor
Bosch Performance Line CX, the smart system
Battery
625 watt hours
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.43 mm | 1.41 mm | 1.34 mm | 1.3 mm |
| Rake | 37 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Stack | 595.4 mm | 600.8 mm | 627.3 mm | 627.3 mm | 641 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469.5 mm | 494 mm |
| Top Tube Length | 525.4 mm | 552 mm | 585.2 mm | 614.4 mm | 645.1 mm |
| Seat Tube Angle | 77.7 ° | 77.6 ° | 77.4 ° | 77.1 ° | 76.9 ° |
| Seat Tube Length | 360 mm | 380 mm | 395 mm | 410 mm | 450 mm |
| Head Tube Angle | 65 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 427 mm | 427 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1131 mm | 1146 mm | 1192 mm | 1223 mm | 1256 mm |
| Standover Height | 754 mm | 759 mm | 773 mm | 780 mm | 808 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
Model Overview
DRT e3.1 completes the Coop E Drt model. There is 1 e-bike that carries this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Doing a quick comparison, we notice that DRT e3.1 price is 48.56% more expensive than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.95 kg (55.01 lbs), the DRT e3.1 model is a bit heavier than average. In other words, this model is 5.27% heavier than the average Trail e-bike.
Overview of components
Fork
The DRT e3.1 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The DRT e3.1 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Co-op DRT e3.1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 152 cm – 190 cm (4.99 ft – 6.23 ft). In short, you can easily find one that suits you.
Dropper post
Co-op DRT e3.1 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
