coop Co-op REV 16 2024

2024 Youth
Estimate price | 249$
Weight | 7.94 kg
Open compare Use advisor

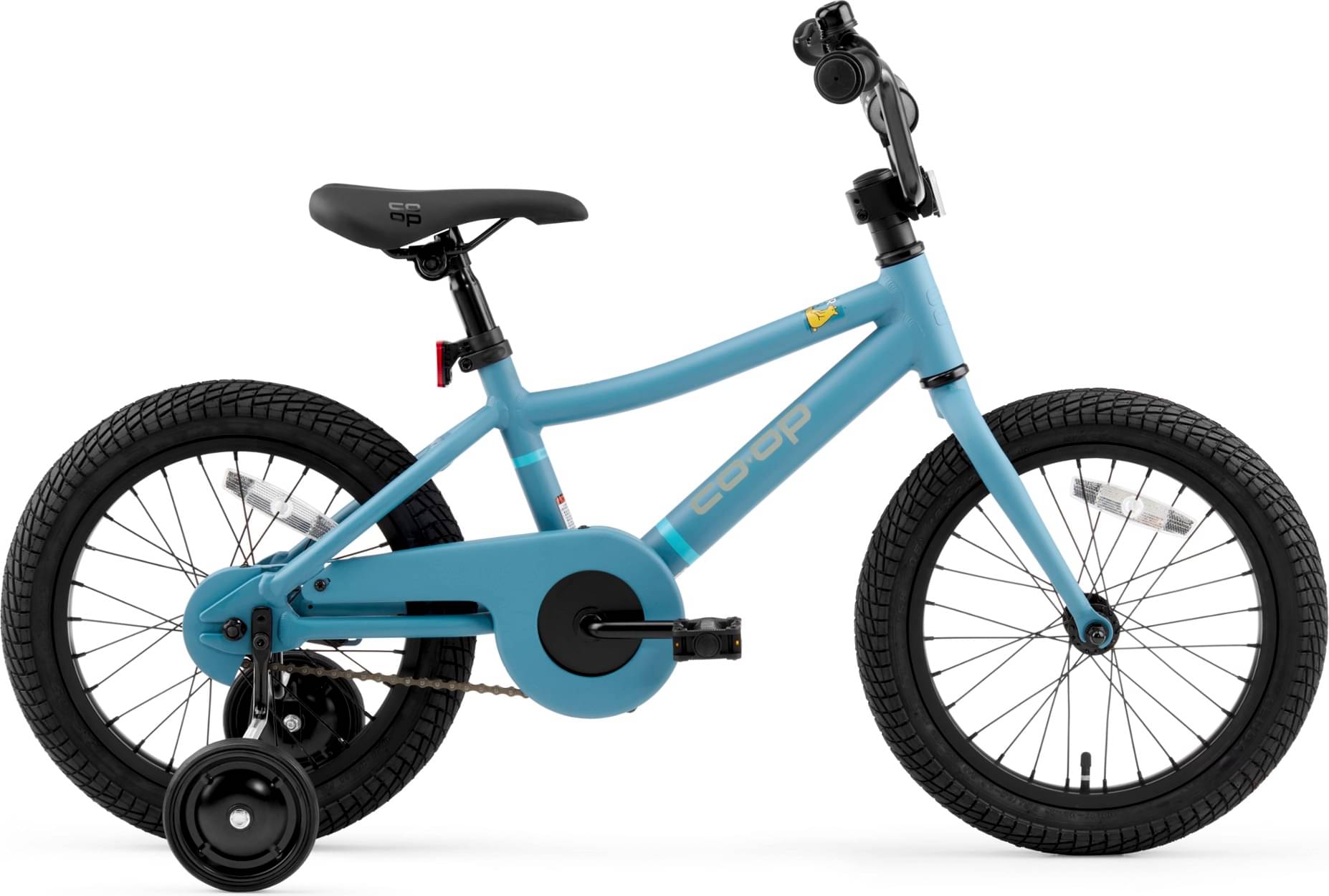

  • Co-op REV 16 2024 - Surfs Up

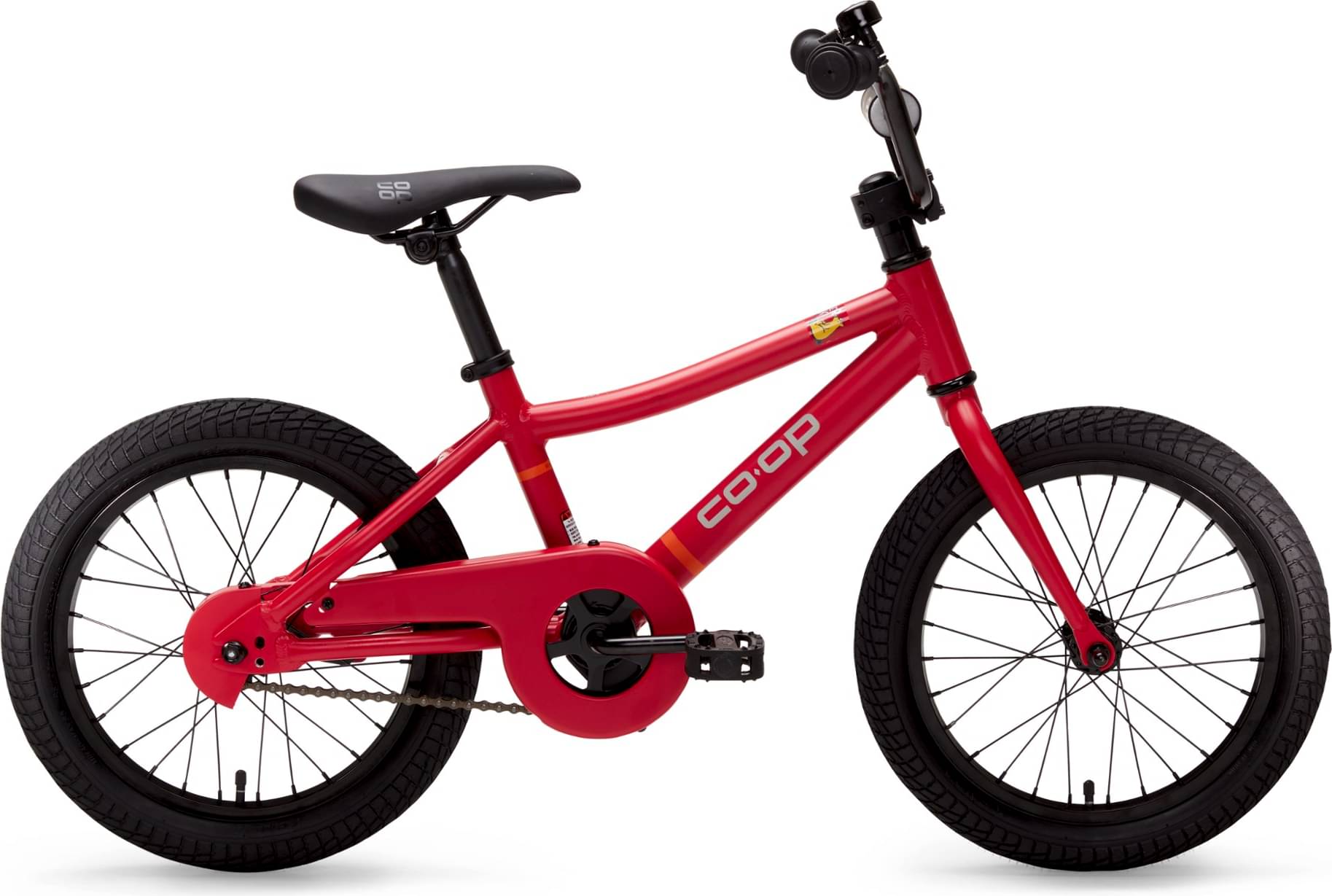

  • Co-op REV 16 2024 - Catch Up

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Suspension Rigid
  • Brakes Coaster

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

6061 aluminum single-speed frame

Suspension Fork

Steel

Drivetrain

Crank

1-piece crank

Bottom Bracket

Steel loose ball

Chain

KMC steel

Pedals

Wellgo composite platform

Wheels

Front Hub

Joytech, 28h, nutted

Rear Hub

KT, 28h, nutted

Rims

Alloy

Tires

Kenda Kontact 16 x 1.75 in.

Brakes

Brakes

Rear coaster Coaster

Cockpit

Stem

Steel BMX style

Handlebar

Steel riser bar with padded crossbar

Headset

1-1/8 in. threadless steel

Seat

Saddle

Co-op cycles

Seatpost

Steel

Fit data

Geometry

Numbers for sizing and ride feel.

Size16"
Stack Reach Ratio
1.174 mm
Rake
45 mm
Stack
311 mm
Reach
265 mm
Top Tube Length
384 mm
Seat Tube Angle
60 °
Seat Tube Length
250 mm
Head Tube Angle
70 °
Chainstay Length
305 mm
Wheelbase
732 mm
Standover Height
447 mm
Wheels16"
