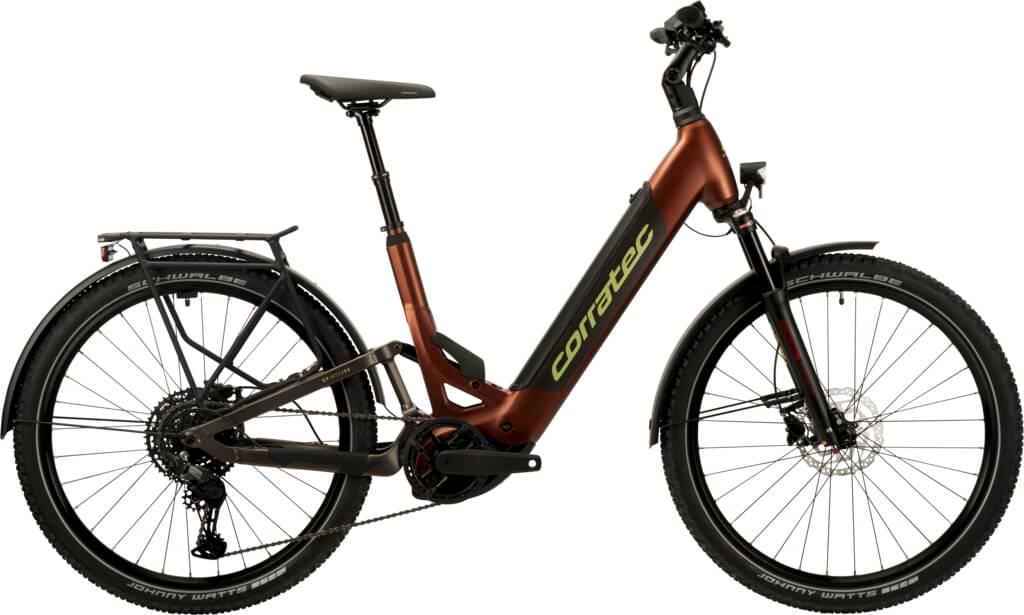

corratec E-Power MTC 100 Wave CX6 2025
2025 E-bike
Estimate price |
5,816$
Weight | 27.45 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 600 Horizontal -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR MOBIE25 AIR LOR DS 27.5" 15x100mm 100mm
Drivetrain
Shift Levers
SHIMANO SL-U6000-10R CUES 10-SPEED
Cassette
SHIMANO CS-LG300-10 CUES 11-48T 10-SPEED
Crank
MIRANDA DM CF3D 38T w/guard
Chain
SHIMANO CN-LG500 LINKGLIDE 9/10/11 SPEED
Wheels
Rims
584-27 15x100 / 12x148 Center Lock
Tires
SCHWALBE JOHNNY WATTS 60-584
Brakes
Brakes
SHIMANO MT200 180mm
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 75/90mm ICR SP Connect
Handlebar
ALLOY 31.8 720mm 9 Deg Backsweep
Seat
Saddle
SELLE ROYAL ESSENZA Lady
Seatpost
KINDSHOCK RAGEi 30.9 100/125mm WESTY REMOTE
Motor & Battery
Motor
Bosch Performance Line CX Smart System BDU38
Battery
Bosch PowerTube 600 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | MD | SM |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
