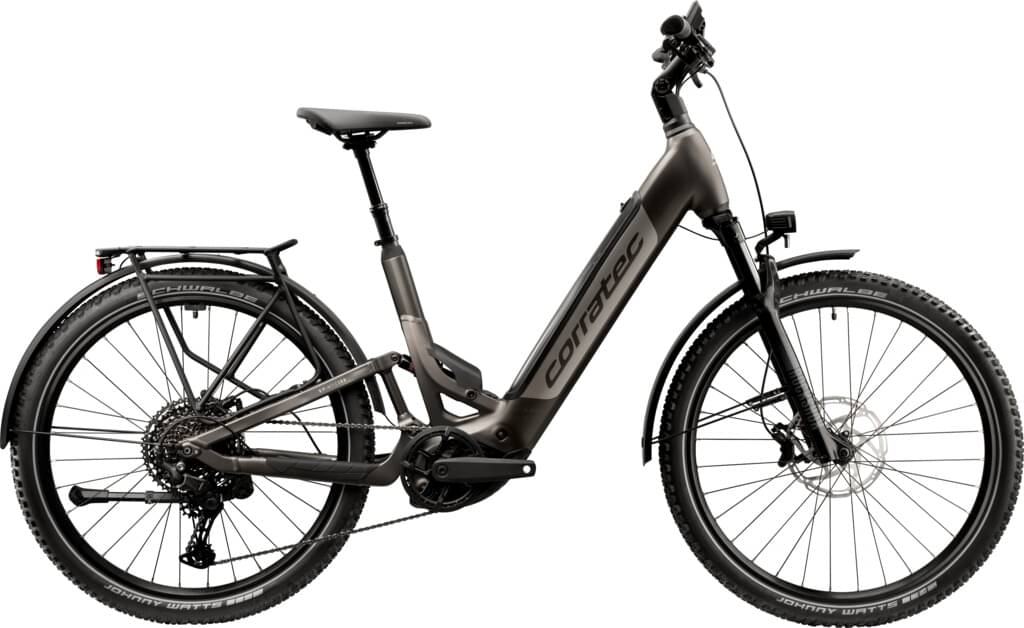

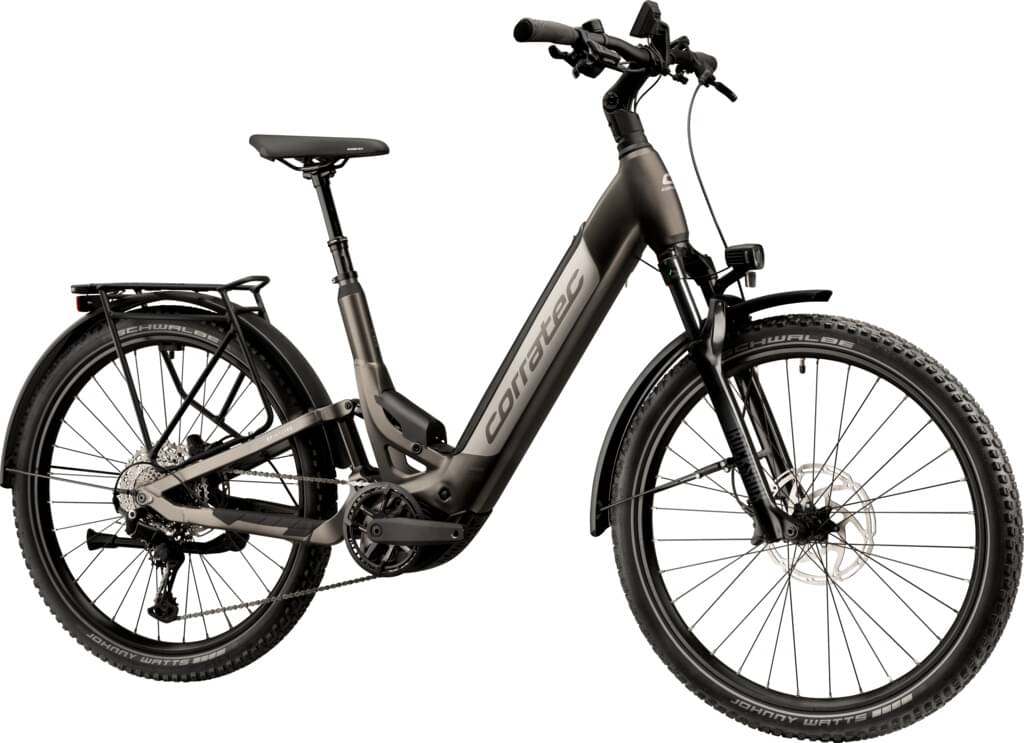

corratec E-Power MTC 100 Wave CX8 2025
2025 E-bike
Estimate price |
6,514$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 Horizontal -
Drivetrain 1 × 11 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
ROCK SHOX RECON SILVER RL 29" 15x110mm 100mm
Drivetrain
Shift Levers
SHIMANO SL-U6000-11R CUES 11-SPEED
Cassette
SHIMANO CS-LG400-11 CUES 11-SPEED 11-50T
Crank
MIRANDA DM CF3D 38T w/guard
Chain
SHIMANO CN-LG500 LINKGLIDE 9/10/11 SPEED
Wheels
Rims
584-27 15x110 / 12x148 Center Lock
Tires
SCHWALBE JOHNNY WATTS 60-584
Brakes
Brakes
TEKTRO HD M535 4/4 Piston 203mm
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 75/90mm ICR SP Connect
Handlebar
ALLOY 31.8 720mm 9 Deg Backsweep
Seat
Saddle
SELLE ROYAL ESSENZA Lady
Seatpost
KINDSHOCK RAGEi 30.9 100/125mm WESTY REMOTE
Motor & Battery
Motor
Bosch Performance Line CX Smart System BDU38
Battery
Bosch PowerTube 800 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | MD | SM |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
