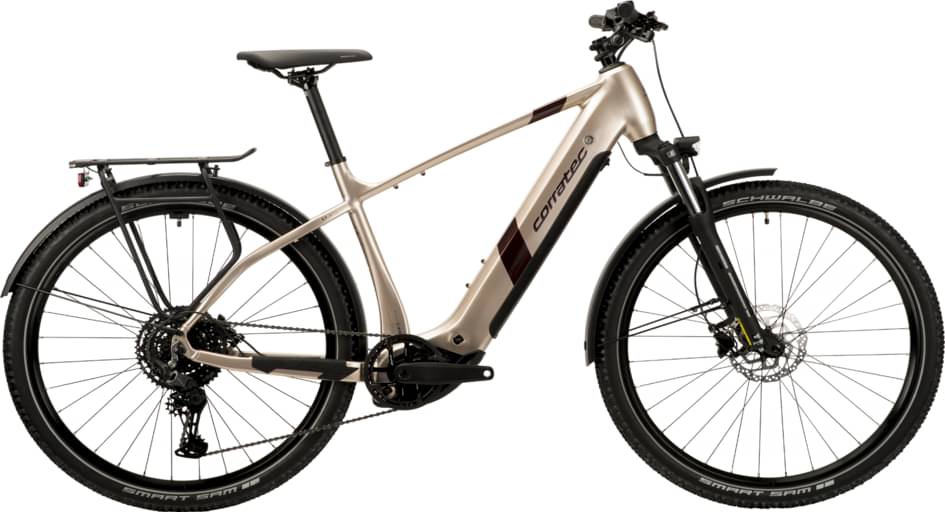

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH PowerPack Frame 600 EU , Energy: 625 wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec EP MTC 29“ Trapez Aluminium 10x135mm
Suspension Fork
SR SUNTOUR XCM32 29“ 15x110 100mm
Drivetrain
Rear Derailleur
SHIMANO RD-U6000 CUES GS 10-SPEED
Shift Levers
SHIMANO SL-U6000-10R CUES 10-SPEED
Cassette
SHIMANO CS-LG300-10 CUES 10-SPEED 11-48T
Crank
MIRANDA DM CF3D 38T w/guard
Chain
SHIMANO CN-LG500 LINKGLIDE 9/10/11 SPEED
Wheels
Rims
622-23 15x110 Center Lock front , 622-23 10x135mm Center Lock rear
Tires
SCHWALBE; SMART SAM 57-622 front , SCHWALBE; SMART SAM 57-622 rear
Brakes
Brakes
Shimano MT200 front , Shimano MT200 rear
Cockpit
Stem
ALLOY 0-60 Deg ADJUSTABLE 31.8 75/105mm
Handlebar
ALLOY 31.8 720mm 10 Deg Backsweep
Seat
Saddle
SELLE ROYAL ESSENZA Gent
Seatpost
TWIN BOLT ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
BOSCH PowerPack Frame 600 EU , Energy: 625 wh
