Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

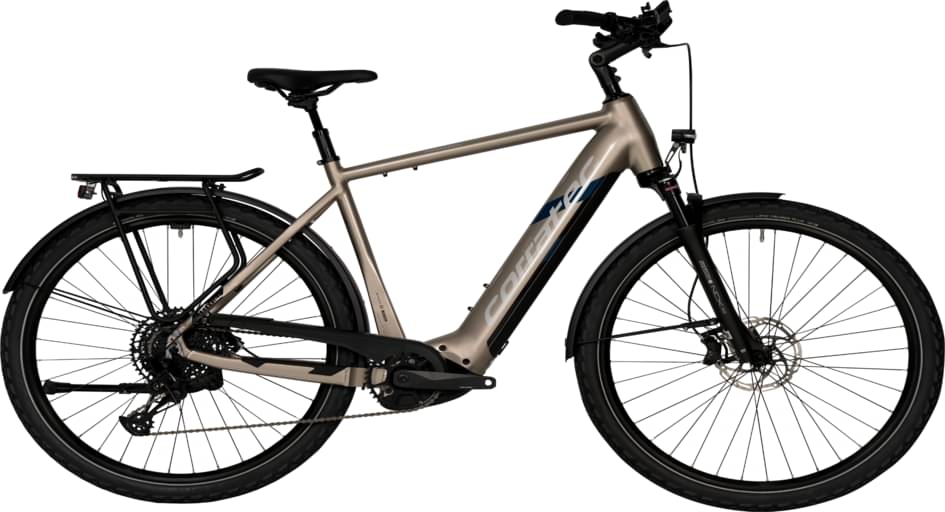

Corratec EP Trekking 28 CX Belt Gent Aluminium 10x135mm
Suspension Fork
SR SUNTOUR NVX32 DS 29“ 15x110mm 80mm
Drivetrain
Rear Derailleur
SHIMANO RD-U6020-10 CUES SGS 10-SPEED
Shift Levers
SHIMANO SL-U6000-10R CUES 10-SPEED
Cassette
SHIMANO CS-LG300-10 CUES 10-SPEED 11-39T
Crank
MIRANDA DM CF3D 38T
Chain
SHIMANO CN-LG500 LINKGLIDE 9/10/11 SPEED
Wheels
Rims
622-27 15x110 Center Lock front , 622-27 10x135mm Center Lock rear
Tires
SCHWALBE ENERGIZER ACTIVE PLUS 55-622 front , SCHWALBE ENERGIZER ACTIVE PLUS 55-622 rear
Brakes
Brakes
Shimano MT200 front , Shimano MT200 rear
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 90/105mm ICR SP Connect
Handlebar
ALLOY 31.8mm 660mm 29 Deg Backsweep
Seat
Saddle
SELLE ROYAL ESSENZA Gent
Seatpost
SUSPENSION ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
