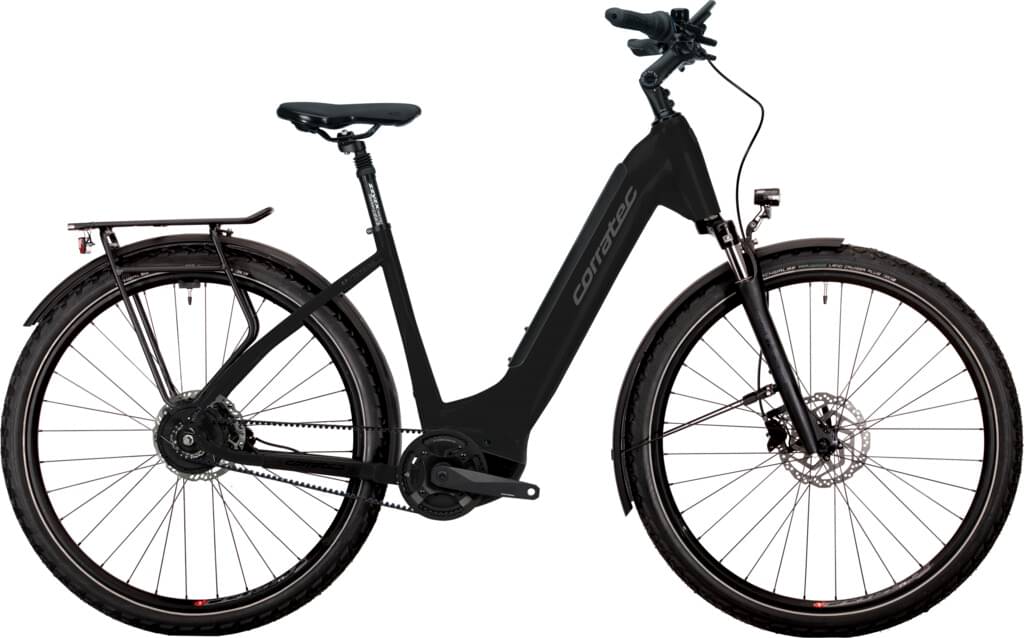

corratec E-Power Trekking 28 CX8 Belt Wave 2025
2025 E-bike
Estimate price |
6,165$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 80mm -
Fork Suntour NX 1
-
Groupset Gates -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 Horizontal -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NX1 AIR LO DS 29" 15x110mm 80mm
Drivetrain
Shift Levers
ENVIOLO MANUAL CONTROLLER TWIST PURE
Cassette
GATES 22T
Crank
GATES 46T
Chain
GATES carbon drive belt 122T
Wheels
Rims
622-27 15x110 / 10x135mm 6-Bolt
Tires
SCHWALBE ENERGIZER ACTIVE PLUS 55-622
Brakes
Brakes
TEKTRO HD M535 4/4 Piston 180mm
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 90/105mm ICR SP Connect
Handlebar
ALLOY 31.8mm 660mm 29 Deg Backsweep
Seat
Saddle
SELLE ROYAL ESSENZA Lady
Seatpost
SUSPENSION ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System BDU38
Battery
Bosch PowerTube 800 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
