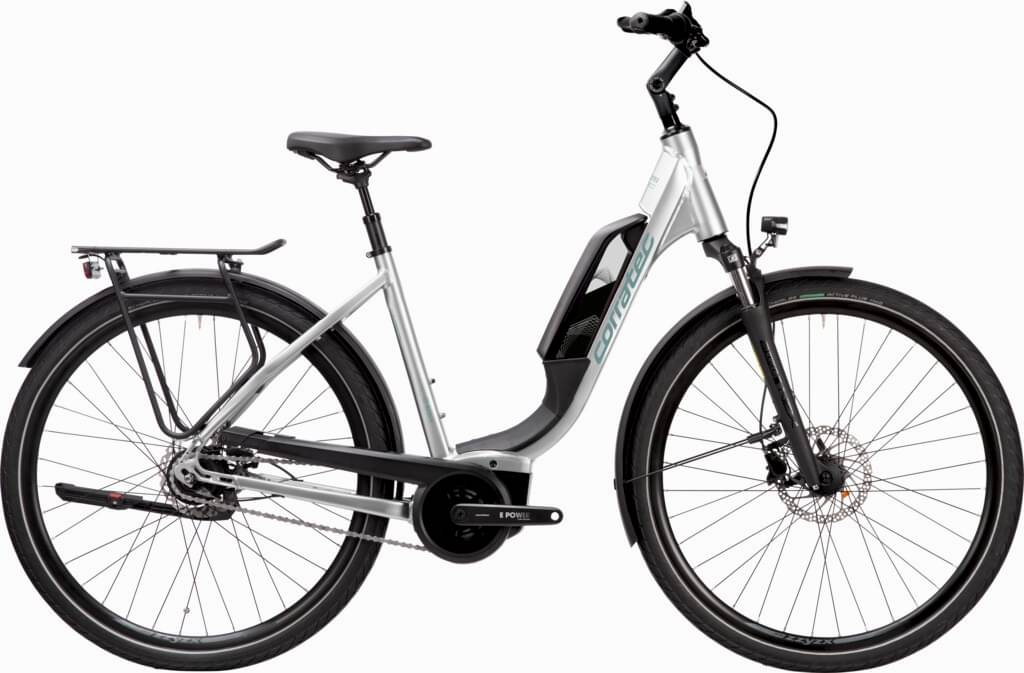

corratec E-Power Urban 28 AP5 10S Wave 2025
2025 E-bike
Estimate price |
3,954$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerPack 545 Frame -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX E25 DS 700C 9x100mm 63mm
Drivetrain
Shift Levers
SRAM SX EAGLE SINGLE CLICK TRIGGER 12-SPEED
Cassette
SRAM PG1210 EAGLE 11-50T 12-SPEED
Crank
SRAM X-SYNC 38T Chainring
Chain
SRAM SX EAGLE
Wheels
Rims
622-25 9x100 / 10x135mm Center Lock
Tires
SCHWALBE ENERGIZER ACTIVE PLUS 50-622
Brakes
Brakes
SHIMANO MT200 180mm
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 90/105mm
Handlebar
ALLOY 31.8mm 640mm 29 Deg Backsweep
Seat
Saddle
SELLE ROYAL ORBIS
Seatpost
SUSPENSION ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Active Line Plus Smart System
Battery
Bosch PowerPack 545 Frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
