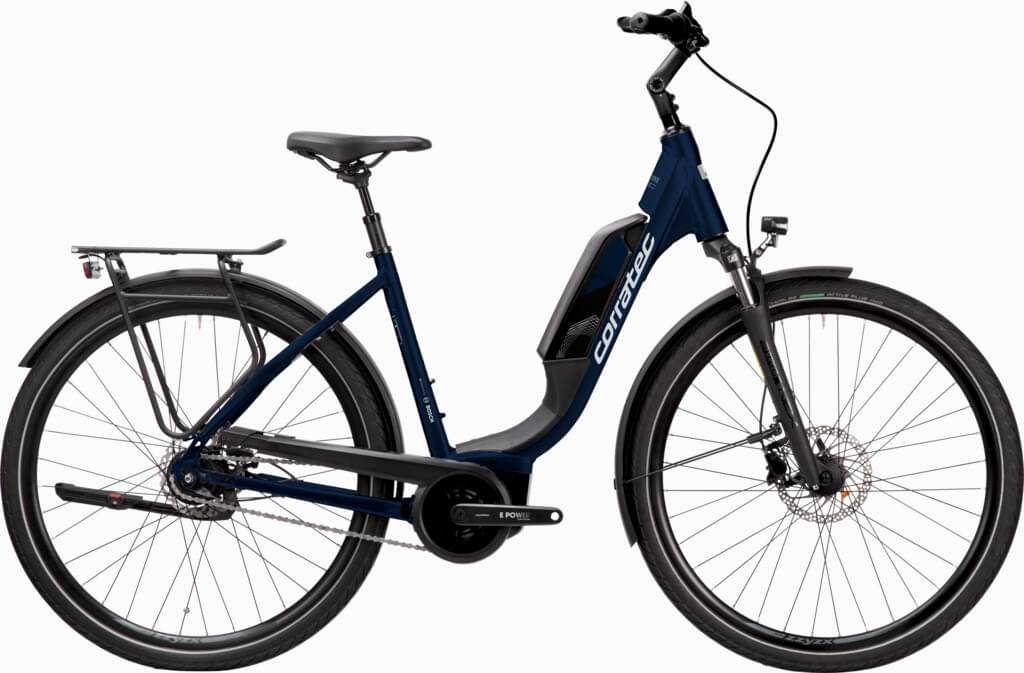

corratec E-Power Urban 28 AP5 8SC Wave 2025
2025 E-bike
Estimate price |
3,898$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerPack 545 Frame -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX E25 DS 700C 9x100mm 63mm
Drivetrain
Shift Levers
SHIMANO SL-C6000-8, NEXUS, REVO SHIFTER
Cassette
SHIMANO 19T
Crank
MIRANDA 38T Chainring
Chain
KMC Z1 Narrow EPT
Wheels
Rims
622-23 9x100 Centerlock / 10x135mm 5-Bolt
Tires
SCHWALBE ENERGIZER ACTIVE PLUS 50-622
Brakes
Brakes
SHIMANO MT200 180mm
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 90/105mm
Handlebar
ALLOY 31.8mm 640mm 29 Deg Backsweep
Seat
Saddle
SELLE ROYAL ORBIS
Seatpost
SUSPENSION ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Active Line Plus Smart System
Battery
Bosch PowerPack 545 Frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
