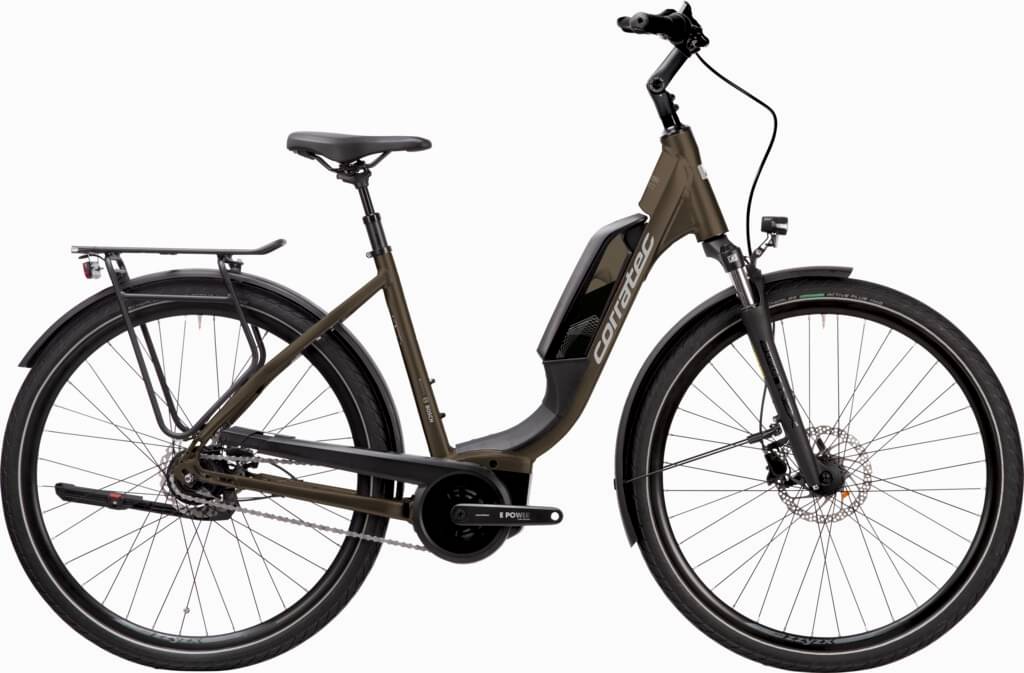

corratec E-Power Urban 28 Fusion Tube AP5 8S 2024
2024 E-bike
Estimate price |
3,954$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor hub-drive -
Battery Power Pack 545 Frame -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR NEX E25 DS 700C 9x100mm 63mm
Drivetrain
Shift Levers
SHIMANO SL-C6000-8, NEXUS, REVO SHIFTER
Cassette
SHIMANO Nexus 19T 8s
Crank
ZZYZX E-Power Crank 38T
Chain
KMC Z1 Narrow EPT
Wheels
Rims
622-25 9x100 / 10x135mm Center Lock
Tires
SCHWALBE ENERGIZER ACTIVE PLUS 622-50
Brakes
Brakes
SHIMANO MT200 180
Cockpit
Stem
ALLOY 0-90 Deg ADJUSTABLE 31.8 90mm
Handlebar
ALLOY 31.8mm 660mm 29 Deg Backsweep
Seat
Saddle
SELLE ROYAL ORBIS
Seatpost
SUSPENSION ALLOY 30.9x350mm
Motor & Battery
Motor
Active Line Plus Smart System
Battery
Power Pack 545 Frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
