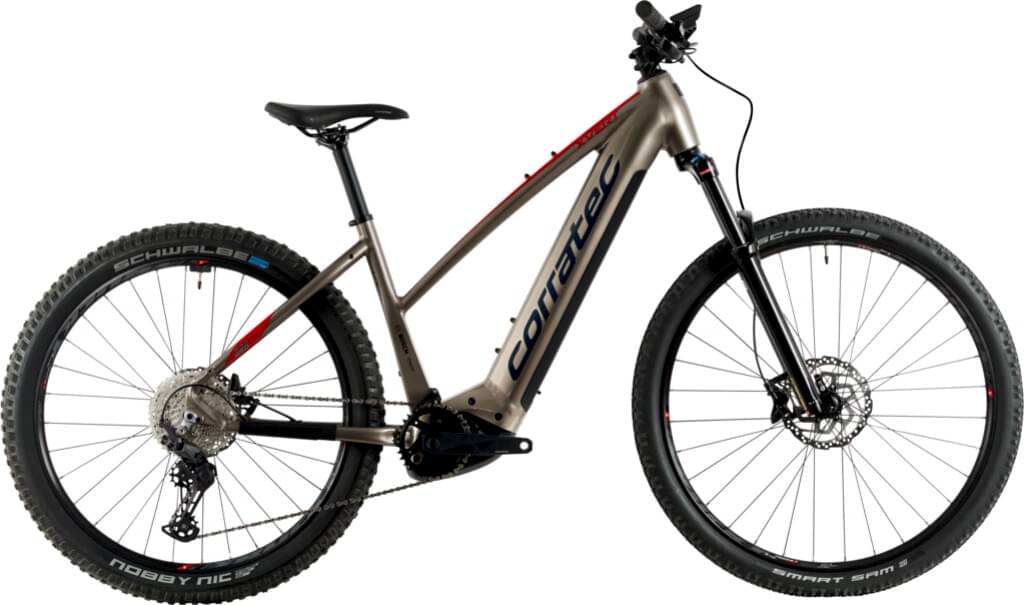

corratec E-Power X-Vert LTD Sport 2025
2025 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset SLX -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 750 Horizontal -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR RAIDON34 29" 15x110 120mm
Drivetrain
Shift Levers
SHIMANO SL-M7100-R SLX RIGHT 12-SPEED
Cassette
SHIMANO CS-M7100-12 SLX 12-SPEED 10-51T
Crank
MIRANDA DM CF3D 34T
Chain
SHIMANO CN-M6100 HG 12-SPEED
Wheels
Rims
622-27 15x110 / 12x148 Centerlock
Tires
SCHWALBE SMART SAM 60-622
Brakes
Brakes
SHIMANO MT420 / MT410 4/2 Piston 180mm
Cockpit
Stem
ALLOY 31.8 80mm
Handlebar
ALLOY 31.8 760mm 20mm Rise 9 Deg Backsweep
Seat
Saddle
SELLE ROYAL VIVO Lady
Seatpost
TWIN BOLT ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch PowerTube 750 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm | 57cm |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
