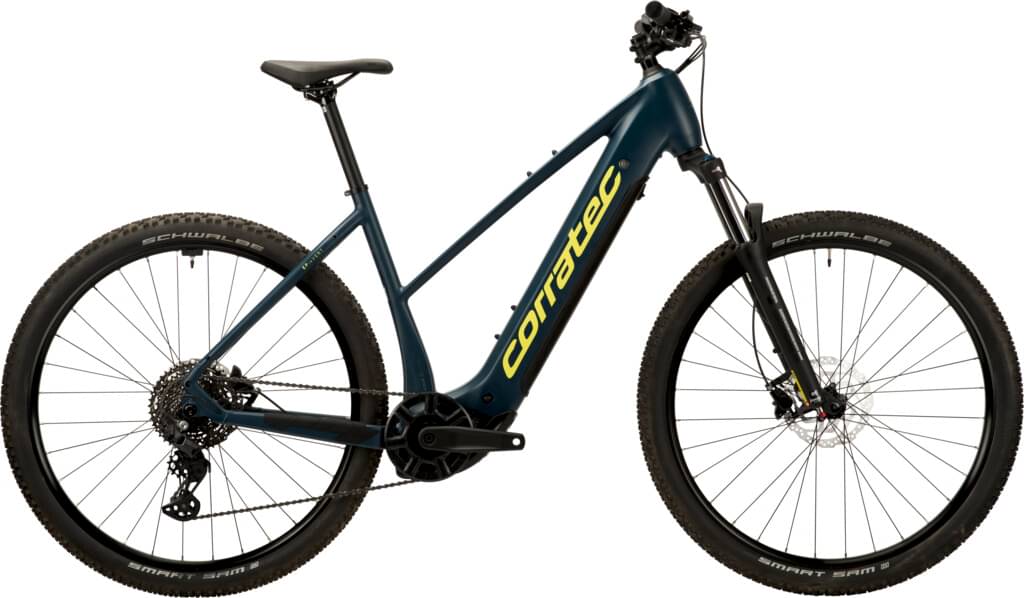

corratec E-Power X-Vert Race Sport 2025
2025 E-bike
Estimate price |
4,420$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 600 Horizontal -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR SUNTOUR XCM34 LOR DS 29" 15x110mm 120mm
Drivetrain
Shift Levers
SHIMANO SL-M5130-R DEORE 10-SPEED
Cassette
SHIMANO CS-LG400-10 CUES 10-SPEED 11-43T
Crank
MIRANDA DM CF3D 38T w/guard
Chain
SHIMANO CN-LG500 LINKGLIDE 9/10/11 SPEED
Wheels
Rims
622-30 15x110 / 12x148 Centerlock
Tires
SCHWALBE SMART SAM 60-622
Brakes
Brakes
SHIMANO MT200 180mm
Cockpit
Stem
ALLOY 35.0 50mm 0 Deg
Handlebar
ALLOY 35.0 760mm 20mm Rise 9 Deg Backsweep
Seat
Saddle
SELLE ITALIA; VIVO Women
Seatpost
TWIN BOLT ALLOY 30.9x350mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System BDU38
Battery
Bosch PowerTube 600 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
