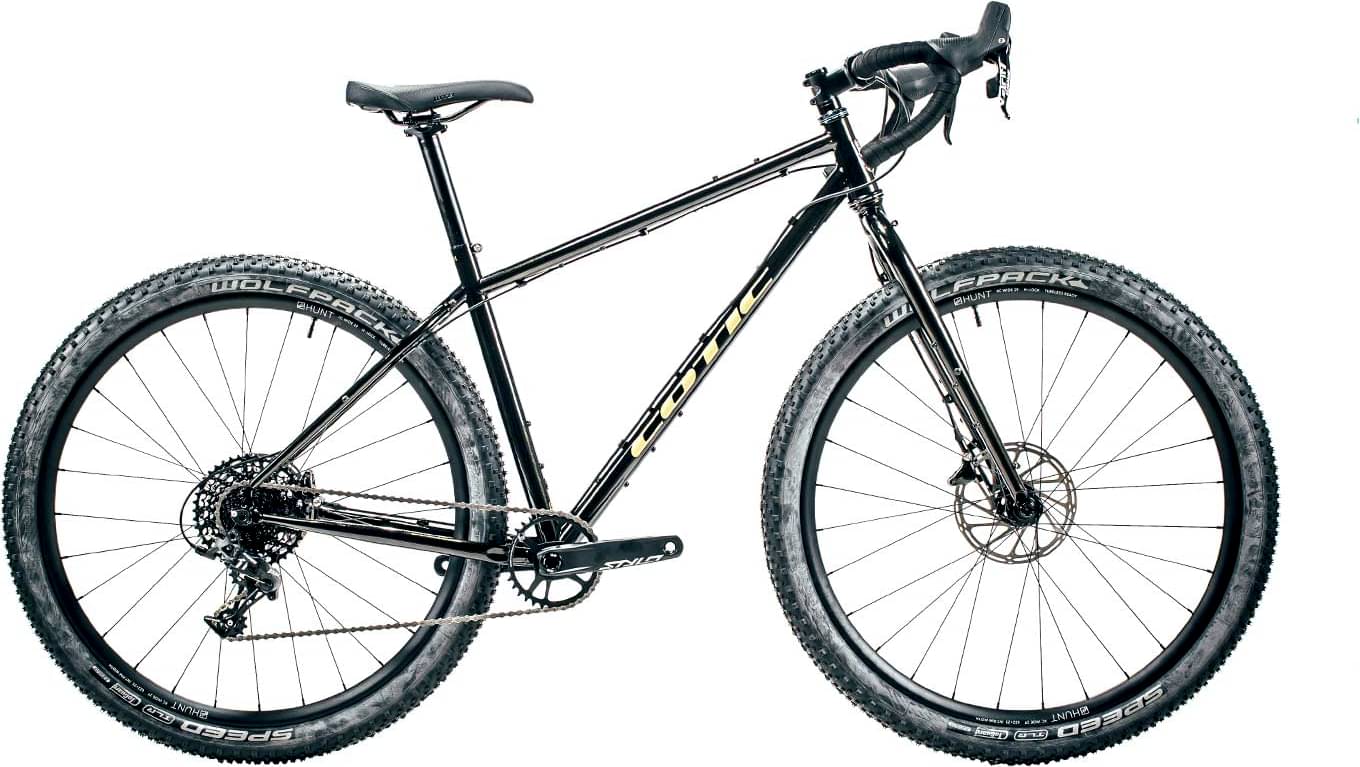

Cotic Cascade Drop Bar Bronze SRAM Apex 1×11 2024
2024 Road
Estimate price |
2,708$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 174cm
MD
172cm - 180cm
LG
178cm - 188cm
XL
186cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Apex 1x11, 11-42 Cassette, Hydraulic Disc Brakes
Bottom Bracket
SRAM DUB BB for DUB Cranks - BBDUB5000
Wheels
Rims
HUNT XC Wide 29 HG
Tires
Wolfpack Cross 29x2.4
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Cotic 60mm Stem, 31.8 Clamp
Handlebar
Cotic Valley Bars - 46cm Alu Flared Drop
Headset
Cane Creek Headset 40 Series EC34/EC44
Seat
Seatpost
CC Alu 31.6 350mm seatpost for Cascade
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.515 mm | 1.465 mm | 1.421 mm |
| Front Center | 663 mm | 680 mm | 707 mm | 733 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 85 mm | 79 mm | 78 mm | 79 mm |
| Stack | 604 mm | 621 mm | 633 mm | 645 mm |
| Reach | 388 mm | 410 mm | 432 mm | 454 mm |
| Top Tube Length | 561 mm | 588 mm | 613 mm | 639 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 435 mm | 470 mm | 505 mm | 540 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 113 mm | 126 mm | 139 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1092 mm | 1109 mm | 1136 mm | 1162 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 172 cm | 178 cm | 186 cm |
| Rider Max Height | 174 cm | 180 cm | 188 cm | 195 cm |
