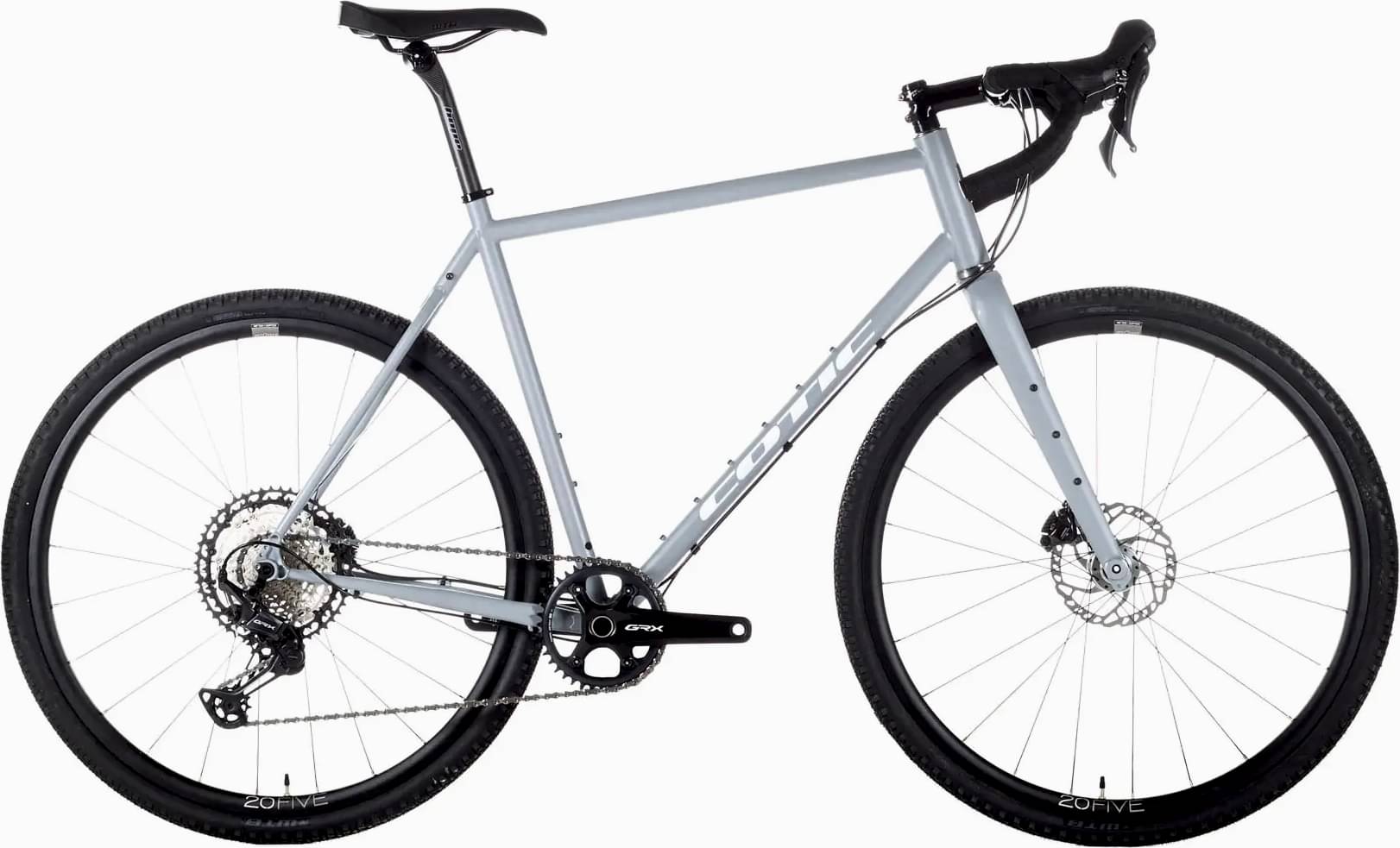

Cotic EscapadeUK853 Silver 1×11 Shimano GRX800 2024
2024 Road
Estimate price |
4,402$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
173cm - 181cm
LG
179cm - 191cm
XL
183cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
Shimano GRX800 1x11, 40t Chainset, 11-46 Cassette, Hydraulic Disc Brakes
Bottom Bracket
Ultegra BBR60 Bottom Bracket
Wheels
Rims
Cotic hubs on Deep Section Disc rims
Tires
WTB Raddler 700 x 40c Blackwall Tubeless Ready
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Cotic 100mm x 6deg Stem
Handlebar
Cotic Valley Bars - 46cm Alu Flared Drop
Headset
Cane Creek Headset 40 Series ZS44/EC44
Seat
Seatpost
CC Alu 330mm seatpost 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.524 mm | 1.514 mm | 1.506 mm | 1.504 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 584 mm | 596 mm | 620 mm | 641 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 70 mm | 66 mm | 66 mm |
| Stack | 564 mm | 580 mm | 598 mm | 618 mm |
| Reach | 370 mm | 383 mm | 397 mm | 411 mm |
| Top Tube Length | 537 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 121 mm | 136 mm | 156 mm | 176 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 999 mm | 1011 mm | 1035 mm | 1056 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 173 cm | 179 cm | 183 cm |
| Rider Max Height | 175 cm | 181 cm | 191 cm | 196 cm |
