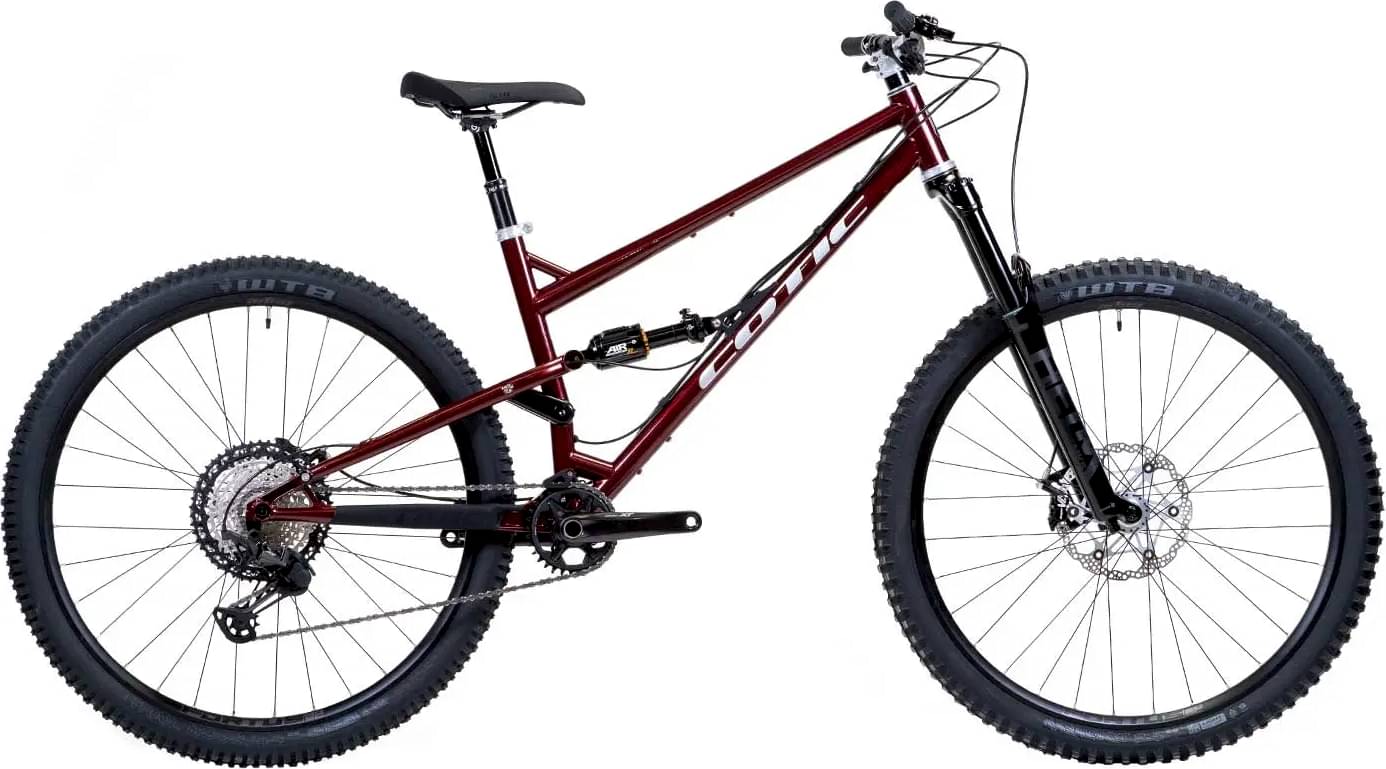

Cotic Jeht Trail / Gold XT RockShox 2024
2024 Mountain
Estimate price |
7,721$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Lyrik D1 29 Ultimate Charger 3 RC2 Gloss Black - 150mm
Rear Shock
Rockshox Super Deluxe Ultimate RC2T MY23 210x55
Drivetrain
Rear Derailleur
XT M8100 1x12 Drivetrain
Cassette
XT 12spd 10-51 Cassette
Crank
XT M8100 Chainset with 32t chainring
Bottom Bracket
Shimano MT801 XT Bottom Bracket
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 / Trail Boss 2.4 Light Slashguard with tubeless kit
Brakes
Brakes
Pair of Shimano rotors 203/203 6bolt
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Hope 2H for tapered steerer (black)
Seat
Seatpost
SDG Tellis V2 31.6 Seatpost 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.368 mm | 1.33 mm | 1.297 mm | 1.25 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 782 mm | 799 mm | 822 mm | 846 mm | 865 mm |
| Rake | 50 mm | 46 mm | 44 mm | 45 mm | 45 mm |
| Trail | 123 mm | 128 mm | 130 mm | 129 mm | 129 mm |
| Stack | 623 mm | 632 mm | 641 mm | 650 | 650 |
| Reach | 444 mm | 462 mm | 482 mm | 501 mm | 520 mm |
| Top Tube Length | 597 mm | 619 mm | 637 mm | 658 mm | 677 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1228 mm | 1245 mm | 1268 mm | 1292 mm | 1311 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
