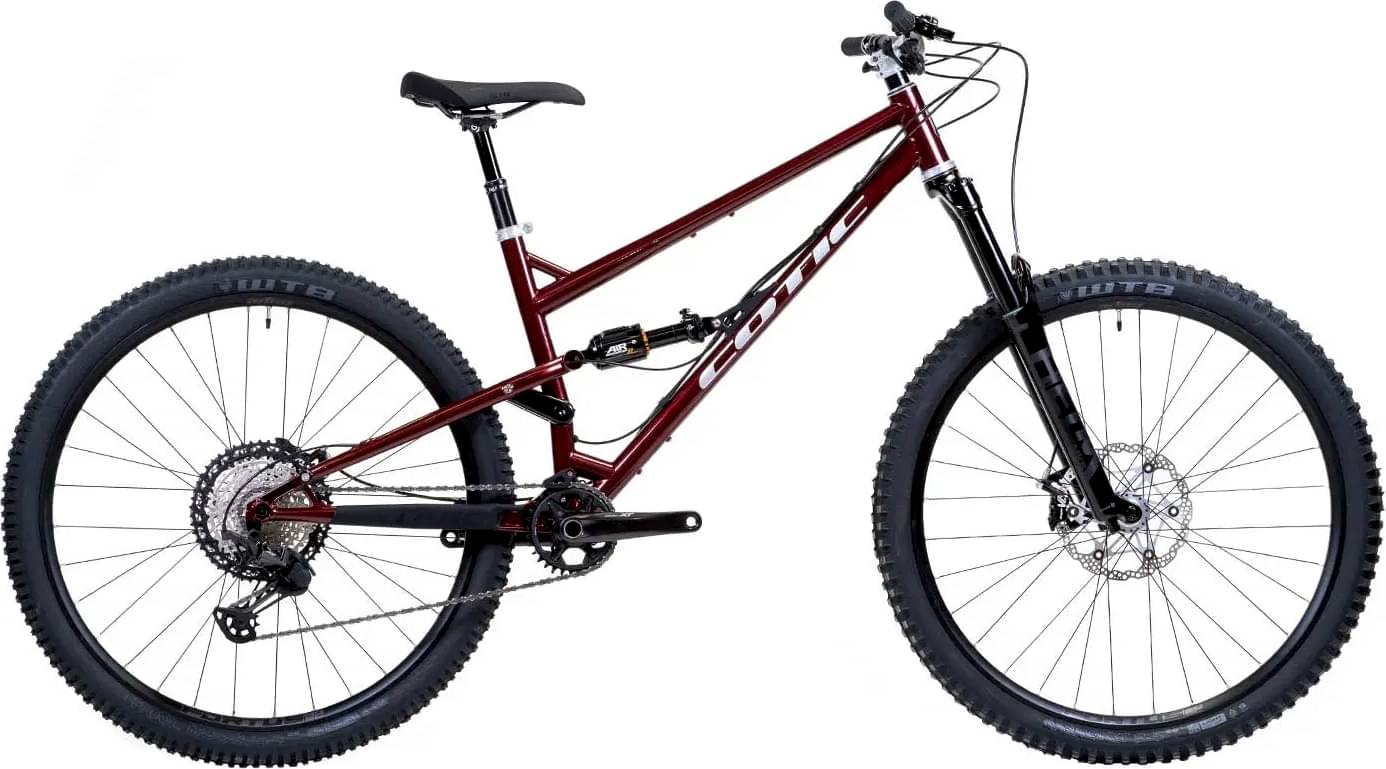

Cotic Jeht Trail / Works XTR 2024
2024 Mountain
Estimate price |
10,228$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik
-
Groupset XTR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Lyrik D1 29 Ultimate Charger 3 RC2 Gloss Black - 150mm
Rear Shock
Fox Float X Factory 2pos-adj 210 x 55
Drivetrain
Rear Derailleur
XTR M9100 1x12 Drivetrain
Cassette
Garbaruk 12spd 10-52 Cassette
Crank
Cane Creek eeWings ti chainset 170mm + Garbaruk Shimano Chainring
Bottom Bracket
Enduro Bearings Stainless Steel Maxhit 30mm Bottom Bracket
Wheels
Rims
Hope Fortus30 Single Cavity 29 Microspline (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 / Trail Boss 2.4 Light Slashguard with tubeless kit
Brakes
Brakes
Hope standard (non-floating) rotors 203/180 6bolt
Cockpit
Stem
Hope Gravity 35mm Stem 31.8mm Clamp (black)
Handlebar
Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp
Headset
Enduro Bearings Stainless Steel Maxhit Headset
Seat
Seatpost
SDG Tellis V2 31.6 Seatpost 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.368 mm | 1.33 mm | 1.297 mm | 1.25 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 782 mm | 799 mm | 822 mm | 846 mm | 865 mm |
| Rake | 50 mm | 46 mm | 44 mm | 45 mm | 45 mm |
| Trail | 123 mm | 128 mm | 130 mm | 129 mm | 129 mm |
| Stack | 623 mm | 632 mm | 641 mm | 650 | 650 |
| Reach | 444 mm | 462 mm | 482 mm | 501 mm | 520 mm |
| Top Tube Length | 597 mm | 619 mm | 637 mm | 658 mm | 677 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1228 mm | 1245 mm | 1268 mm | 1292 mm | 1311 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm | 33 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
