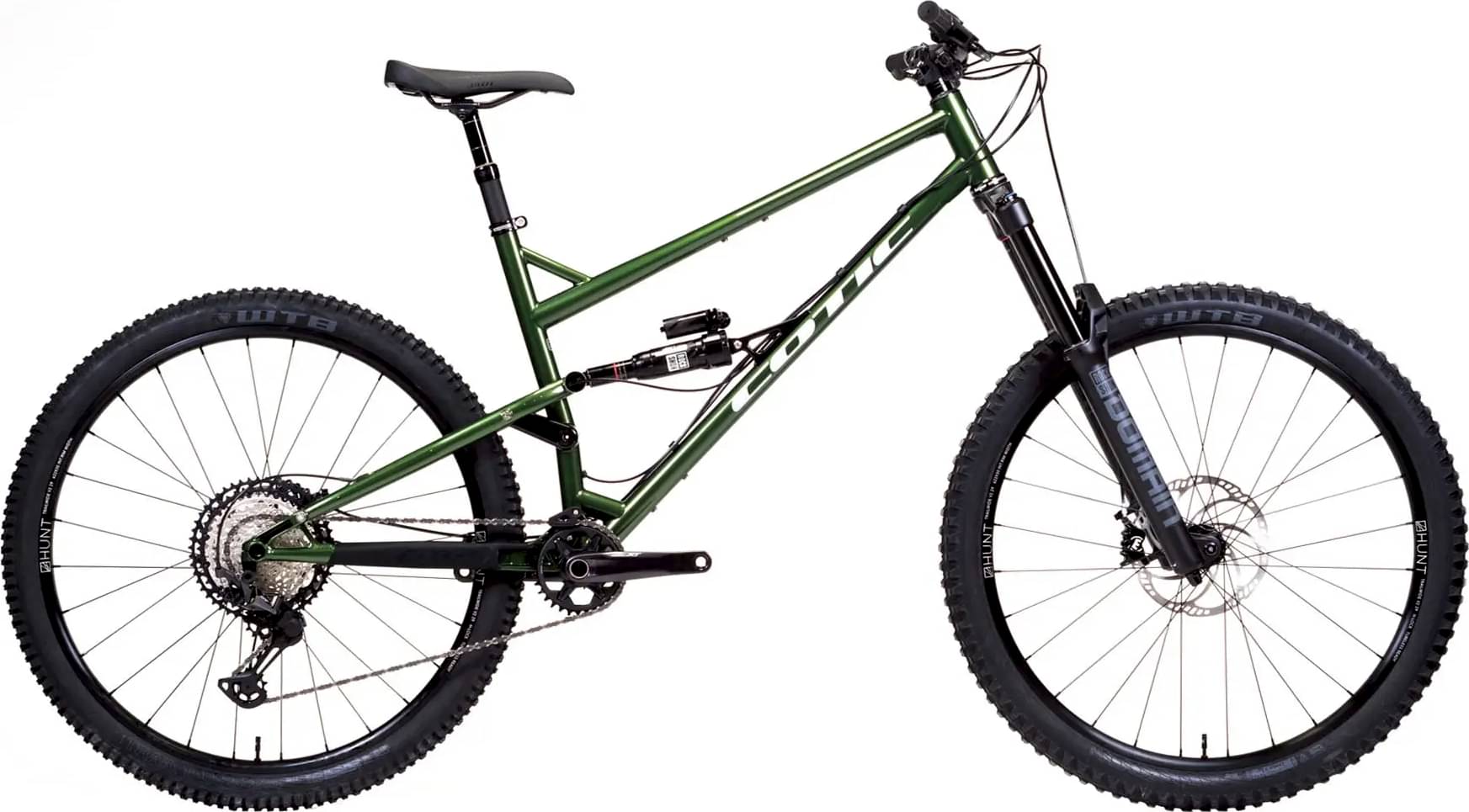

Cotic RocketMAX Enduro / Silver SLX 2024
2024 Mountain
Estimate price |
6,355$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Domain RC 29 Maxle Boost Black - 170mm
Rear Shock
160mm travel - Rockshox Super Deluxe Ultimate RC2T MY23 230x65
Drivetrain
Rear Derailleur
SLX M7100 1x12 Drivetrain
Cassette
SLX 12spd 10-51 Cassette
Crank
SLX 170mm M7100 Chainset with 32t chainring
Bottom Bracket
Shimano MT800 XT Bottom Bracket
Wheels
Rims
Shimano MT620 Wheels Boost 29 12spd
Tires
Michelin Wild Enduro Racing Line Front/Rear 29x2.4
Brakes
Brakes
Pair of Shimano rotors 203/203 centerlock
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Cane Creek Headset 40 Series ZS44/EC44
Seat
Seatpost
SDG Tellis V2 31.6 Seatpost 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.383 mm | 1.344 mm | 1.311 mm | 1.263 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 797 mm | 821 mm | 843 mm | 867 mm | 886 mm |
| Rake | 45 mm | 46 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 135 mm | 138 mm | 138 mm | 138 mm |
| Stack | 630 mm | 639 mm | 648 mm | 657 mm | 657 mm |
| Reach | 444 mm | 462 mm | 482 mm | 501 mm | 520 mm |
| Top Tube Length | 599 mm | 621 mm | 639 mm | 660 mm | 679 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1244 mm | 1268 mm | 1290 mm | 1314 mm | 1333 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
