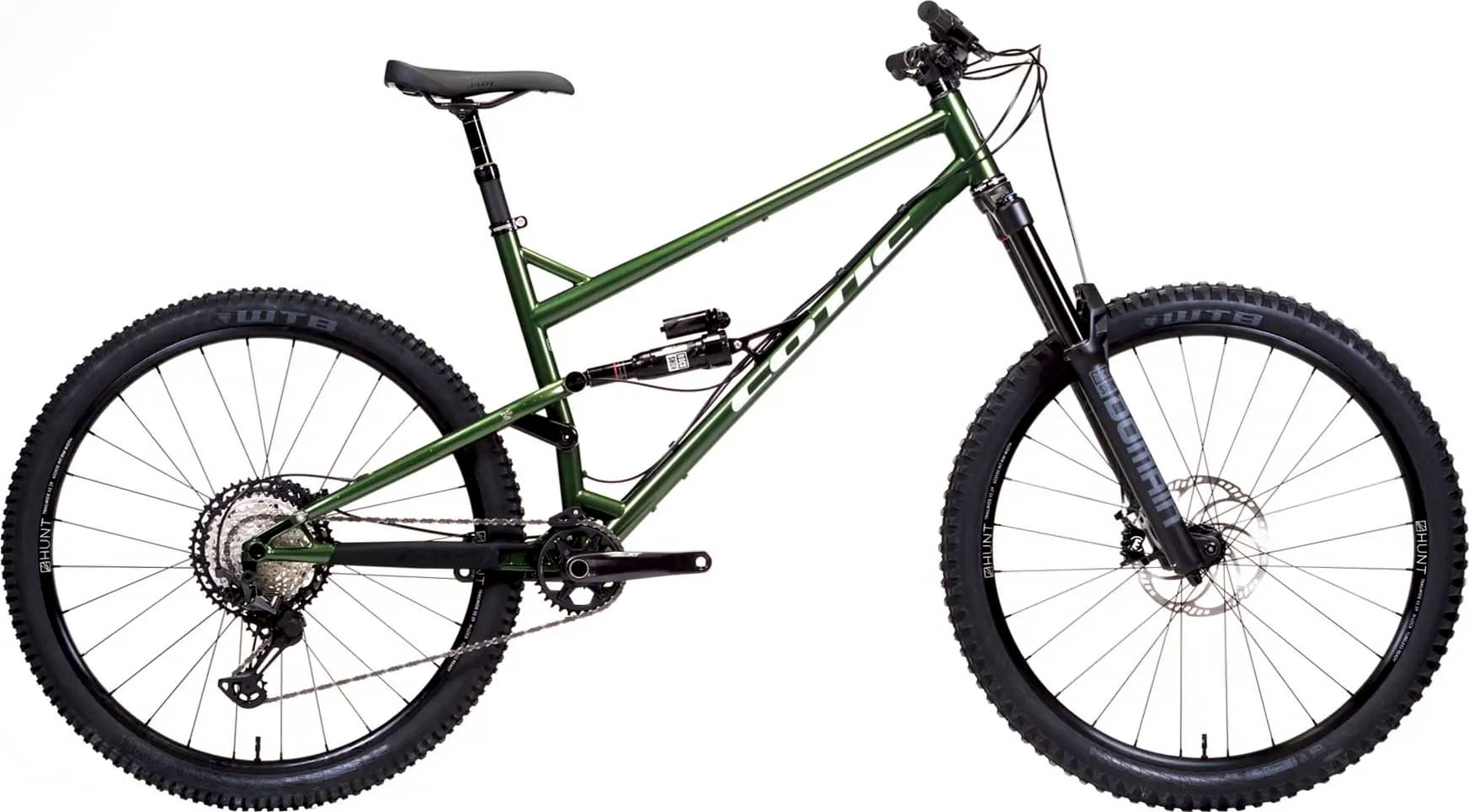

Cotic RocketMAX Mullet / Gold GX Eagle 2024
2024 Mountain
Estimate price |
7,816$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Zeb 29 Ultimate Charger 3 RC2 Gloss Black - 170mm
Rear Shock
160mm travel - Rockshox Super Deluxe Ultimate RC2T MY23 230x65
Drivetrain
Rear Derailleur
SRAM GX Eagle Lunar 1x12 Drivetrain
Cassette
EAGLE GX 12spd 10-52 Cassette
Bottom Bracket
SRAM DUB BB for DUB Cranks - BBDUB5000
Wheels
Rims
Hope Fortus30 Single Cavity Mullet XD driver (black Pro5 hubs)
Tires
WTB 29 Verdict 2.5 Slashguard and 275 Trail Boss 2.4 Tough Fast
Brakes
Brakes
Pair of SRAM Guide rotors 200/200 6bolt for Zeb forks
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Works 1 Degree EC44/EC44 Angle Headset for Mullet
Seat
Seatpost
SDG Tellis V2 31.6 Seatpost 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.435 mm | 1.387 mm | 1.352 mm | 1.301 mm |
| Front Center | 787 mm | 811 mm | 833 mm | 857 mm | 876 mm |
| Rake | 44 mm | 47 mm | 43 mm | 43 mm | 43 mm |
| Trail | 138 mm | 134 mm | 139 mm | 139 mm | 139 mm |
| Stack | 638 mm | 647 mm | 656 mm | 665 mm | 665 mm |
| Reach | 435 mm | 451 mm | 473 mm | 492 mm | 511 mm |
| Top Tube Length | 599 mm | 621 mm | 639 mm | 660 mm | 679 mm |
| Seat Tube Angle | 74.8 ° | 74.8 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 496 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1233 mm | 1257 mm | 1279 mm | 1303 mm | 1322 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
