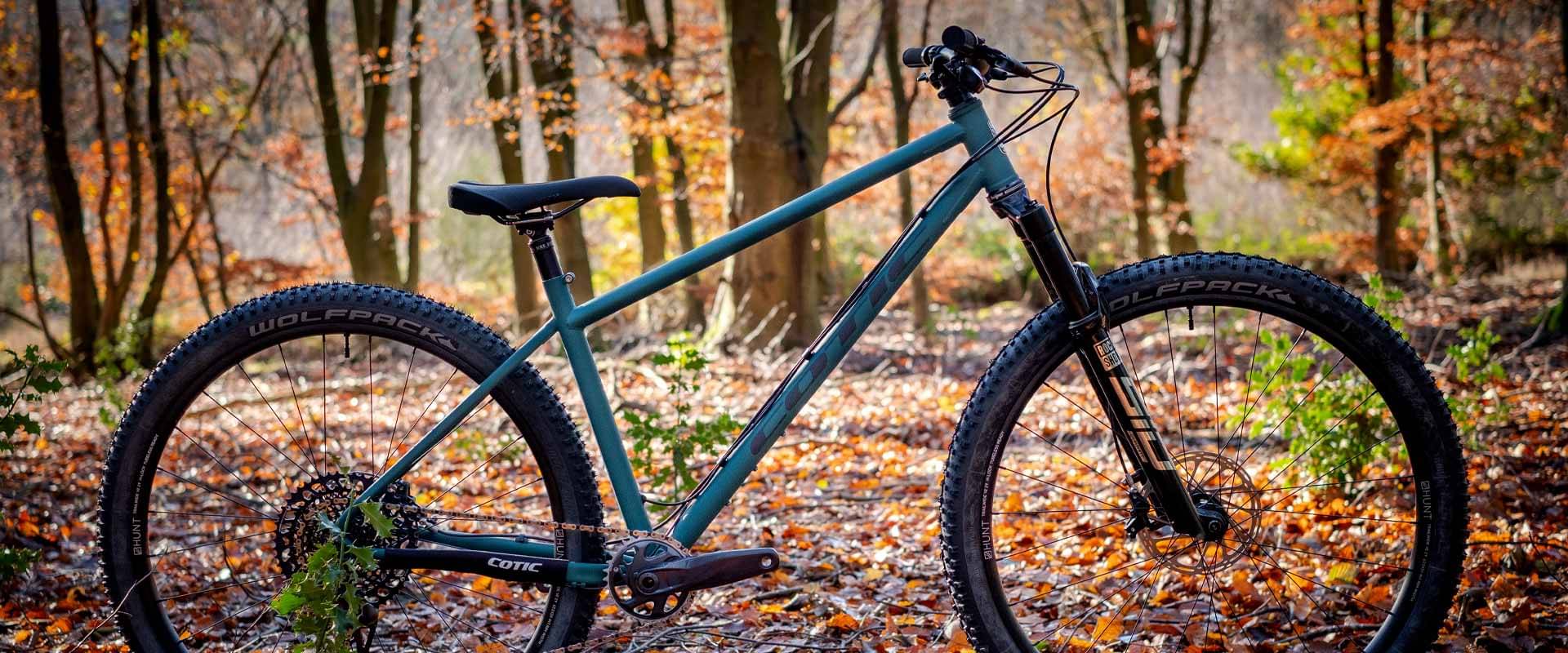

Cotic Solaris Downcountry / Silver SLX 2024
2024 Mountain
Estimate price |
4,415$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rockshox Revelation RC - 120mm (with Motion Control)
Drivetrain
Rear Derailleur
SLX M7100 1x12 Drivetrain
Cassette
SLX 12spd 10-51 Cassette
Crank
SLX 170mm M7100 Chainset with 32t chainring
Bottom Bracket
Shimano MT800 XT Bottom Bracket
Wheels
Rims
Hunt XC Wide 29 Microspline
Tires
Maxxis EXO Forekaster + Rekon 29x2.4 MaxxTerra
Brakes
Brakes
Pair of Shimano rotors 180/180 6bolt for Solaris
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Cane Creek Headset 40 Series ZS44/EC44
Seat
Seatpost
CC Alu 31.6 350mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.36 mm | 1.329 mm | 1.299 mm | 1.253 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 731 mm | 753 mm | 775 mm | 797 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 611 mm | 620 mm | 630 mm | 639 mm | 639 mm |
| Reach | 438 mm | 456 mm | 474 mm | 492 mm | 510 mm |
| Top Tube Length | 602 mm | 622 mm | 643 mm | 663 mm | 681 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1166 mm | 1188 mm | 1210 mm | 1232 mm | 1250 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
