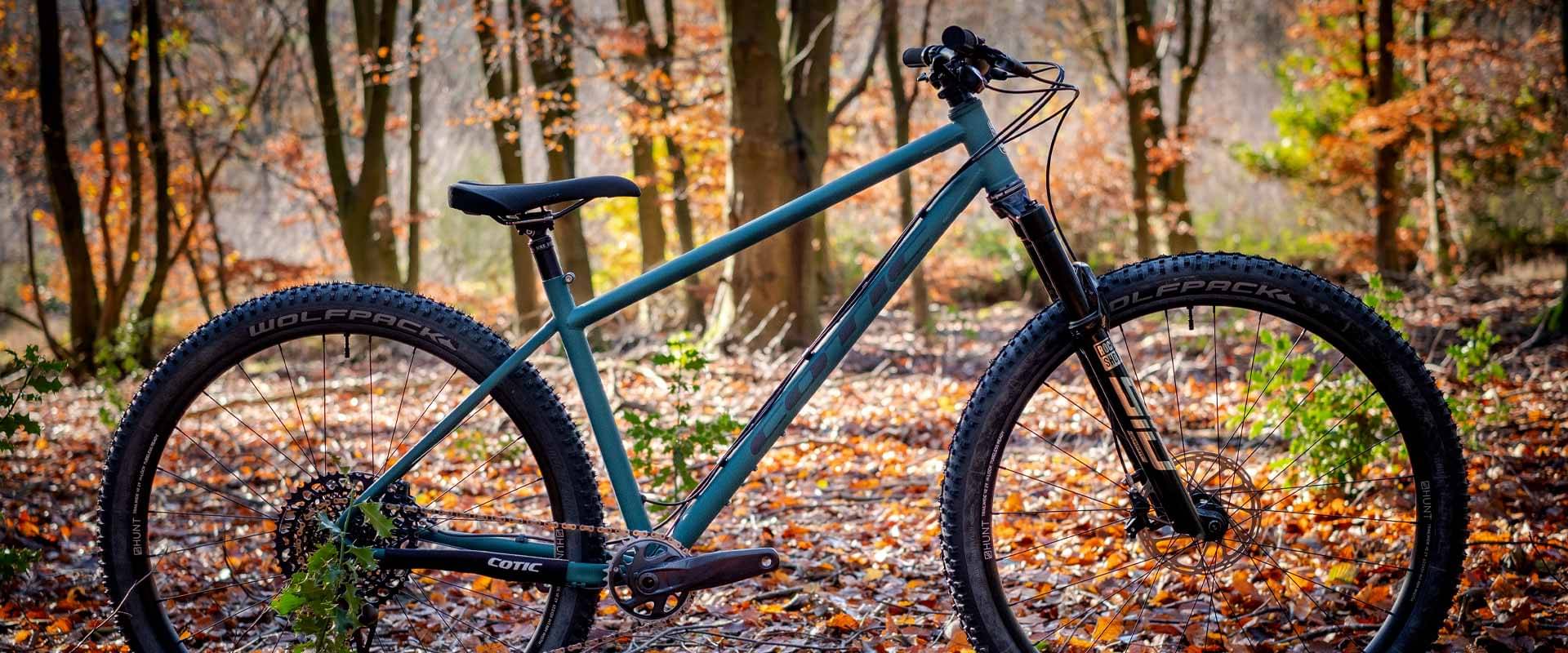

Cotic Solaris Trail / Silver SLX 2024
2024 Mountain
Estimate price |
4,402$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
C1
162cm - 172cm
C2
170cm - 178cm
C3
176cm - 184cm
C4
182cm - 190cm
C5
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rockshox Revelation RC - 130mm (with Motion Control)
Drivetrain
Rear Derailleur
SLX M7100 1x12 Drivetrain
Cassette
SLX 12spd 10-51 Cassette
Crank
SLX 170mm M7100 Chainset with 32t chainring
Bottom Bracket
Shimano MT800 XT Bottom Bracket
Wheels
Rims
Hunt Trail Wide 29 V2 Microspline
Tires
Maxxis EXO+ DHF 29x2.5 MaxxGrip DHRII 29x2.4 MaxxTerra
Brakes
Brakes
Pair of Shimano rotors 203/180 6bolt for Solaris
Cockpit
Stem
Cotic SHORTERSTEM - 35mm
Handlebar
Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black)
Headset
Cane Creek Headset 40 Series ZS44/EC44
Seat
Seatpost
CC Alu 31.6 350mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.381 mm | 1.349 mm | 1.318 mm | 1.271 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 735 mm | 757 mm | 779 mm | 801 mm | 819 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 615 mm | 624 mm | 634 mm | 643 mm | 643 mm |
| Reach | 434 mm | 452 mm | 470 mm | 488 mm | 506 mm |
| Top Tube Length | 604 mm | 624 mm | 645 mm | 665 mm | 683 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 390 mm | 417 mm | 444 mm | 471 mm | 495 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1171 mm | 1193 mm | 1215 mm | 1237 mm | 1255 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 176 cm | 182 cm | 184 cm |
| Rider Max Height | 172 cm | 178 cm | 184 cm | 190 cm | 195 cm |
