Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Nexus, Gates CDN -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
tig welded cromoly steel frame
Suspension Fork
aluminium fork 1 1/8", 12mm through axle
Drivetrain
Shift Levers
Shimano Nexus 8 speed trigger shifter
Crank
Gates, CDN aluminium, 170 mm, 46t Gates CDN ring
Bottom Bracket
square taper, 68mm shell
Pedals
FP 212
Wheels
Front Hub
Shimano Dynamo, centerlock, for 12mm through axle, 32H
Rear Hub

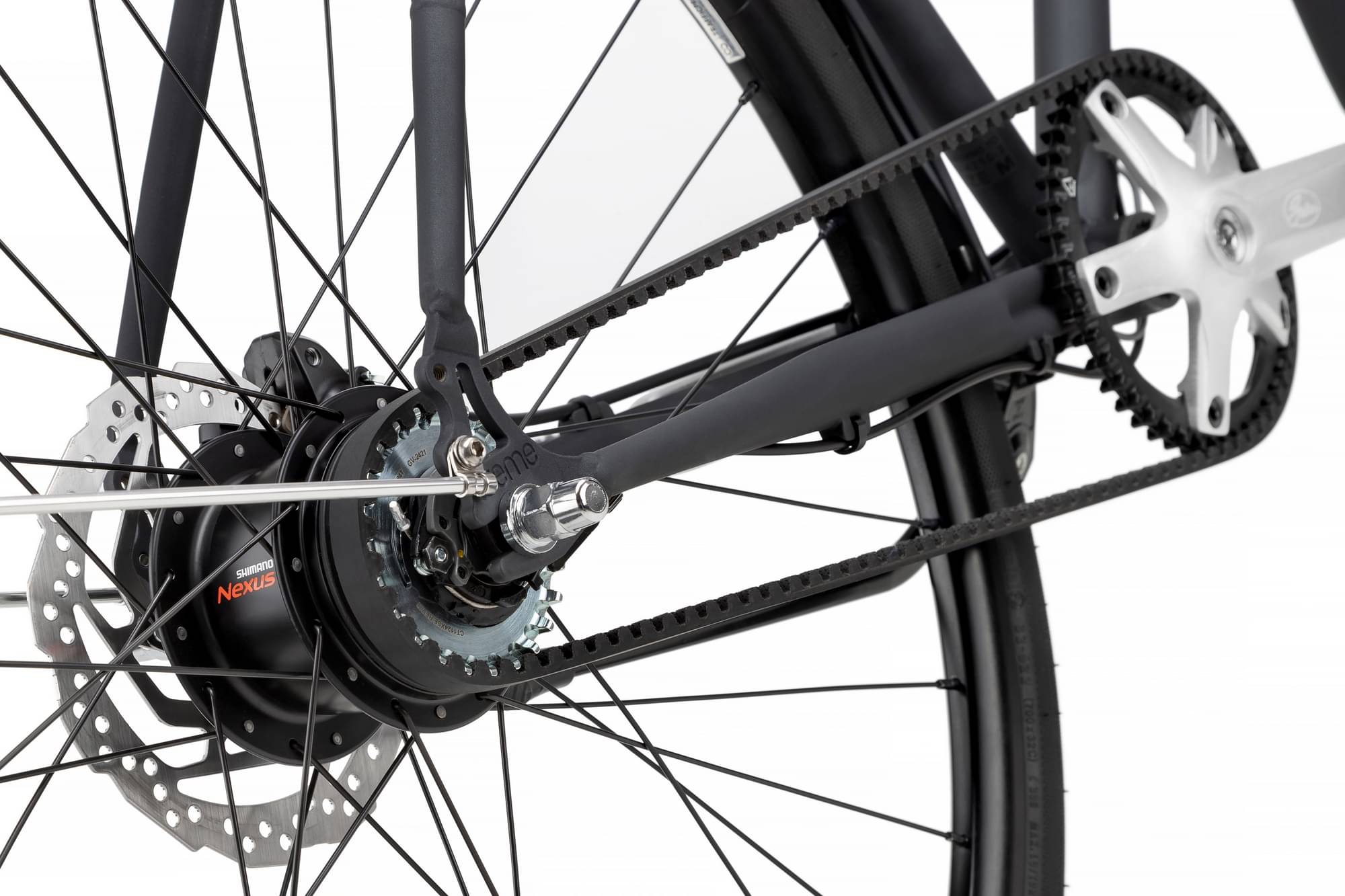

Shimano Nexus SG-C6001-8D, 8-speed hub, 32H, Gates CDN, 24t sprocket
Rims
disc brake, aluminium, double wall
Spokes
stainless steel
Tires
Continental Sport Contact 32-622, 700X32C
Brakes
Brakes
Shimano Mt-200 hydraulic disc brakes with 160 mm rotor
Cockpit

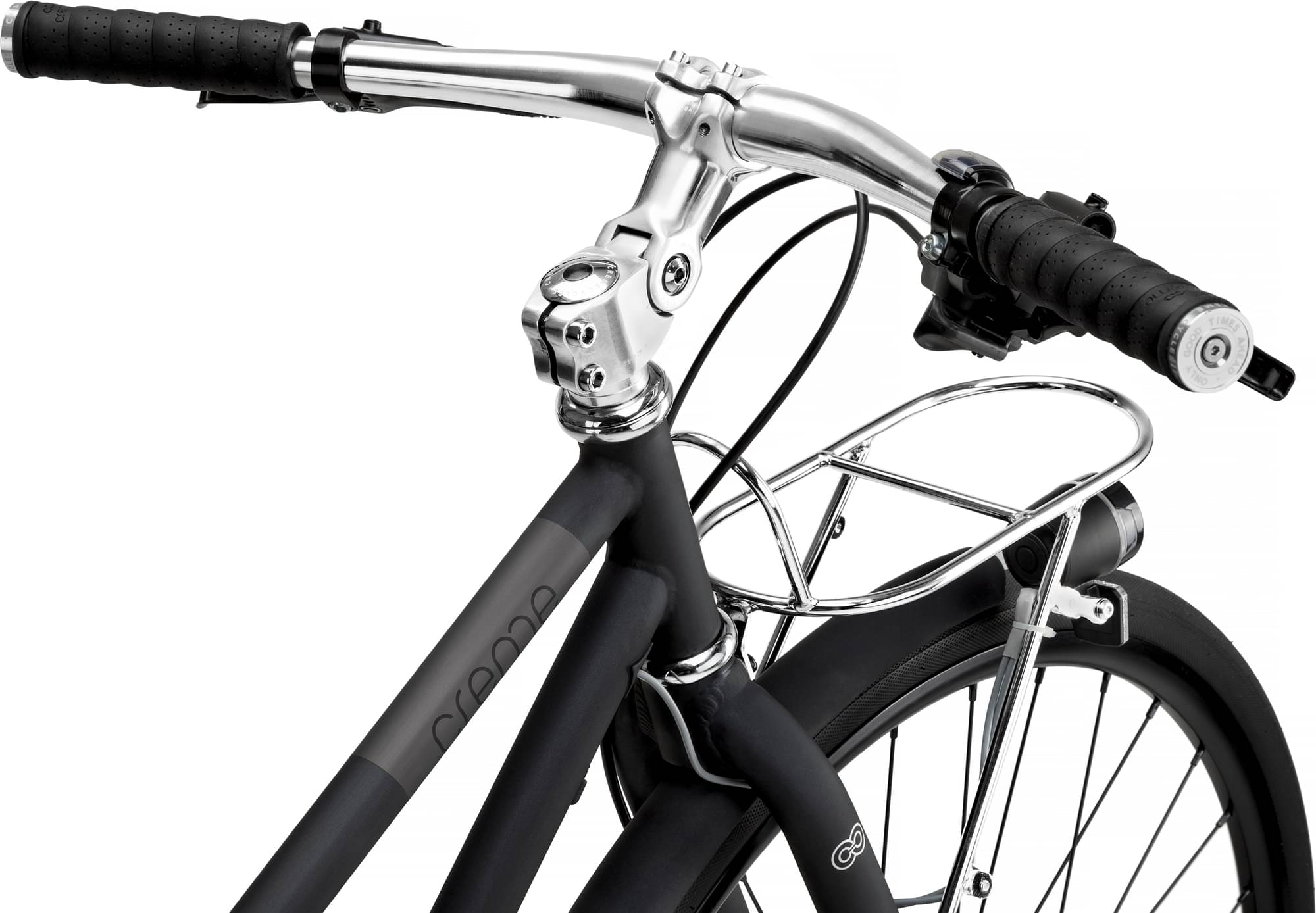

Stem
aluminium adjustable a-head stem, 90mm
Handlebar
“banana” type, aluminium, width
Grips
Creme Gummy Grips with alloy bar-ends
Headset
threadless 1 1 /8''
Seat
Saddle
Creme microsuede cover
Seatpost
aluminium, 26,6mm
Fit data
Geometry
