Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Nexus, Gates CDN -
Suspension Rigid -

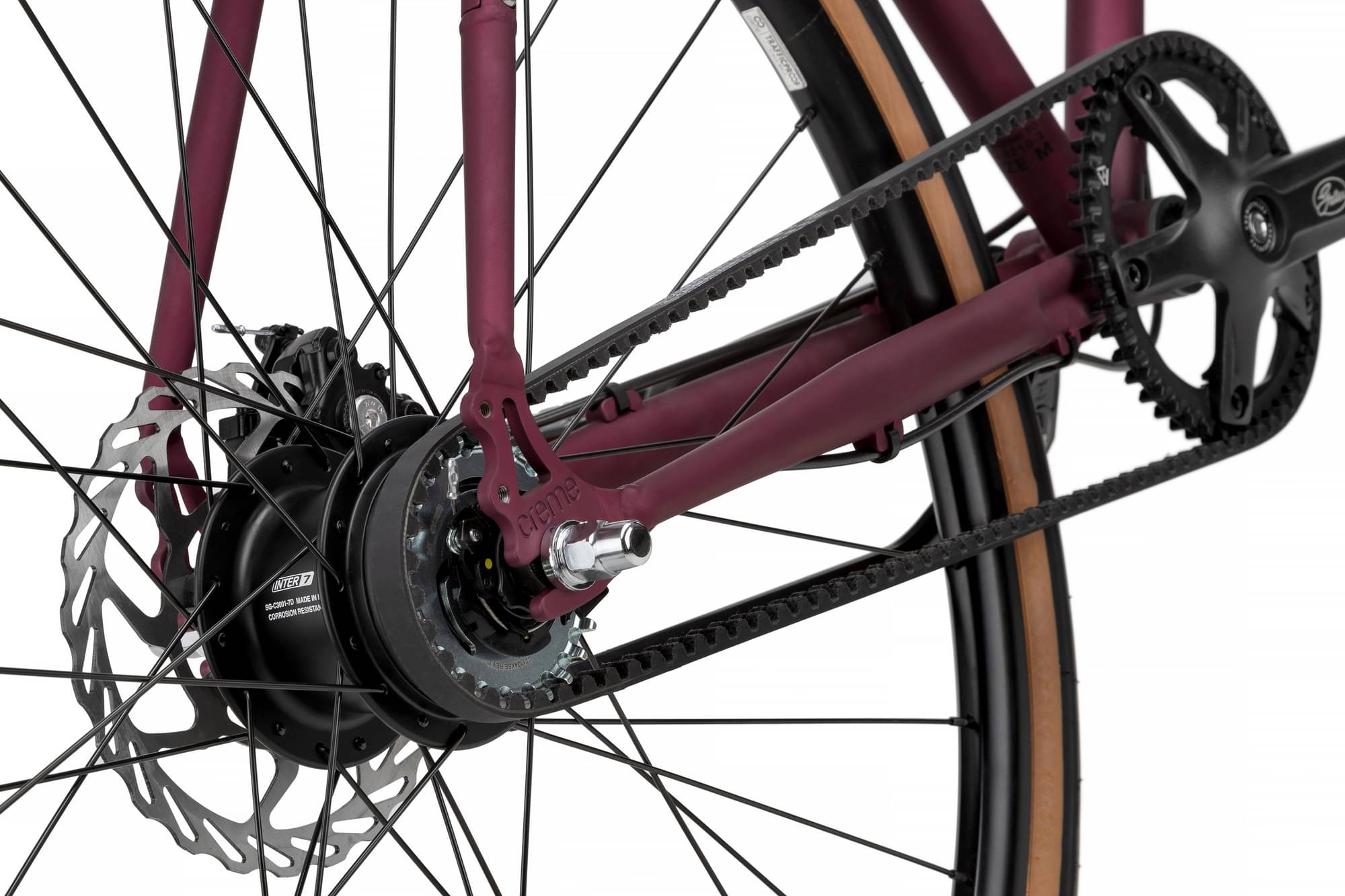

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
tig welded cromoly steel frame
Suspension Fork
aluminium fork 1 1/8", 12mm through axle
Drivetrain
Shift Levers
Shimano Nexus 7 speed trigger shifter
Crank
Gates, CDN aluminium, 170 mm, 46t Gates CDN ring
Bottom Bracket
square taper, 68mm shell
Pedals
FP 212
Wheels
Front Hub
aluminium, sealed berings, for centerlock, 36H, 12mm through axle
Rear Hub
Shimano Nexus SG-C3001-7S 7-speed hub, 32H, Gates CDN 24t sprocket
Rims
disc brake, aluminium, double wall
Spokes
stainless steel
Tires
Panaracer GravelKing 700x38C
Brakes
Brakes
Tektro M280, mechanical disc brake with 160 mm rotor

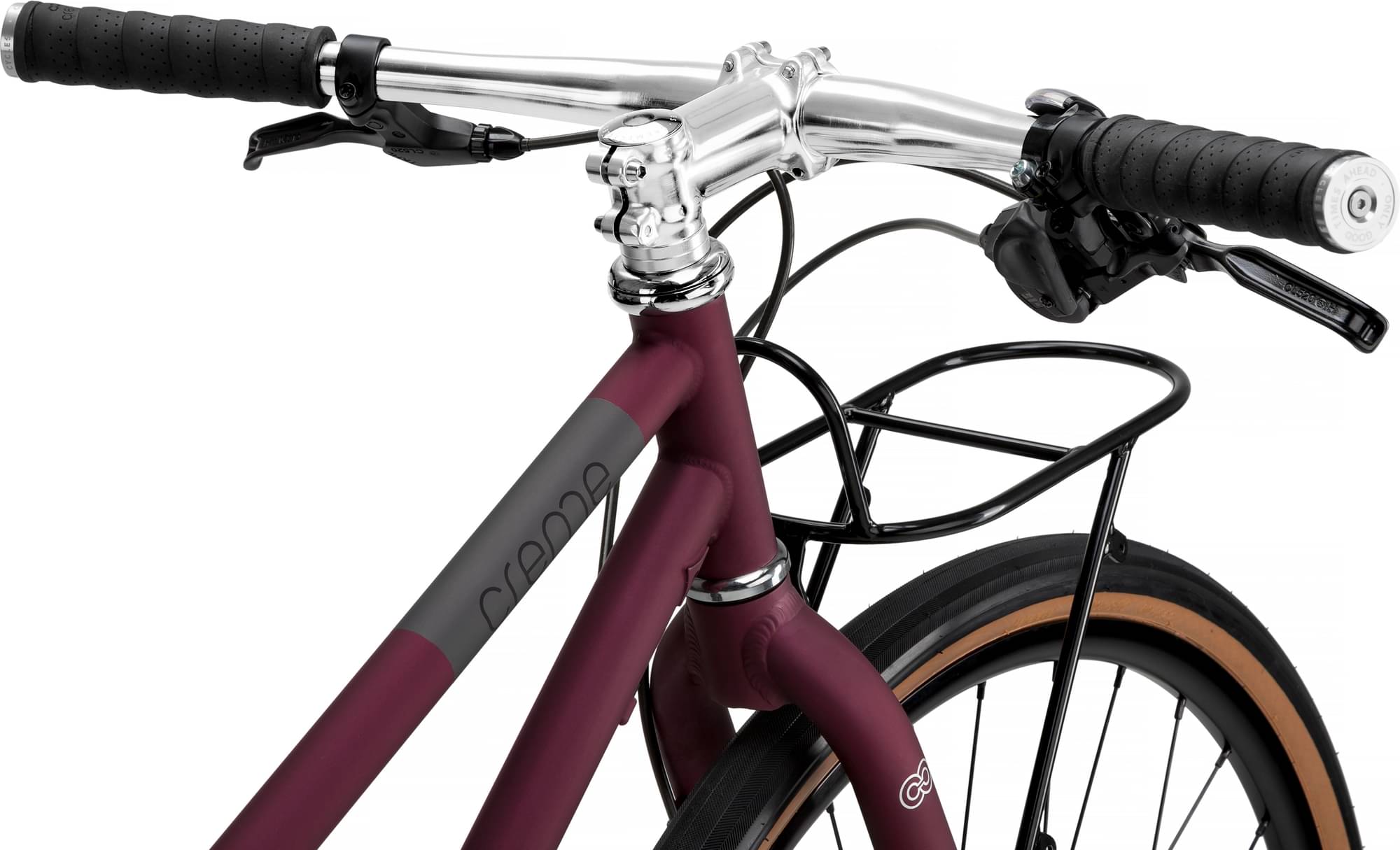

Cockpit
Stem
aluminium a-head stem, 80 mm for size S, 100mm for size M and L
Handlebar
“banana” type, aluminium, width
Grips
Creme Gummy Grips with alloy bar-ends
Headset
threadless 1 1 /8''
Seat
Saddle
Creme microsuede cover
Seatpost
aluminium, 26,6mm
Fit data
Geometry
