Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
155cm - 175cm
LG
170cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components

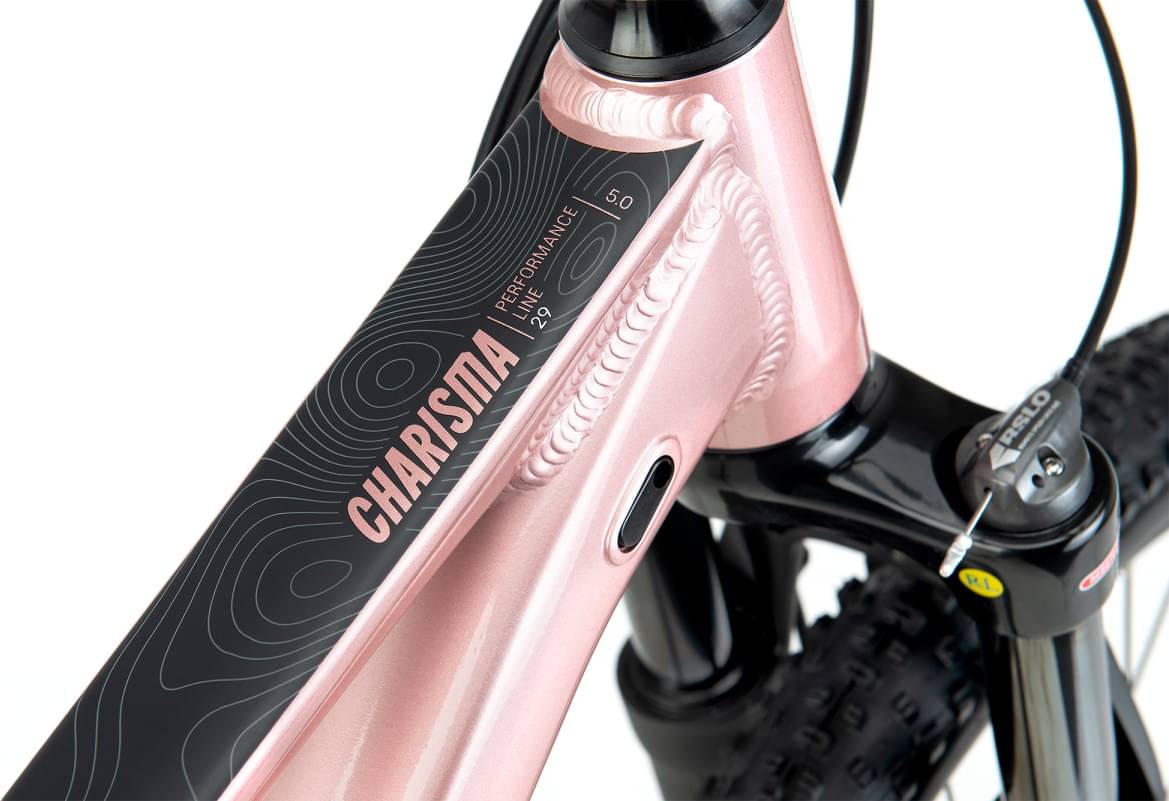

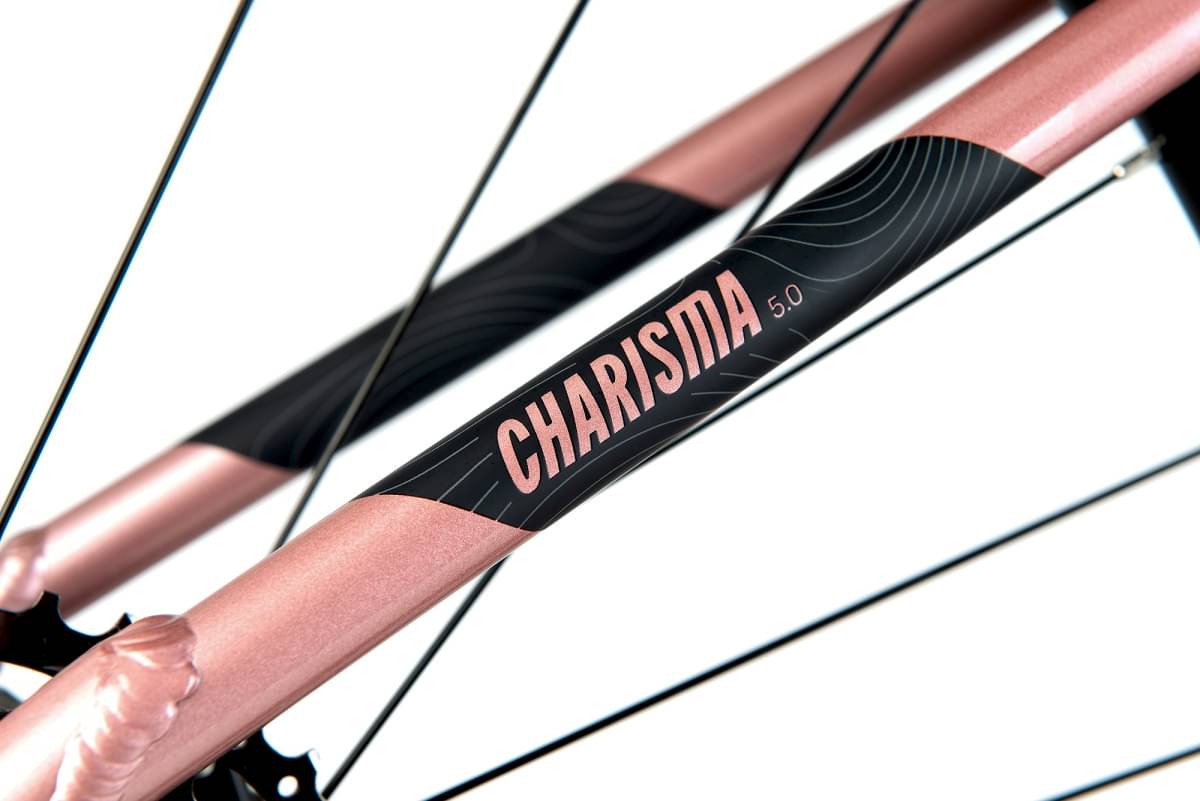

Frame
Frame
ALU 6061, S, M, L
Suspension Fork
Suntour XCM32,RL,DS,100mm 29"
Drivetrain

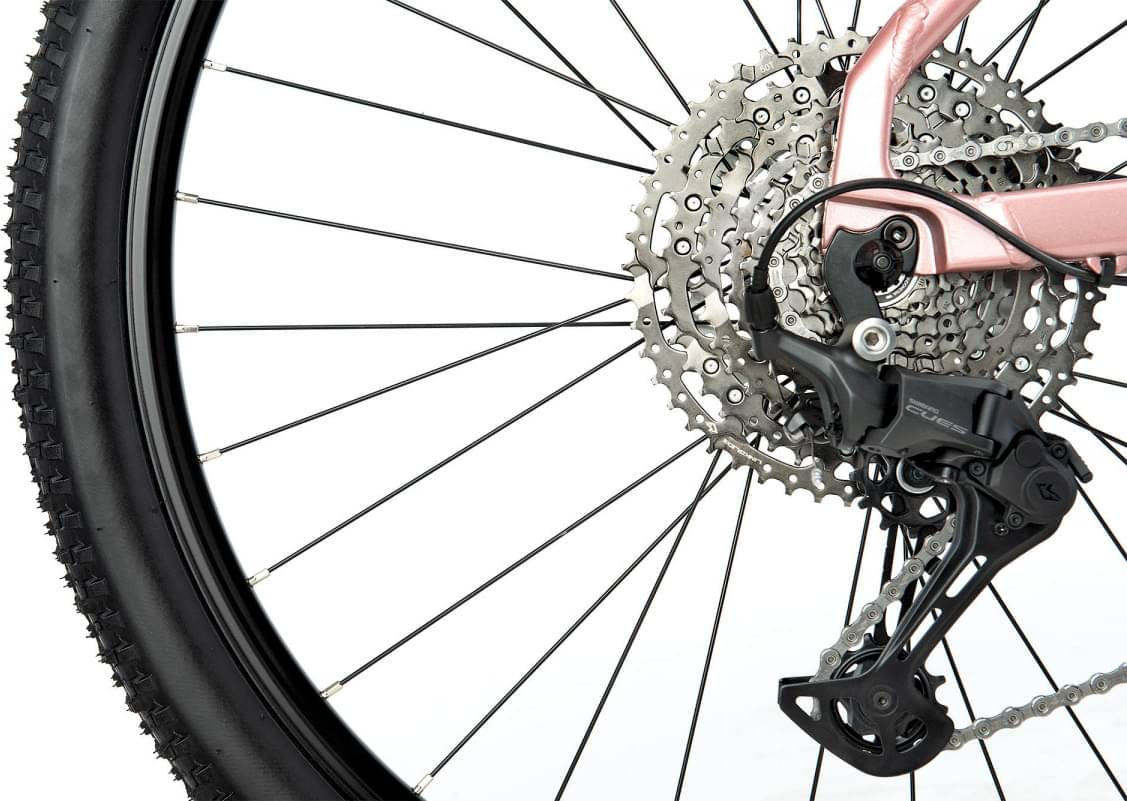

Rear Derailleur
Shimano CUES RD-U6000
Shift Levers
Shimano CUES SL-U6000/11sp.

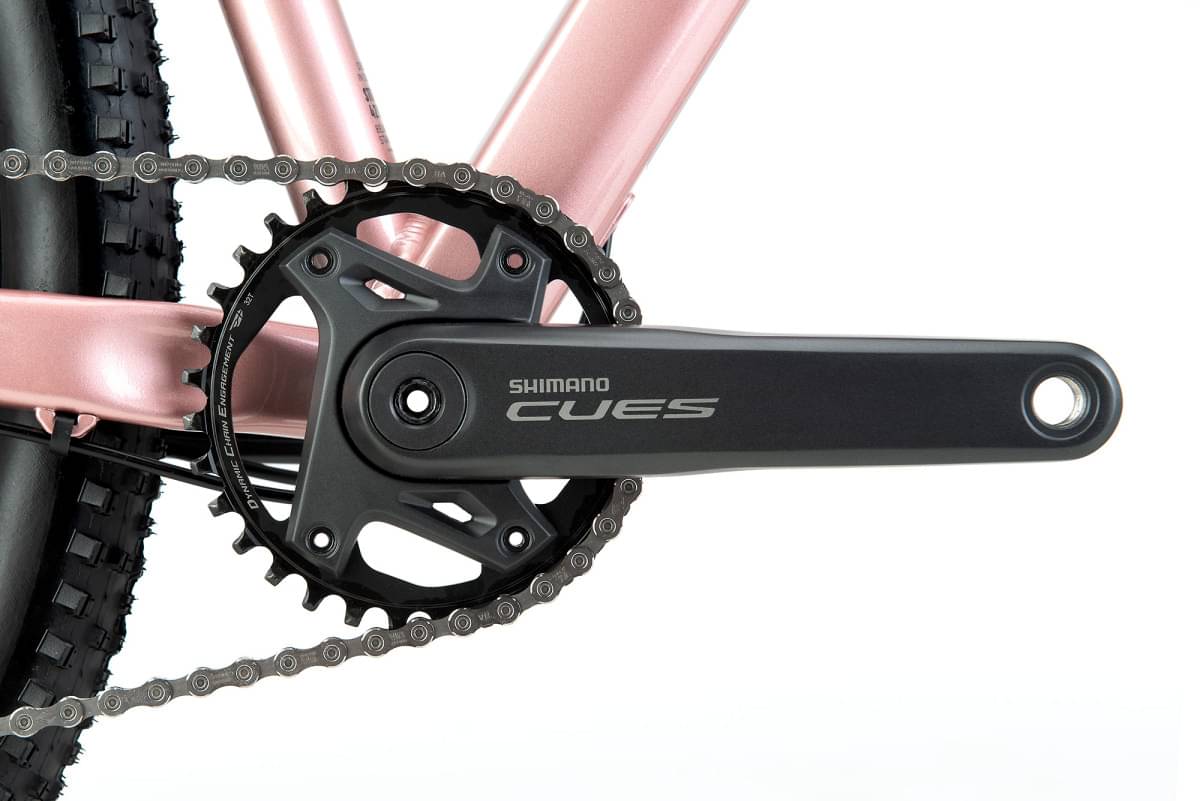

Crank
Shimano CUES FC-U6000-1, 32T/170mm
Chain
KMC XGLIDE
Pedals
SP 610
Wheels
Front Hub
Shimano QC300 CL 32H QR
Rear Hub
Shimano QC300 CL 32H QR
Rims
CTM TOP DISC, 622x19 BA, 32H

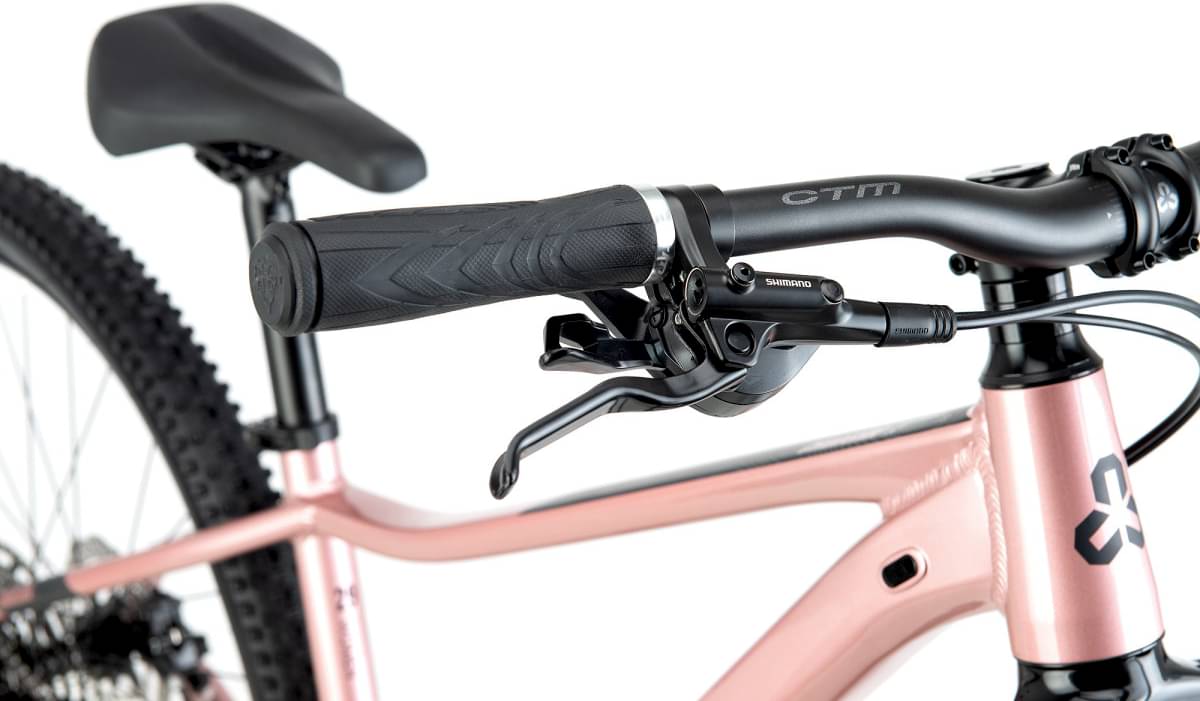

Brakes
Brakes
Shimano MT200 / SMRT10

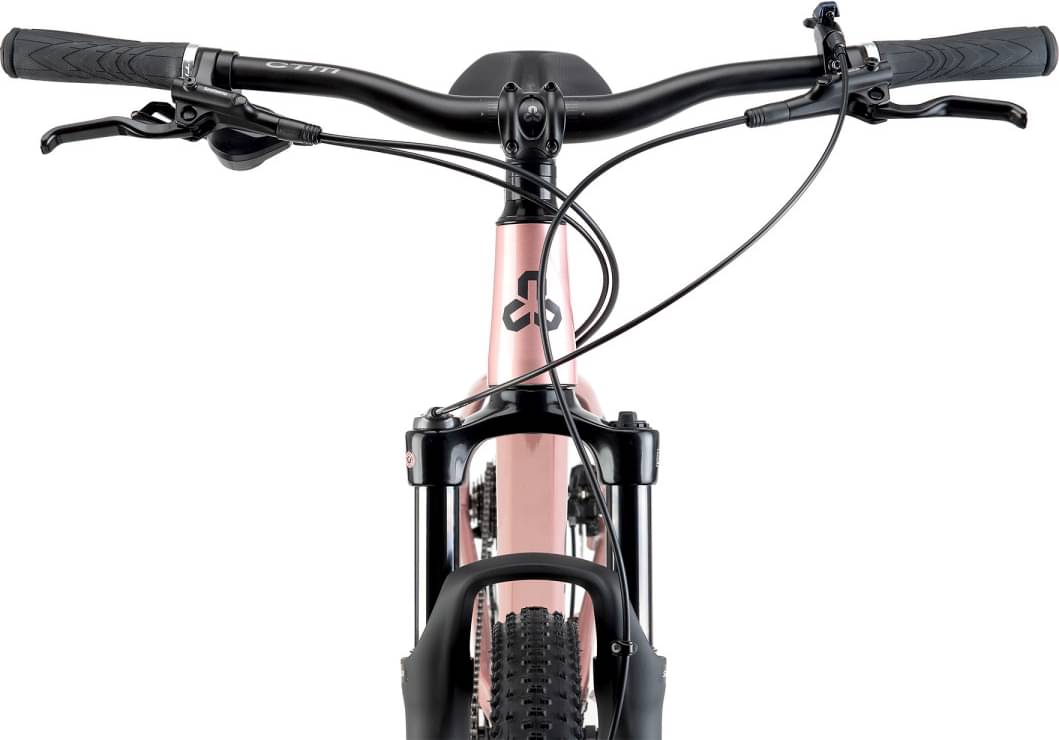

Cockpit
Handlebar
CTM N04, 700/1" rise/31.8mm
Headset
NECO H156

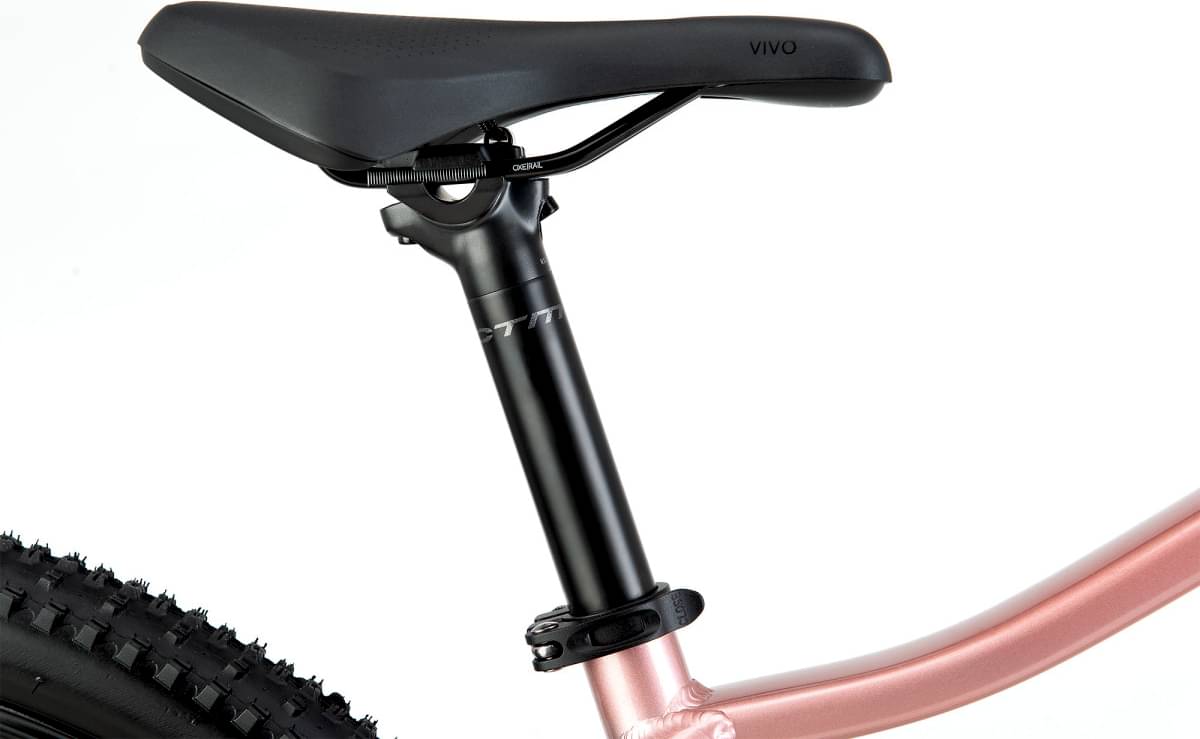

Seat
Saddle
CTM Cloud WMN
Seatpost
CTM LCSP-53, 350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.517 mm | 1.477 mm |
| Front Center | 663 mm | 683.5 mm | 704.5 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Stack | 612 mm | 622 mm | 632 mm |
| Reach | 393.5 mm | 410 mm | 428 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 455 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1100 mm | 1121 mm | 1142 mm |
| Wheels | 700 | 700 | 700 |
