Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
155cm - 175cm
LG
170cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

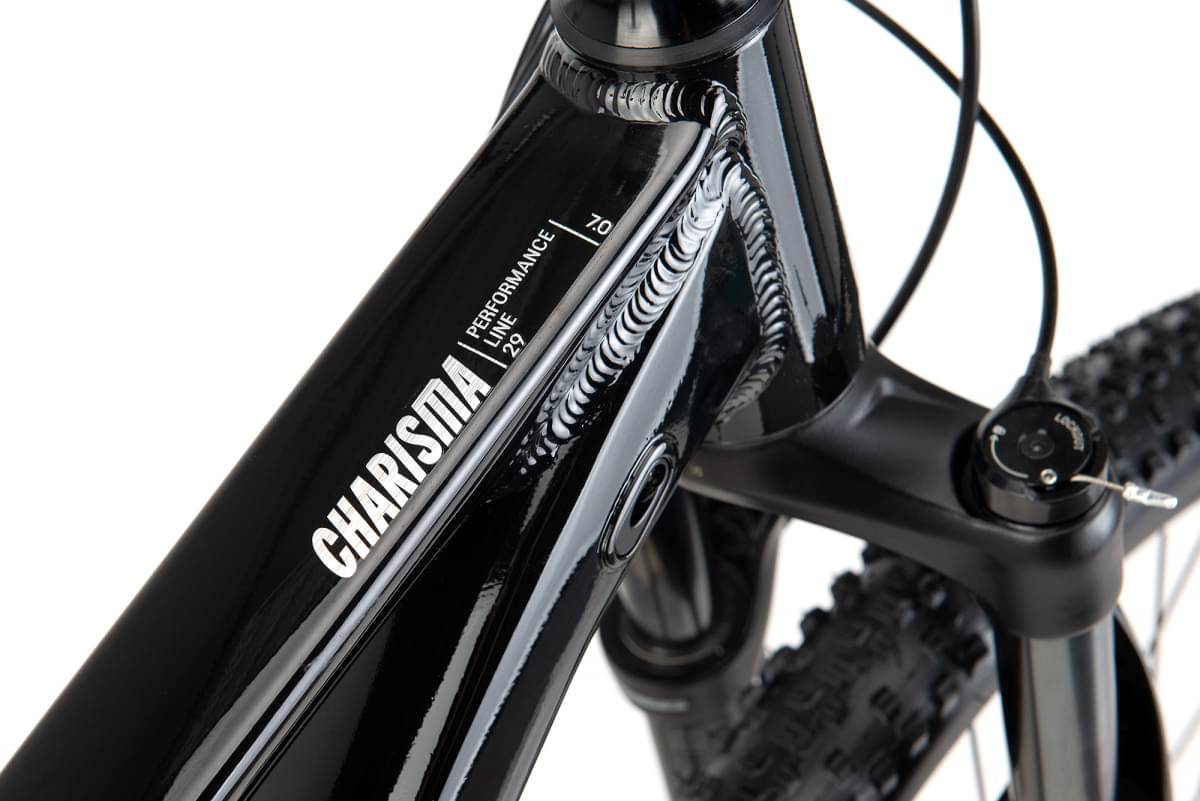

Frame
ALU 6061, S, M, L
Suspension Fork
Rock Shox JUDY SILVER TK, SA, 100mm, boost™ 15x110axle
Drivetrain

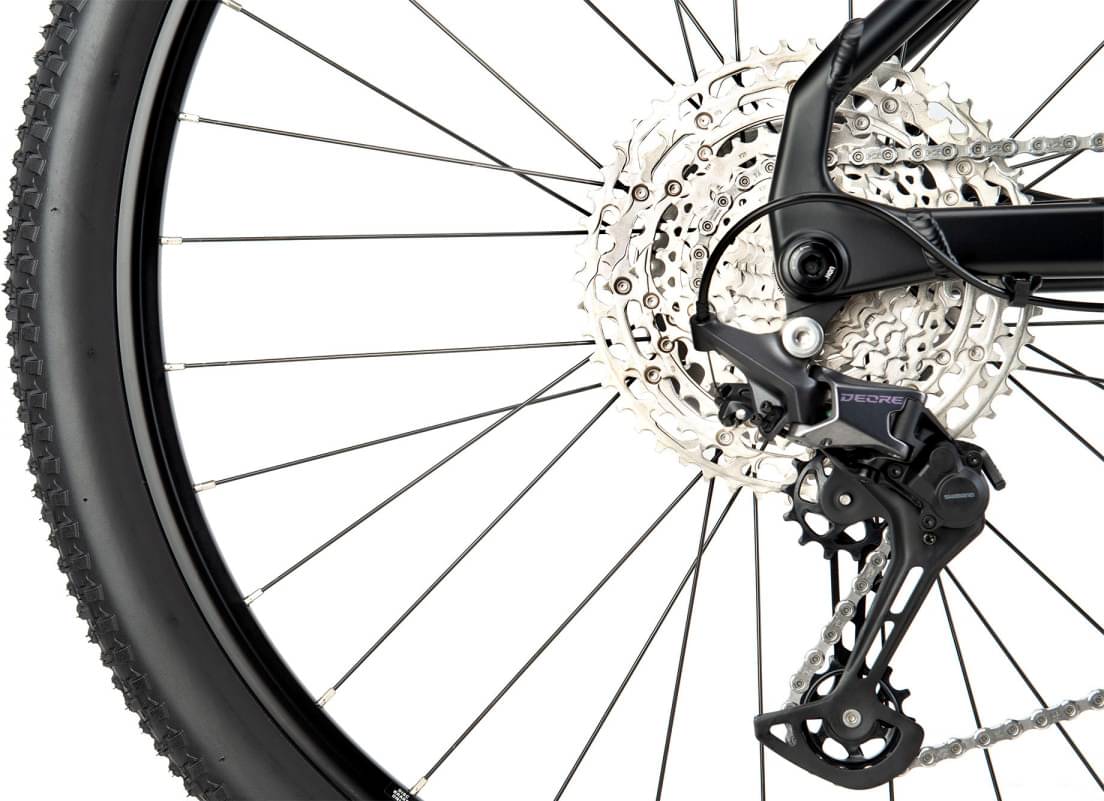

Rear Derailleur
Shimano Deore RD-M6100

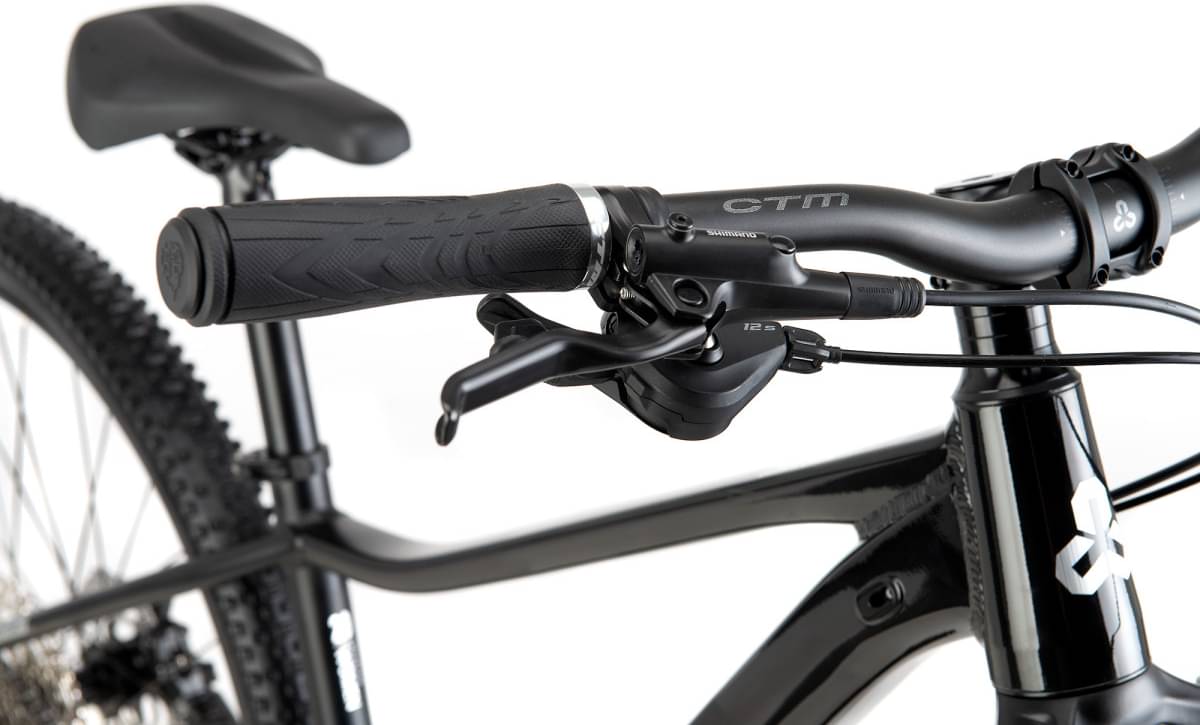

Shift Levers
Shimano Deore SL-M6100-IR/12sp.

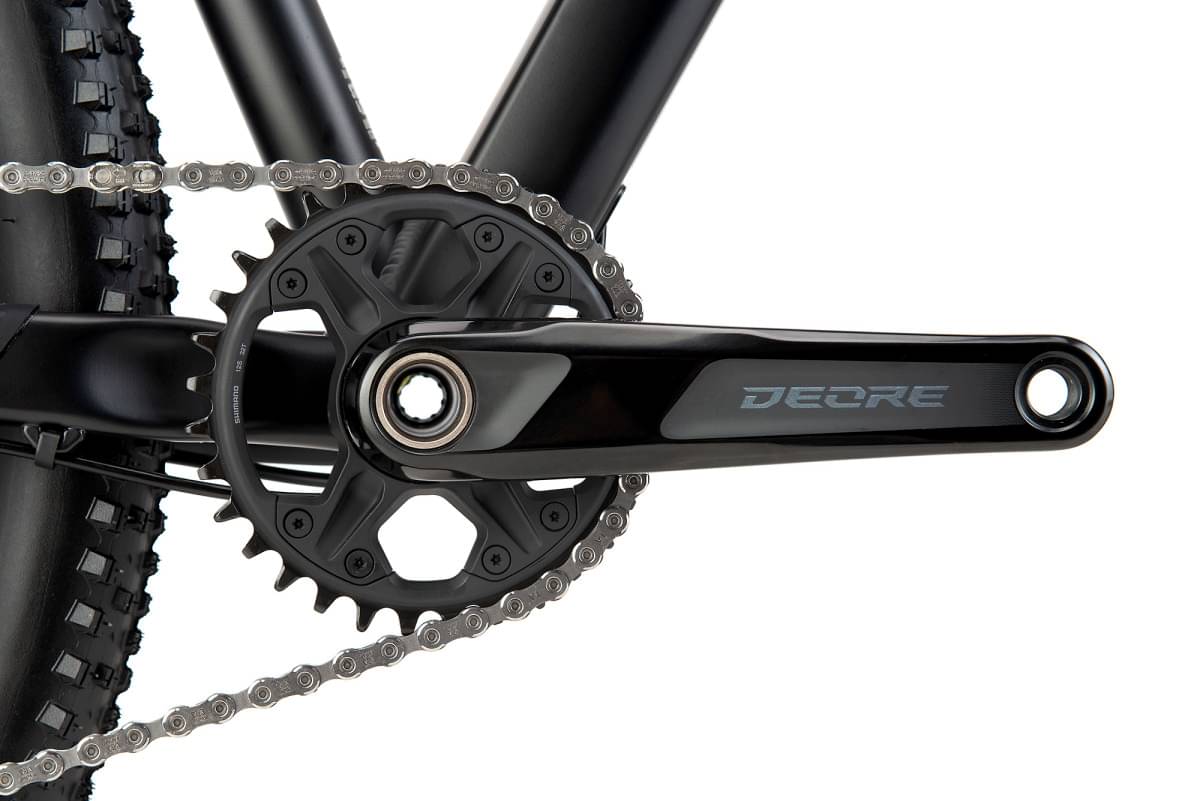

Crank
Shimano Deore FC-M6100-1, 32T, 170mm
Chain
Shimano CN-M6100
Pedals
SP 610
Wheels
Front Hub
Shimano TC500, CL, F15/R12 thru type axle
Rear Hub
Shimano TC500, CL, F15/R12 thru type axle
Rims
WTB STi25, TCS, 29", 32H
Brakes
Brakes
Shimano MT200 / SMRT10
Cockpit

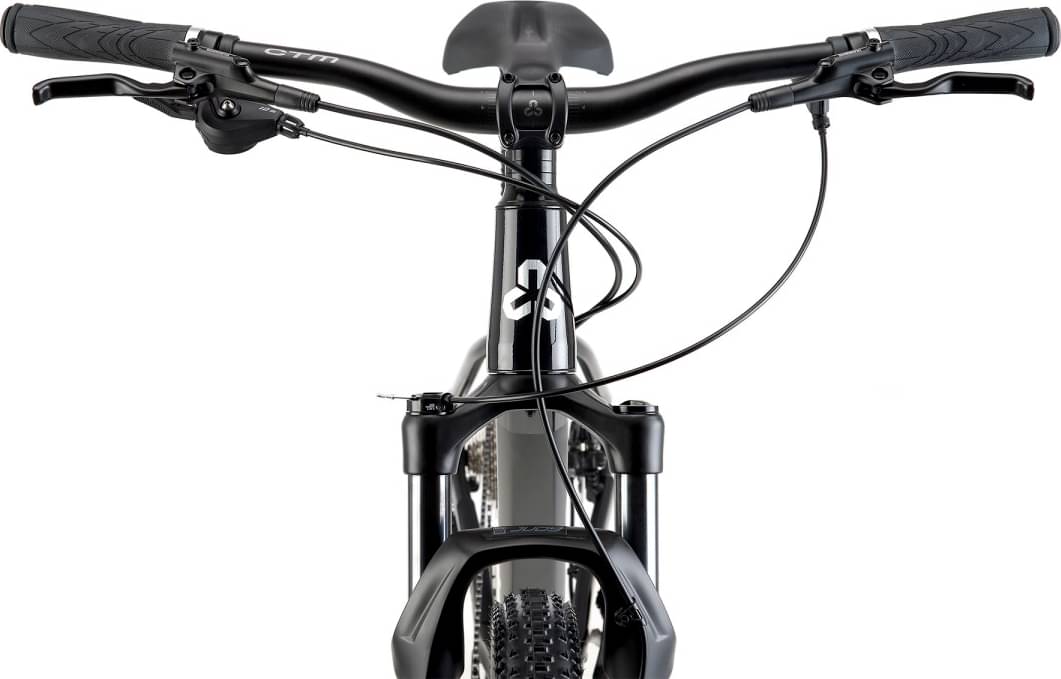

Handlebar
CTM N04, 700/1" rise/31.8mm
Headset
NECO H156
Seat

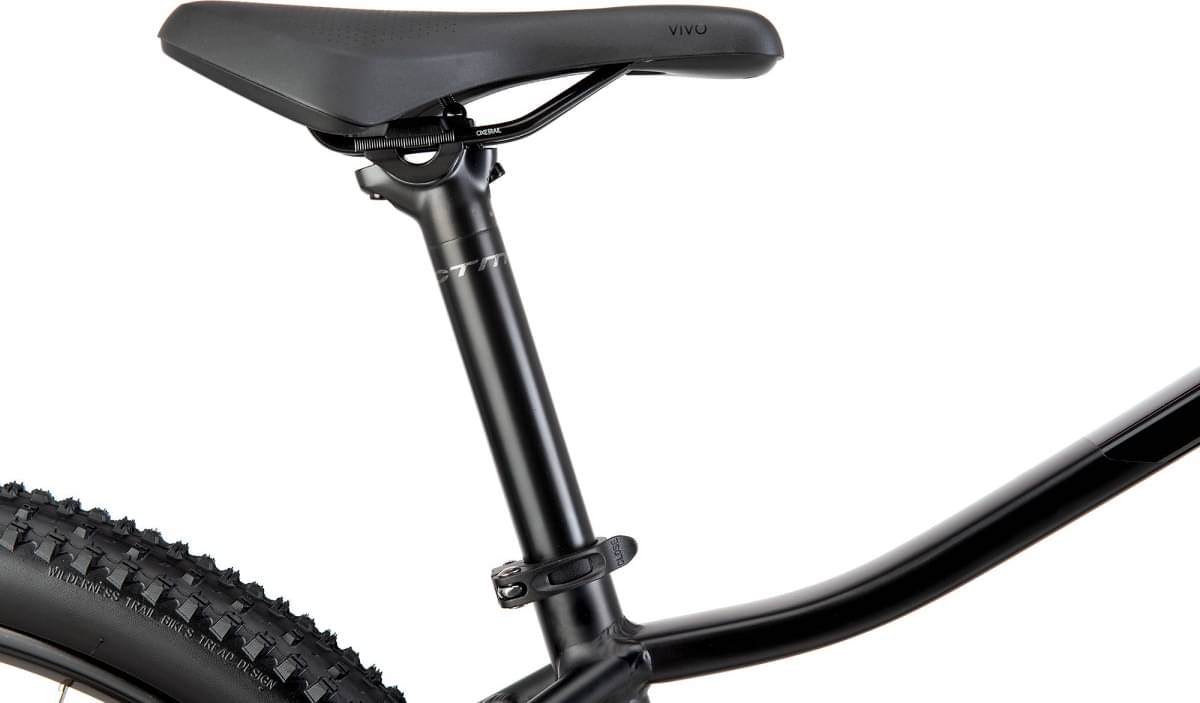

Saddle
SR Vivo Unitech
Seatpost
CTM LCSP-53, 350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.555 mm | 1.517 mm | 1.477 mm |
| Front Center | 663 mm | 683.5 mm | 704.5 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Stack | 612 mm | 622 mm | 632 mm |
| Reach | 393.5 mm | 410 mm | 428 mm |
| Top Tube Length | 575 mm | 595 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 405 mm | 455 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1100 mm | 1121 mm | 1142 mm |
| Wheels | 29" | 29" | 29" |
