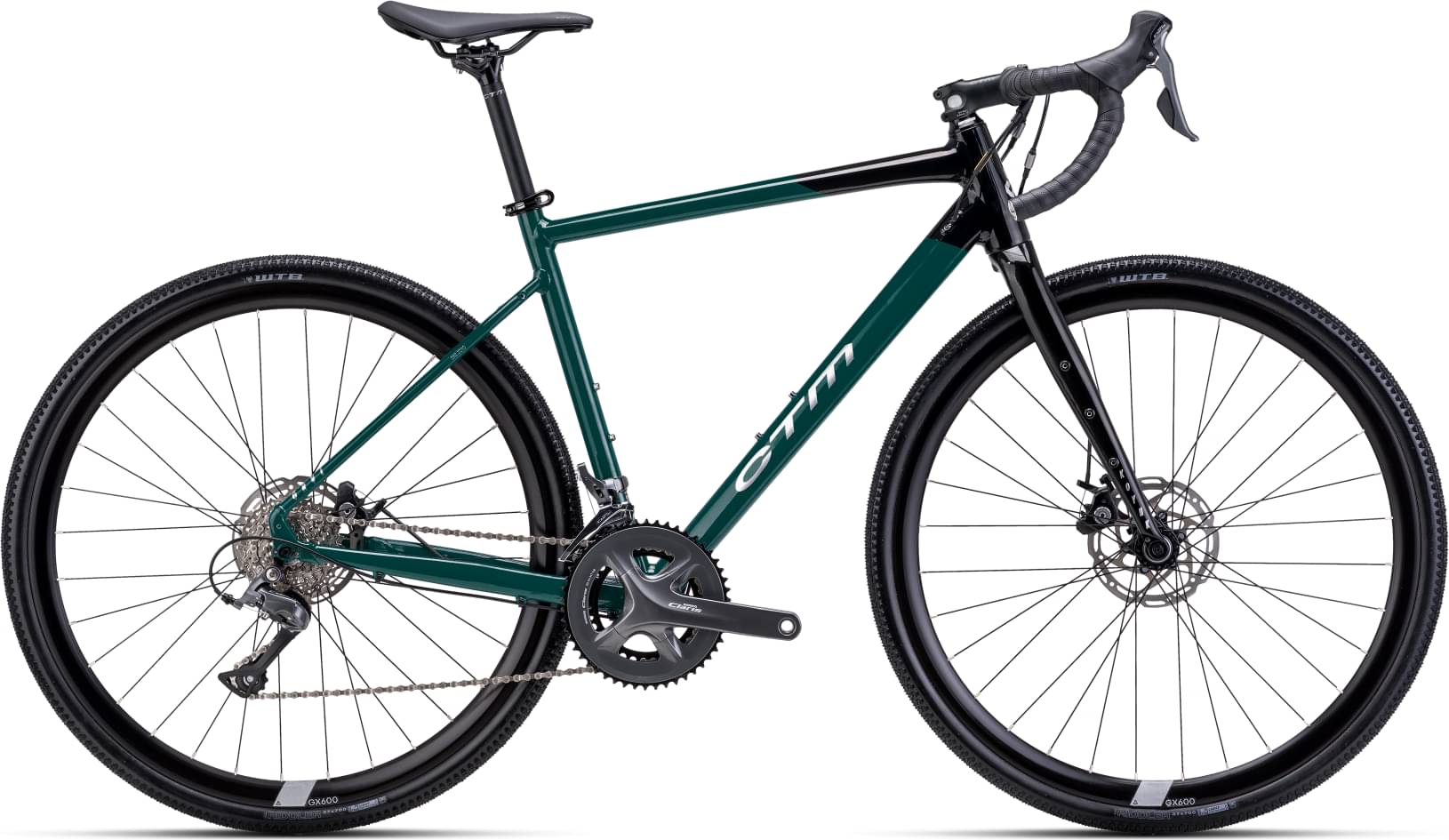

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061 double butted, 520, 540, 560, 580, 600mm
Suspension Fork
ALU
Drivetrain
Rear Derailleur
Shimano Claris R2000
Shift Levers
Shimano Claris R2000-8sp.
Crank
Shimano Claris FC2000 50/34T, 520,540/170mm, 560,580,600/175mm
Chain
Shimano HG71
Wheels
Rear Hub
Novatec D981B-12 / D982TSE-X12-11S
Rims
Remerx G-DISC RX 5022 32H
Tires
WTB Riddler Comp 700x37c
Brakes
Brakes
Tektro MD-C310 / TR160
Cockpit
Stem
CTM TDS-RD701 80mm
Handlebar
CTM X-Race 440mm
Headset
FSA Orbit C40, ACB
Seat
Saddle
Selle Royal
Seatpost
CTM SPDC1 350/400x27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.532 mm | 1.466 mm | 1.451 mm | 1.457 mm | 1.422 mm |
| Front Center | 600 mm | 610 mm | 623 mm | 646 mm | 667 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Stack | 553 mm | 557 mm | 566 mm | 590 mm | 600 mm |
| Reach | 361 mm | 380 mm | 390 mm | 405 mm | 422 mm |
| Top Tube Length | 525 mm | 545 mm | 558 mm | 580 mm | 600 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 500 mm | 540 mm | 560 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 73 ° | 74 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 175 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1020 mm | 1030 mm | 1044 mm | 1067 mm | 1088 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
