Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 720Wh / 48V / 15Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

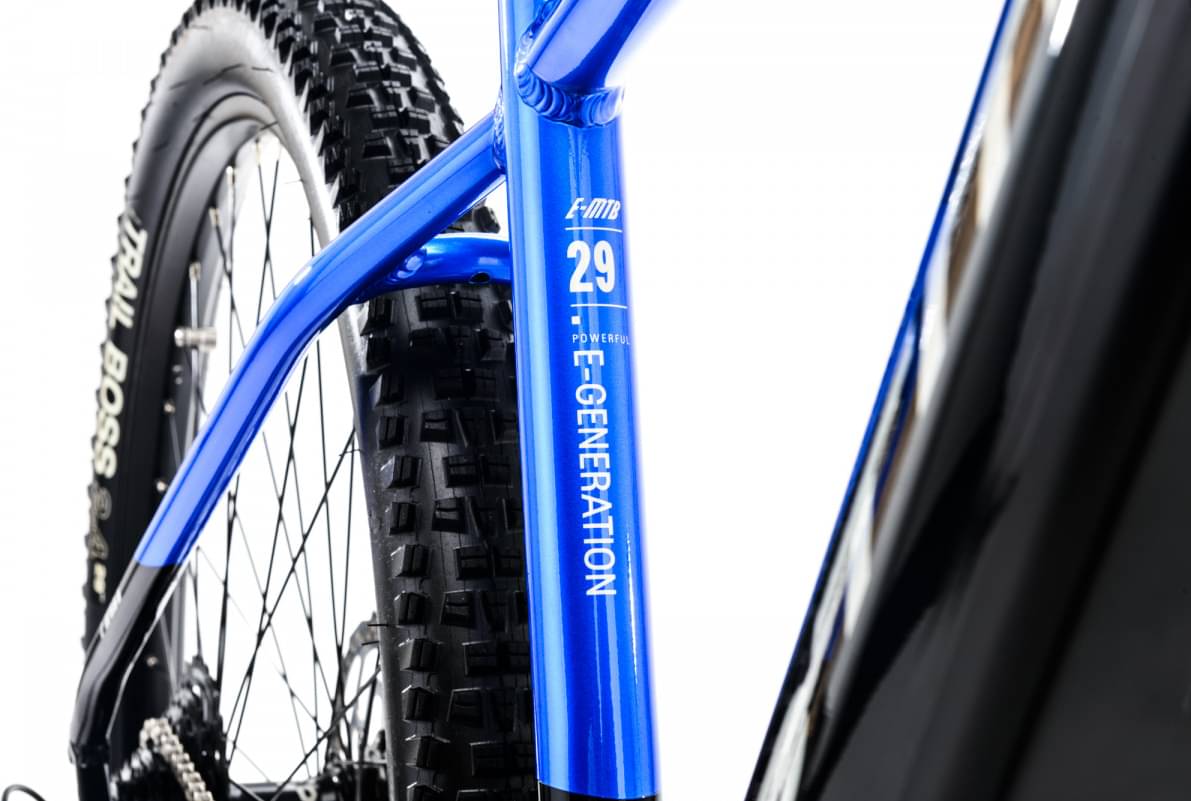

Frame
Frame

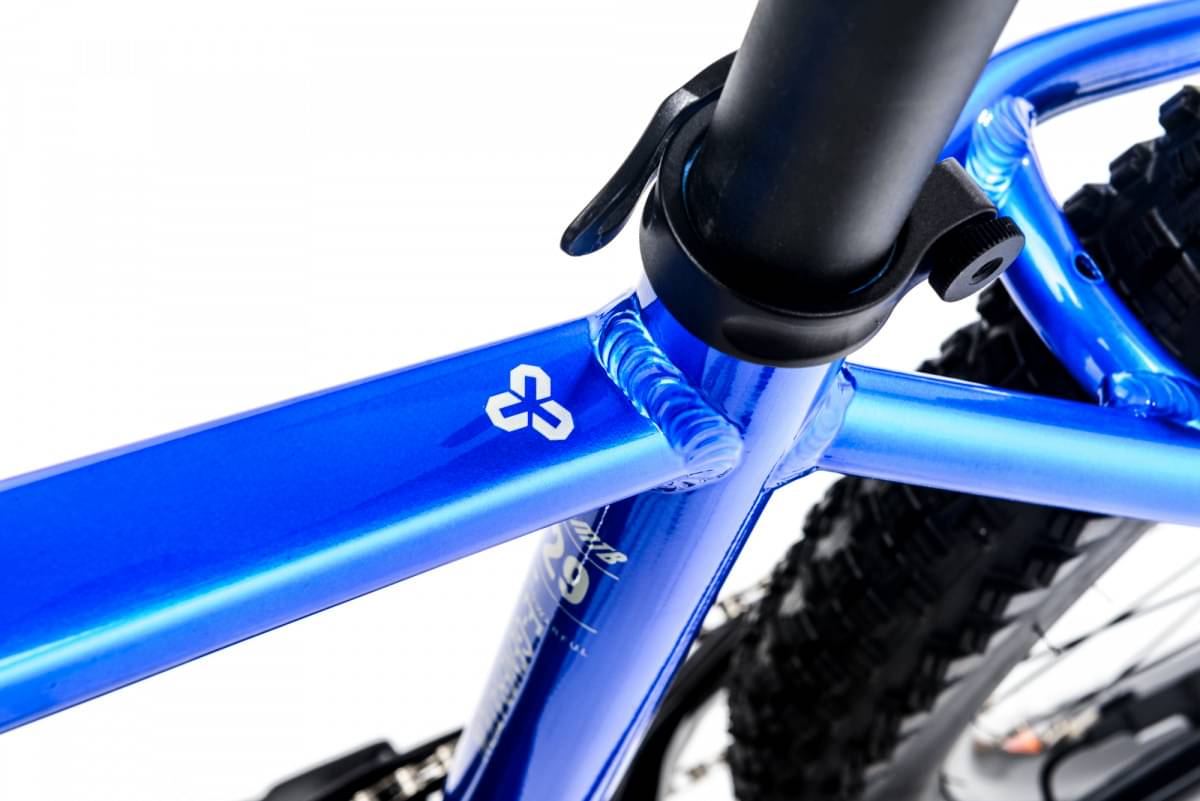

ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCM32 ATB, RL, DS, 80mm
Drivetrain
Rear Derailleur

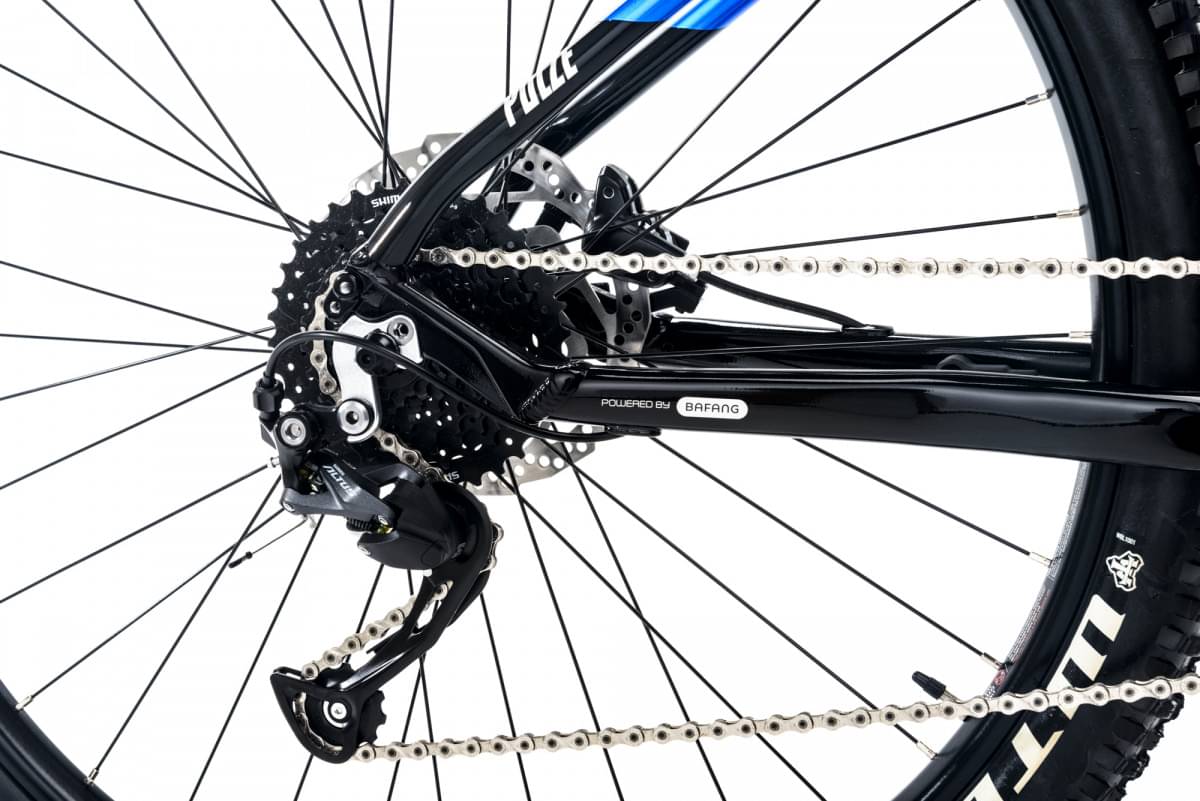

Shimano Altus RD-M2000SGS
Shift Levers
Shimano Altus SL-M2000RA 9 sp.
Crank
Bafang 38T, 170mm
Chain
KMC X9e
Pedals
VPE 537
Wheels
Rear Hub
Novatec D041DSE/D142TSE, 36H, CL
Rims
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brakes
Shimano MT200 / SMRT10M
Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery

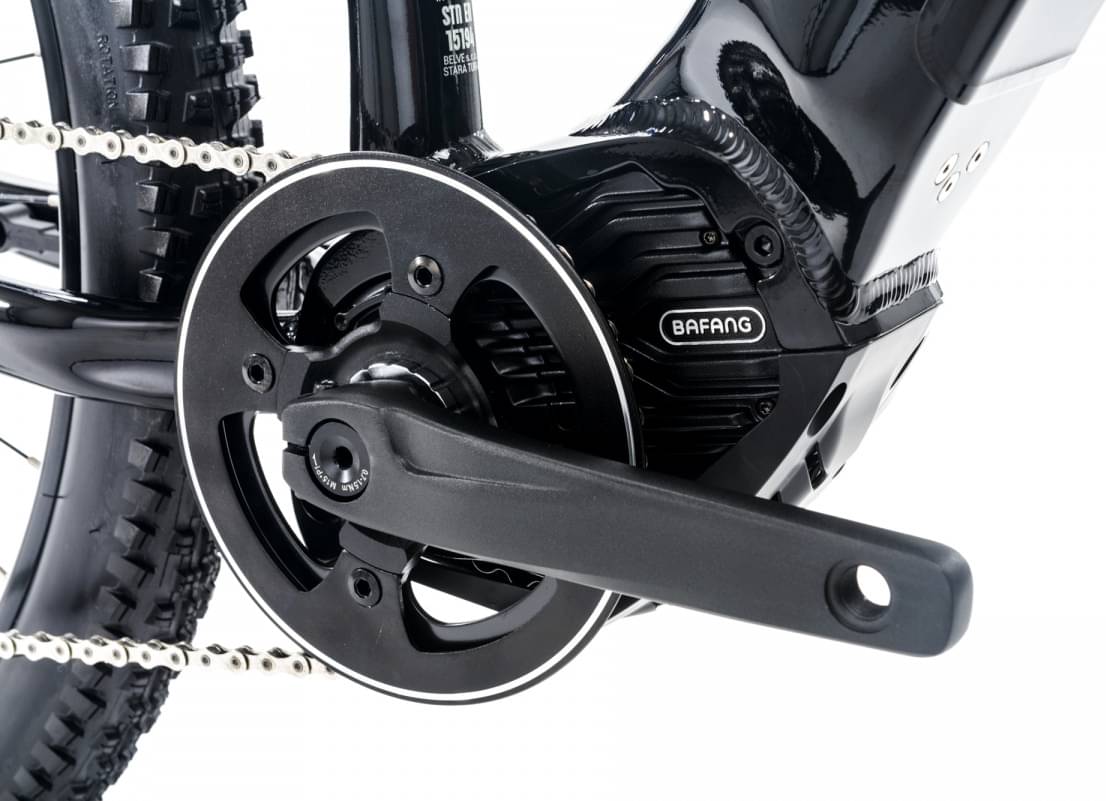

Motor

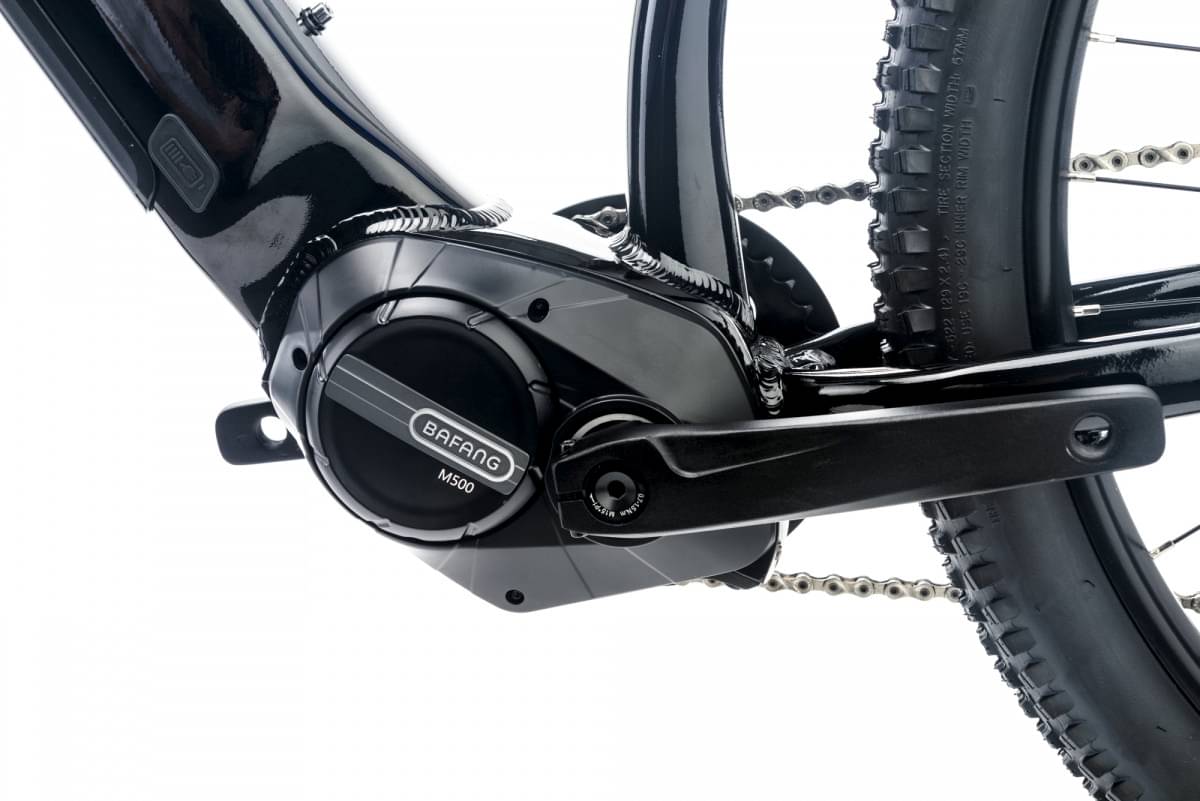

BAFANG M500 / 250W / 95Nm
Battery

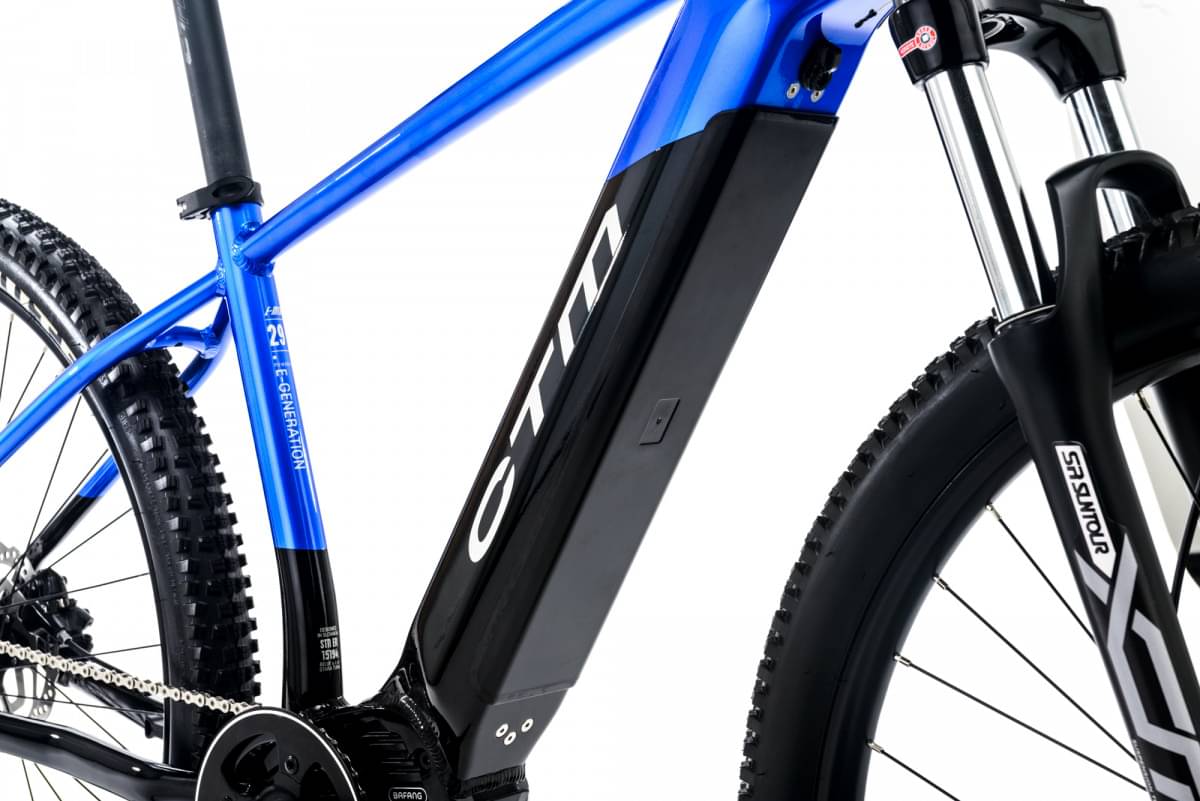

CTM IGB 720Wh / 48V / 15Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.456 mm | 1.421 mm |
| Front Center | 693 mm | 714 mm | 735 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 629 mm | 639 mm | 648 mm |
| Reach | 422 mm | 439 mm | 456 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1161 mm | 1182 mm | 1203 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
