Bike details
Overview
Key information split into simple groups.

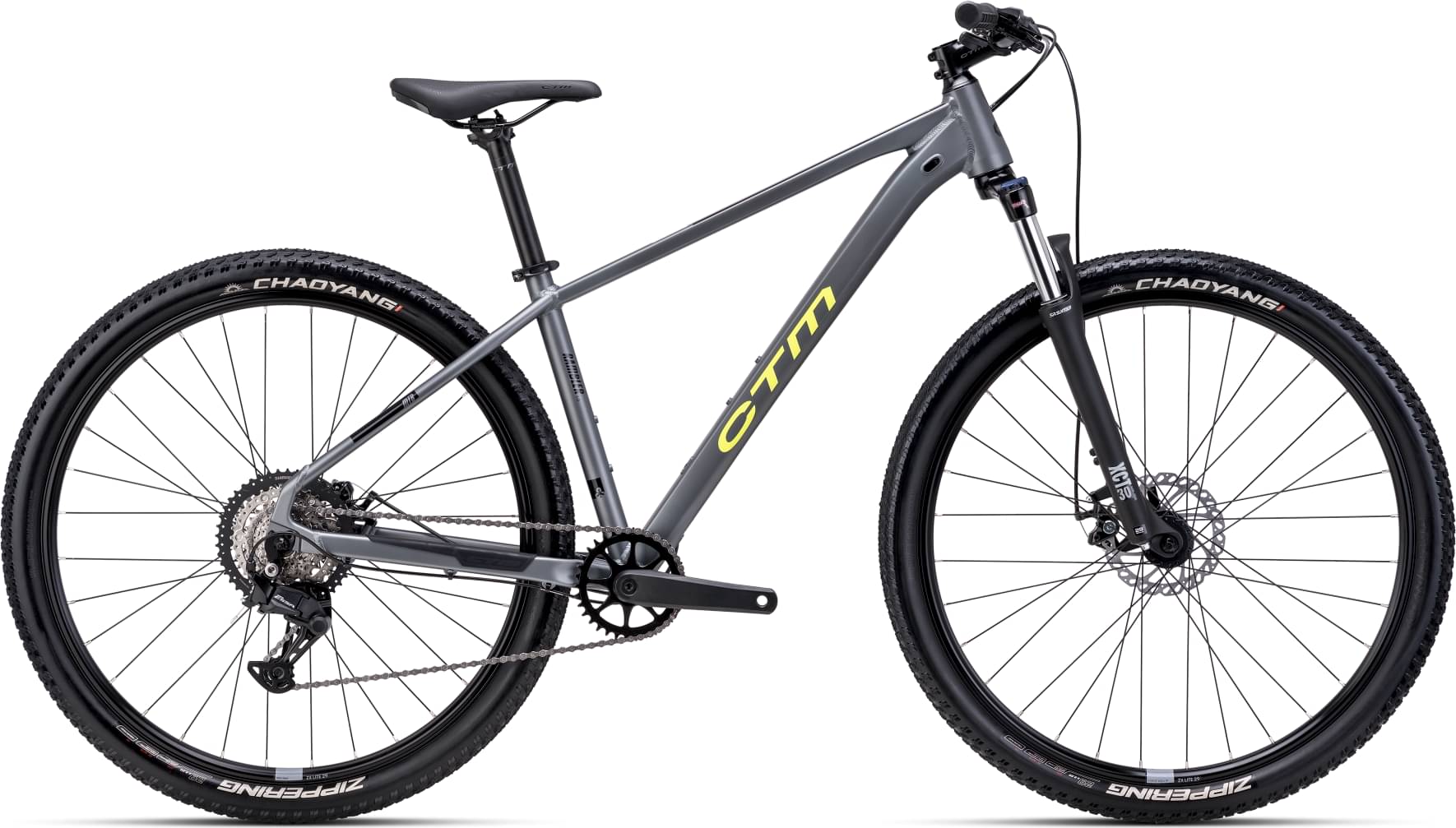

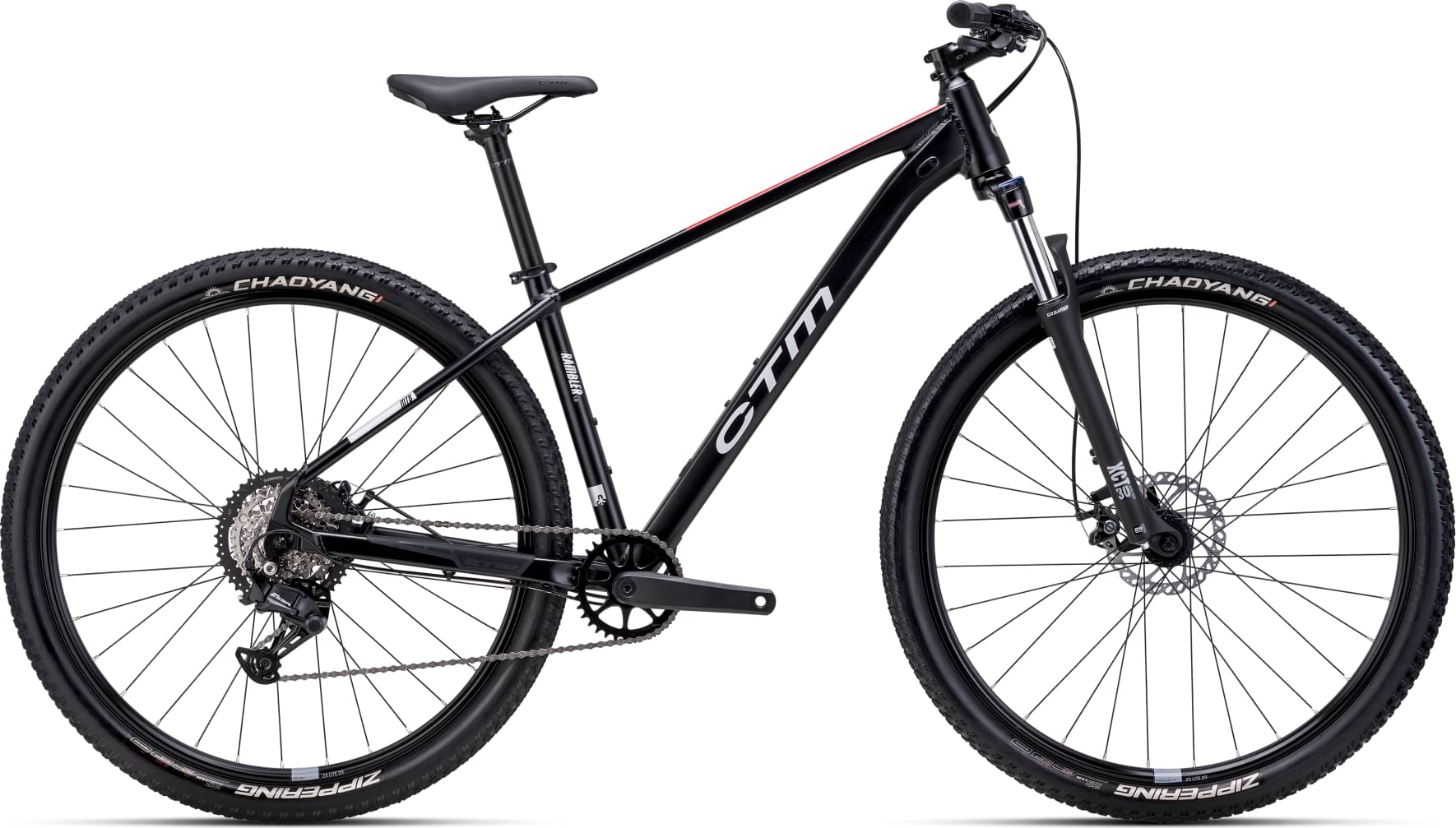

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hayes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components

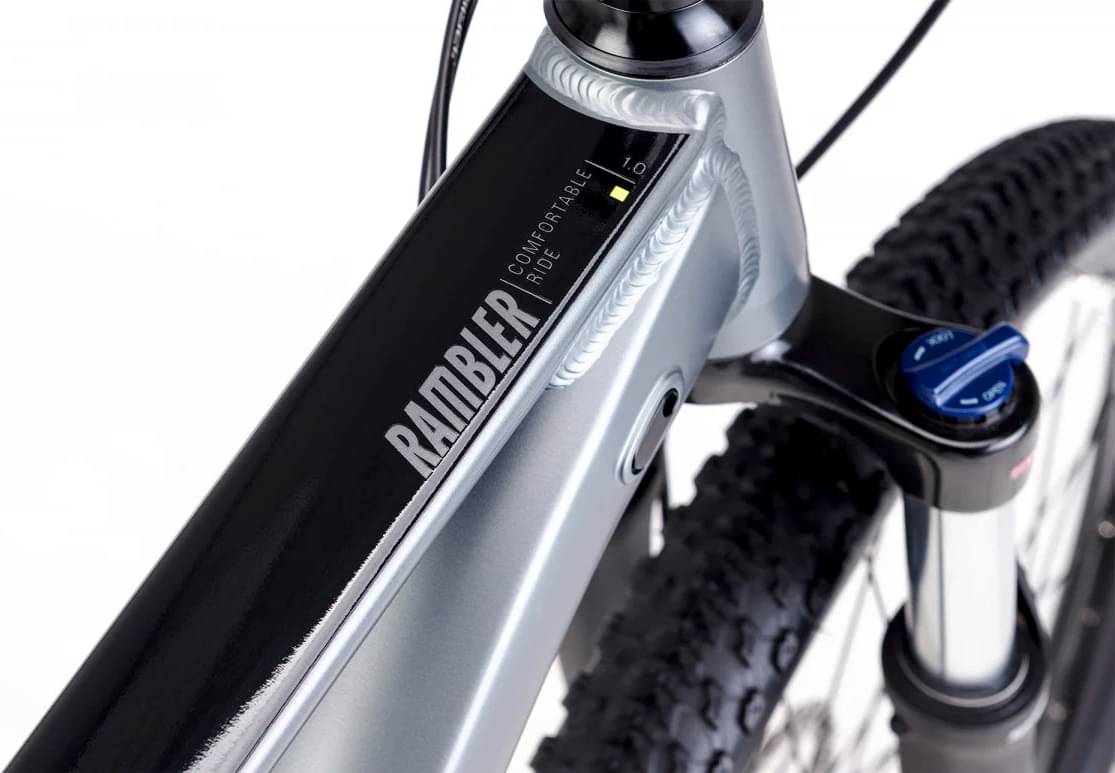

Frame
Frame
ALU 6061, S, M, L, XL
Suspension Fork
Suntour XCT30, HLO DS 100mm, 27.5"
Drivetrain

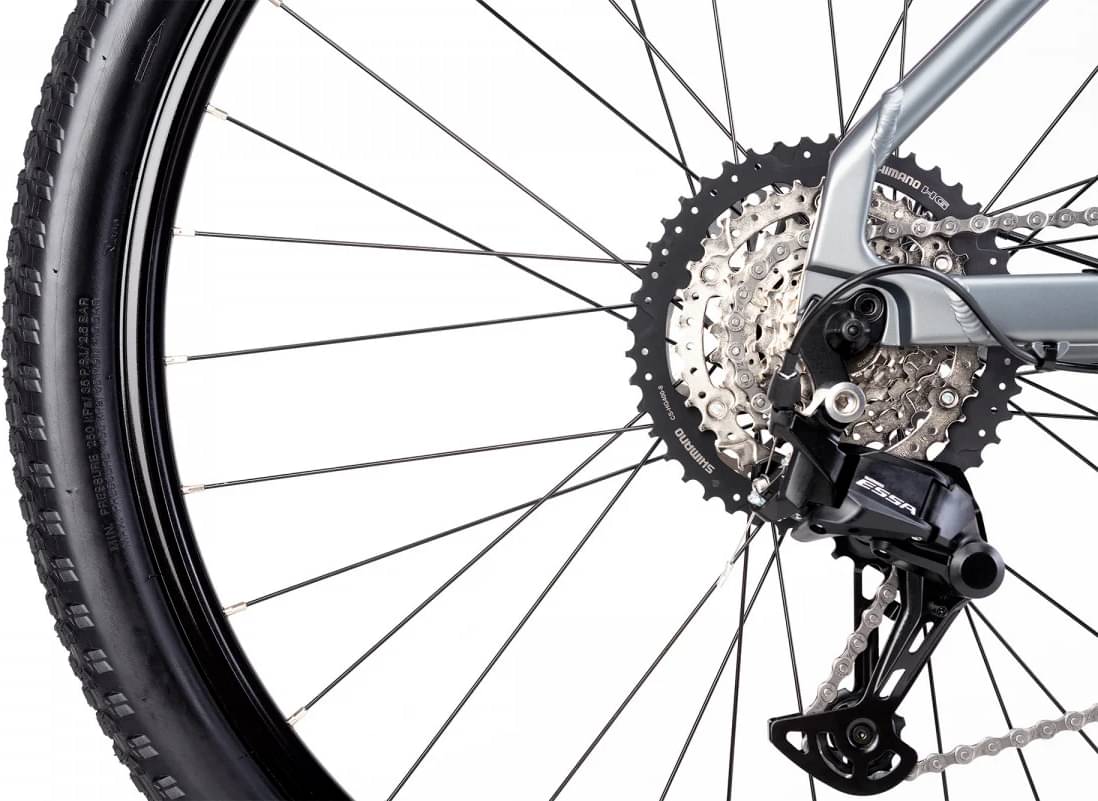

Rear Derailleur
Shimano ESSA RD-U2000

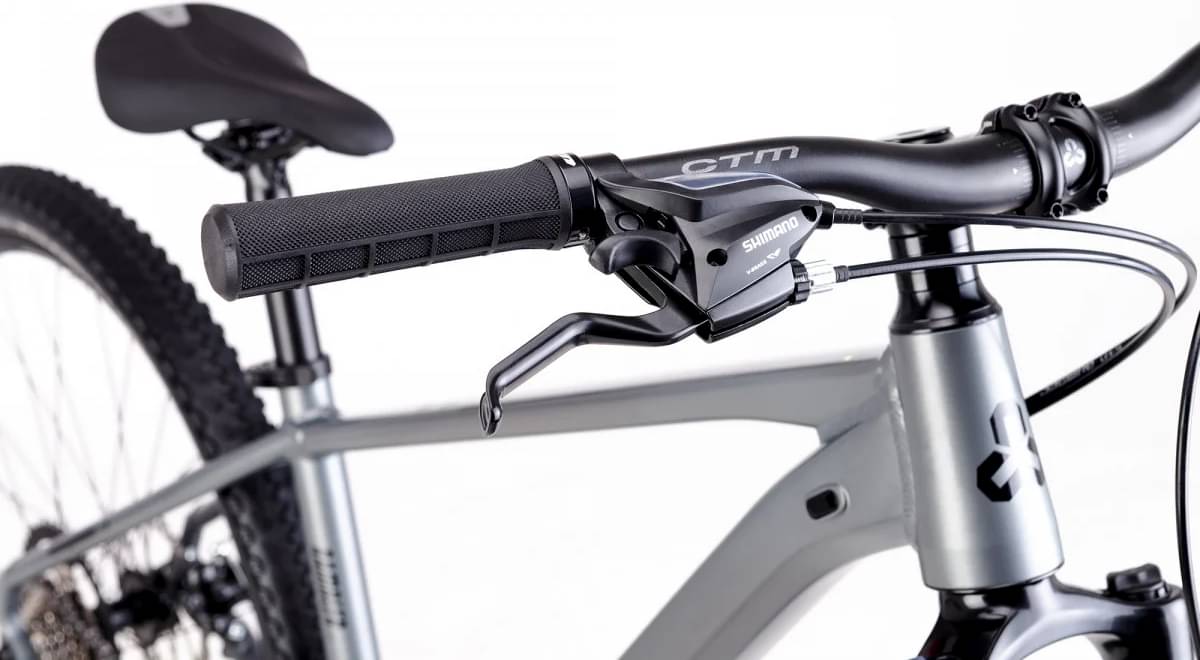

Shift Levers
Shimano STEF5002/8 sp.

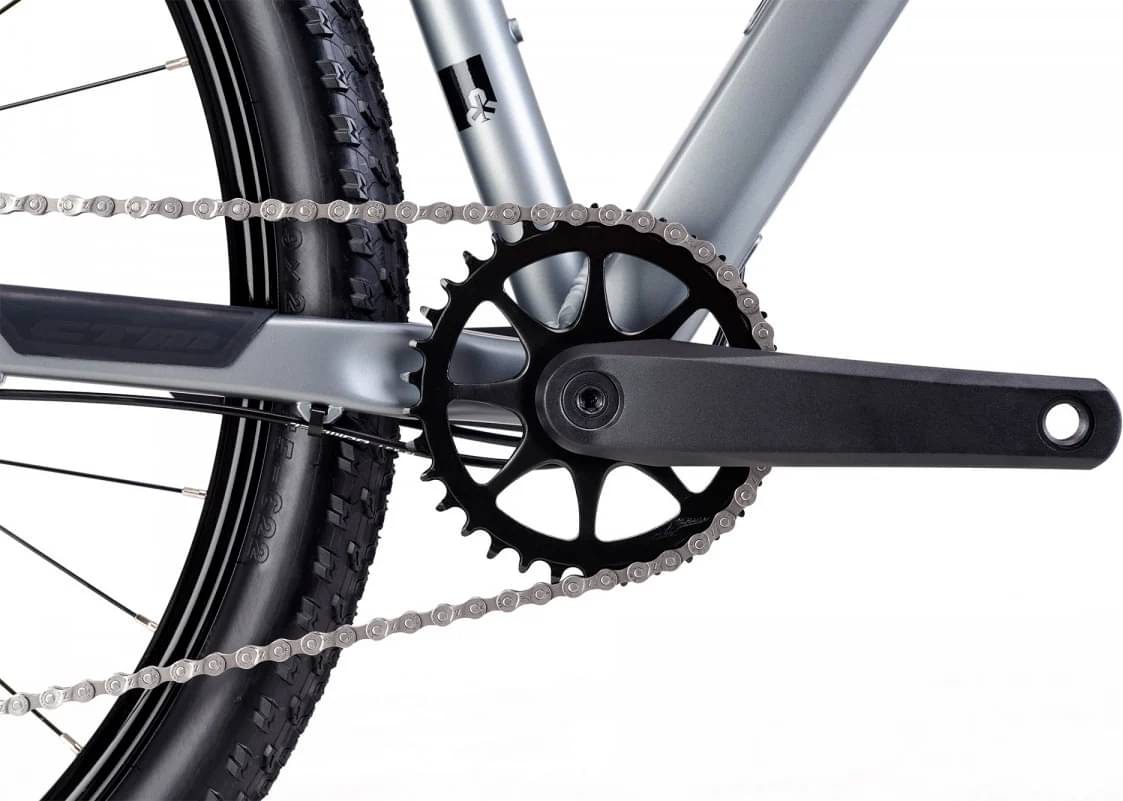

Crank
Samox 34T, 175mm
Chain
KMC Z8
Pedals
SP 610
Wheels
Front Hub
CTM alloy 6 bolt 32H QR black
Rear Hub
CTM alloy 6 bolt 32H QR black
Rims
CTM TOP DISC, 584x19 BA, 32H
Brakes
Brakes
Hayes mechanical disc brake

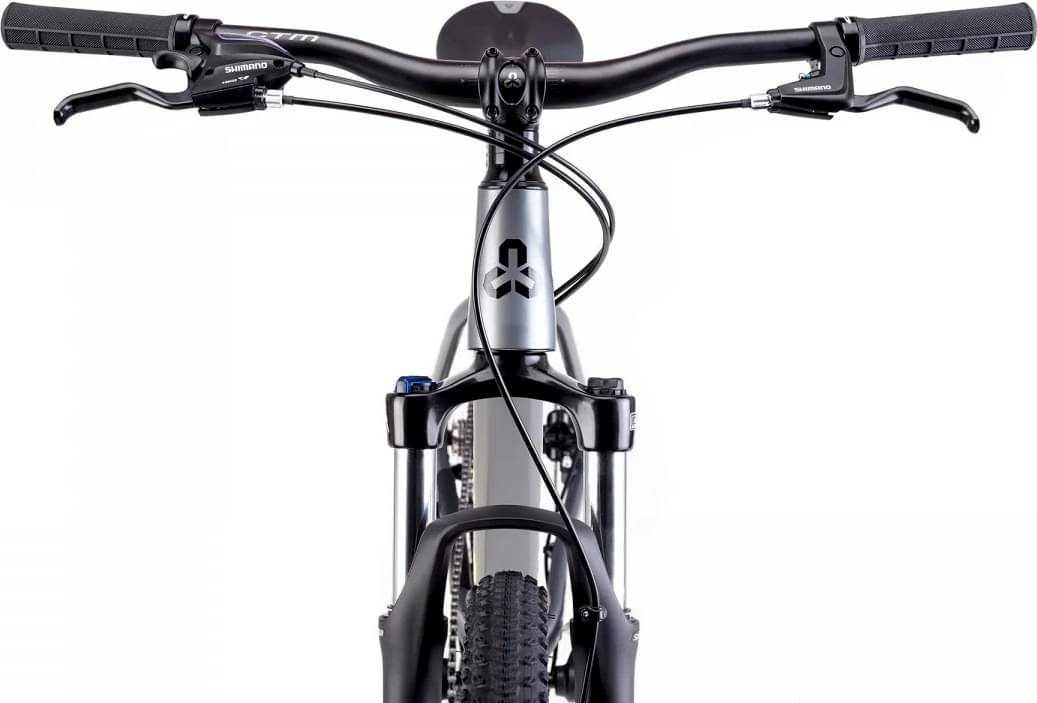

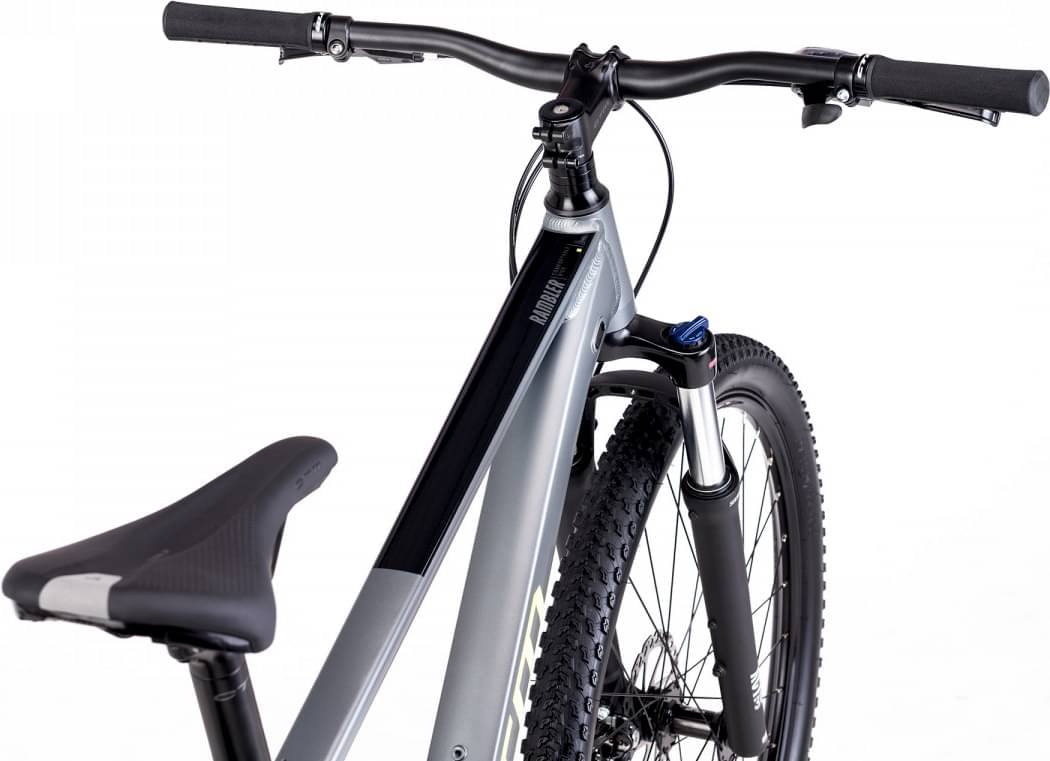

Cockpit

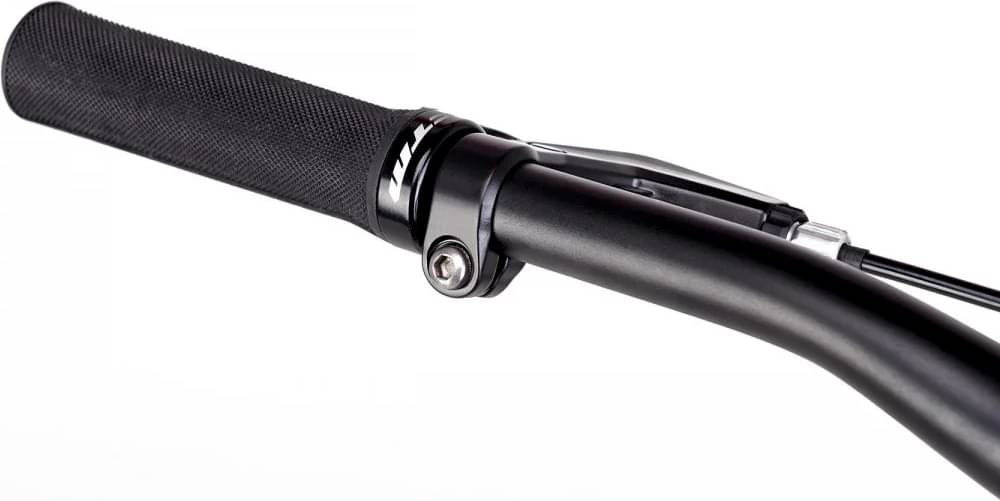

Handlebar
CTM N04M, 680/1" rise/31.8mm
Headset
NECO H156
Seat

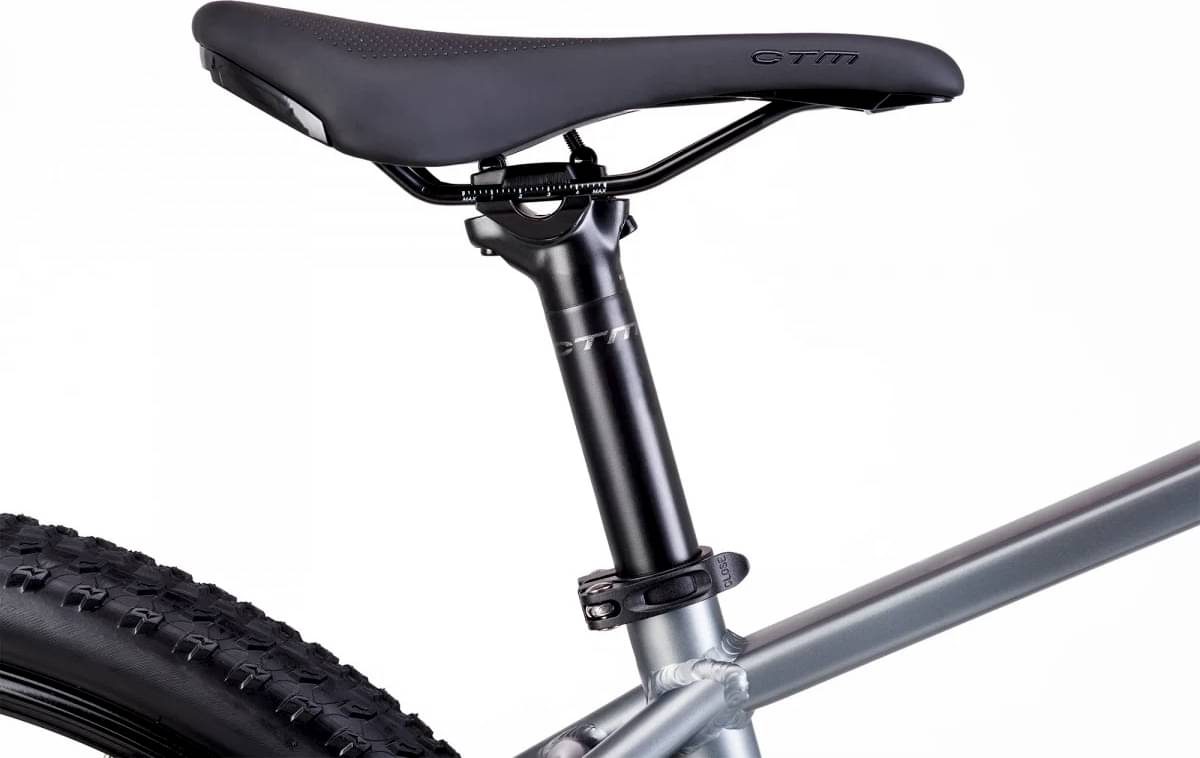

Saddle
CTM Cloud M
Seatpost
CTM LCSP-3, 350/31.6 mm
