Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

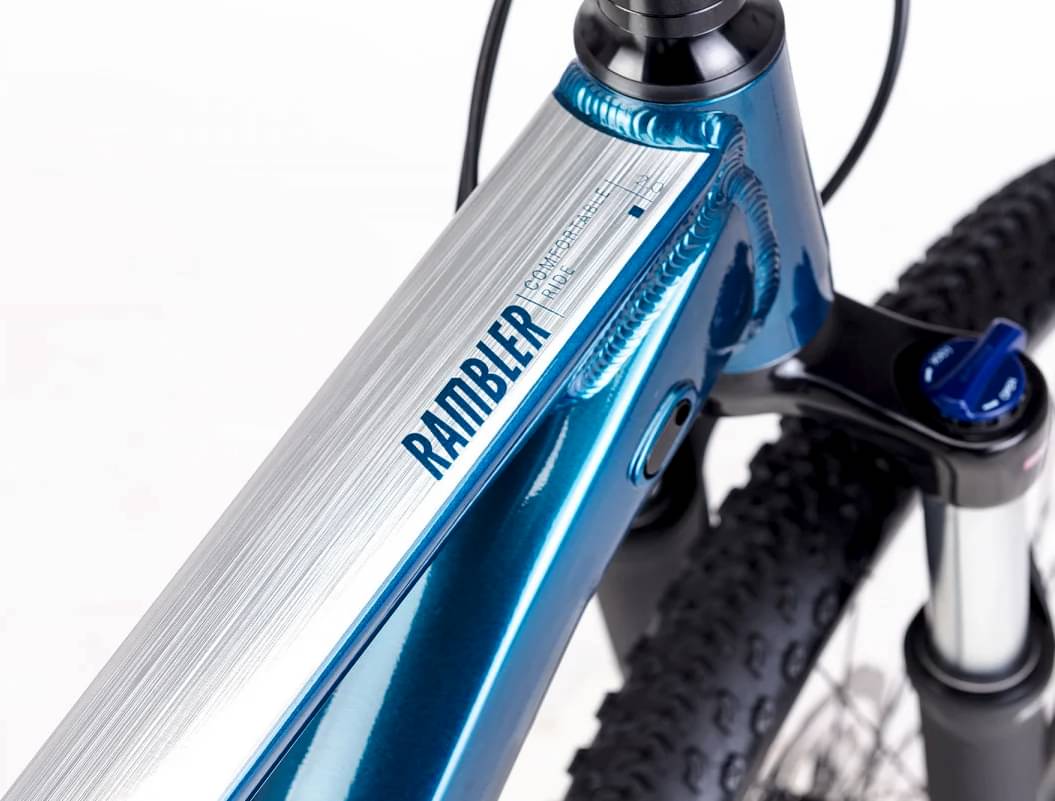

Frame
ALU 6061, S, M, L, XL
Suspension Fork
Suntour XCT30, HLO DS 100mm, 27.5"
Drivetrain

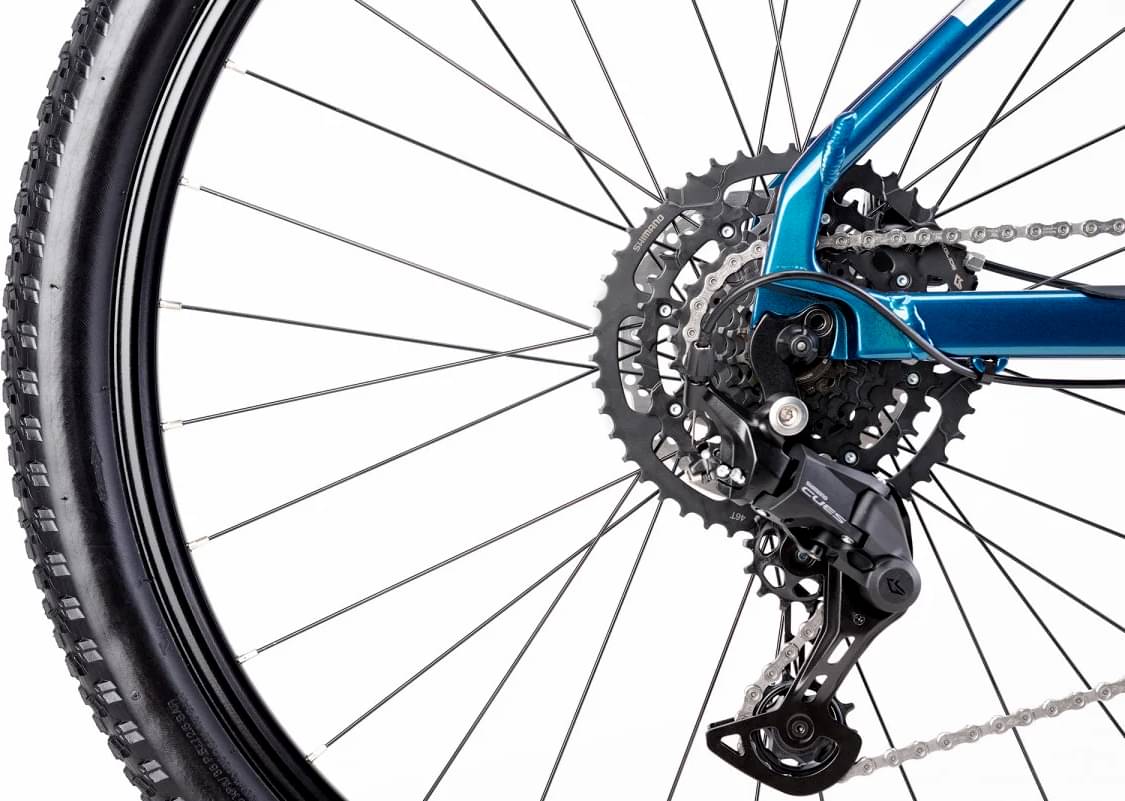

Rear Derailleur
Shimano CUES RD-U4000

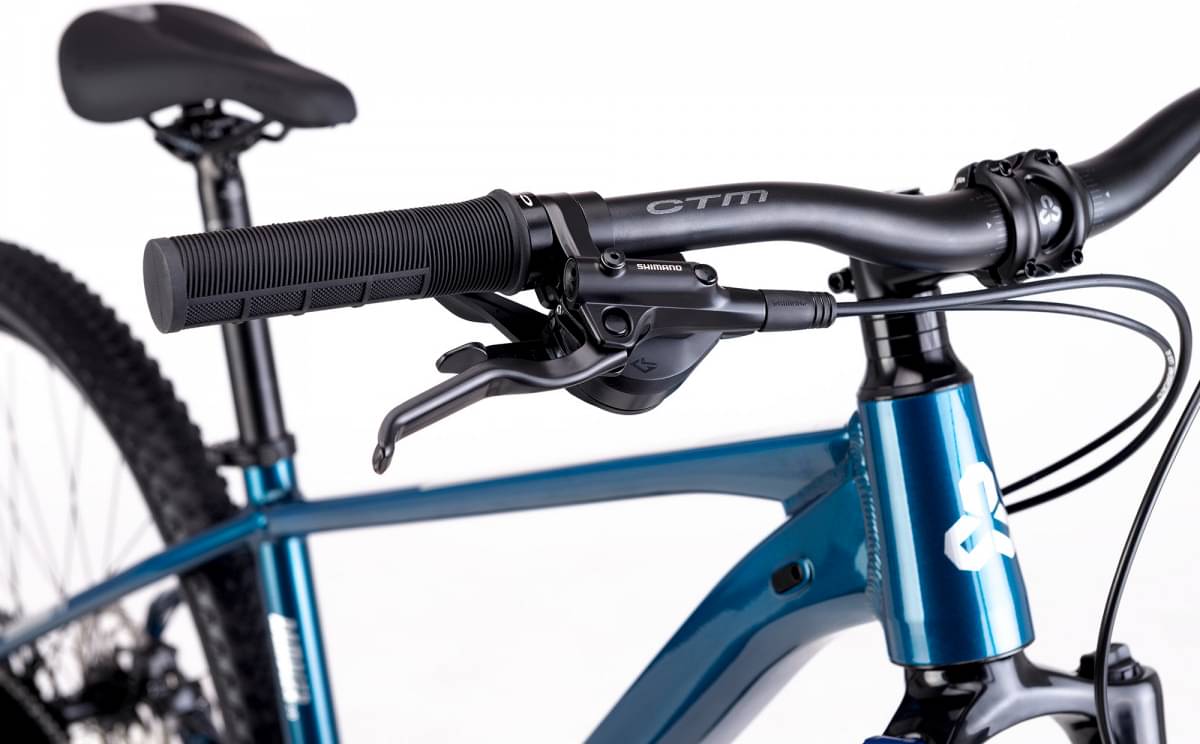

Shift Levers
Shimano CUES SL-U4000/9sp.

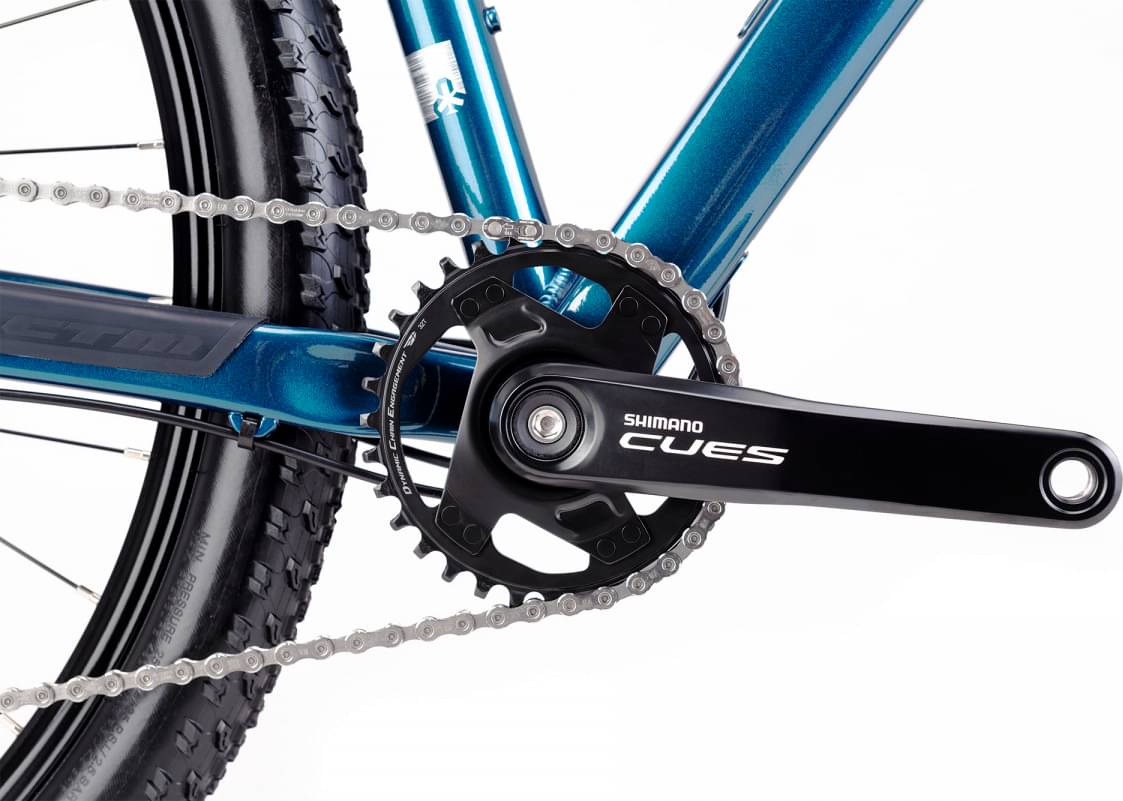

Crank
Shimano CUES FC-U4000-1, 32T/175mm
Chain
KMC XGLIDE
Pedals
SP 610
Wheels
Front Hub
CTM alloy center-lock 32H QR black
Rear Hub
CTM alloy center-lock 32H QR black
Rims
CTM TOP DISC, 584x19 BA, 32H
Brakes
Brakes
Shimano MT200 / SMRT10 S/M
Cockpit

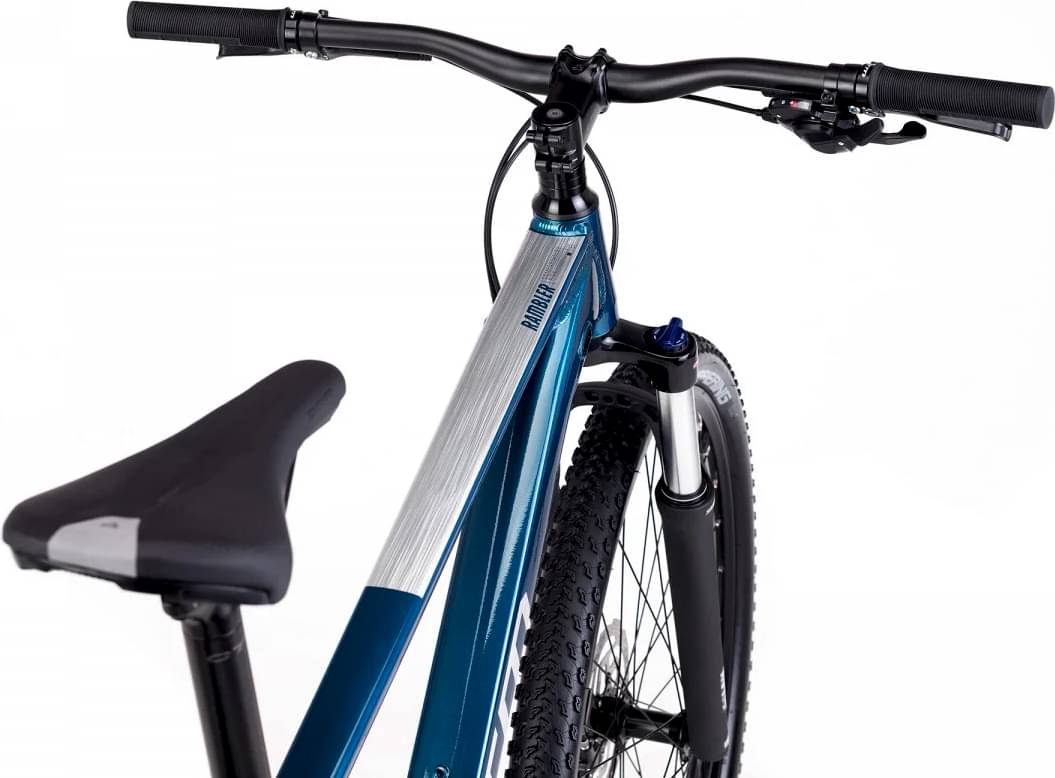

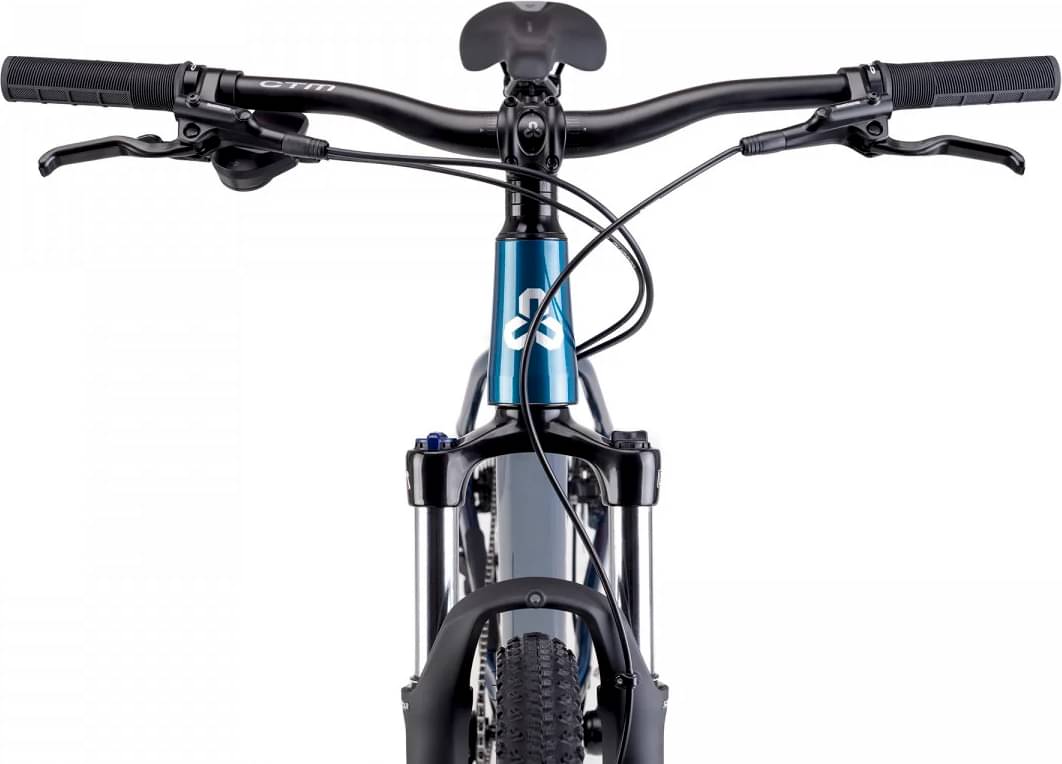

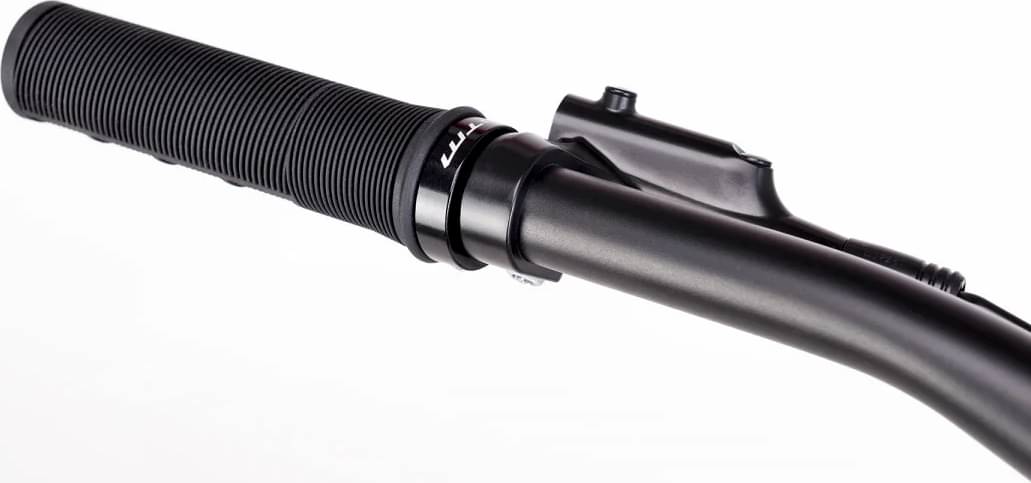

Handlebar
CTM N04M, 680/1" rise/31.8mm
Headset
NECO H156

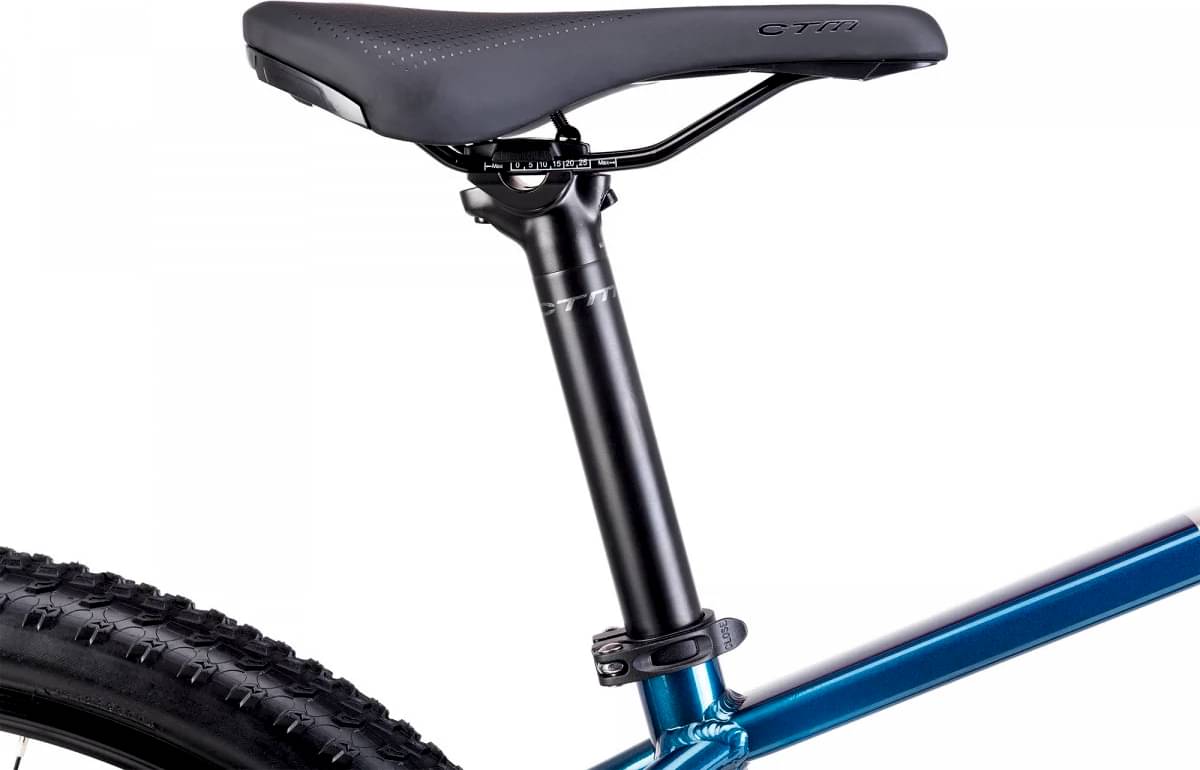

Seat
Saddle
CTM Cloud M
Seatpost
CTM LCSP-53, 350/31.6 mm
Fit data
Geometry
