Bike details
Overview
Key information split into simple groups.

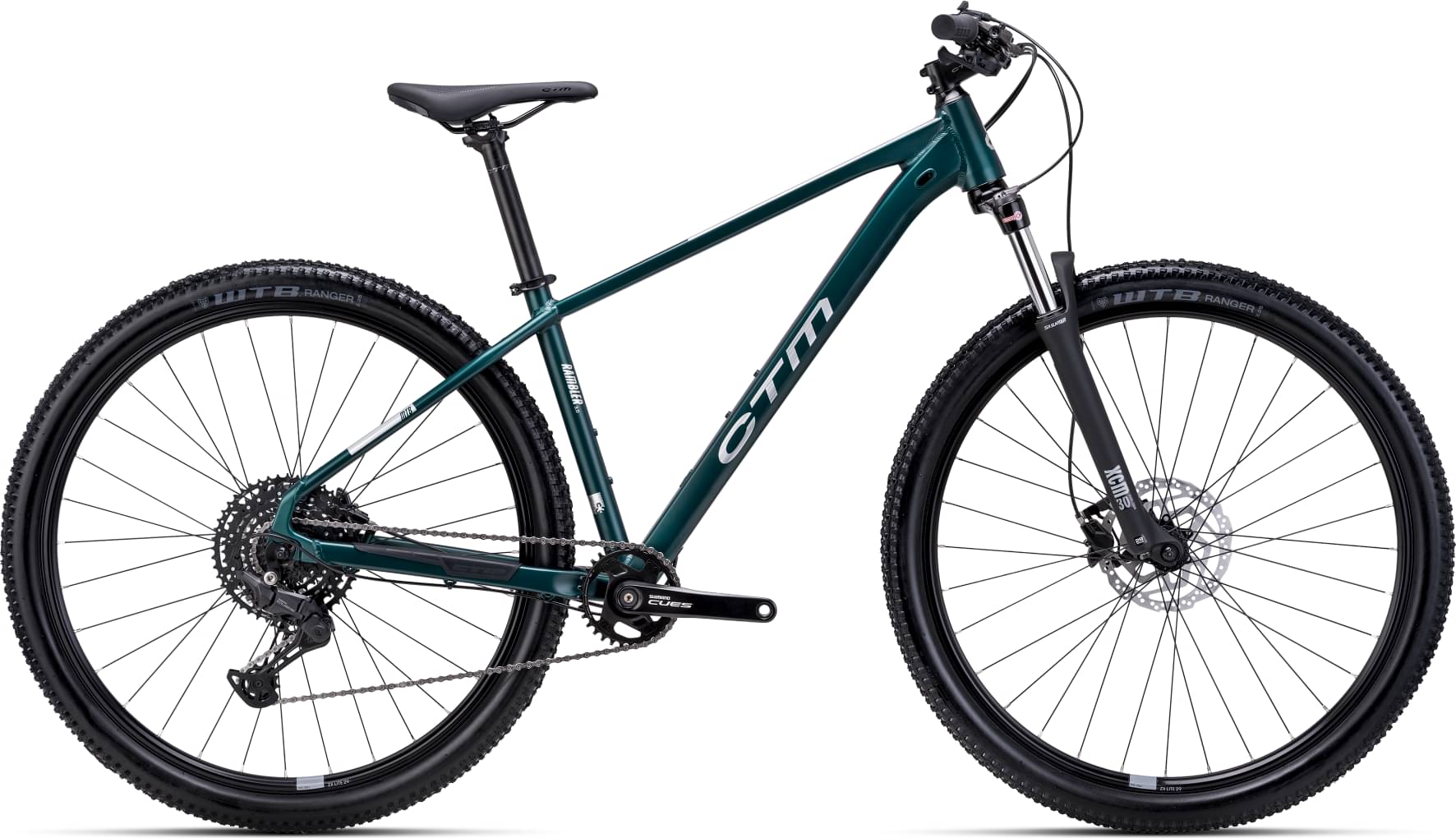

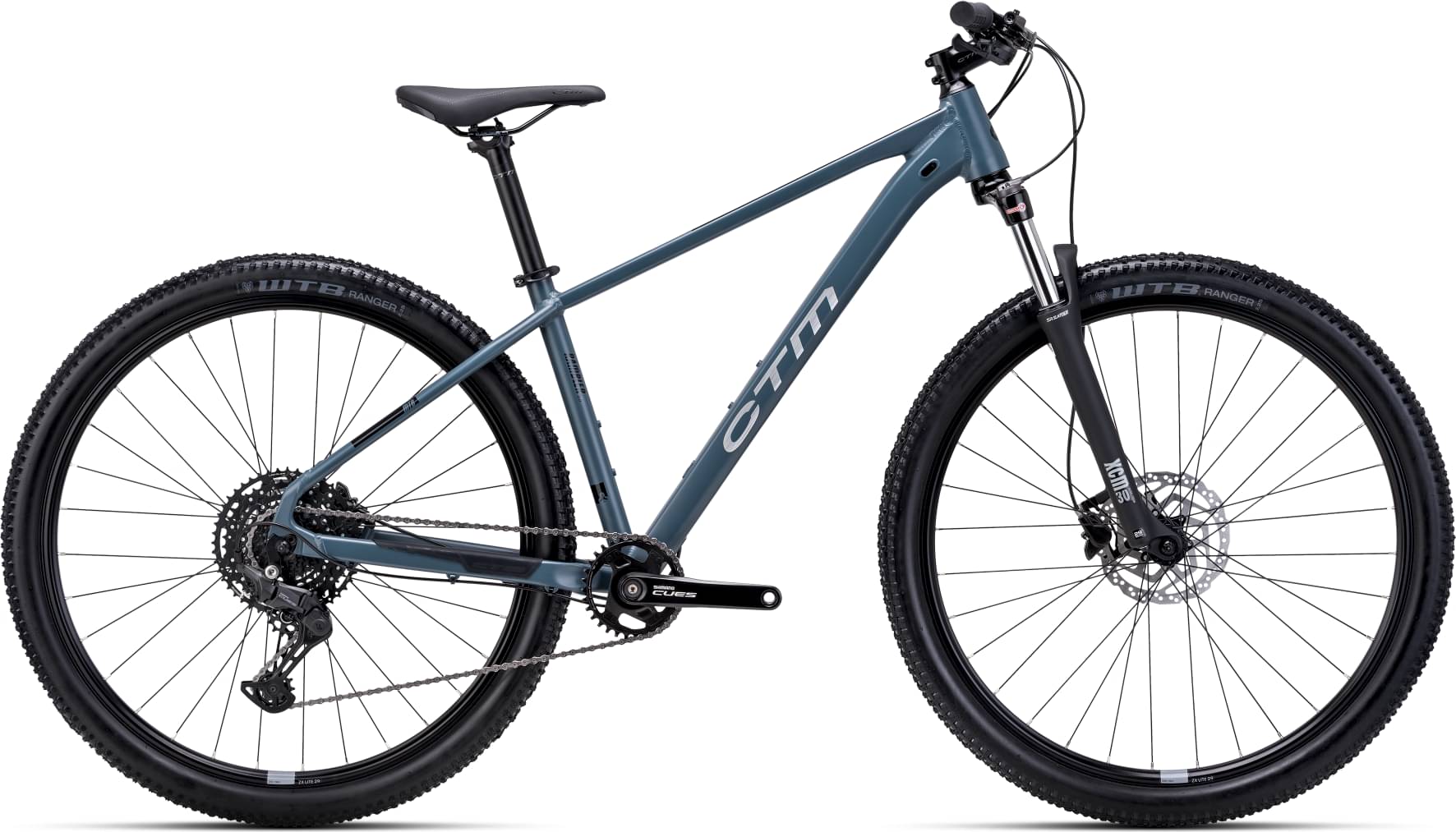

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

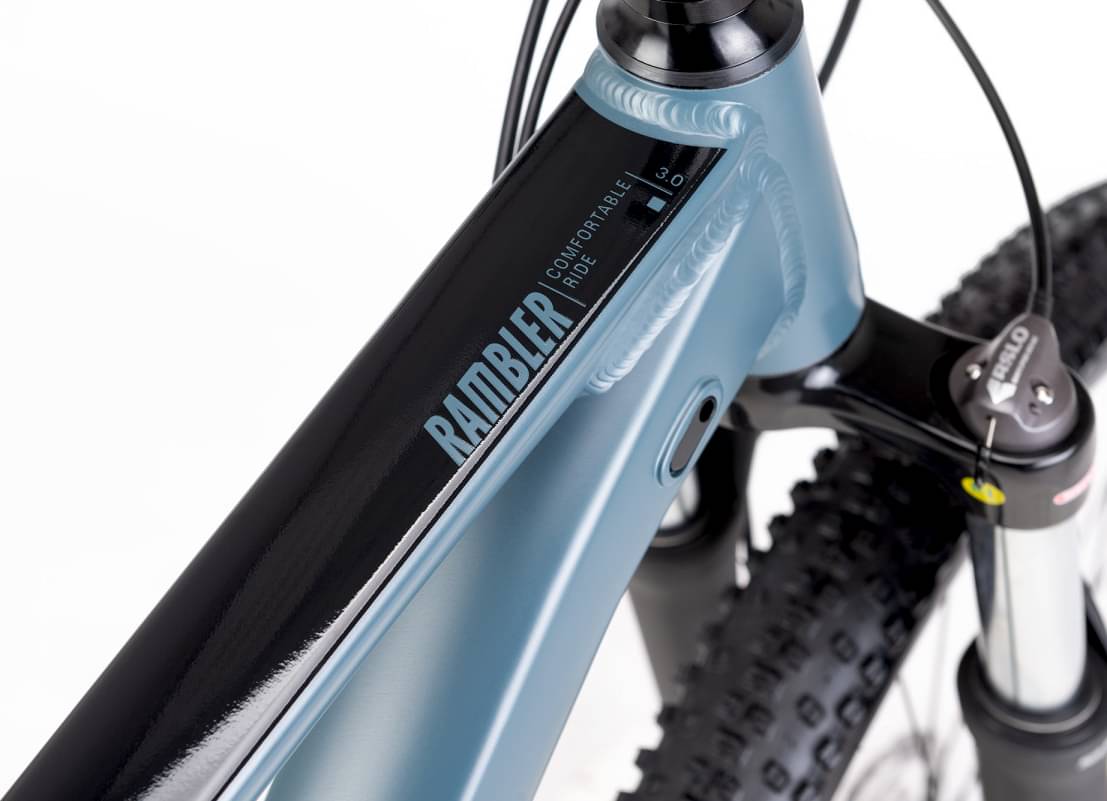

Frame
ALU 6061, M, L, XL
Suspension Fork
Suntour XCM 32 RL, DS, 100mm, TPR
Drivetrain

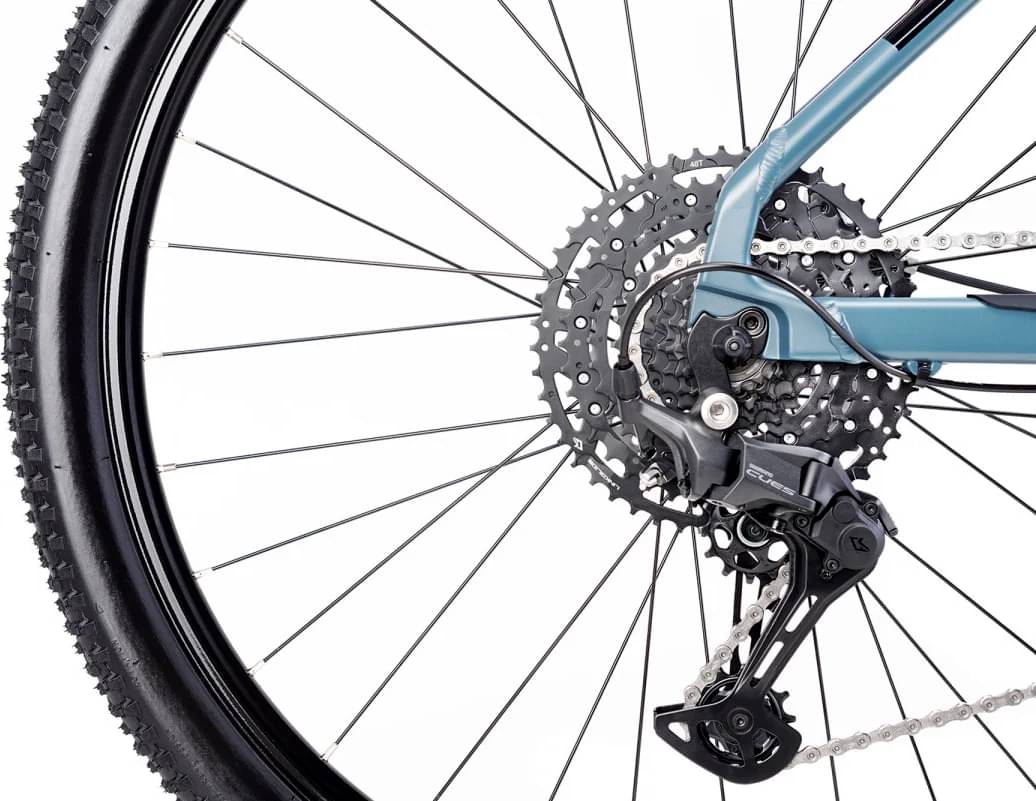

Rear Derailleur
Shimano CUES RD-U6000

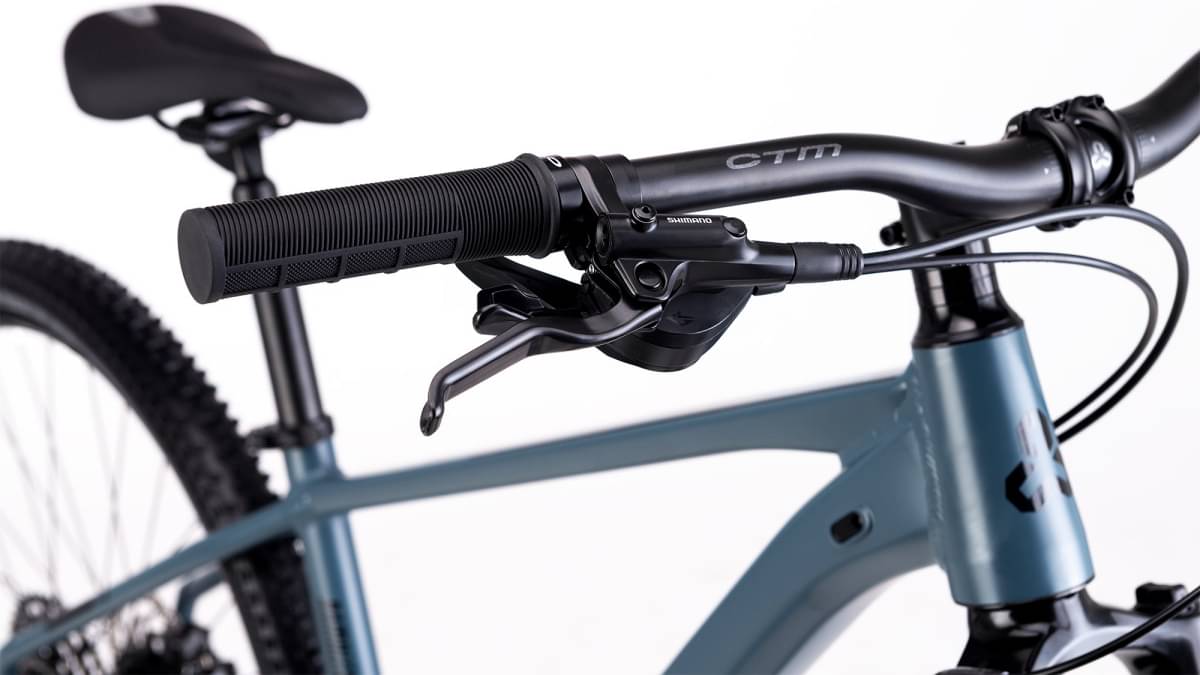

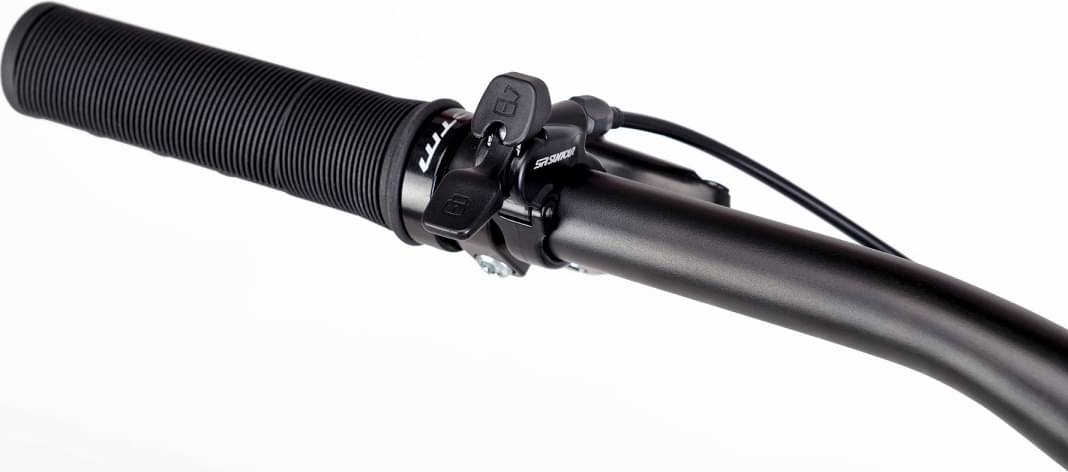

Shift Levers
Shimano CUES SL-U6000/10sp.

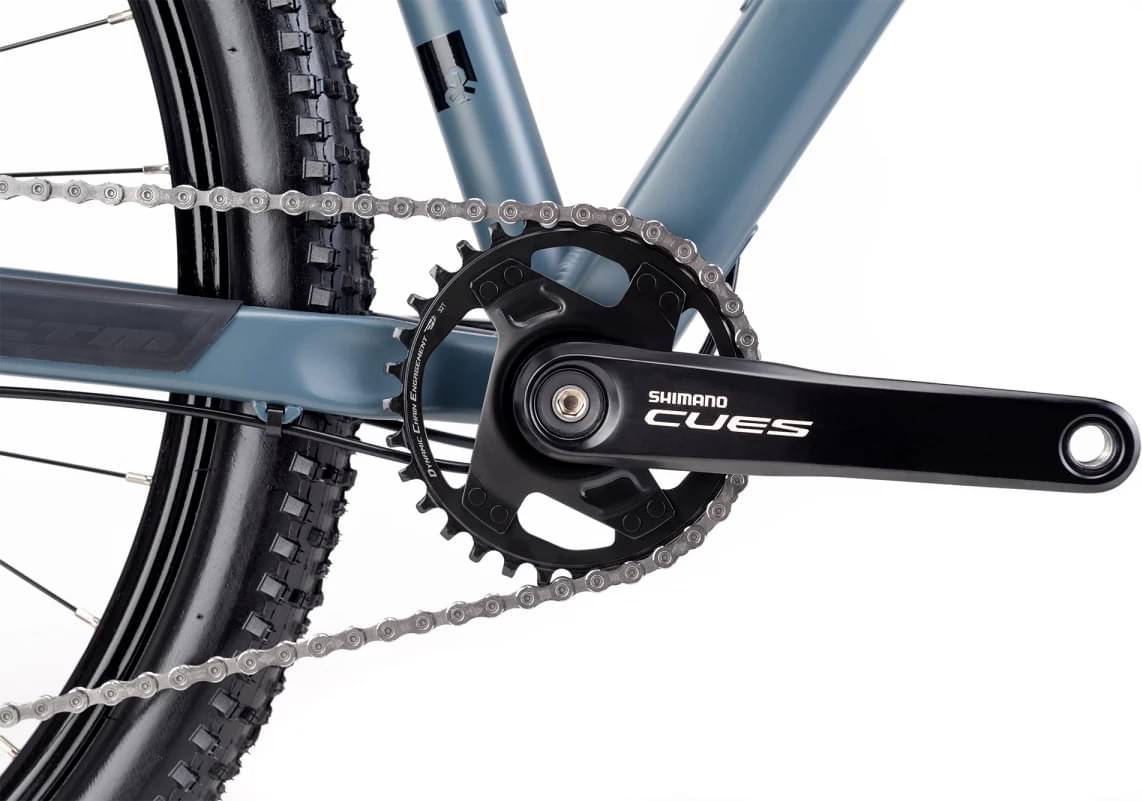

Crank
Shimano CUES FC-U4000-1, 32T/175mm
Chain
KMC XGLIDE
Pedals
SP 610
Wheels
Front Hub
CTM alloy center-lock 32H QR black
Rear Hub
CTM alloy center-lock 32H QR black
Rims
CTM TOP DISC, 622x19 BA, 32H
Brakes
Brakes
Shimano MT200 / SMRT10 S/M
Cockpit

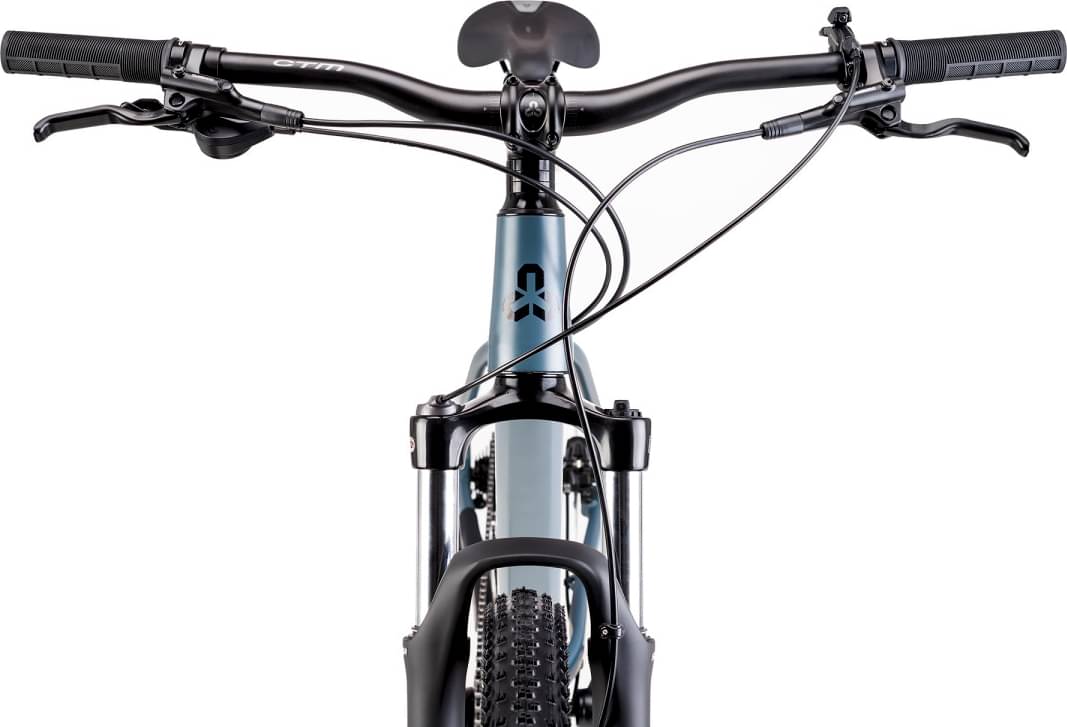

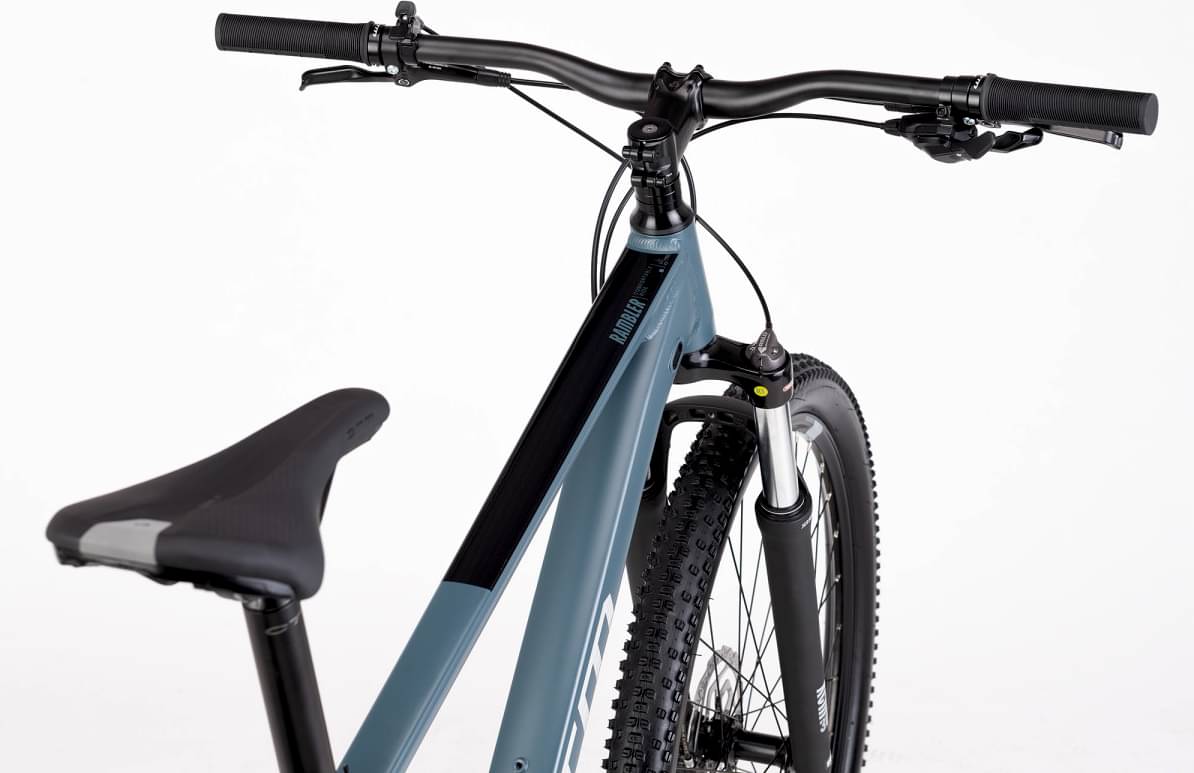

Handlebar
CTM N04, 720/1" rise/31.8mm
Headset
NECO H156
Seat

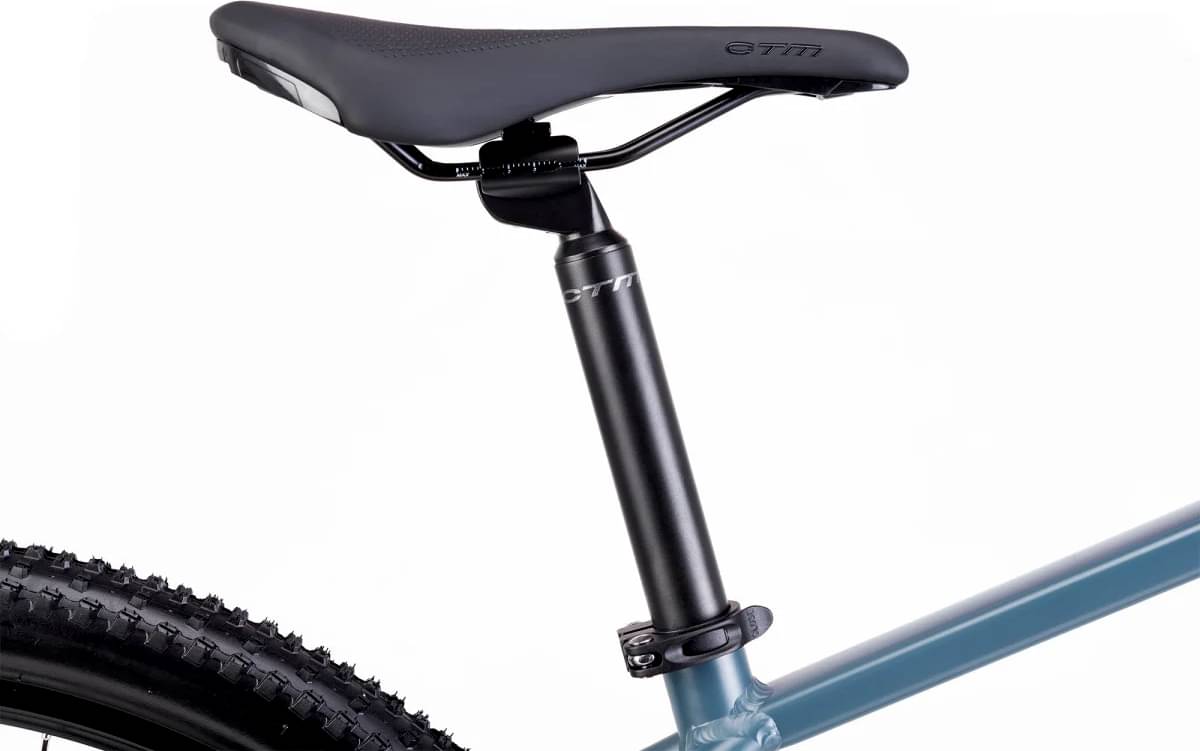

Saddle
CTM Cloud M
Seatpost
CTM LCSP-53, 350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.424 mm | 1.377 mm |
| Front Center | 698.5 mm | 719.5 mm | 745 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Stack | 622 mm | 631 mm | 640.5 mm |
| Reach | 426 mm | 443 mm | 465 mm |
| Top Tube Length | 610 mm | 630 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1136 mm | 1157 mm | 1183 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
