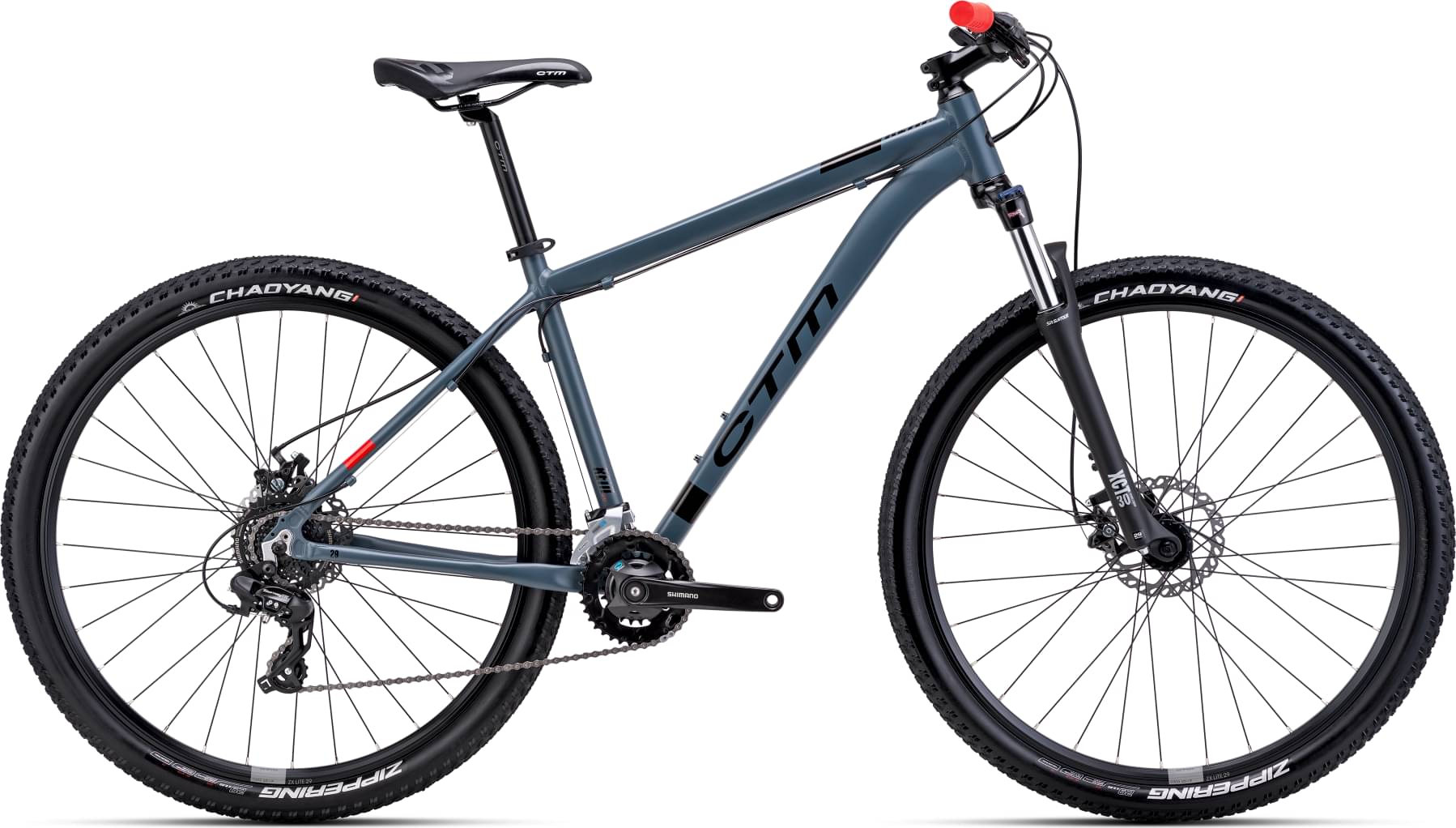

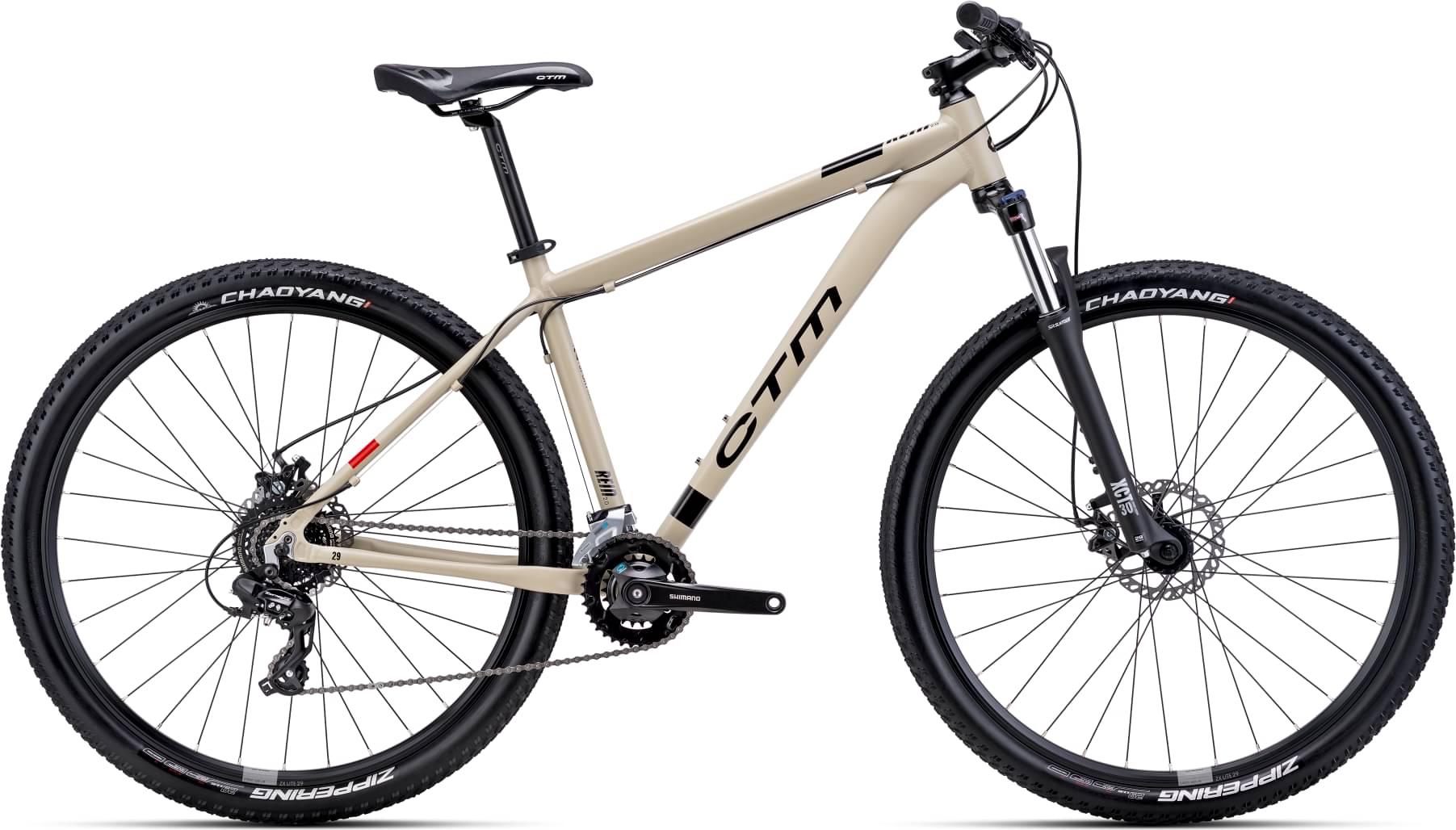

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (18"), L (20"), XL (22")
Suspension Fork
Suntour XCT30, HLO DS 100mm, 29"
Drivetrain
Rear Derailleur
Shimano RD-TX800
Shift Levers
Shimano STEF5002/8 sp.
Crank
Shimano FC-M315-2, 36-22T, 175mm
Chain
KMC Z8
Pedals
SP 510
Wheels
Rear Hub
CTM alloy 6 bolt 32H QR black
Rims
CTM TOP DISC, 622x19 BA, 32H
Tires
29x2.20" ZIPPERING
Brakes
Brakes
Hayes mechanical disc brake
Cockpit
Stem
CTM LCS 80/31.8 mm
Handlebar
CTM HB-RB11W, 680/31.8 mm
Headset
NECO H148
Seat
Saddle
CTM
Seatpost
CTM SP 300x27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 668 mm | 684 mm | 699 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1116 mm | 1132 mm | 1148 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
