Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hayes Mechanical Disc
Sizing
Recommended size guide.
14"
135cm - 155cm
Parts list
Components
Main components, grouped by system.
Bike components

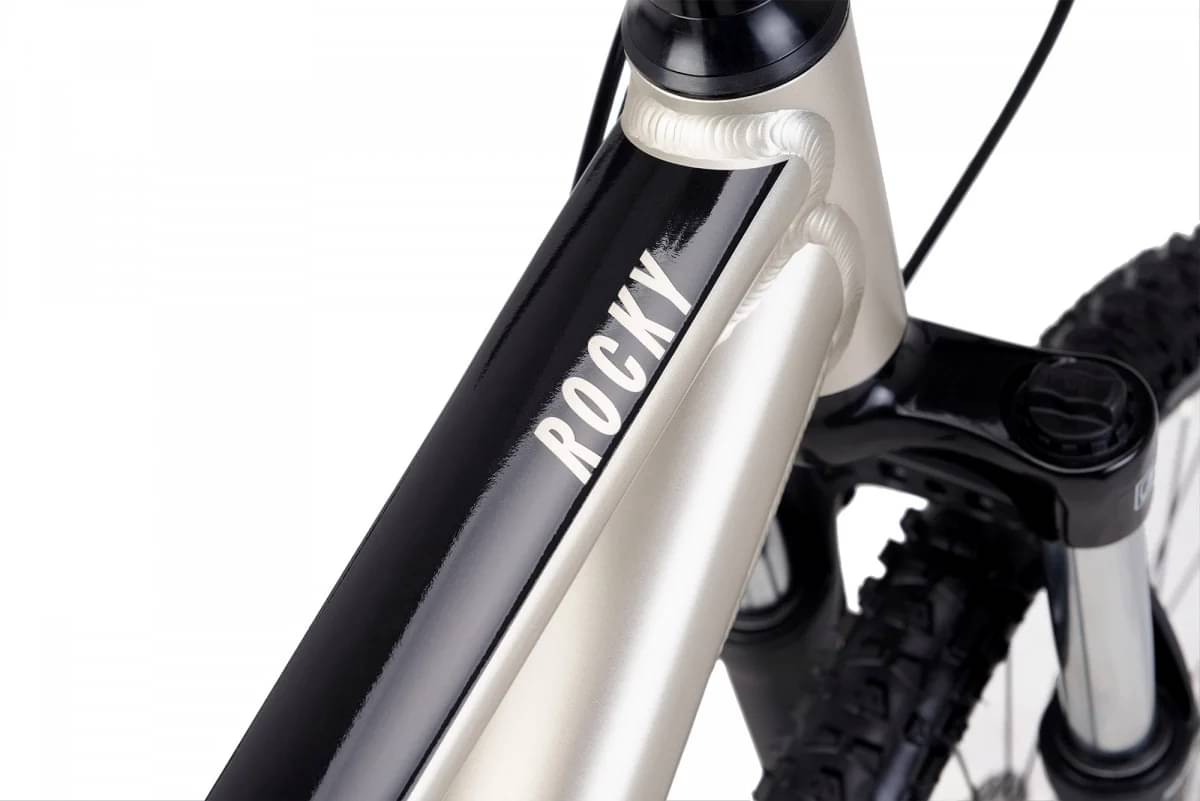

Frame
Frame
ROCKY JR, AL 6061, 14
Suspension Fork
Suntour XCE28 DS 100mm, 26"
Drivetrain

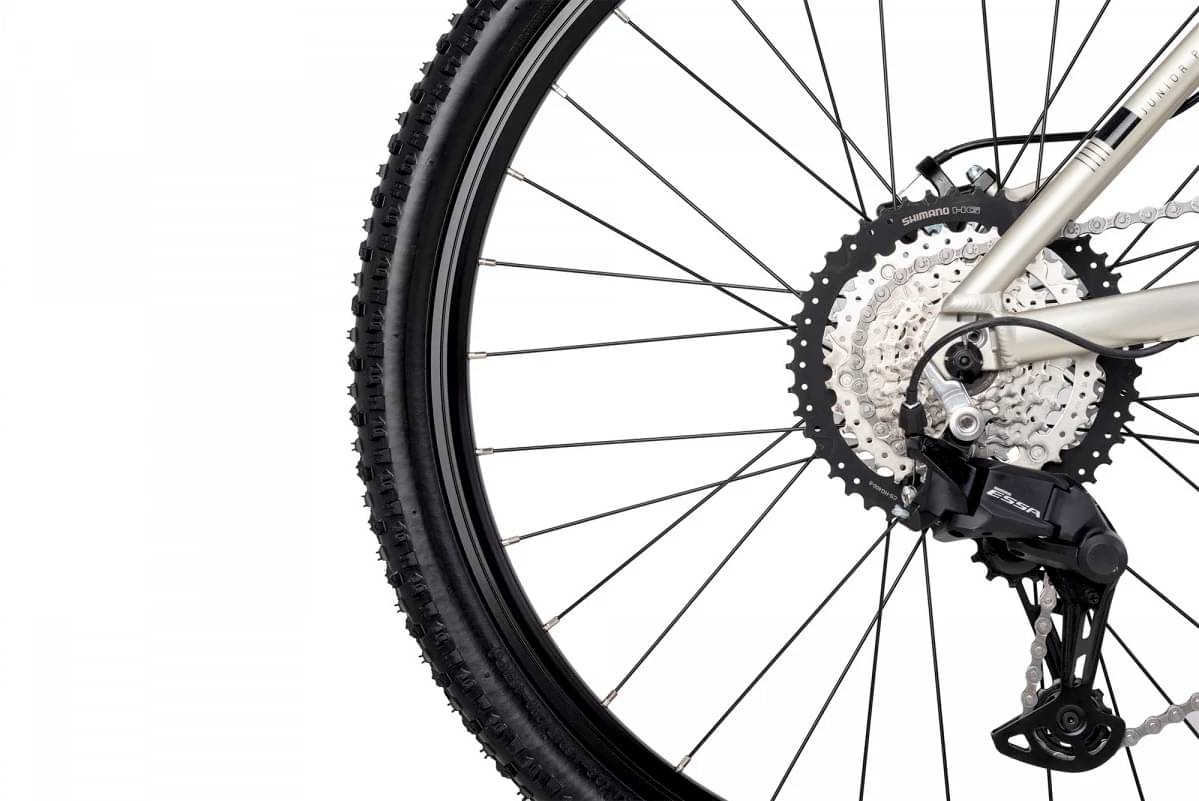

Rear Derailleur
Shimano ESSA RD-U2000

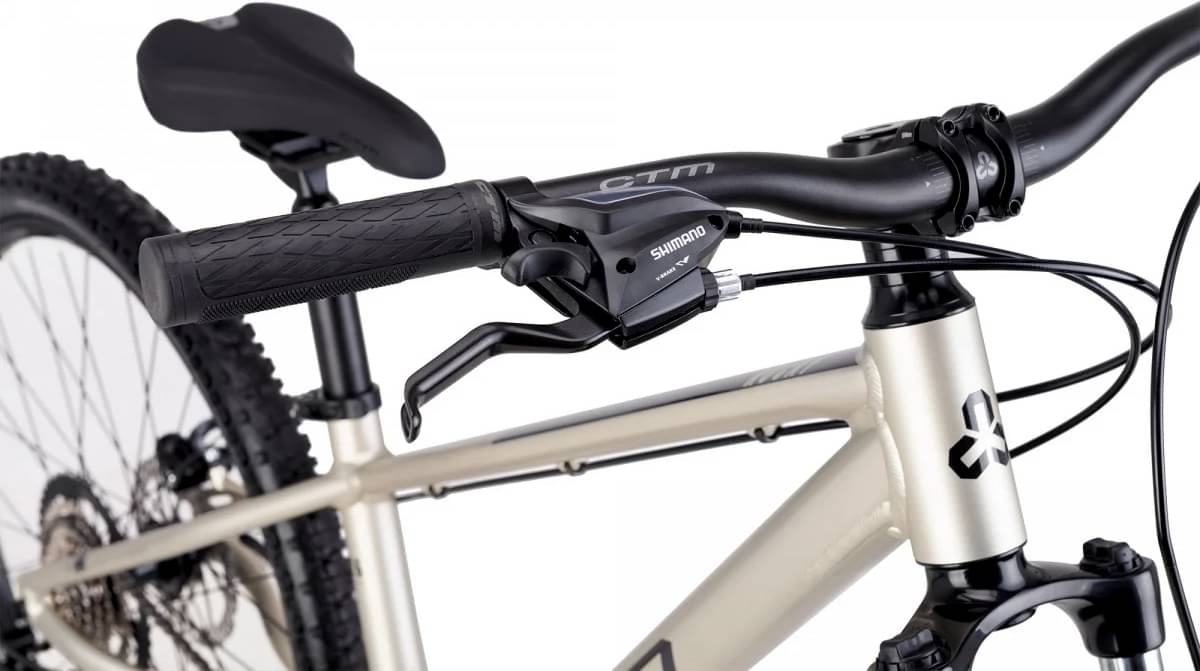

Shift Levers
Shimano STEF5002/8 sp.

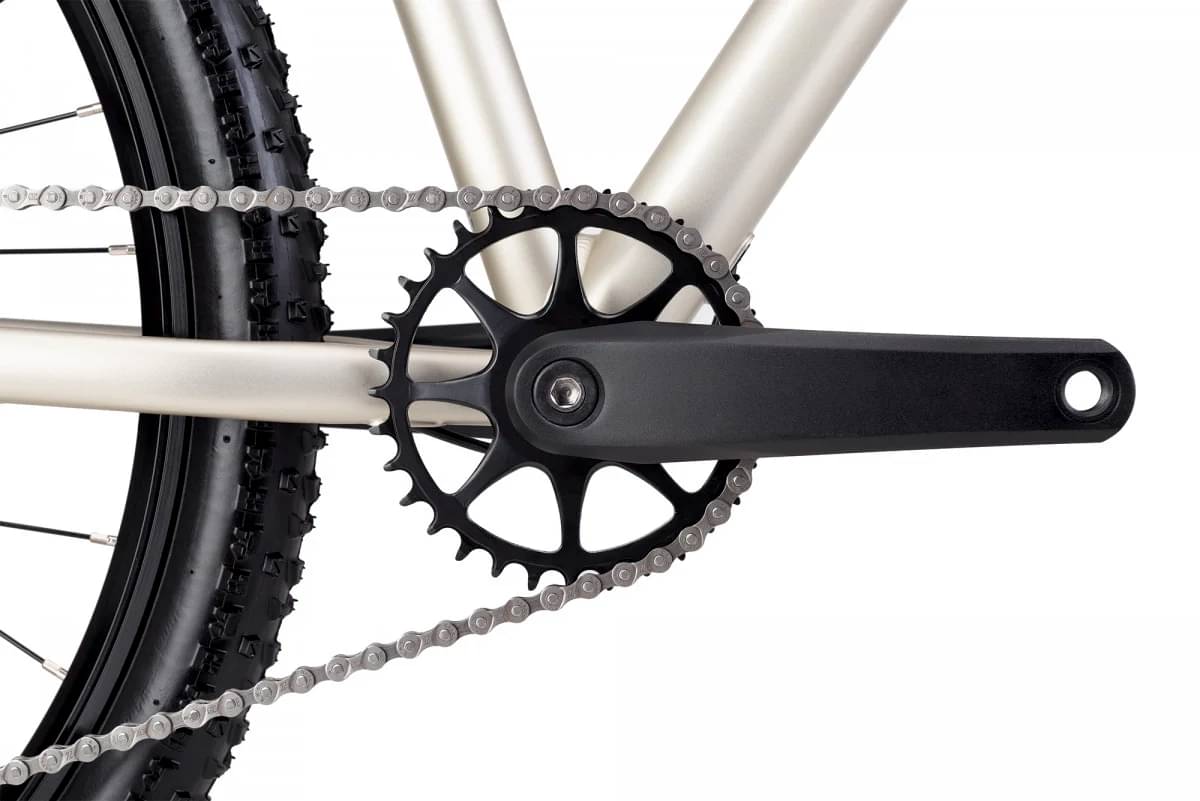

Crank
Samox 32T, 165mm
Chain
KMC Z7
Pedals
VPE 229
Wheels
Front Hub
CTM alloy 6 bolt 32H QR black
Rear Hub
CTM alloy 6 bolt 32H QR black
Rims
CTM TOP DISC, 559x19 BA, 32H
Brakes
Brakes
Hayes mechanical disc brake

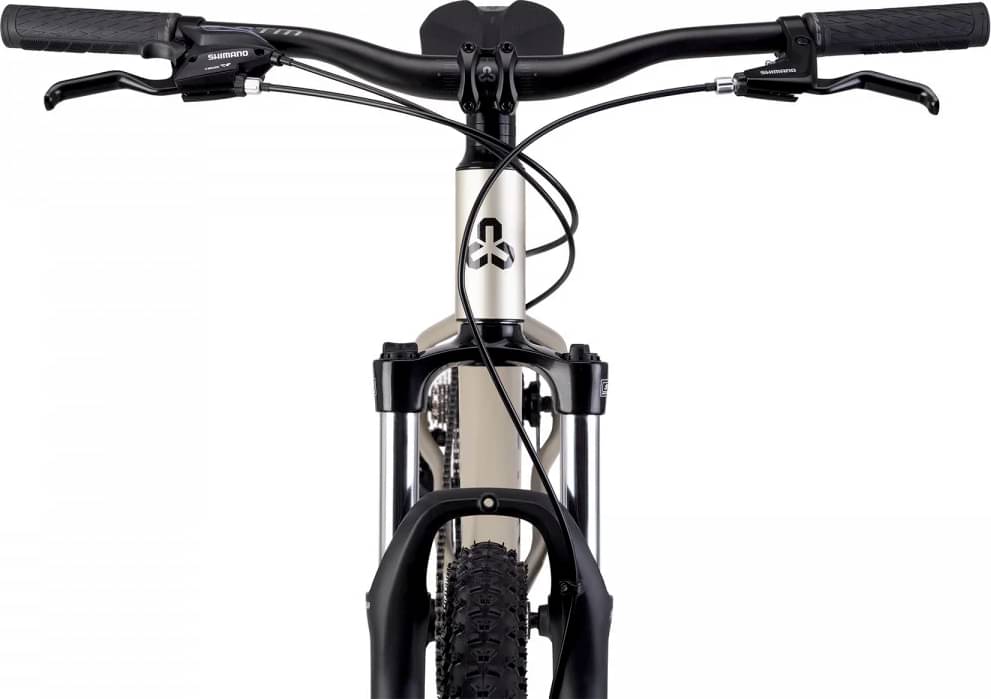

Cockpit
Handlebar
CTM N04M, 680/1" rise/31.8mm
Headset
Neco H-148M/B
Seat
Saddle
CTM
Seatpost
CTM LCSP-3, 300/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" |
|---|---|
| Wheels | 26" |
| Rider Min Height | 135 cm |
| Rider Max Height | 155 cm |
