Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -

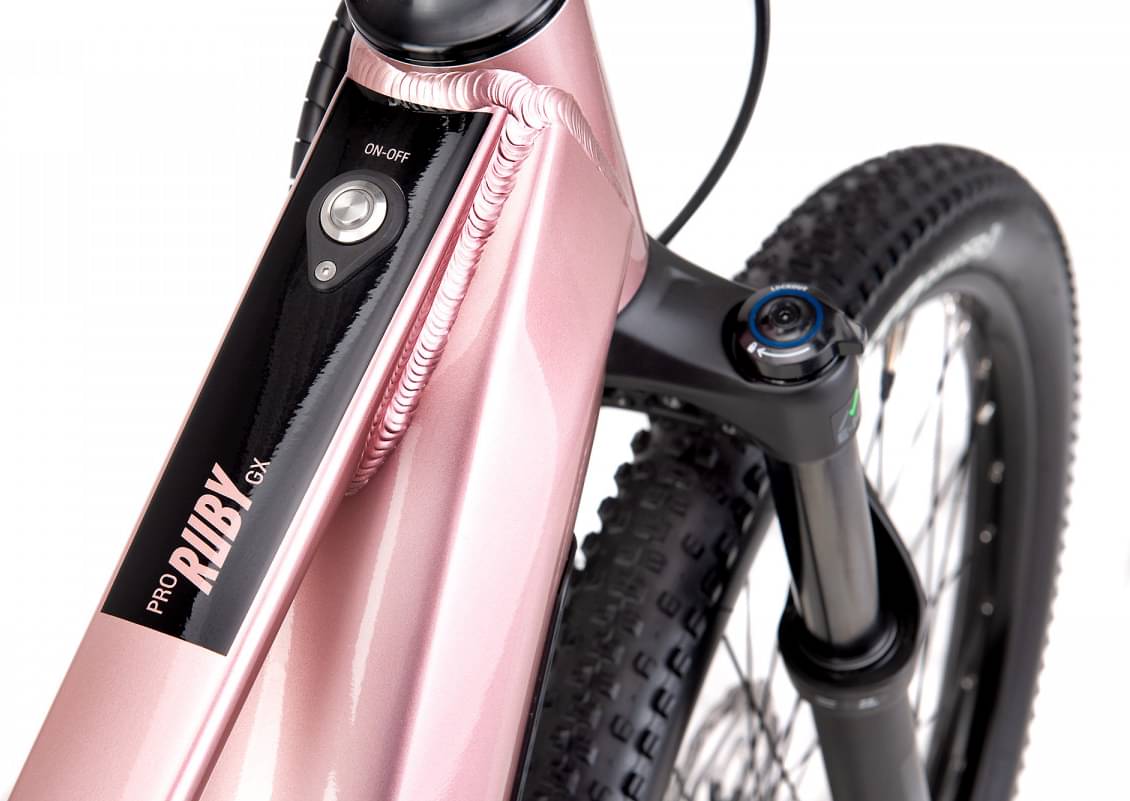

Fork RockShox Judy Silver TK
-
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 250W 75Nm mid-drive -
Battery LG 720 Wh / 36V / 20Ah -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 165cm
MD
160cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components

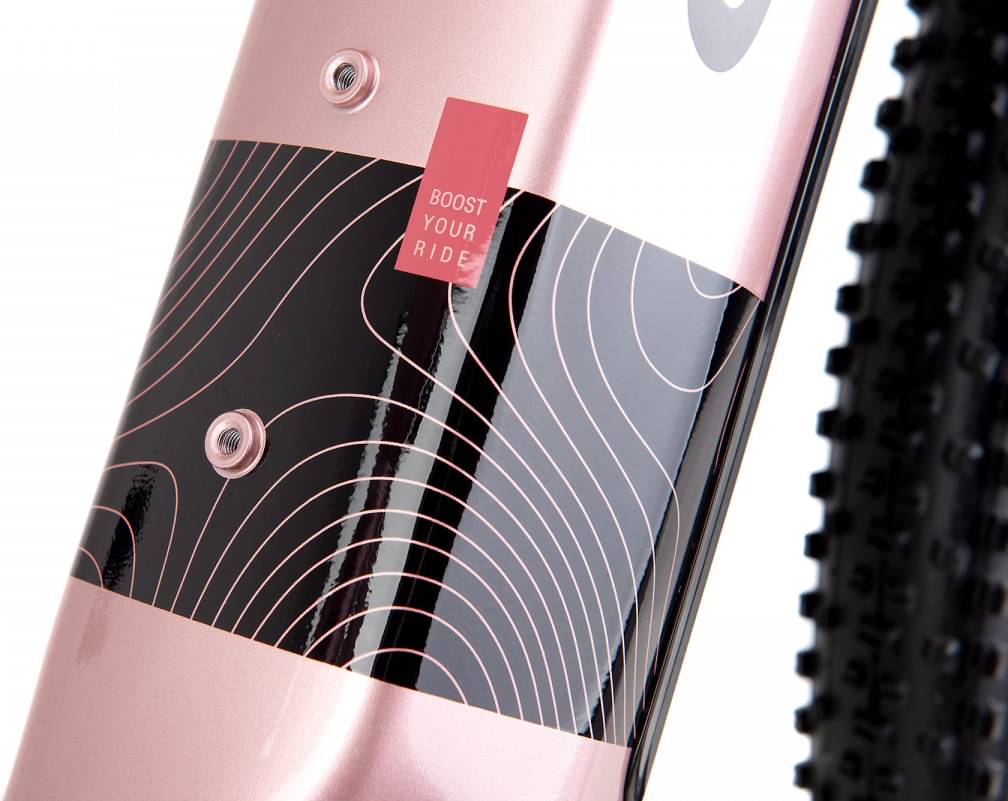

Frame
Frame
ALU 6061, S, M
Suspension Fork
Rock Shox JUDY SILVER TK, SA, 120mm, boost™ 15x110axle
Drivetrain

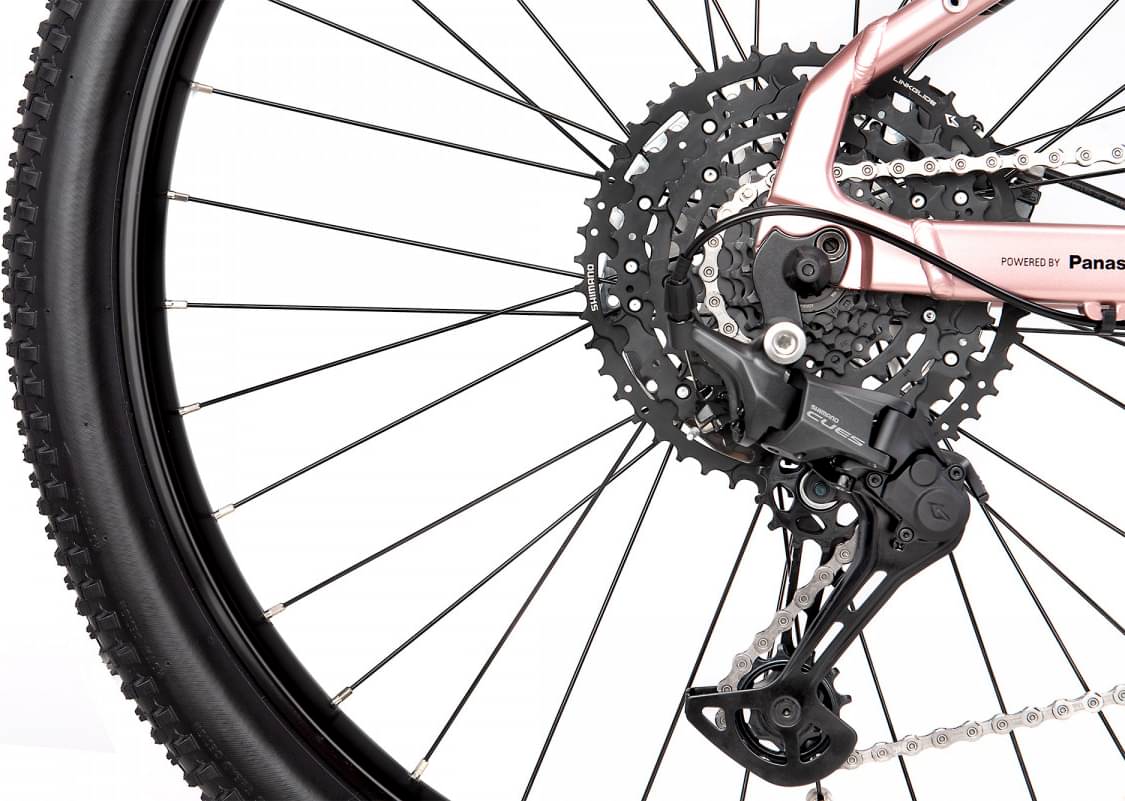

Rear Derailleur
Shimano CUES RD-U6000GS
Shift Levers
Shimano CUES SL-U6000/10sp.
Crank
Samox 38T, 170mm
Chain
KMC XGLIDE
Pedals
VPE 537
Wheels
Front Hub
Novatec D041DSB,15mm/D142TSE,32H,CL
Rear Hub
Novatec D041DSB,15mm/D142TSE,32H,CL
Rims
WTB ST i30 TCS 2.0 27.5" 32H
Brakes
Brakes
Shimano MT200 / SMRT10M

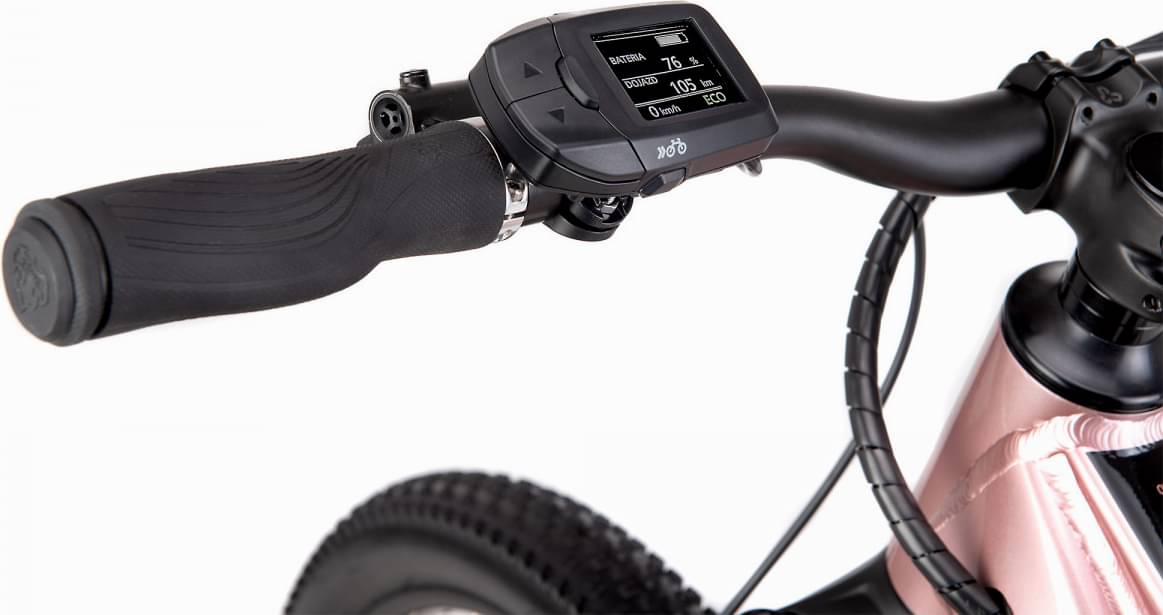

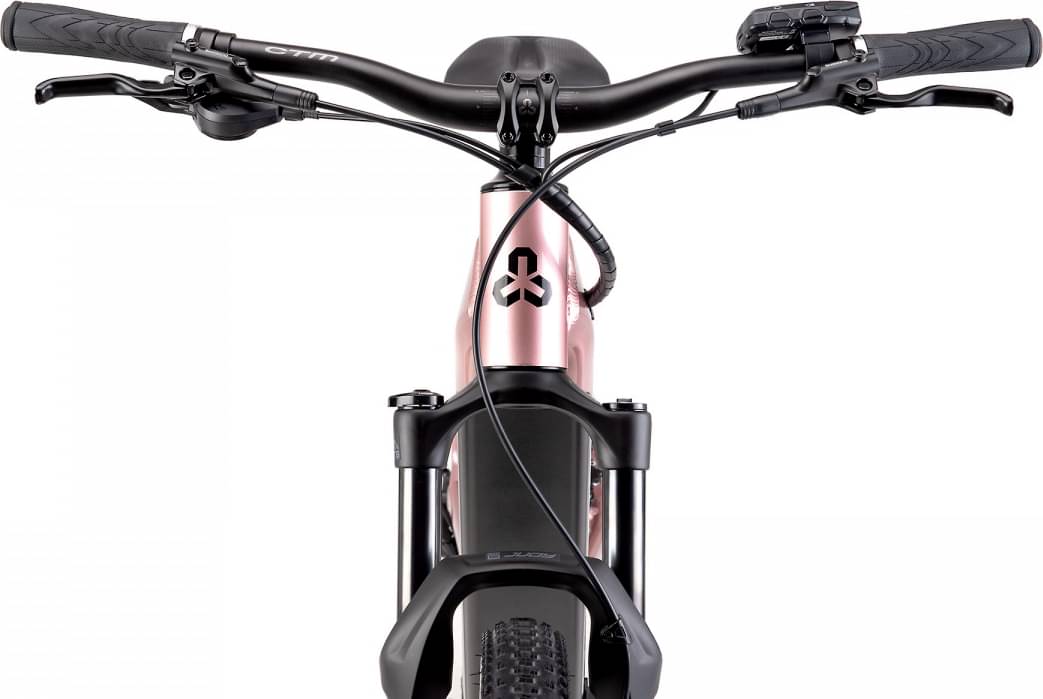

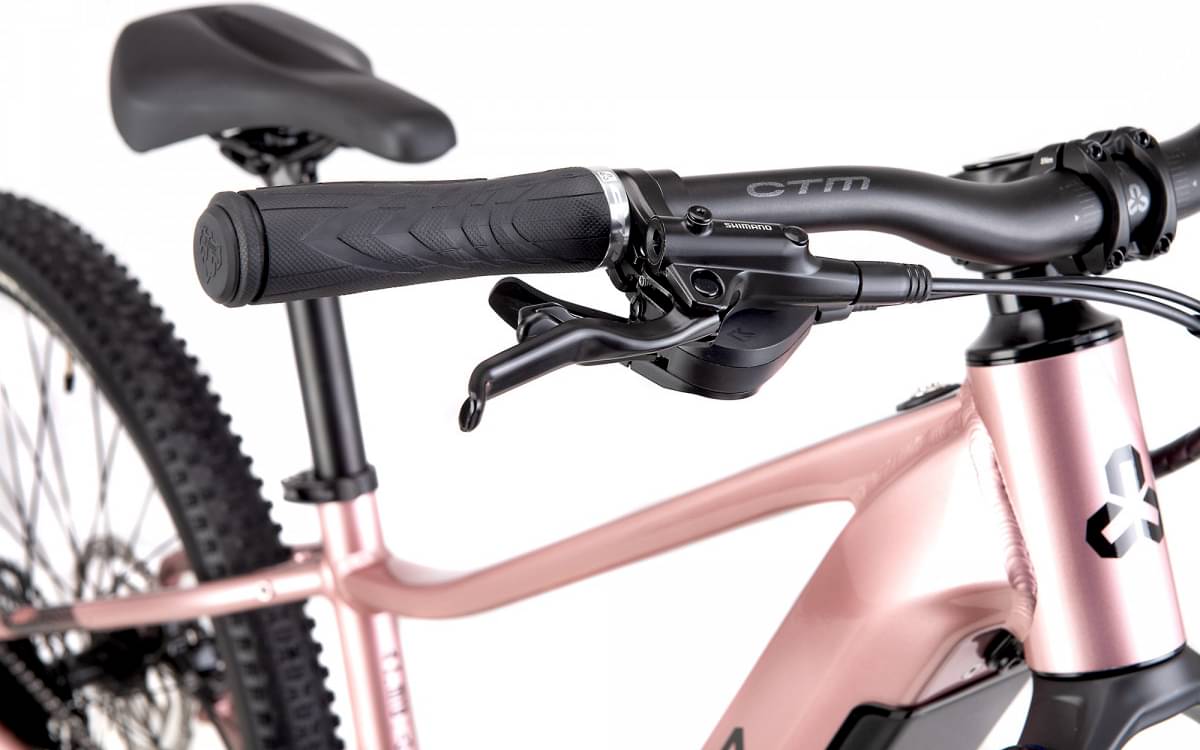

Cockpit
Handlebar
CTM N04M, 700/1" rise/31.8mm
Headset
NECO H153
Seat
Saddle
SR Vivo Unitech
Seatpost
CTM LCSP-53, 300/31.6 mm

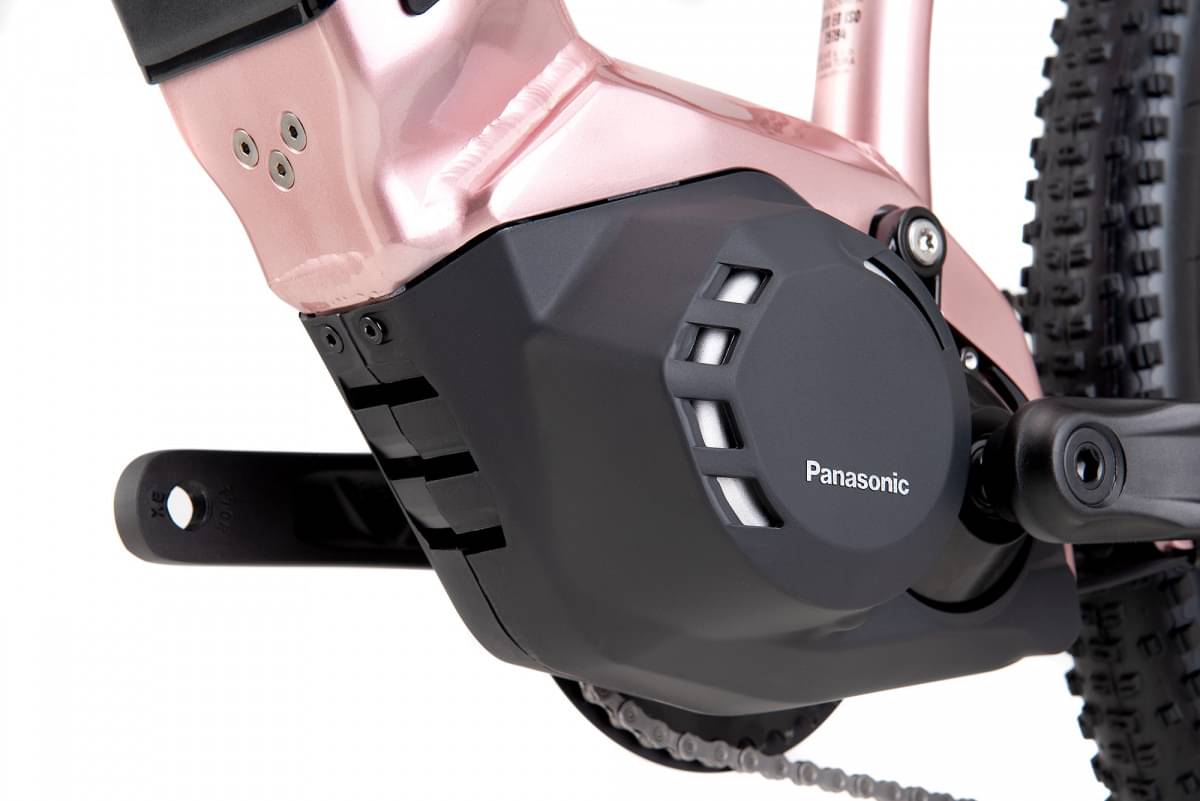

Motor & Battery
Motor

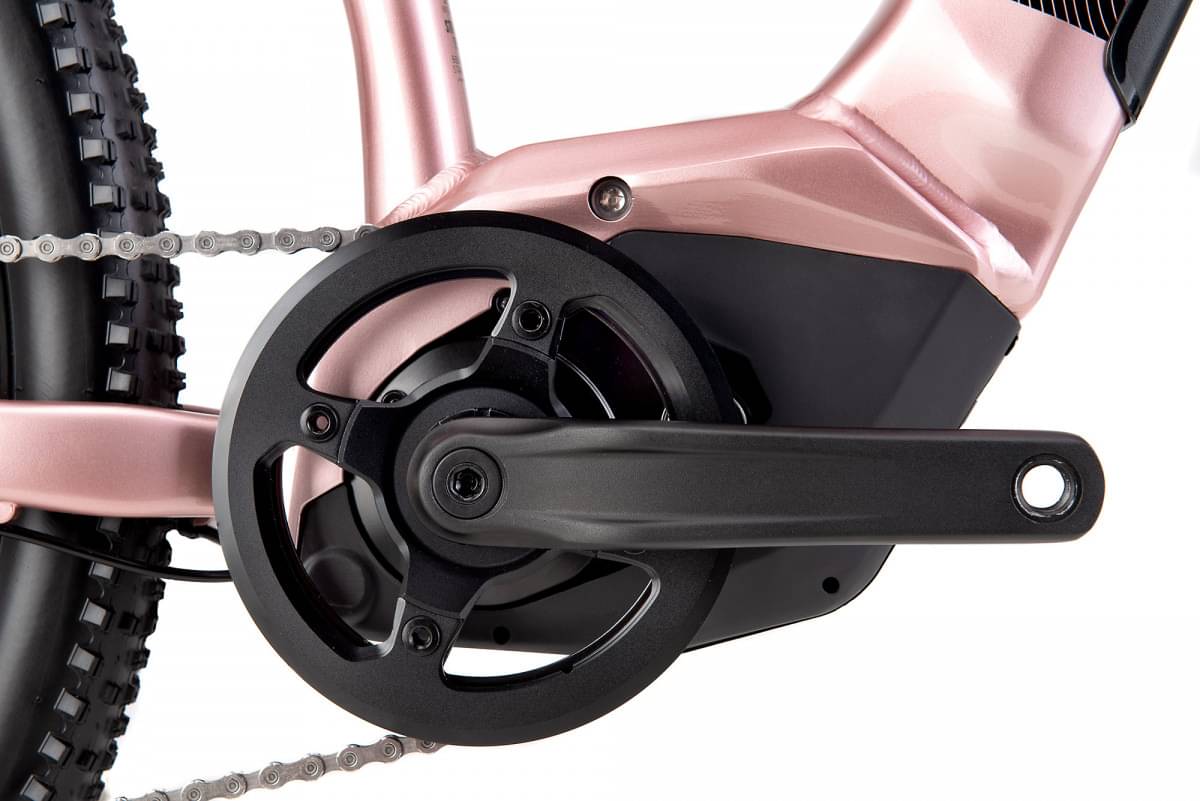

PANASONIC GX Power plus / 250W / 75Nm
Battery
LG 720 Wh / 36V / 20Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.554 mm |
| Front Center | 697 mm | 710 mm |
| Rake | 46 mm | 46 mm |
| Stack | 628 mm | 637 mm |
| Reach | 400 mm | 410 mm |
| Top Tube Length | 578 mm | 591 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 375 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 460 mm | 460 mm |
| Wheelbase | 1153 mm | 1167 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 150 cm | 160 cm |
| Rider Max Height | 165 cm | 175 cm |
