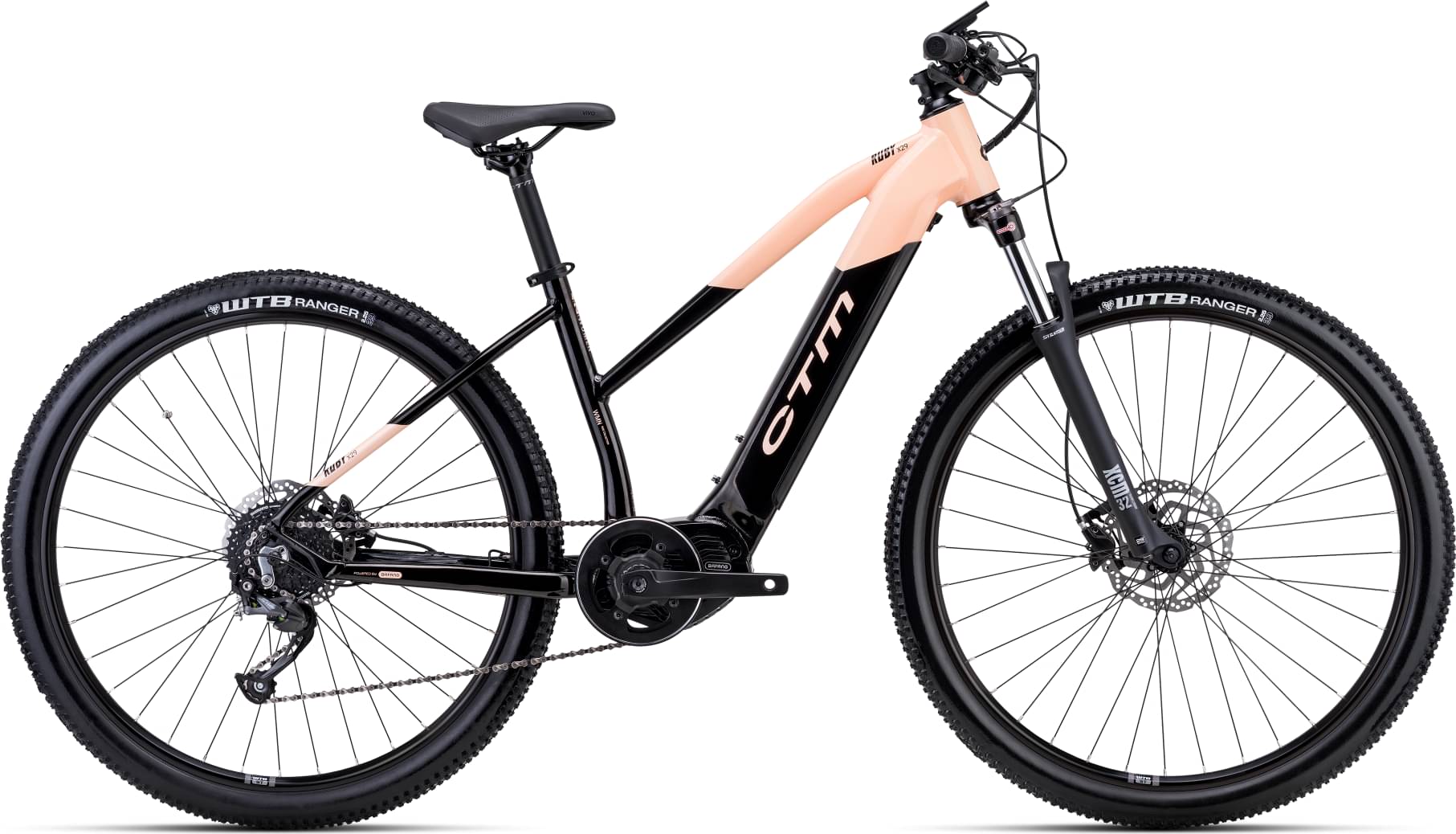

Bike details
Overview
Key information split into simple groups.

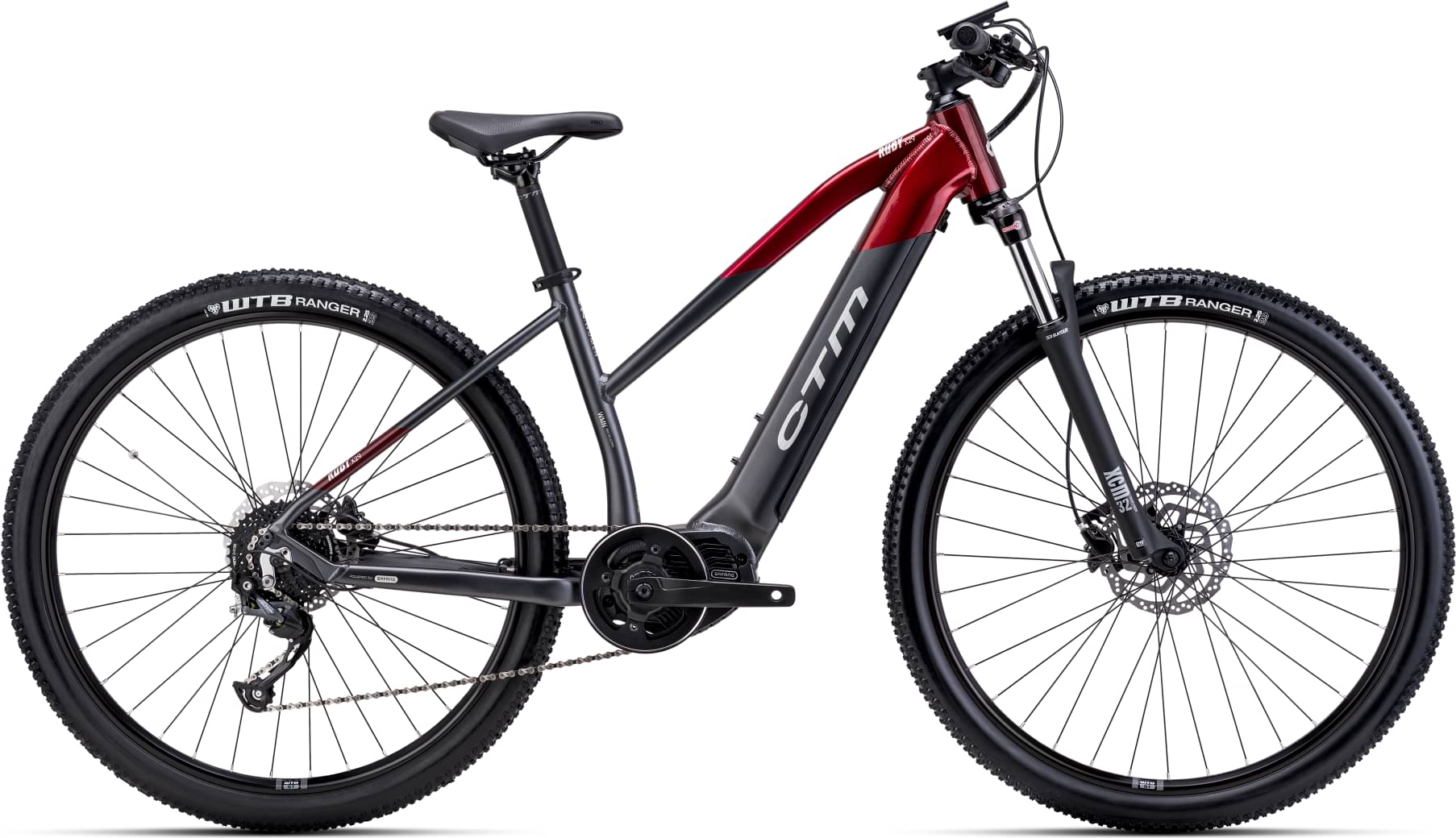

Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 720Wh / 48V / 15Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
155cm - 175cm
LG
170cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

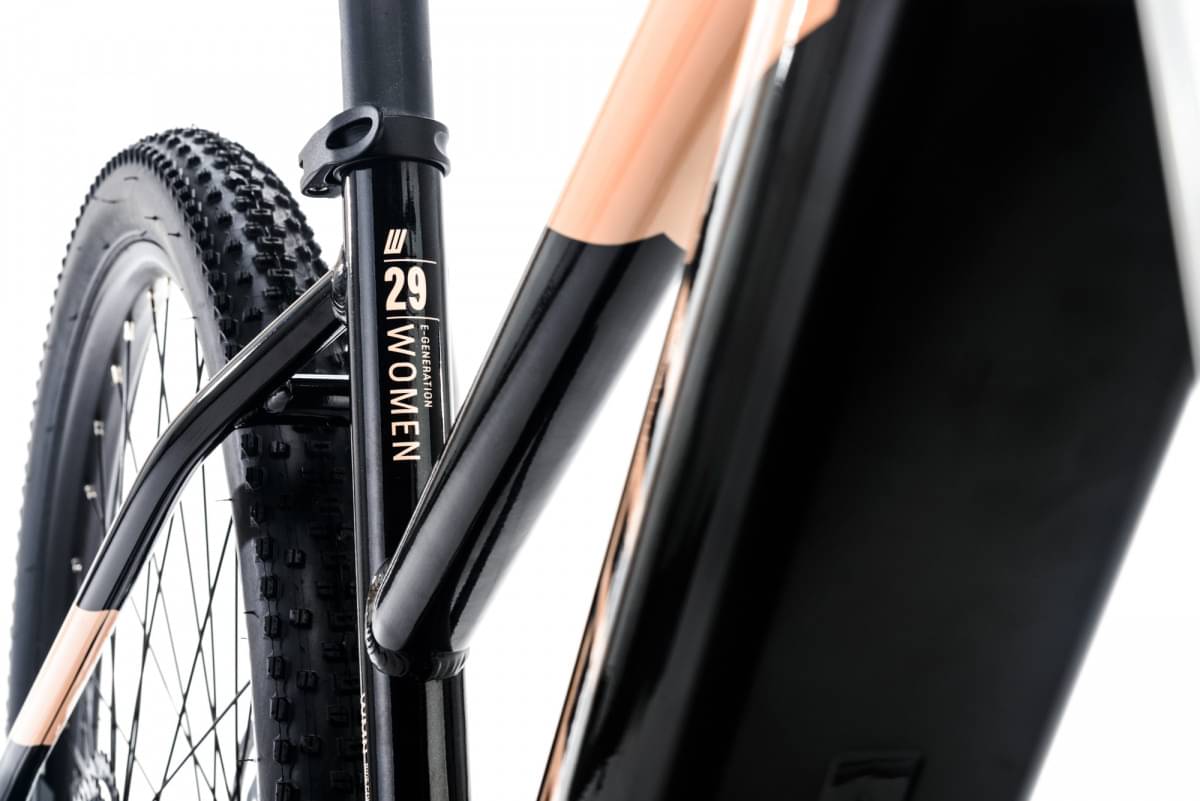

Frame
ALU 6061, M (16"), L (18")

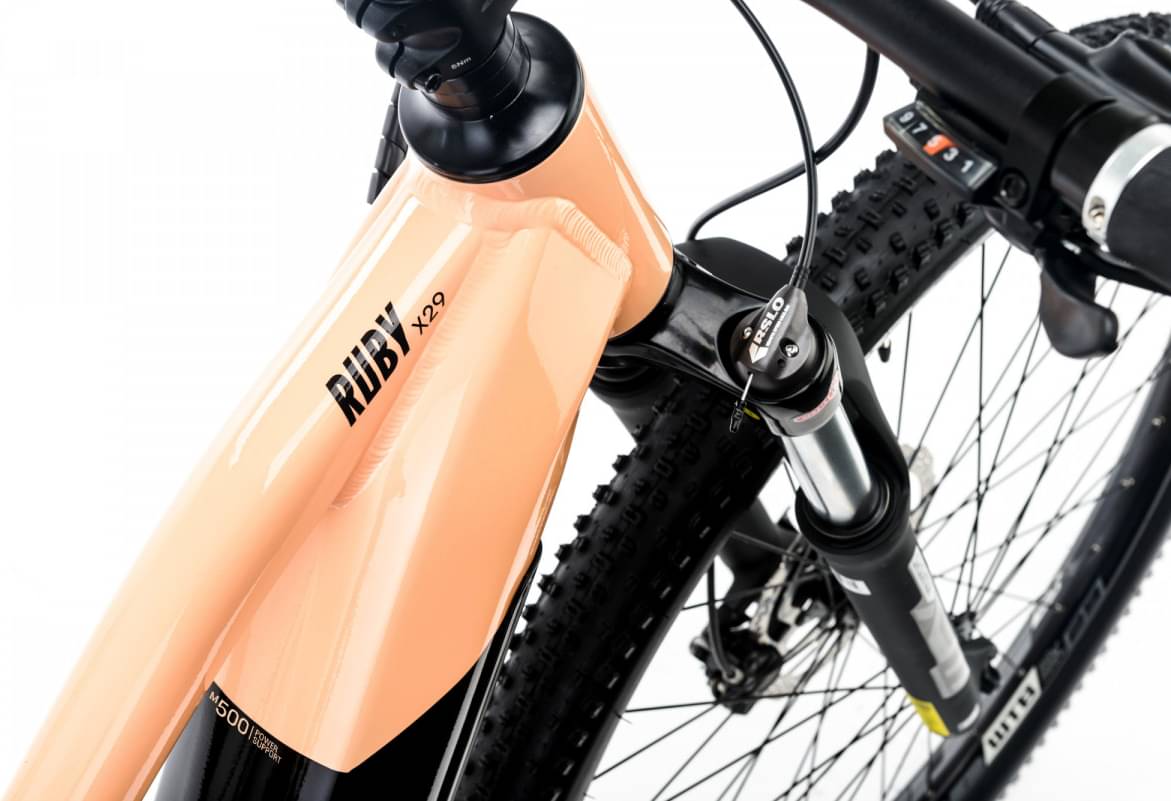

Suspension Fork
Suntour XCM32 ATB, RL, DS, 100mm
Drivetrain

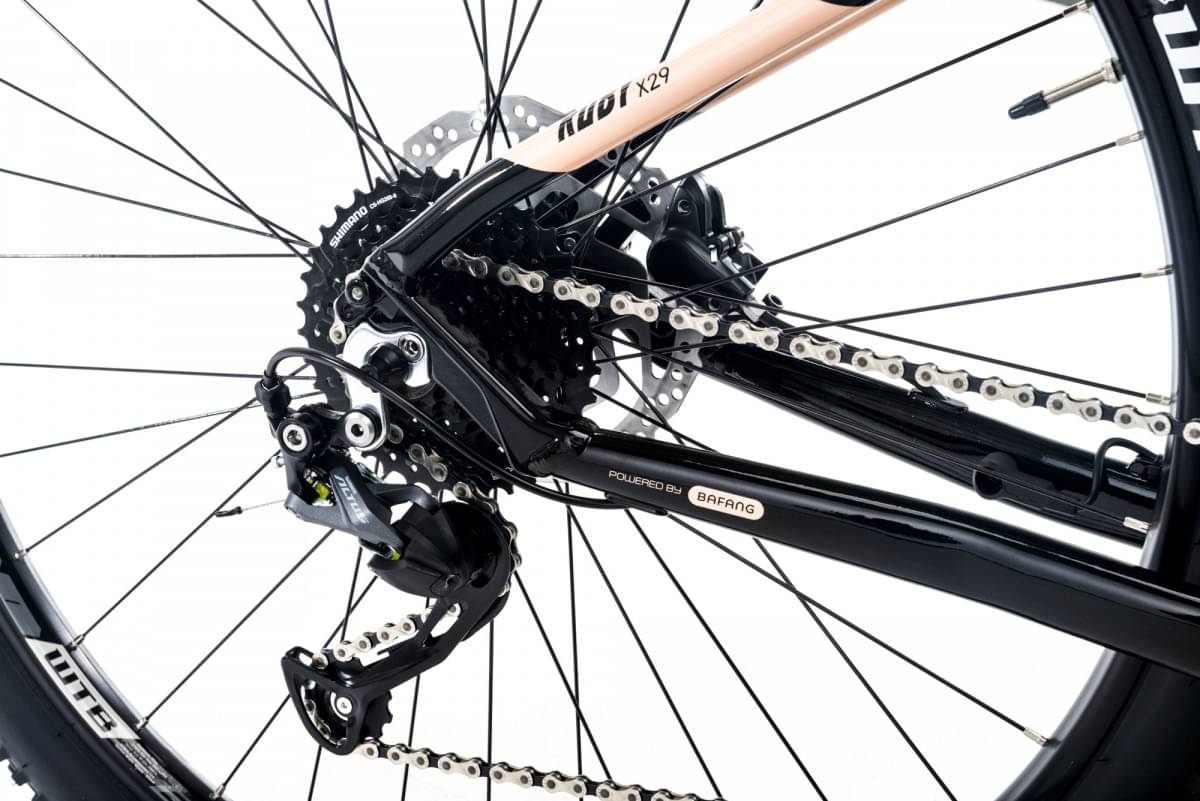

Rear Derailleur
Shimano Altus RD-M2000SGS
Shift Levers
Shimano Altus SL-M2000RA 9 sp.
Crank
Bafang 38T, 170mm
Chain
KMC X9e
Pedals
VPE 537
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
WTB ST i29 TCS 2.0 29" 36H
Tires
WTB Ranger 29x 2.25" Comp
Brakes
Brakes
Shimano MT200 / SMRT10M

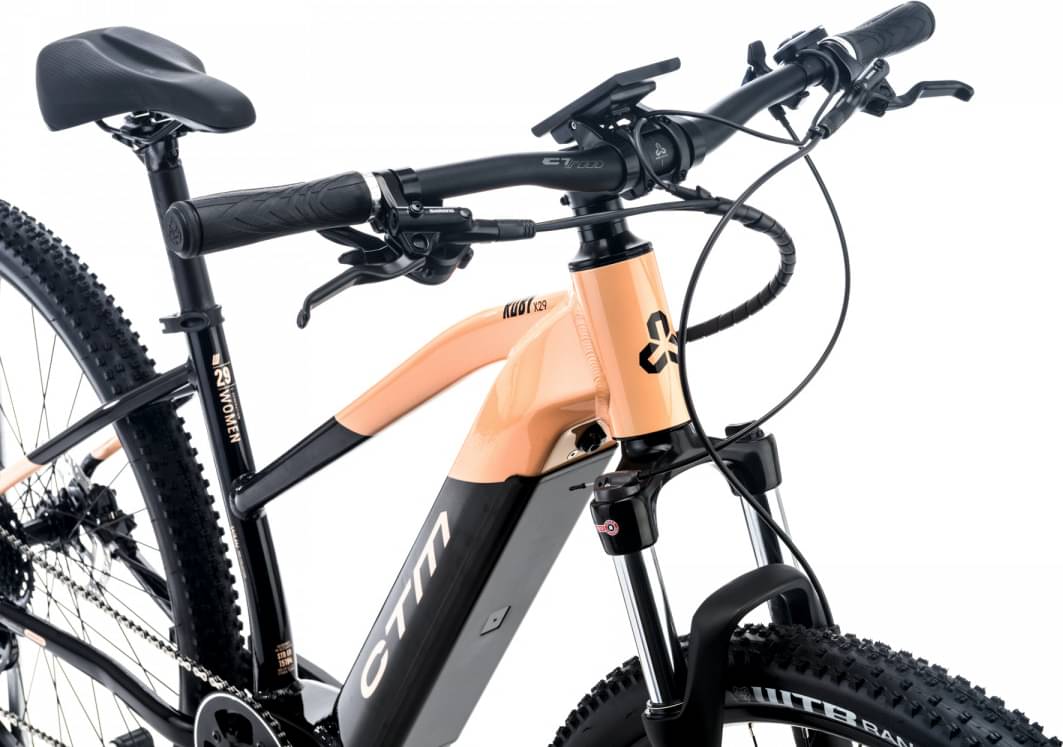

Cockpit
Stem
CTM LCS/60mm

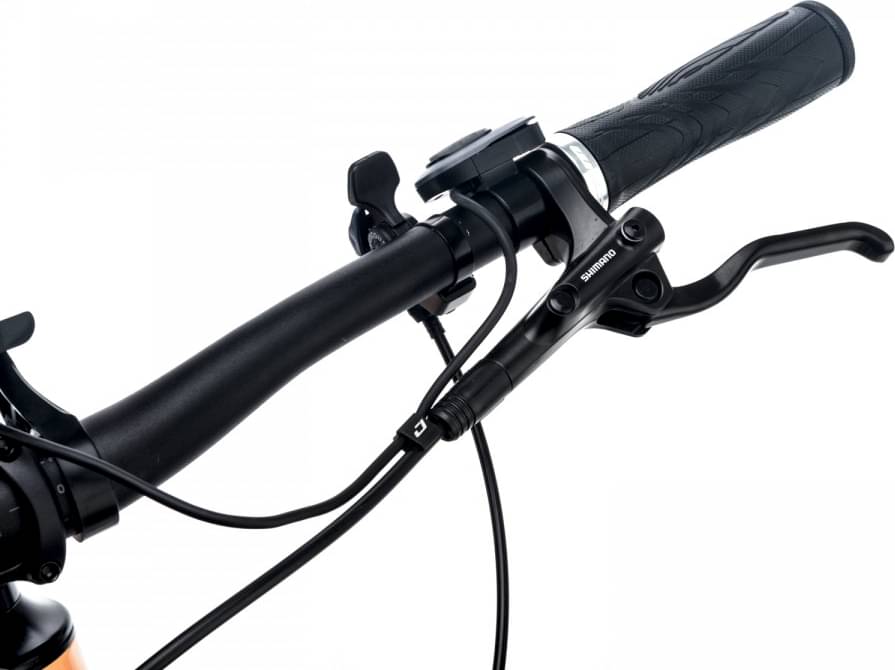

Handlebar
CTM rise bar, 700/31.8 mm
Headset
NECO H153
Seat

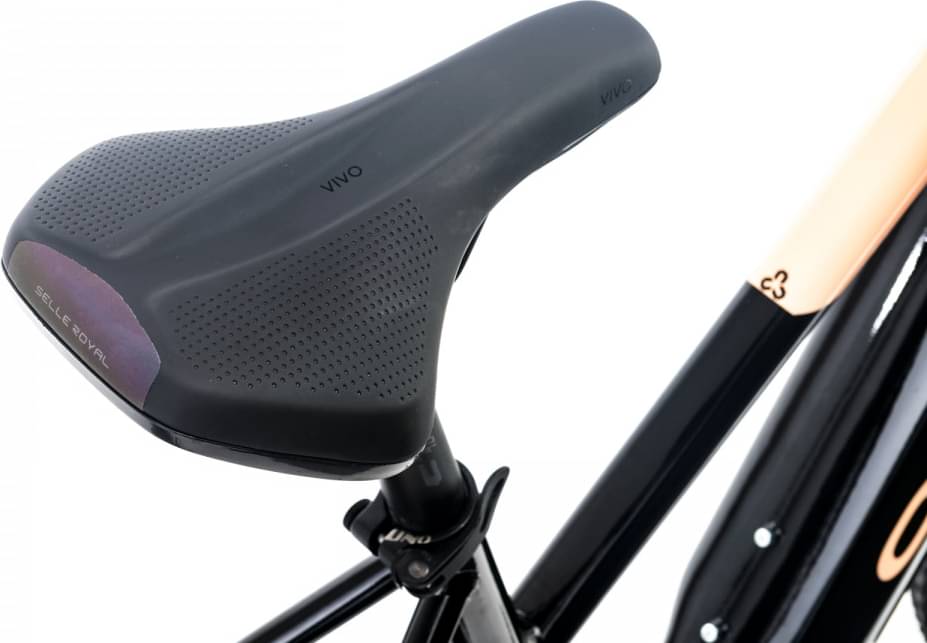

Saddle
SR Vivo Ergo Lady
Seatpost
CTM 350x31.6 mm
Motor & Battery

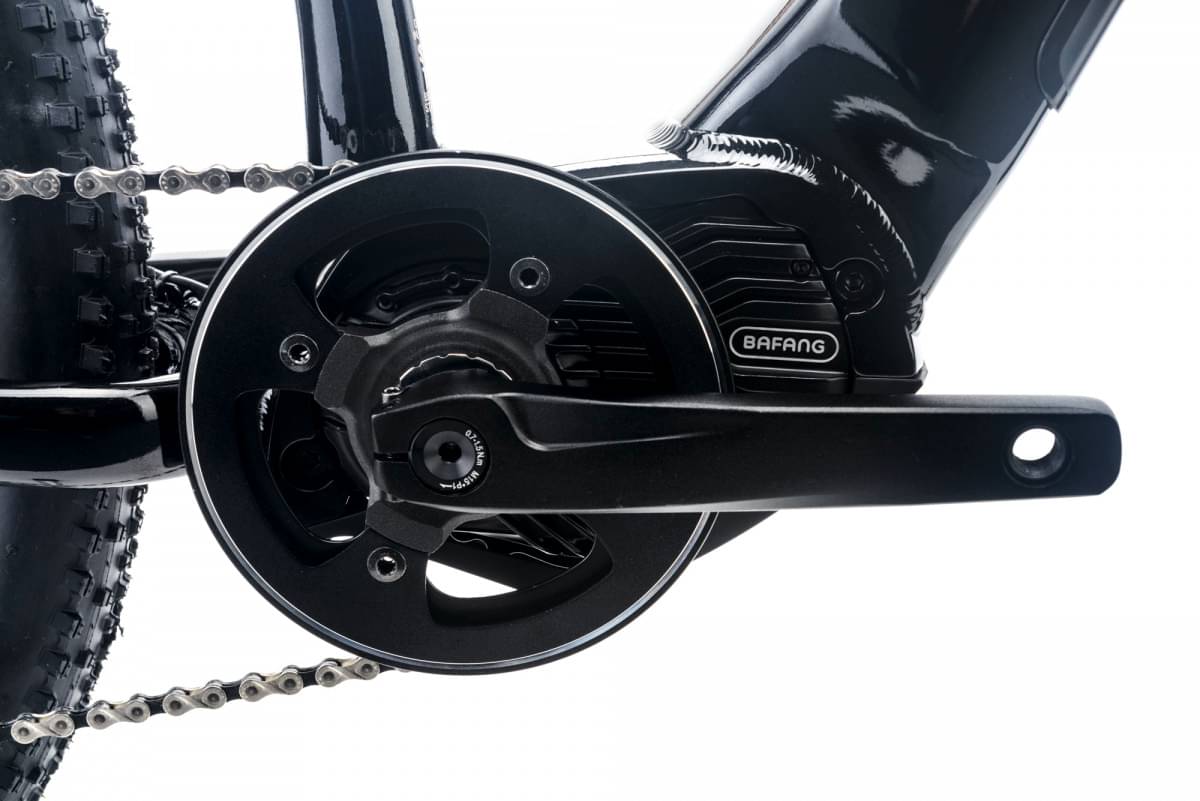

Motor
BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 720Wh / 48V / 15Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.463 mm |
| Front Center | 662 mm | 676 mm |
| Rake | 46 mm | 46 mm |
| Stack | 597 mm | 607 mm |
| Reach | 405 mm | 415 mm |
| Top Tube Length | 576 mm | 589 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 475 mm | 475 mm |
| Wheelbase | 1134 mm | 1153 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 155 cm | 170 cm |
| Rider Max Height | 175 cm | 190 cm |
