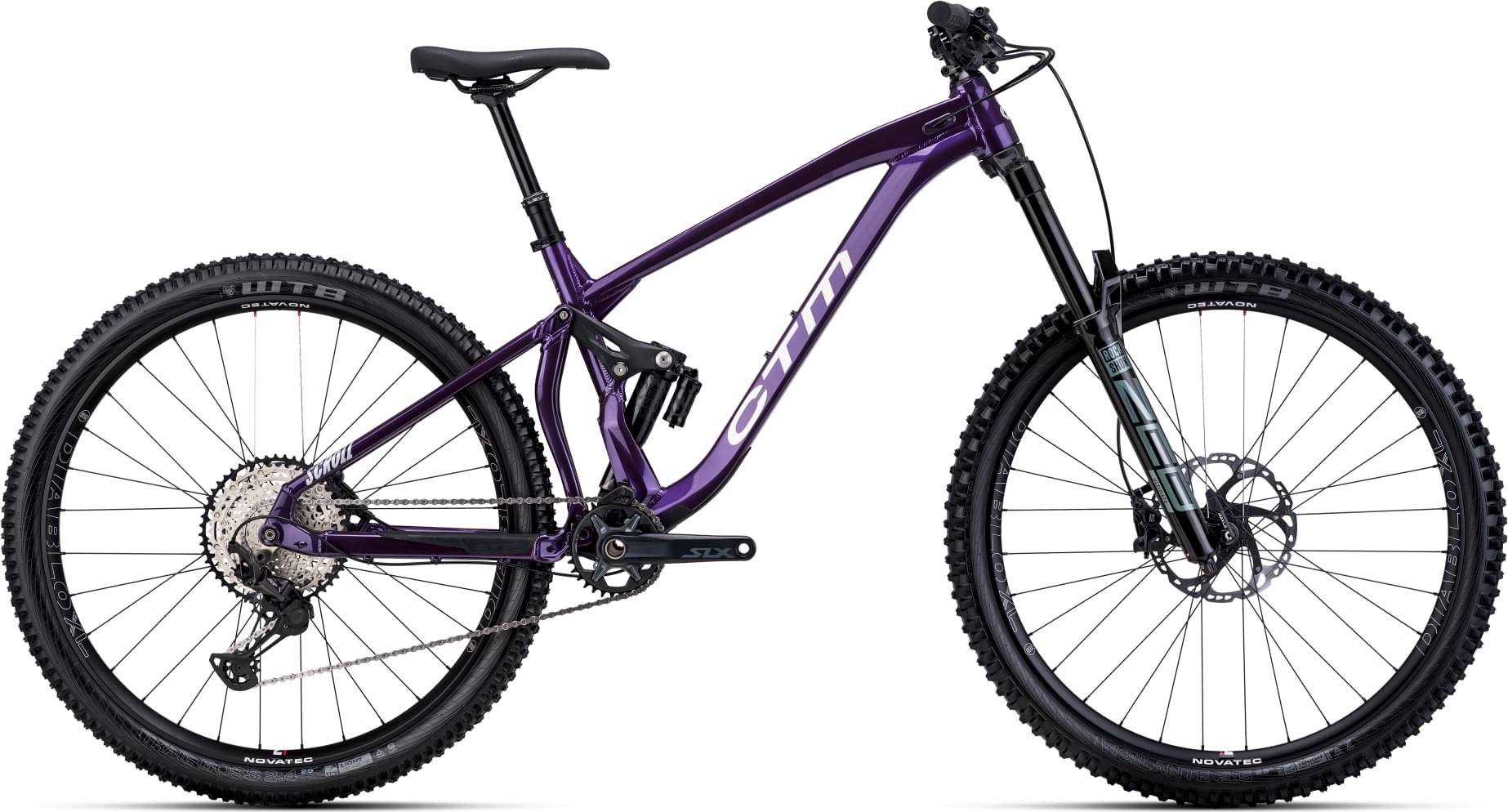

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork RockShox ZEB Ultimate
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, rear travel 155 mm, MD, LG, XL
Suspension Fork
Rock Shox ZEB ULTIMATE CHARGER 3 RC2, DebonAir, 170mm, boost™ 15x110axle
Rear Shock
RockShox Super Deluxe Select+ RT (205x65)
Drivetrain
Rear Derailleur
Shimano XT RD-M8100
Shift Levers
Shimano XT SL-M8100 / 12 sp.
Crank
Shimano SLX FC-M7100, 32T, 170mm
Chain
Shimano CN-6100
Pedals
HT-PA12
Wheels
Rims
NOVATEC DIABLO XL
Tires
WTB Vigilante 29x2.5 TCS (light-high grip) / TrailBoss G2 29x2.4 TCS (light-fast rolling)
Brakes
Brakes
Shimano SLX M7120 / SMRT70M, L
Cockpit
Stem
Race Face TURBINE R 35, 40mm
Handlebar
Race Face TURBINE R 35/800 rise 20
Headset
FSA Orbit 1.5
Seat
Saddle
WTB Volt
Seatpost
KS LEV Integra (M-125mm/L-150mm/XL-175mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.304 mm | 1.269 mm | 1.237 mm |
| Front Center | 802 mm | 826 mm | 850 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 613 mm | 622 mm | 631 mm |
| Reach | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 623 mm | 645 mm | 667 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1258 mm | 1282 mm | 1306 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
