Bike details
Overview
Key information split into simple groups.

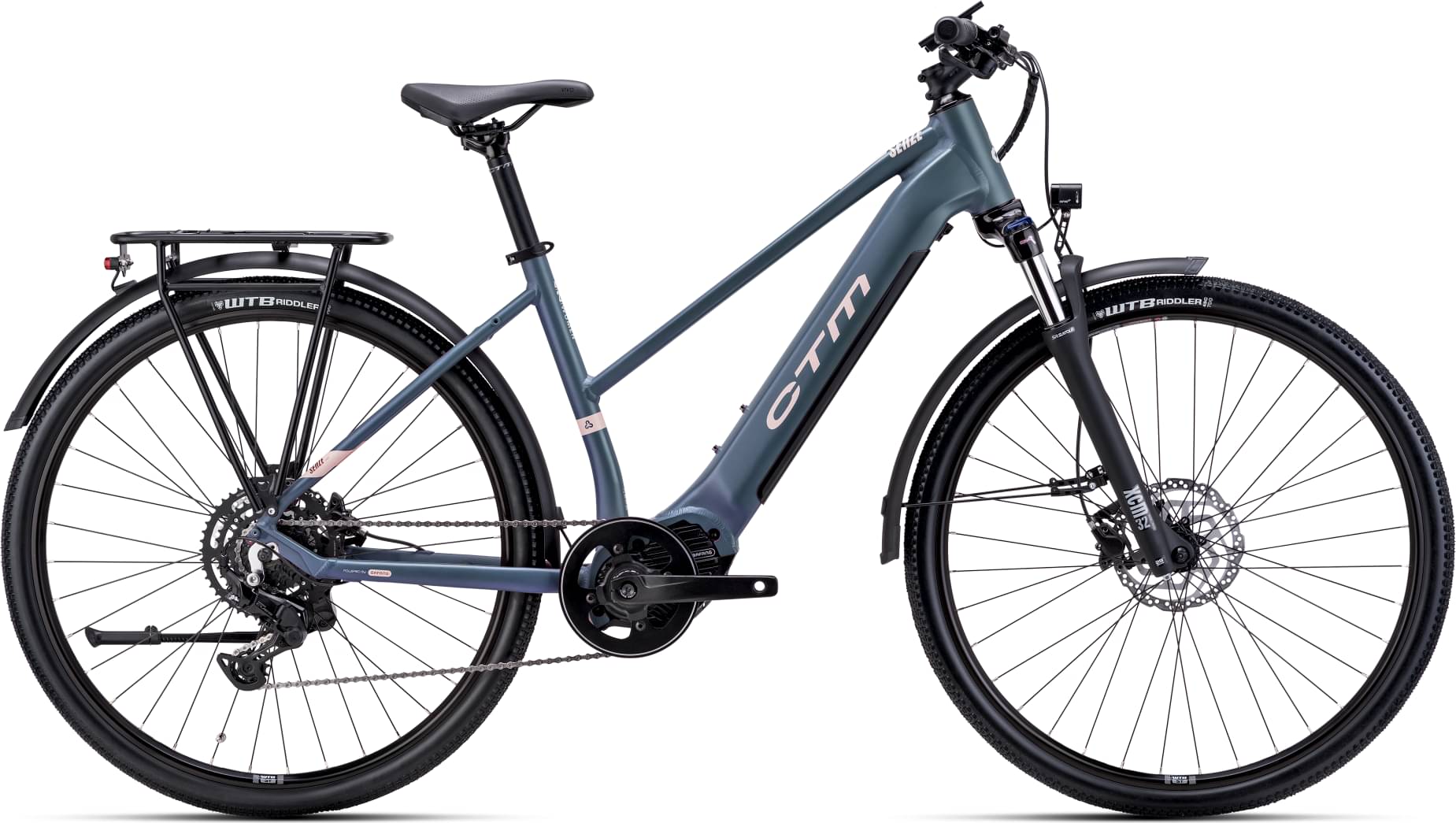

Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bafang 250W 95Nm mid-drive -
Battery CTM IGB 720Wh / 48V / 15Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (16"), L (18")
Suspension Fork
Suntour XCM32 ATB 80mm
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000
Shift Levers
Shimano CUES SL-U4000/9sp.
Crank
Bafang 42T, 170mm
Chain
Shimano CN-LG500
Pedals
VPE 537
Wheels
Rear Hub
Novatec D041DSB/D142TSE,36H,CL
Rims
WTB ST i23 TCS 2.0 29" 36H
Tires
WTB Riddler 700x45C Comp
Brakes
Brakes
Shimano MT200 / SMRT10M
Cockpit
Stem
CTM UNO/70mm
Handlebar
CTM rise bar, 700/31.8 mm
Headset
NECO H153
Seat
Saddle
SR Vivo Ergo Lady
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 720Wh / 48V / 15Ah
Fit data
Geometry
