Bike details
Overview
Key information split into simple groups.

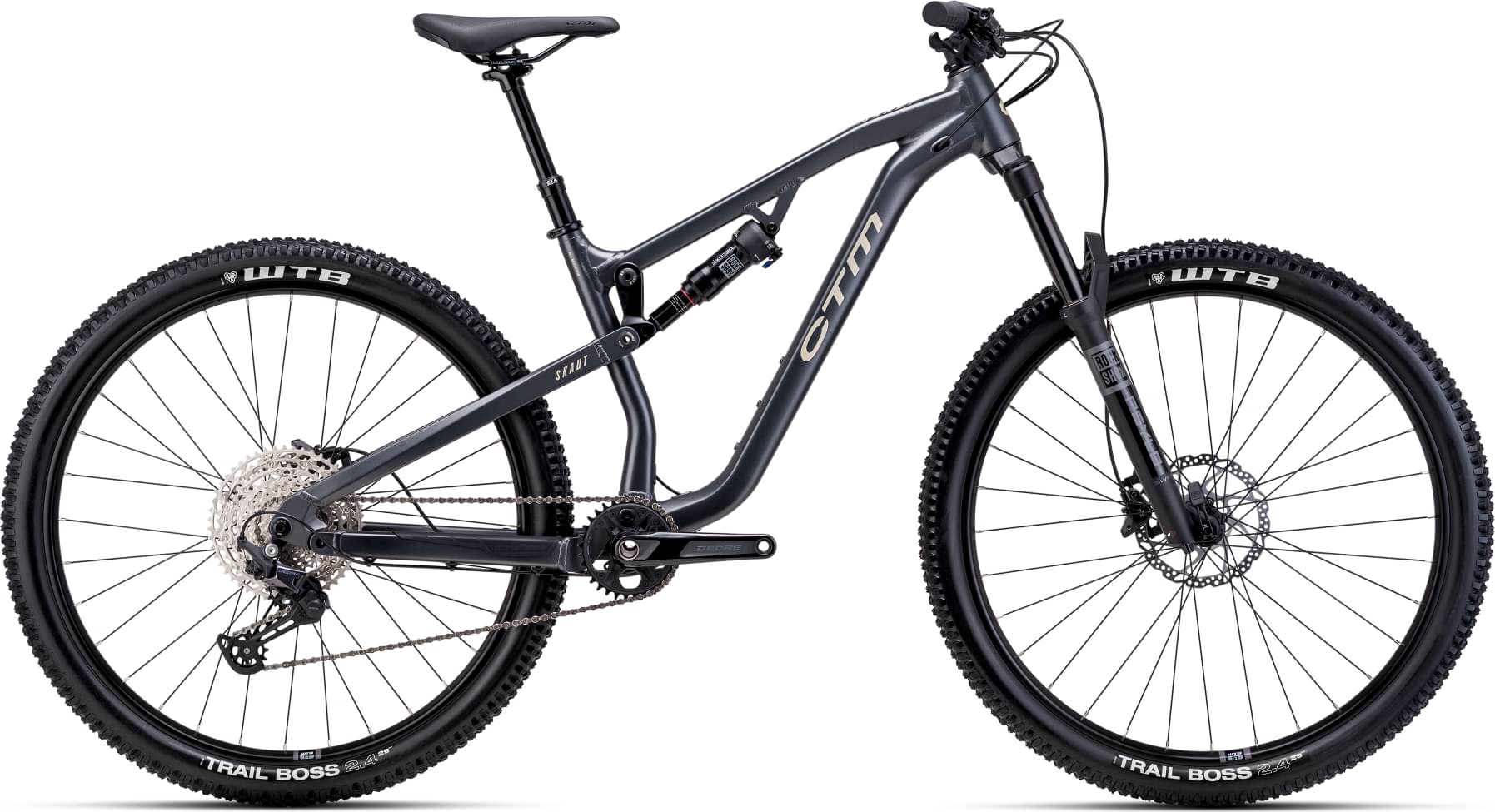

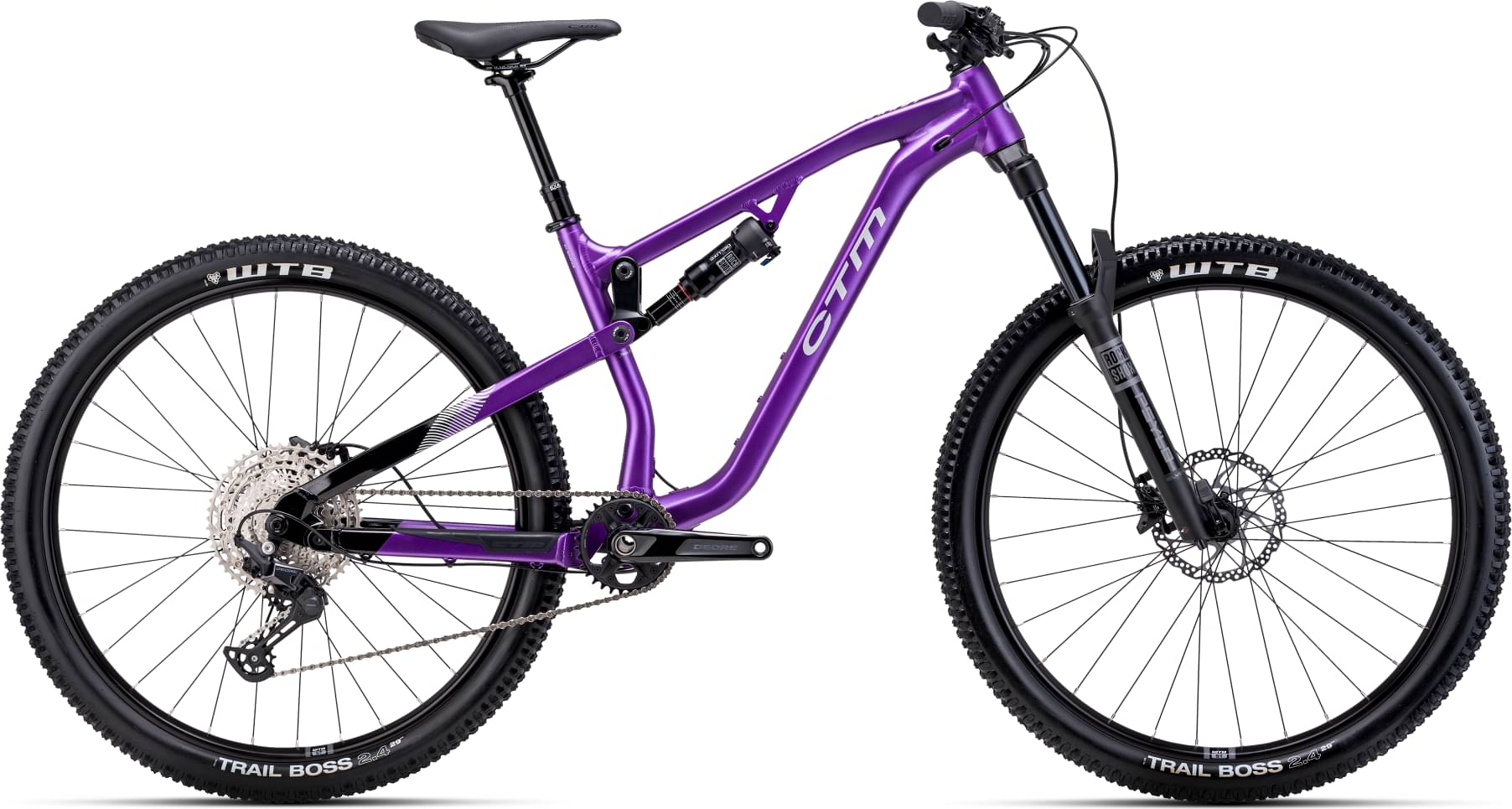

Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

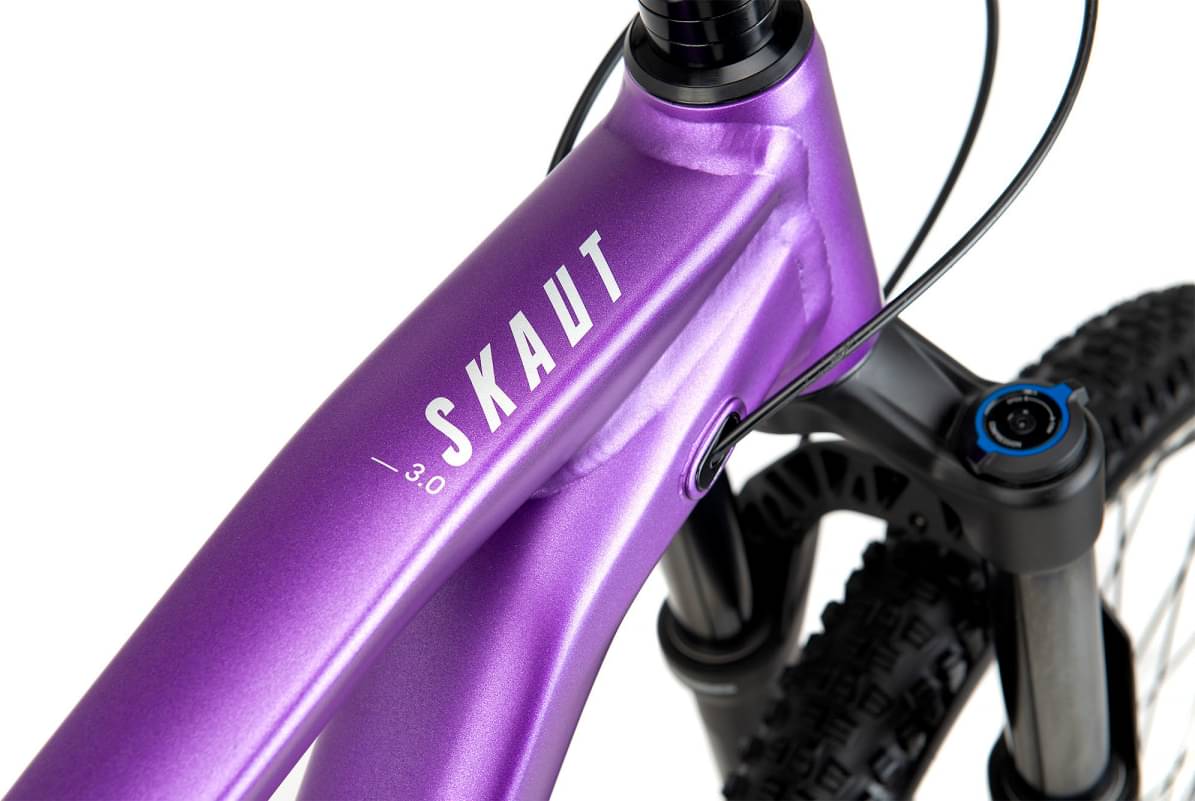

Frame
Frame

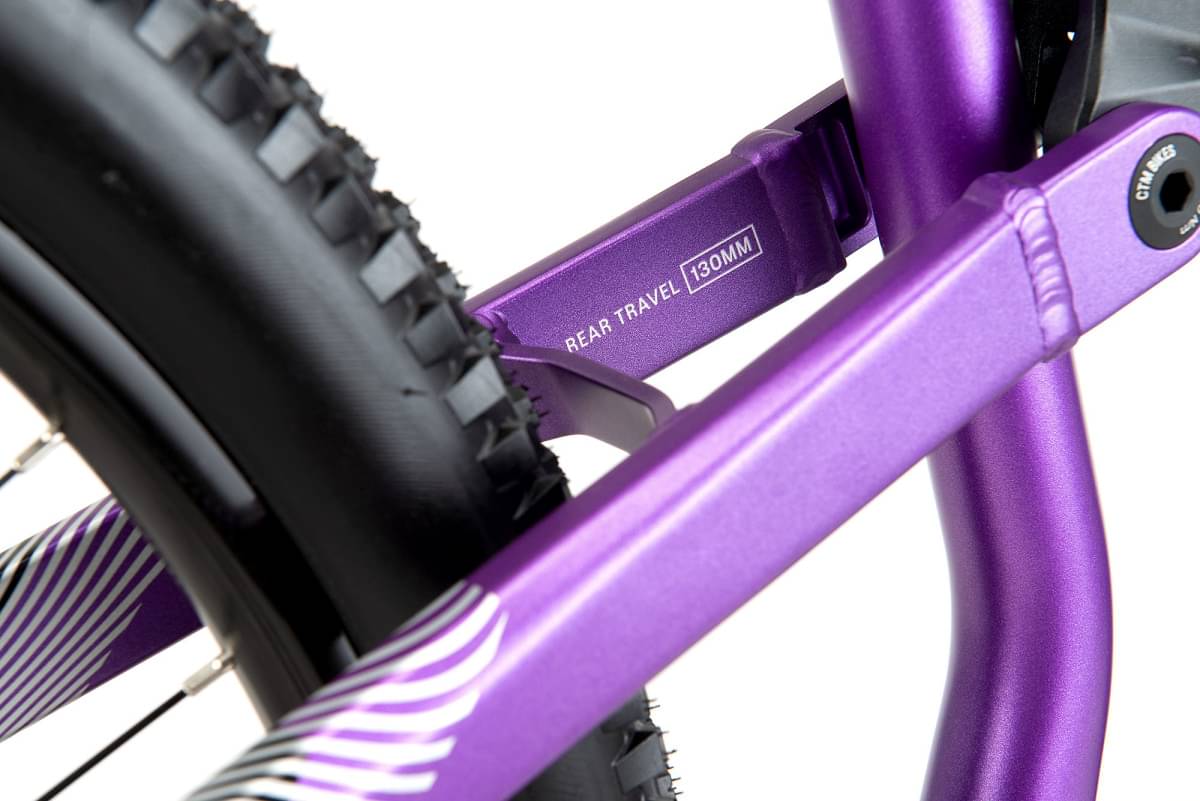

ALU 6061, rear travel 130mm, S, M, L, XL
Suspension Fork
Rock Shox PSYLO SILVER RC, SA, 140mm, boost™ 15x110axle

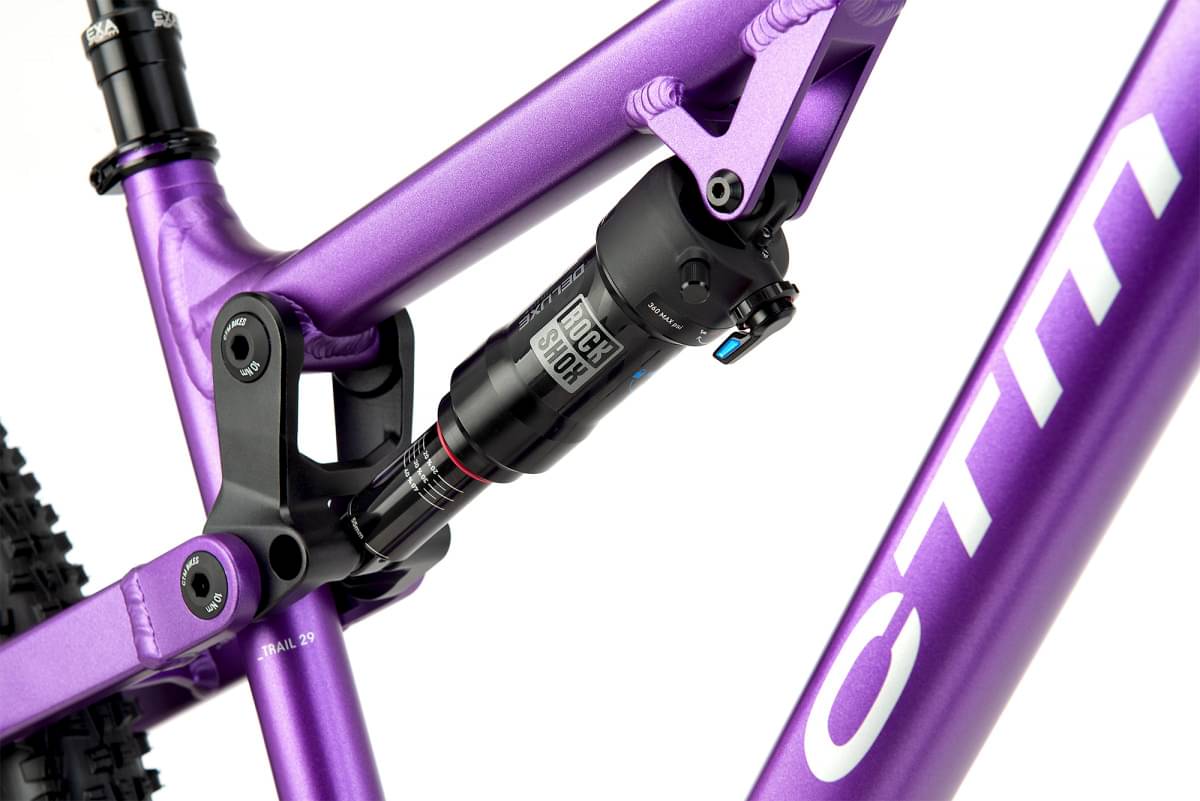

Rear Shock
Rock Shox Deluxe Select+RT210x55 Progressive Air
Drivetrain

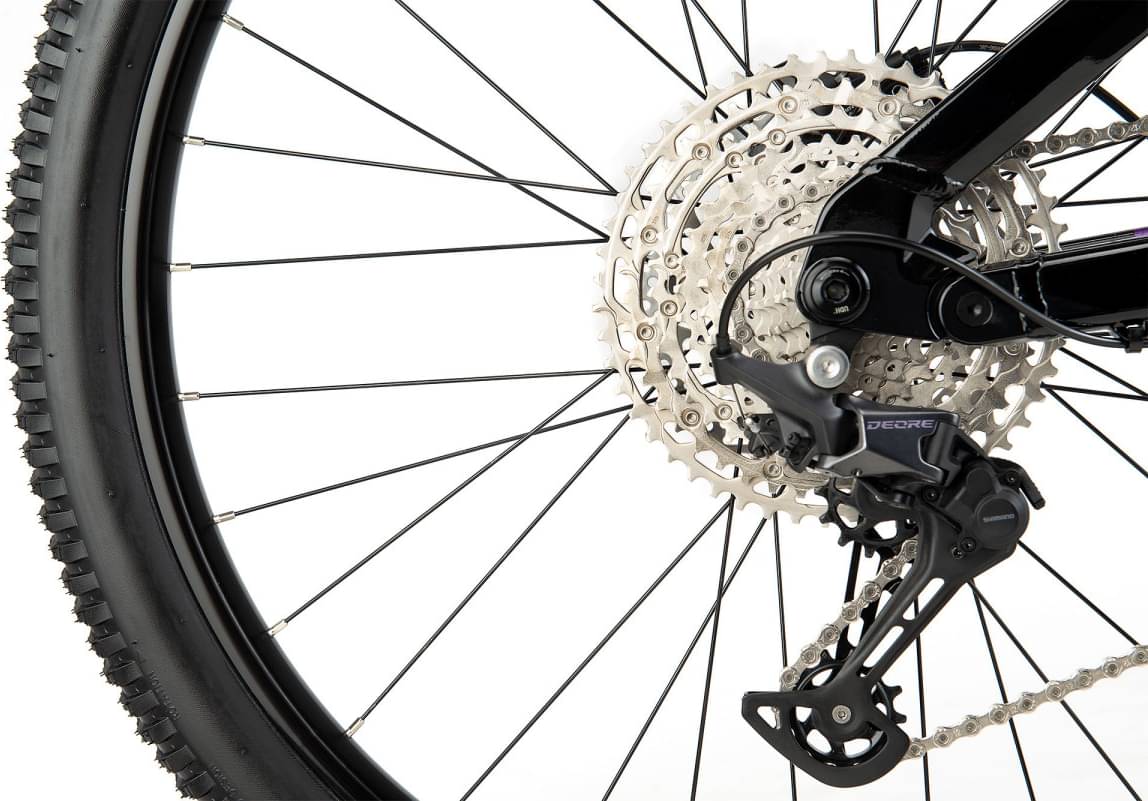

Rear Derailleur
Shimano Deore RD-M6100
Shift Levers
Shimano Deore SL-M6100/12sp.

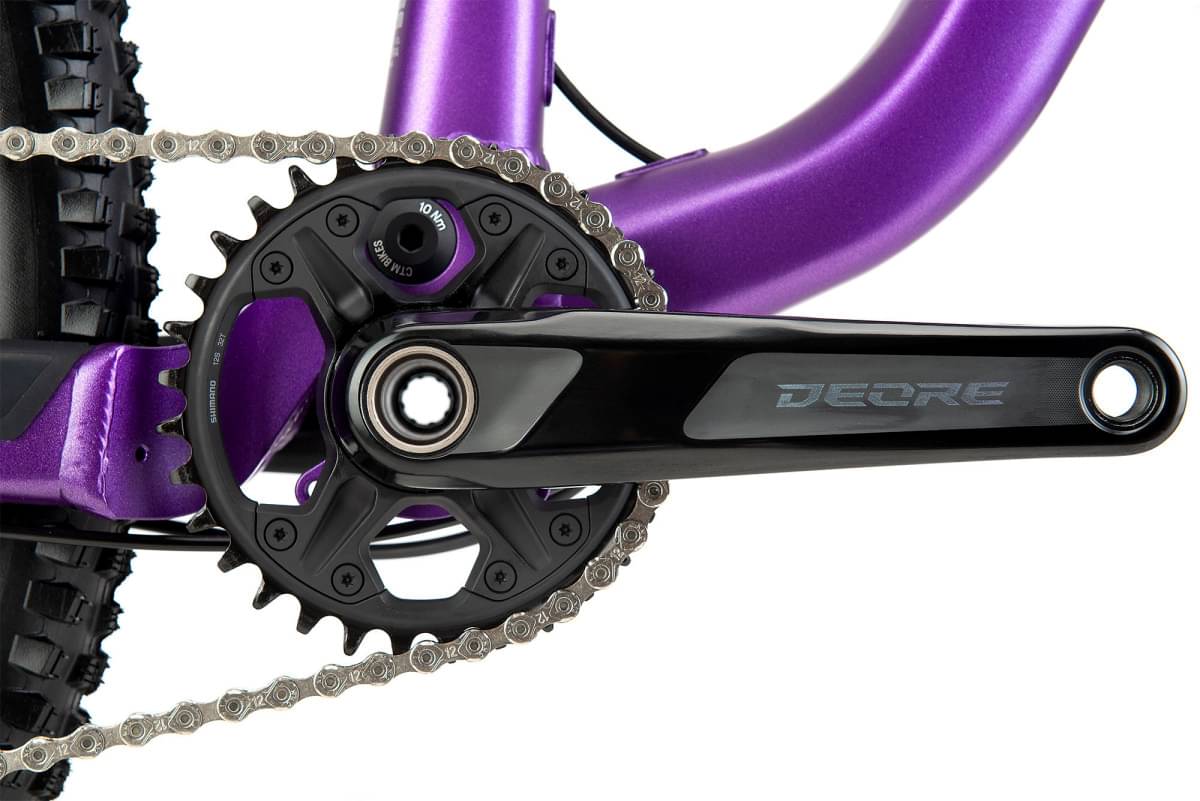

Crank
Shimano Deore FC-M6100-1, 32T, 175mm
Chain
KMC X12
Pedals
VPE 527
Wheels
Front Hub
Shimano TC500, CL, F15/R12 thru type axle
Rear Hub
Shimano TC500, CL, F15/R12 thru type axle
Rims
WTB STi30, TCS, 29", 32H
Brakes
Brakes
Shimano BR-MT410 / SMRT54M

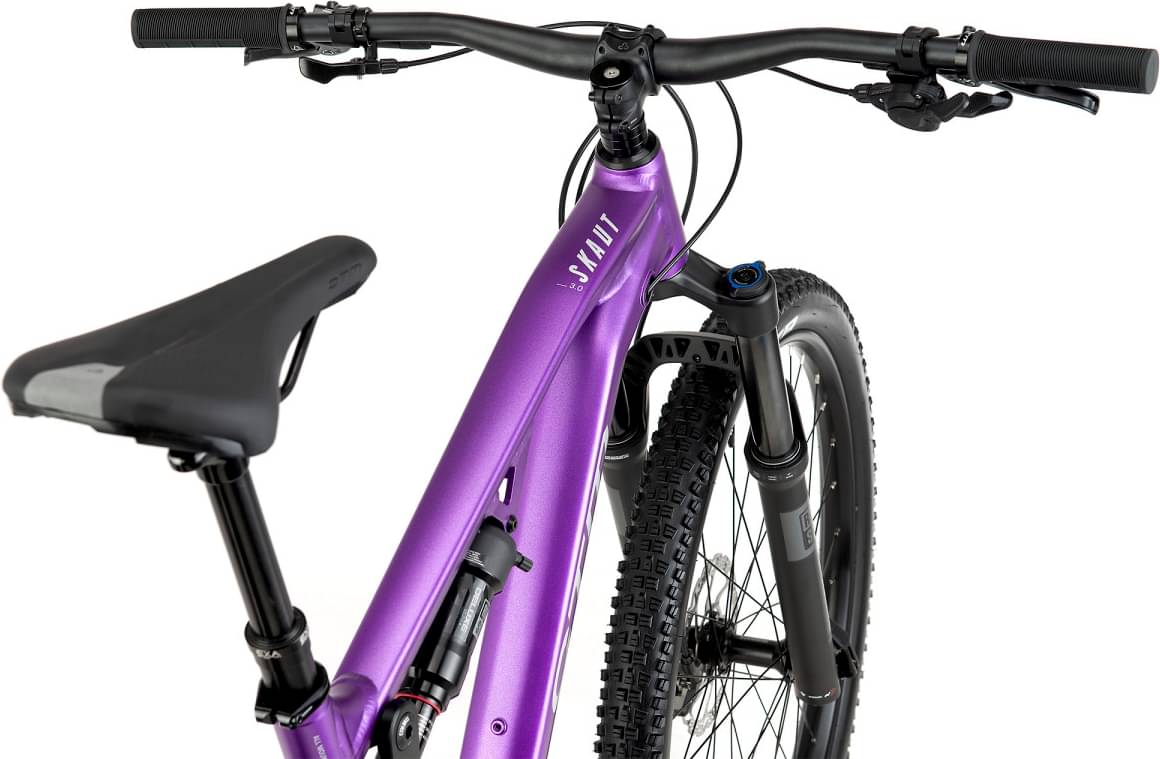

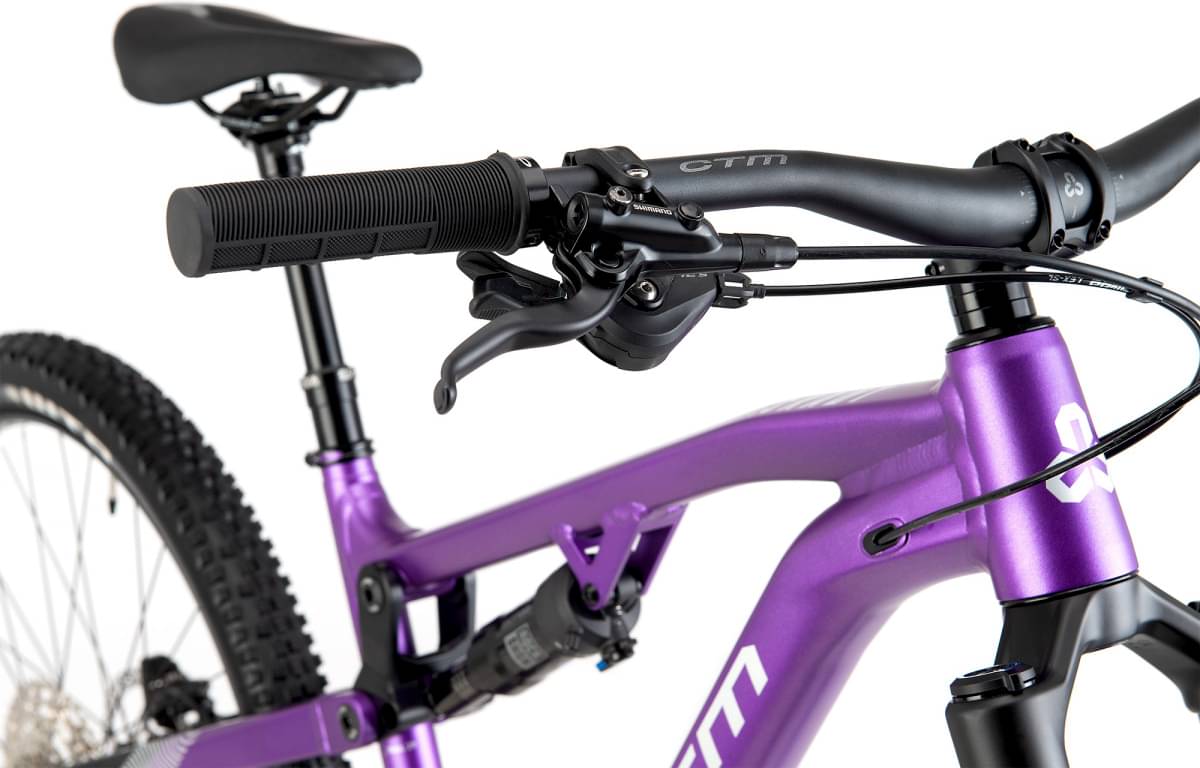

Cockpit

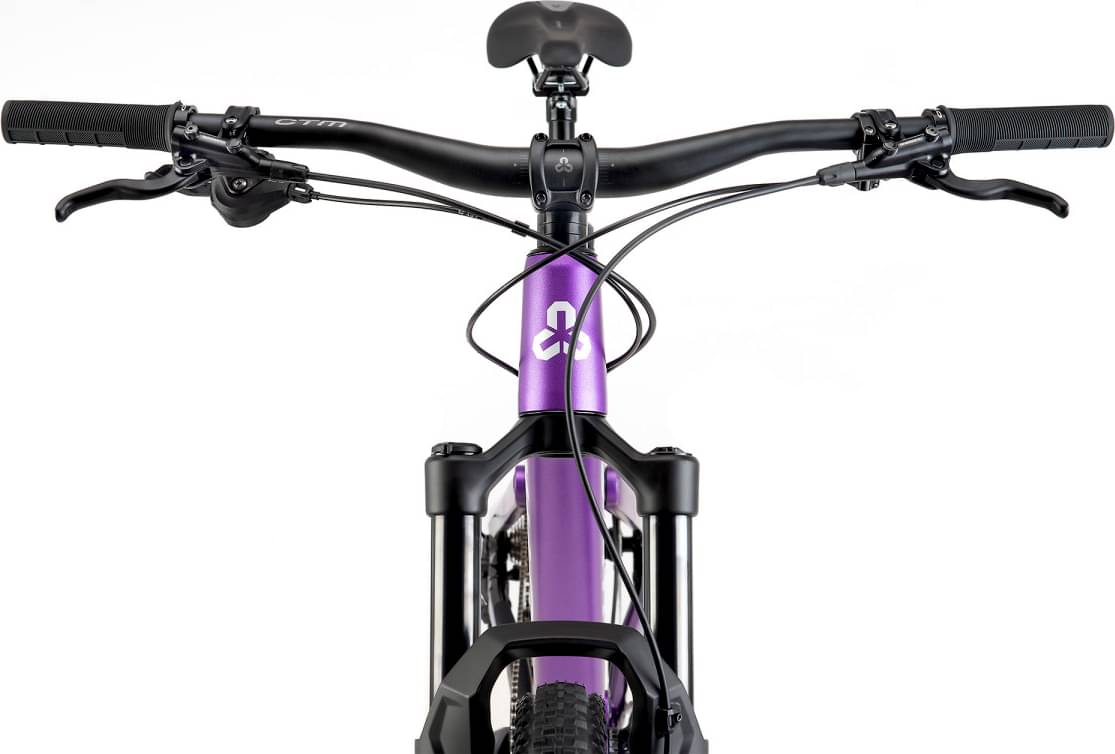

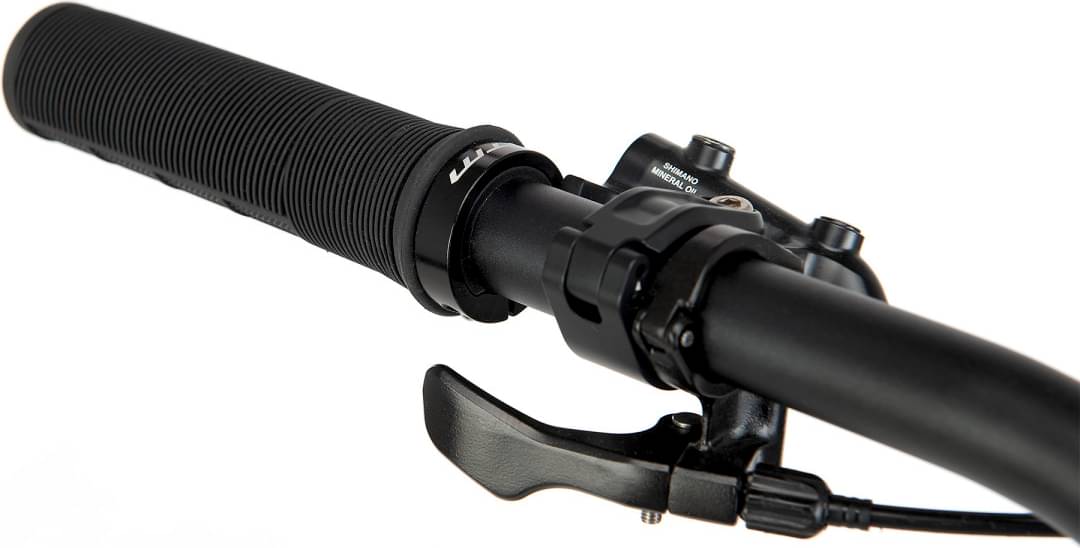

Handlebar
CTM N06, 760/1" rise/35mm
Headset
NECO H156
Seat
Saddle
CTM Cloud M

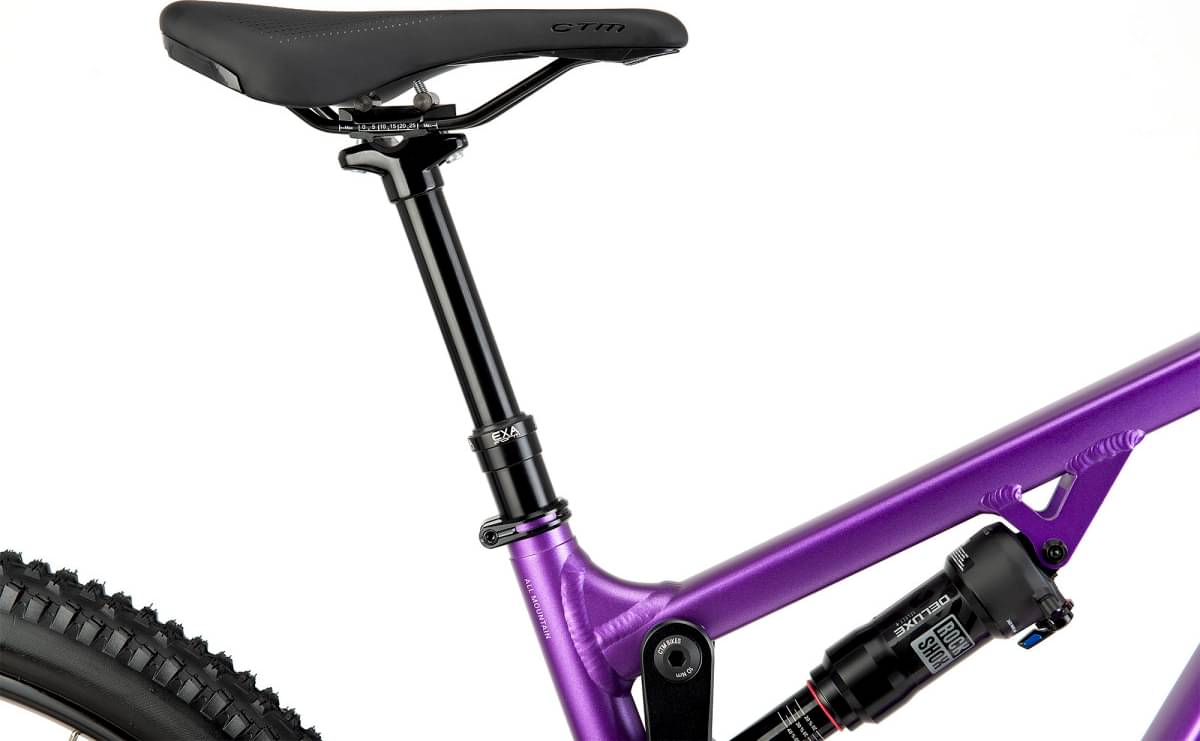

Seatpost
EXA Form KSP900 (S, M-125/L, XL-150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.364 mm | 1.316 mm | 1.259 mm |
| Front Center | 723 mm | 757 mm | 779 mm | 806 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 605 mm | 614 mm | 618.5 mm | 623 mm |
| Reach | 420 mm | 450 mm | 470 mm | 495 mm |
| Top Tube Length | 565 mm | 600 mm | 620 mm | 647 mm |
| Seat Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 455 mm | 485 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1170 mm | 1204 mm | 1226 mm | 1253 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
