Bike details
Overview
Key information split into simple groups.

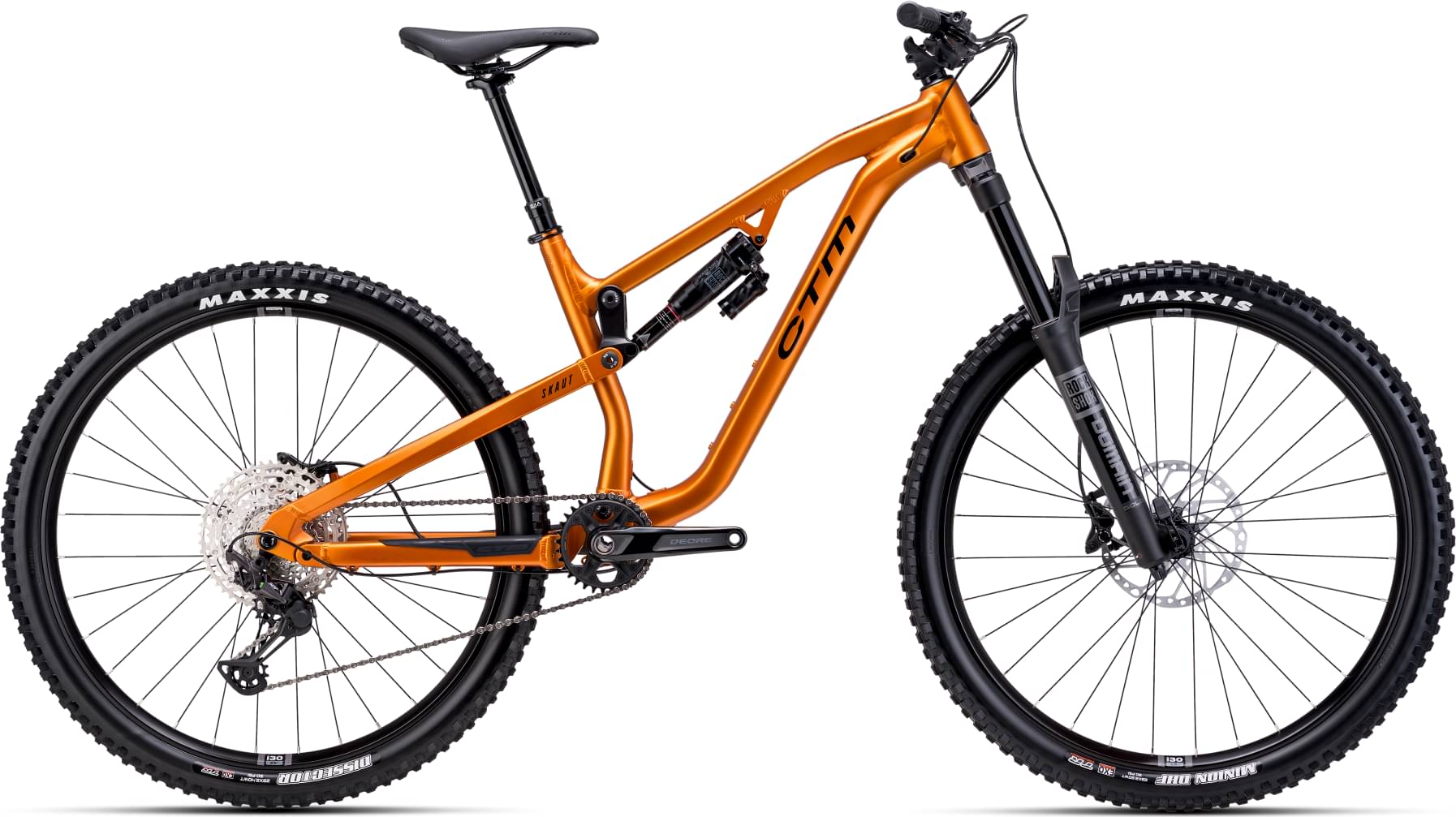

Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components

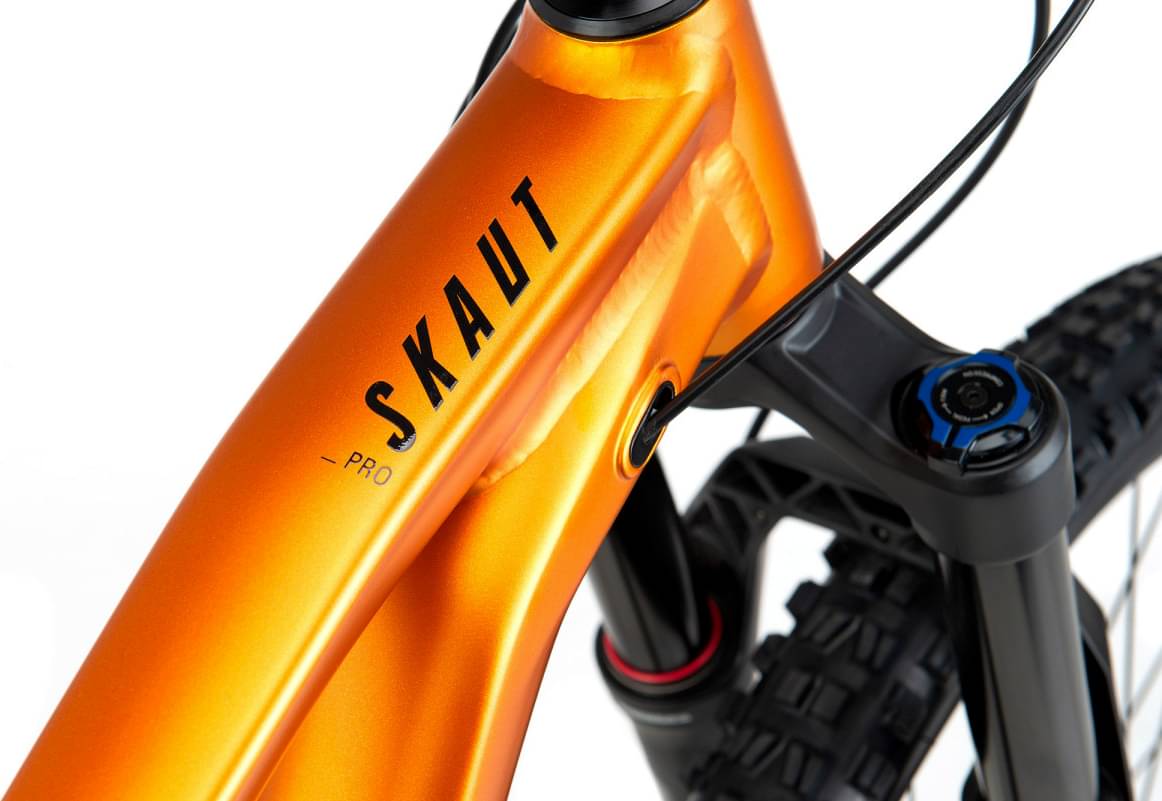

Frame
Frame

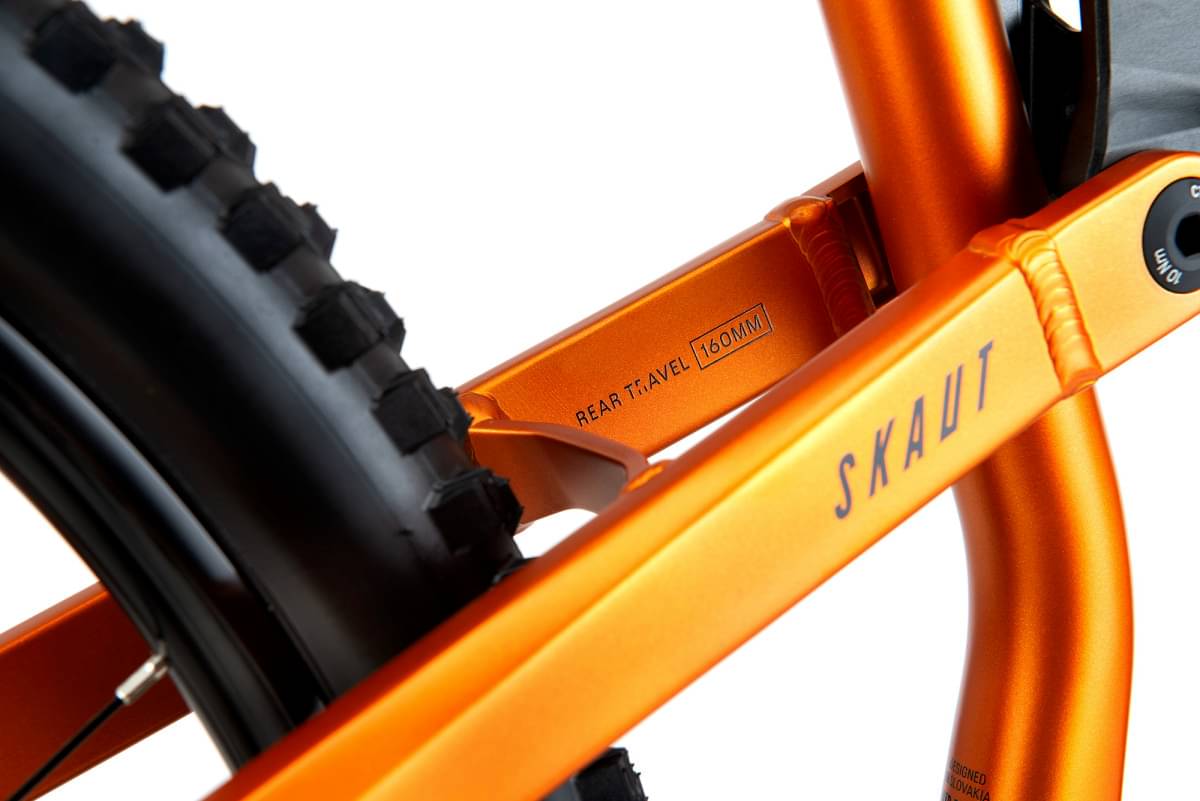

ALU 6061, rear travel 160mm, S, M, L, XL
Suspension Fork
Rock Shox DOMAIN GOLD ISOLATOR RC3, 160mm, boost™ 15x110axle
Rear Shock

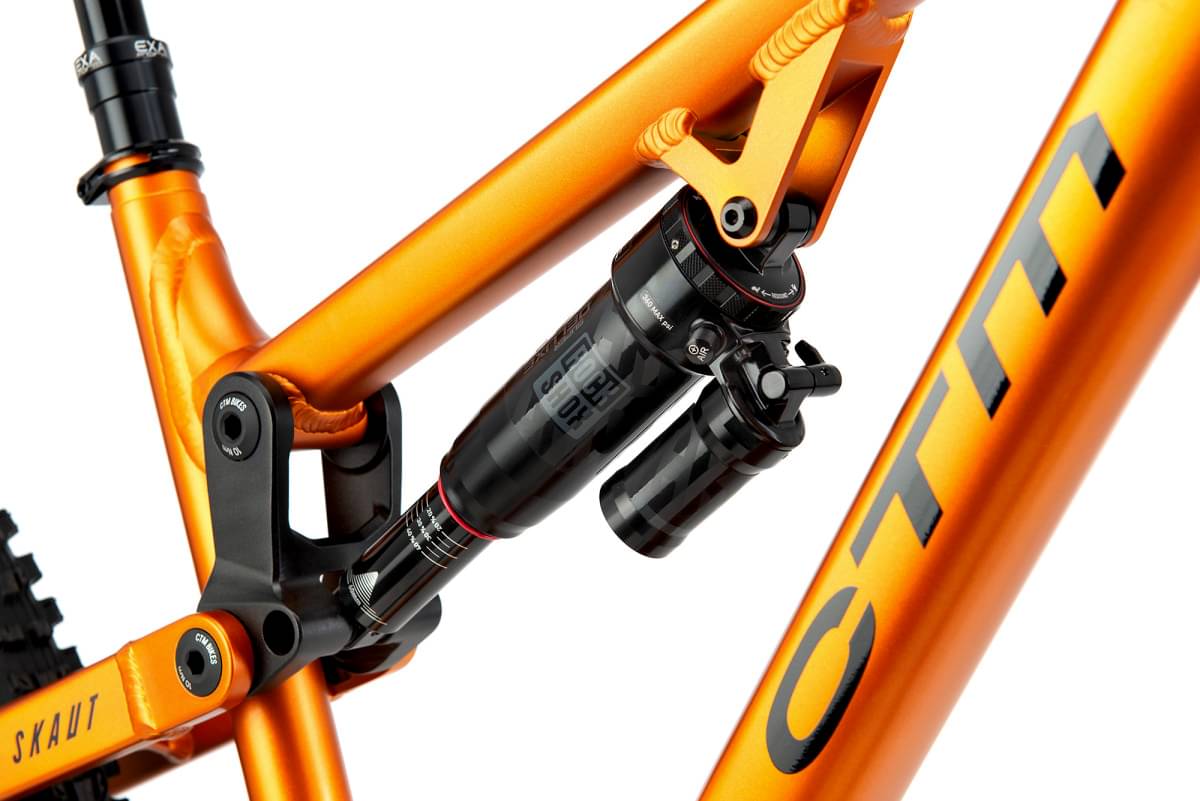

Rock Shox Super Deluxe Select RT, 230x60, Linear Air
Drivetrain

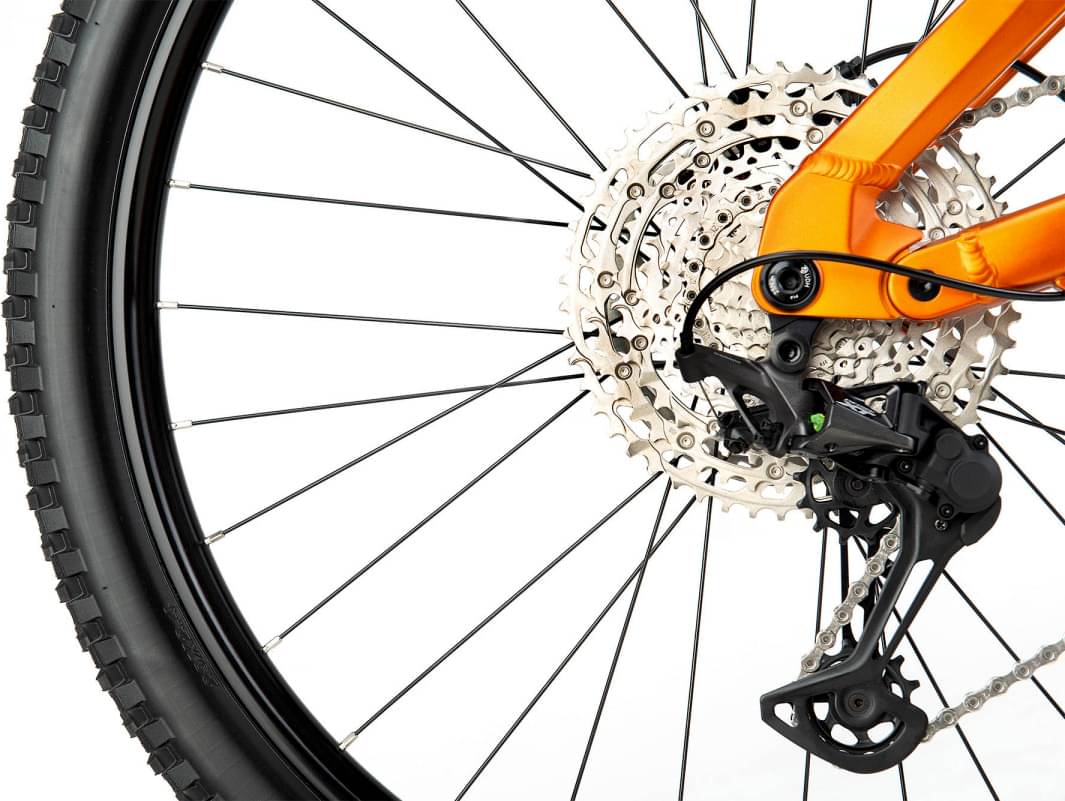

Rear Derailleur
Shimano XT RD-M8100
Shift Levers
Shimano Deore SL-M6100/12sp.

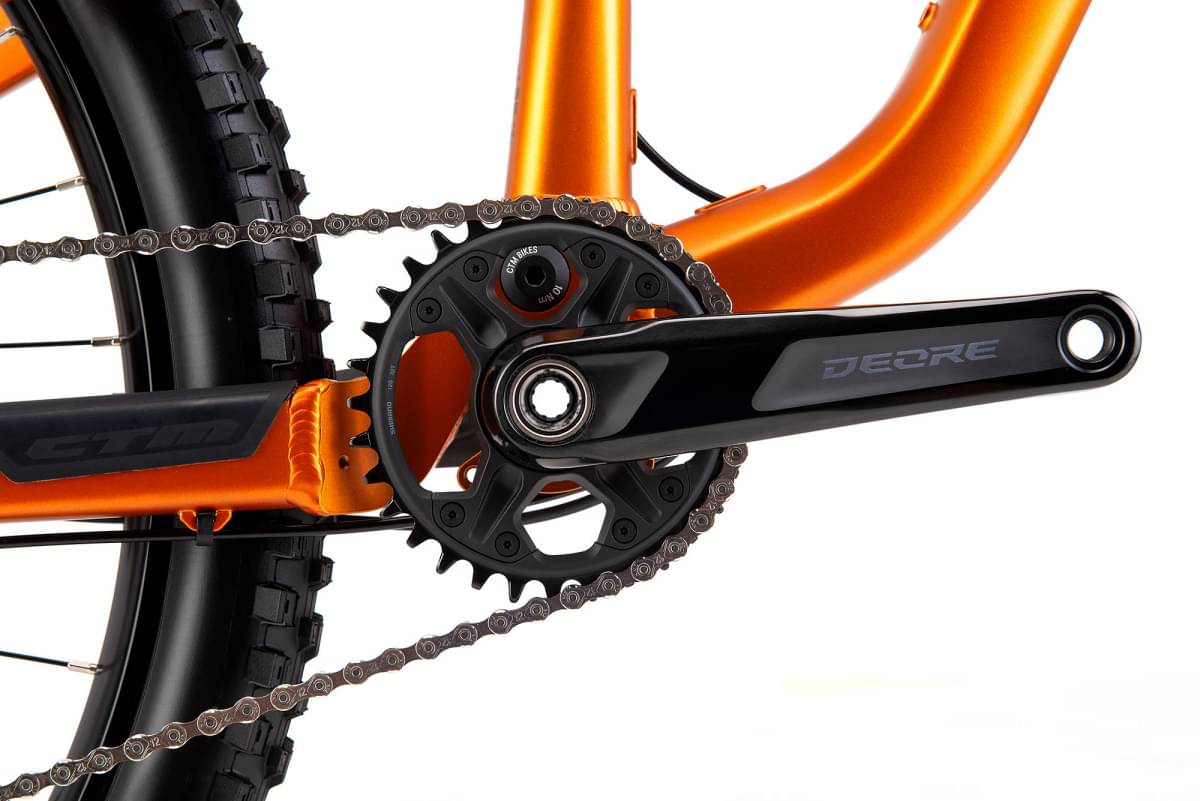

Crank
Shimano Deore FC-M6100-1, 32T, 175mm
Chain
KMC X12
Pedals
VPE 527
Wheels
Front Hub
Shimano TC500, CL, F15/R12 thru type axle
Rear Hub
Shimano TC500, CL, F15/R12 thru type axle
Rims
WTB ST Tough, 30mm, TCS 2.0, 29", 32H
Brakes

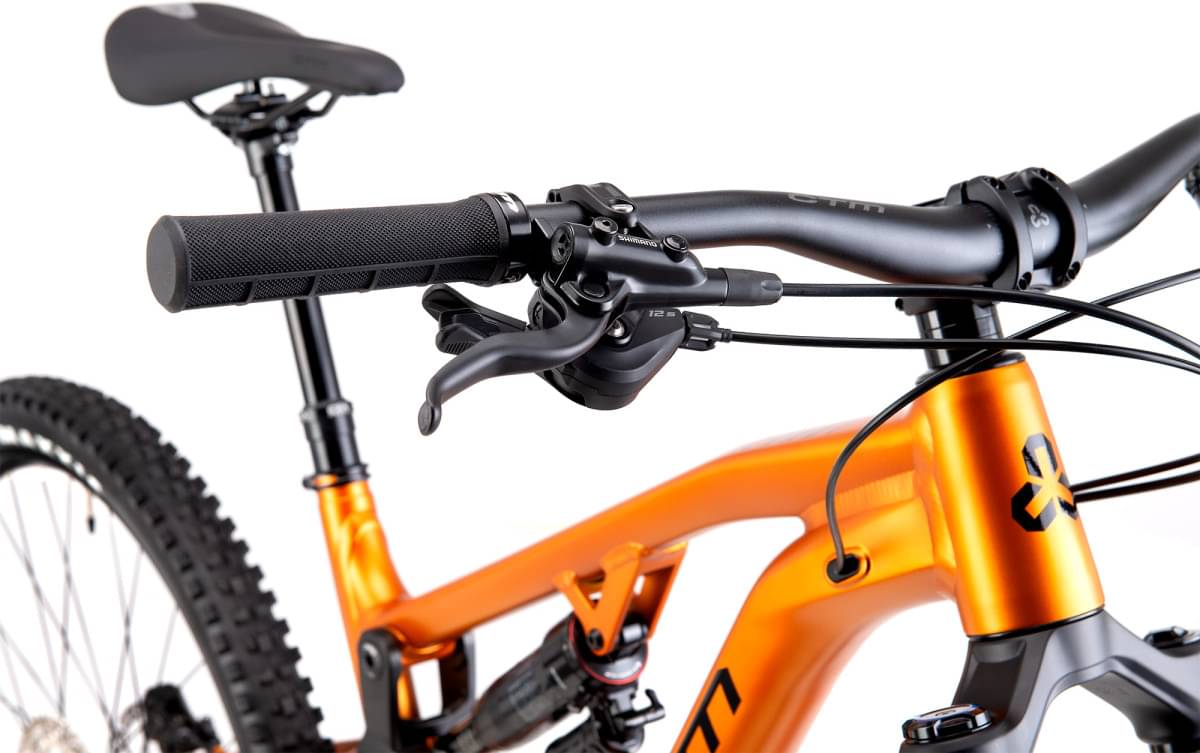

Brakes
Shimano BR-MT420 / SMRT64 M/L
Cockpit

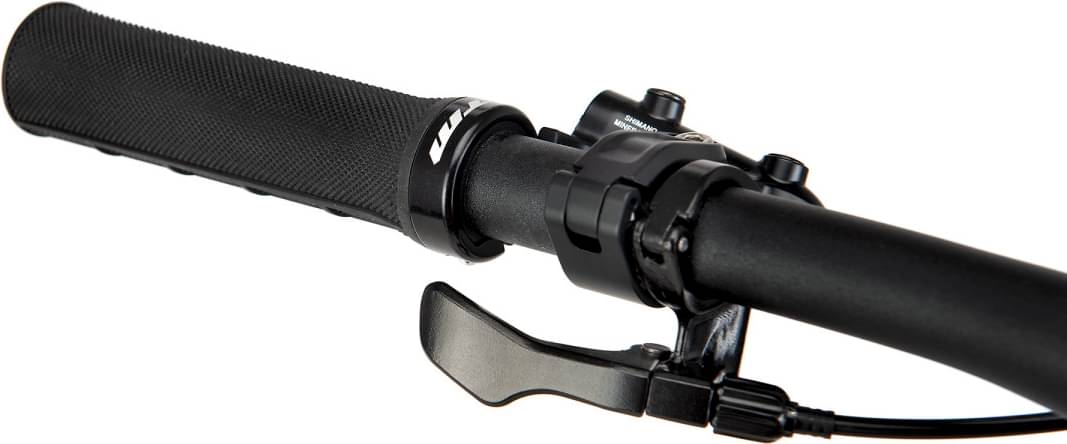

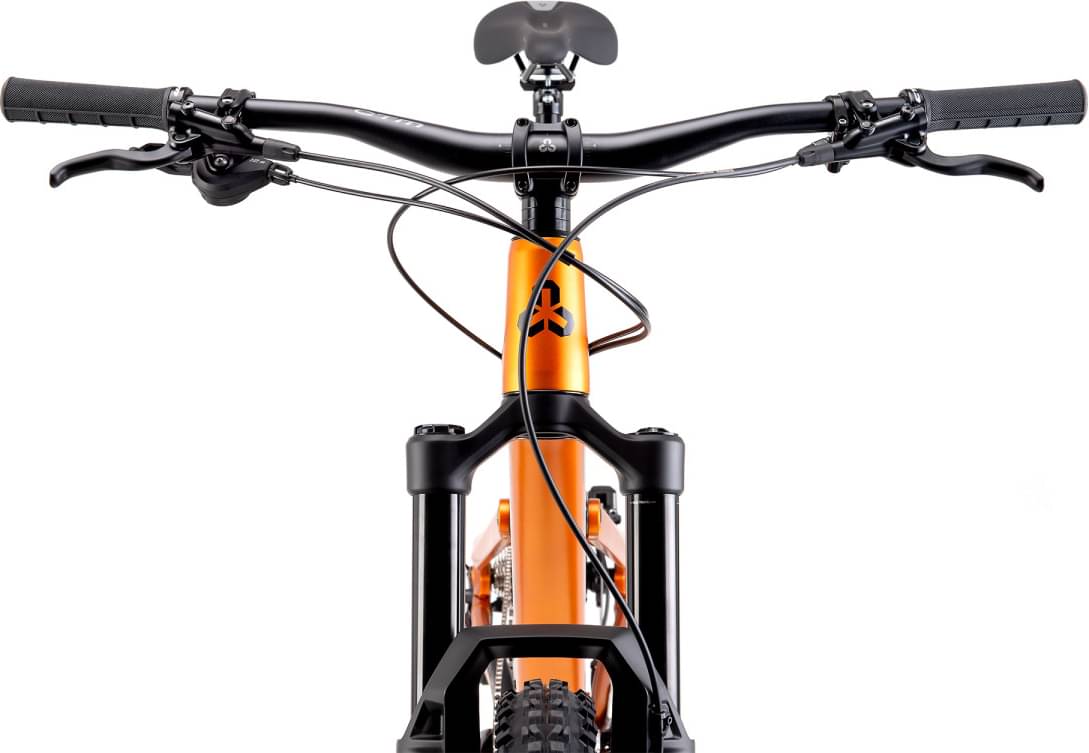

Handlebar
CTM N06, 780/1" rise/35mm
Headset
NECO H156
Seat
Saddle
CTM Cloud M
Seatpost

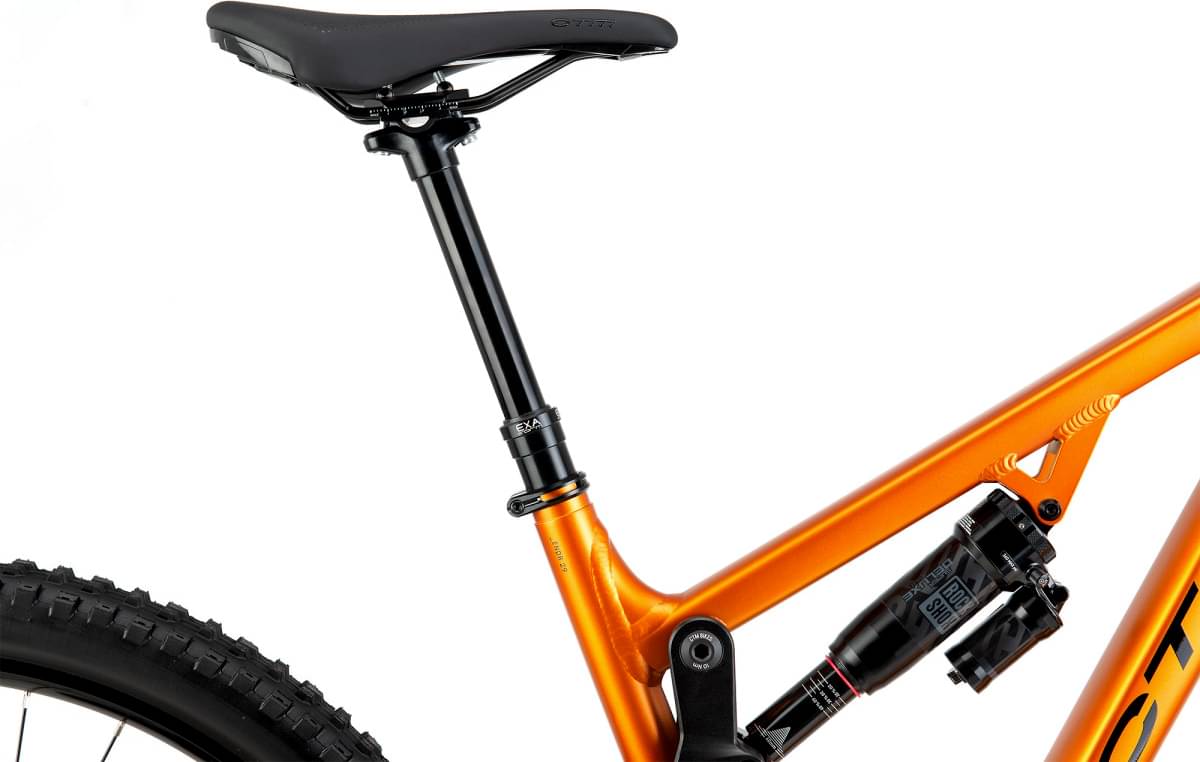

EXA Form KSP900 (S, M-125/L-150/XL-170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.342 mm | 1.309 mm | 1.253 mm |
| Front Center | 739 mm | 778 mm | 795 mm | 822 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Stack | 601.5 mm | 610.5 mm | 615 mm | 620 mm |
| Reach | 420 mm | 455 mm | 470 mm | 495 mm |
| Top Tube Length | 563.5 mm | 602 mm | 618.5 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 455 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1189 mm | 1223 mm | 1245 mm | 1272 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 205 cm |
