Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, 19" (480mm), 21" (530mm)
Suspension Fork
Suntour NEX, HLO 63mm 700C
Drivetrain
Rear Derailleur
Shimano Altus RD-M370
Shift Levers
Shimano STEF5002/8 sp.
Crank
Shimano FC-TY301, 48-38-28T, 175mm
Chain
KMC Z7/114L
Pedals
SP 510
Wheels
Rear Hub
CTM alloy 32H QR black
Rims
CTM ZX-lite, 622x19 BA, GBS, 32H
Tires
700x40C reflex line
Brakes
Brakes
Tektro V-brake
Cockpit
Stem
CTM adjustable, 90/25.4 mm
Handlebar
Comfort bar HB-TR1, 640/25.4 mm
Headset
Neco steel 1-1/8"
Seat
Saddle
CTM man comfort
Seatpost
CTM SP-602,350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
About this model

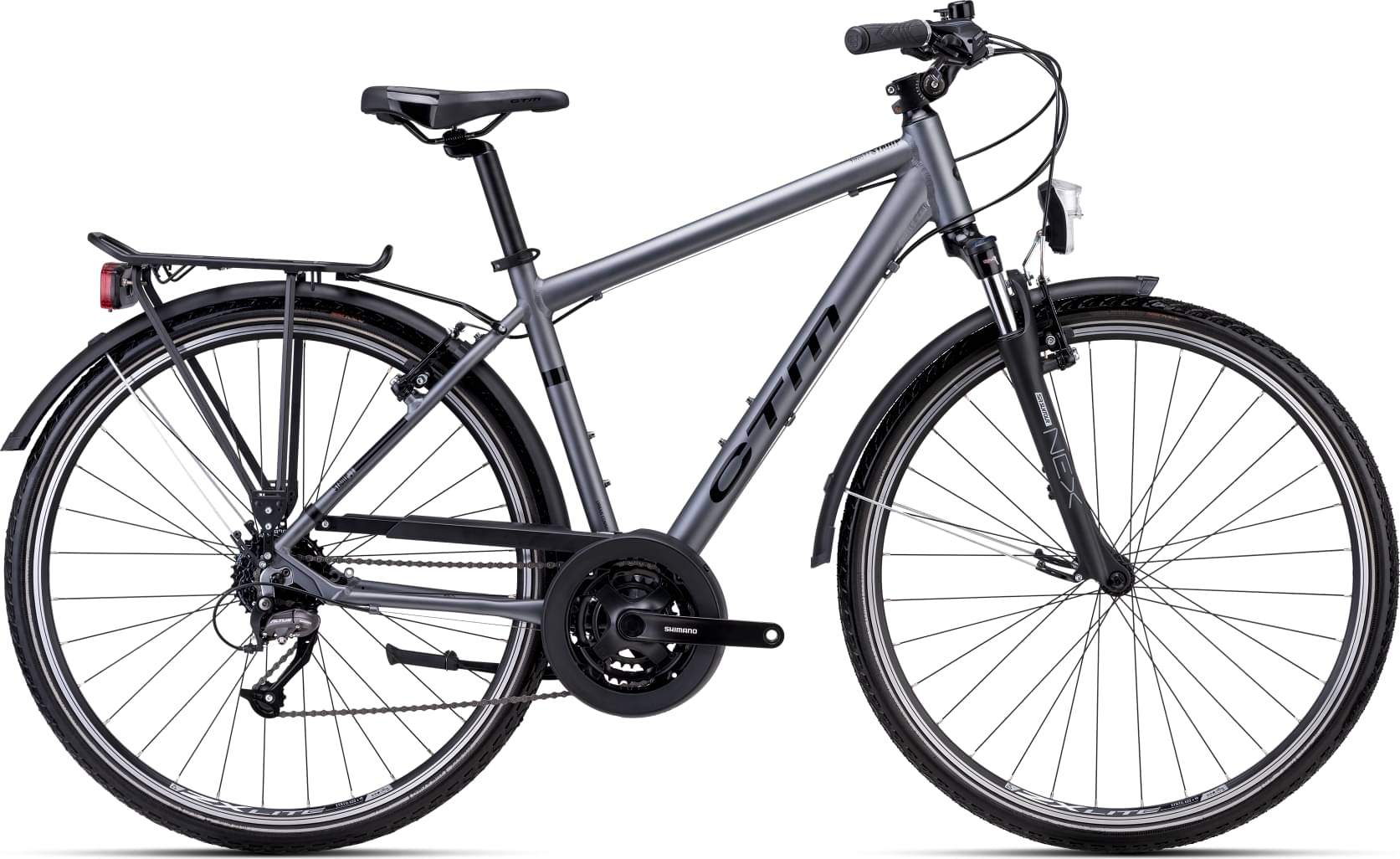

STAMP is a Ctm Stamp model. CTM launched 2 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter bikes
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When CTM released this model in 2023, its price was 583$. In conclusion, this bike price is 30.7% smaller than the price of the average Commuter bike.
Overview of components
Fork
The STAMP comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the STAMP bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The STAMP has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 160 cm – 205 cm (5.25 ft – 6.73 ft). In conclusion, finding one for you shouldn’t be a problem.
