Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-E8036 / 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, rear travel 150 mm, MD, LG, XL

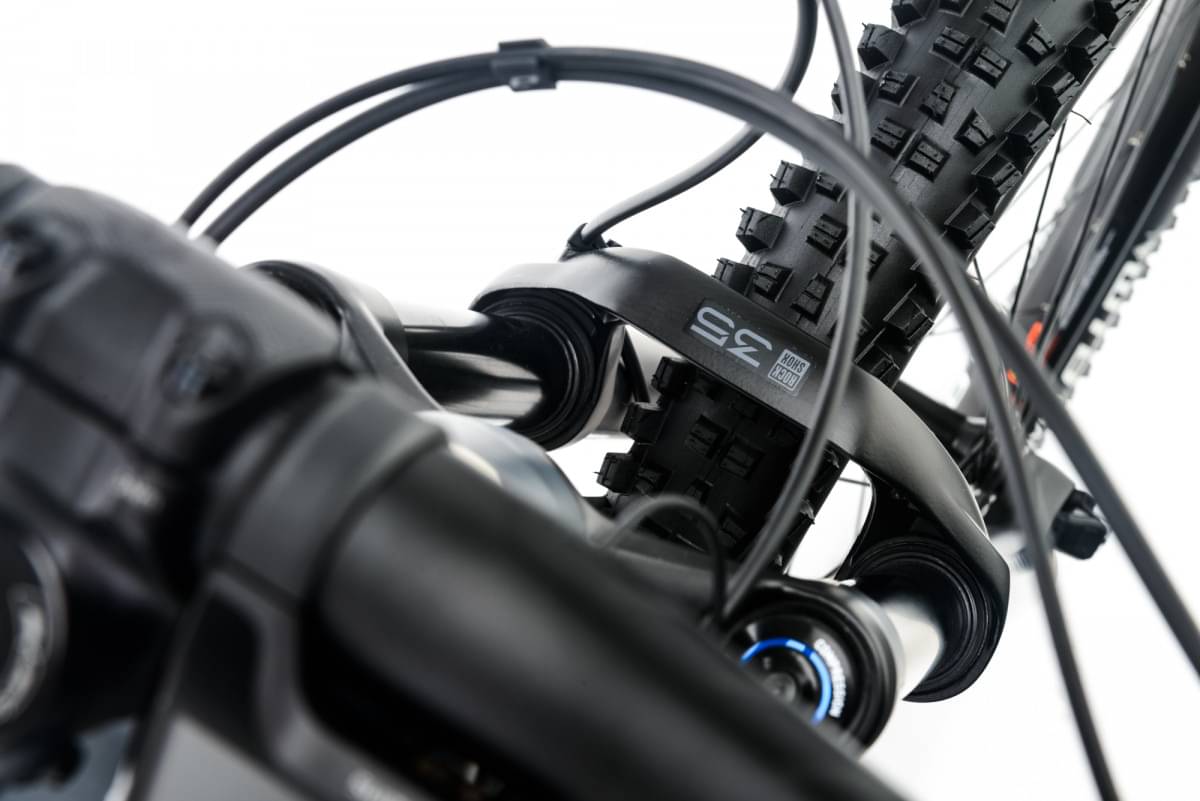

Suspension Fork
Rock Shox 35 GOLD RL, DebonAir, 160mm, boost™ 15x110axle

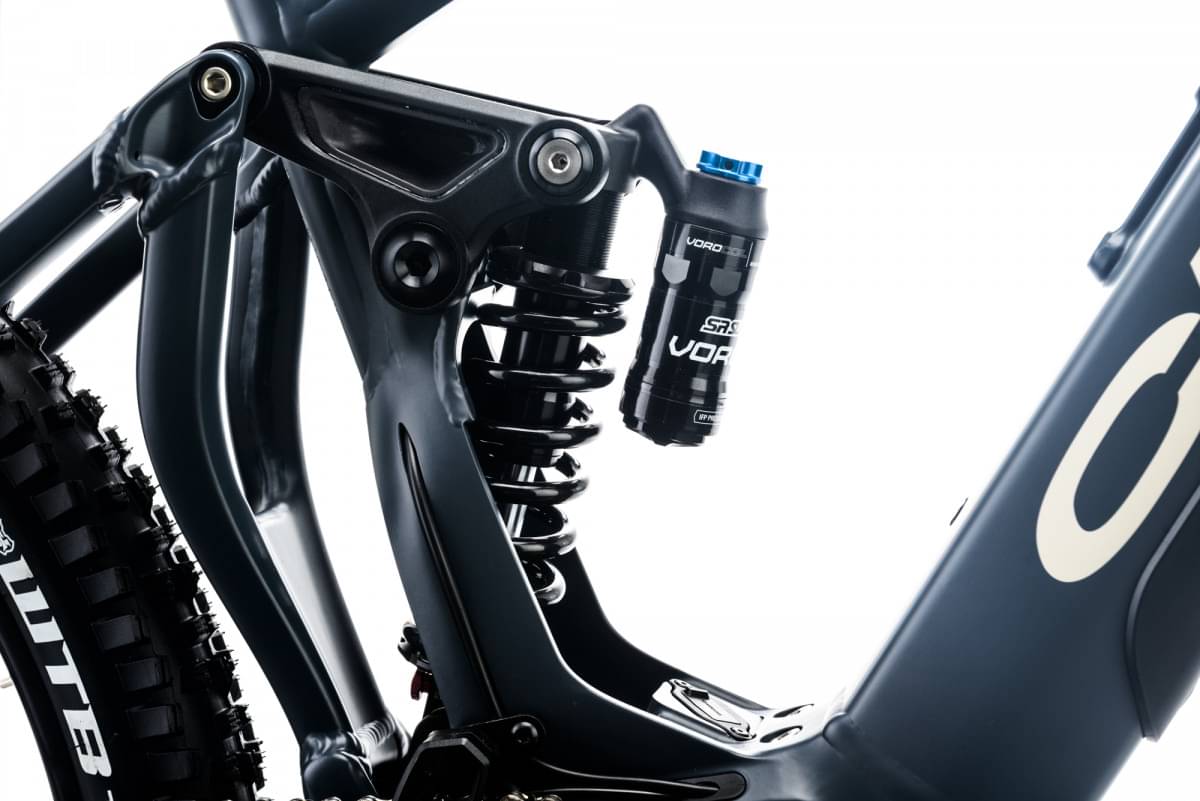

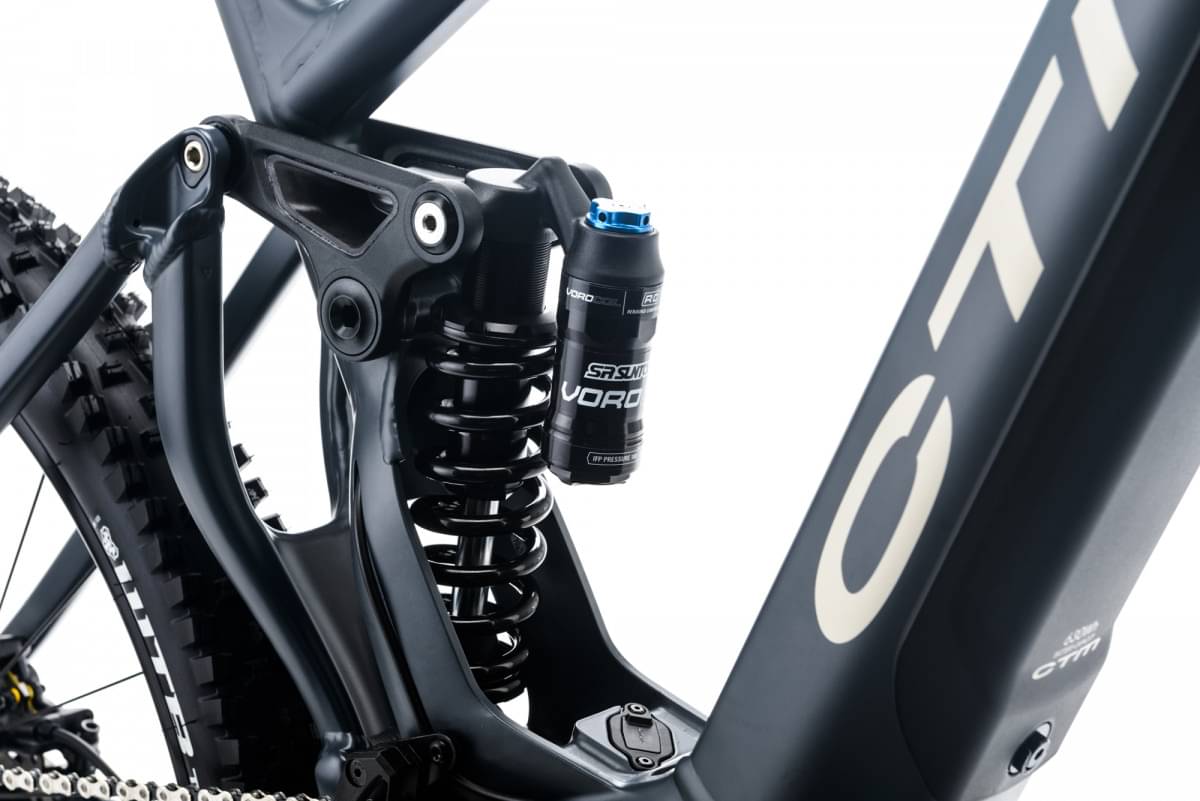

Rear Shock
SR Suntour RS21 VoroCoil TR (205x65)
Drivetrain

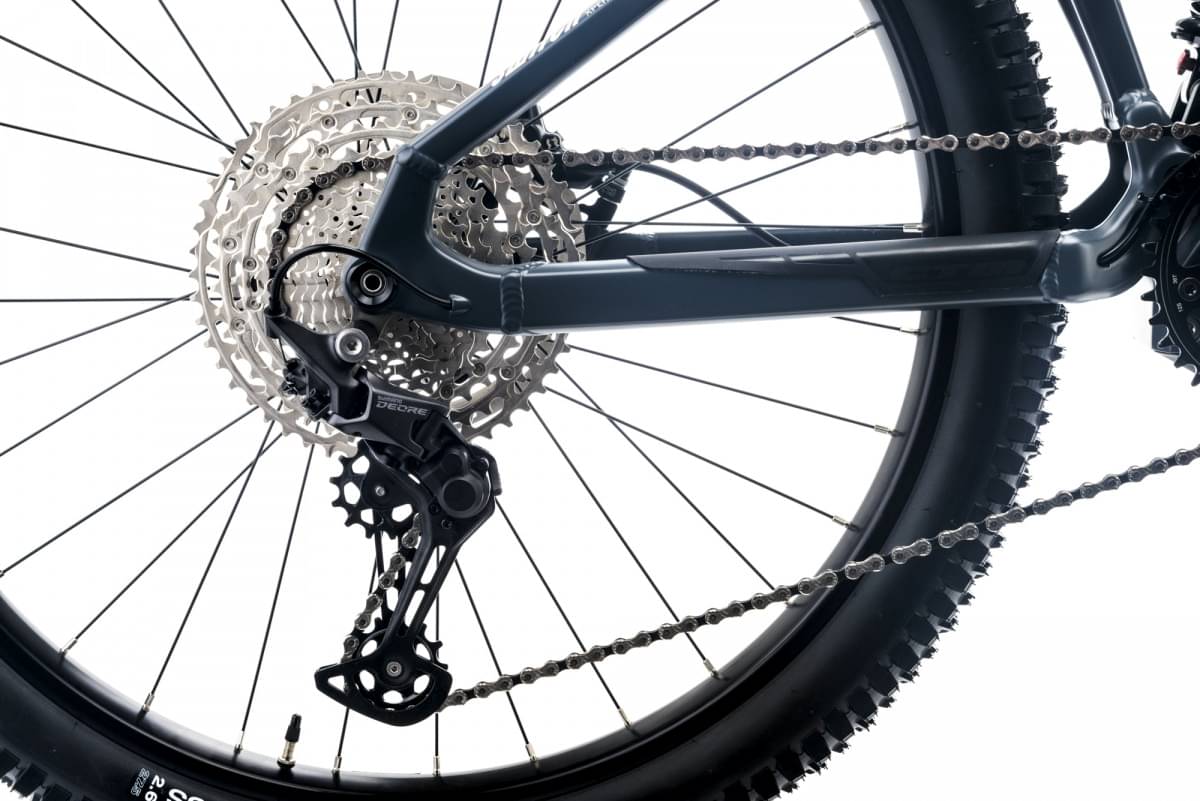

Rear Derailleur
Shimano Deore RD-M5100

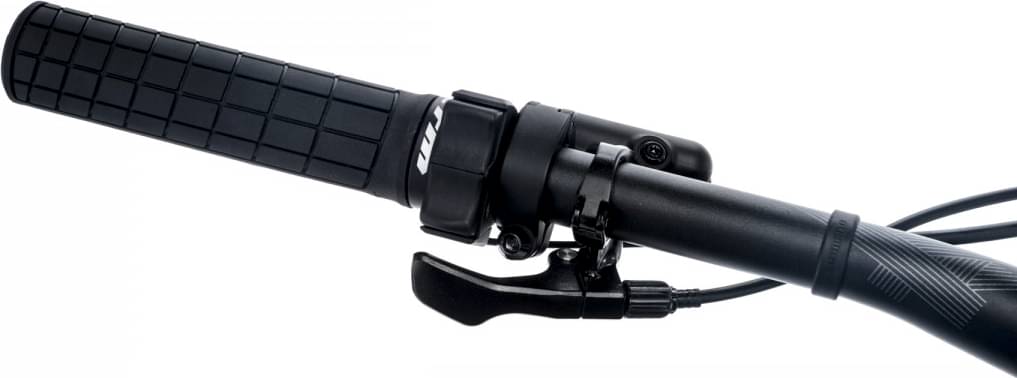

Shift Levers
Shimano Deore SL-M5100/11sp.
Crank
Shimano FC-EM600, 36T, 165mm
Chain
KMC X11e 122L
Pedals
VPE-527
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i35 TCS 2.0 / 27.5" / 29" / 32H
Tires
WTB Trail Boss G2 F 29x 2.6", R 27.5x2.6"
Brakes
Brakes
TEKTRO ORION / 203 / DISC

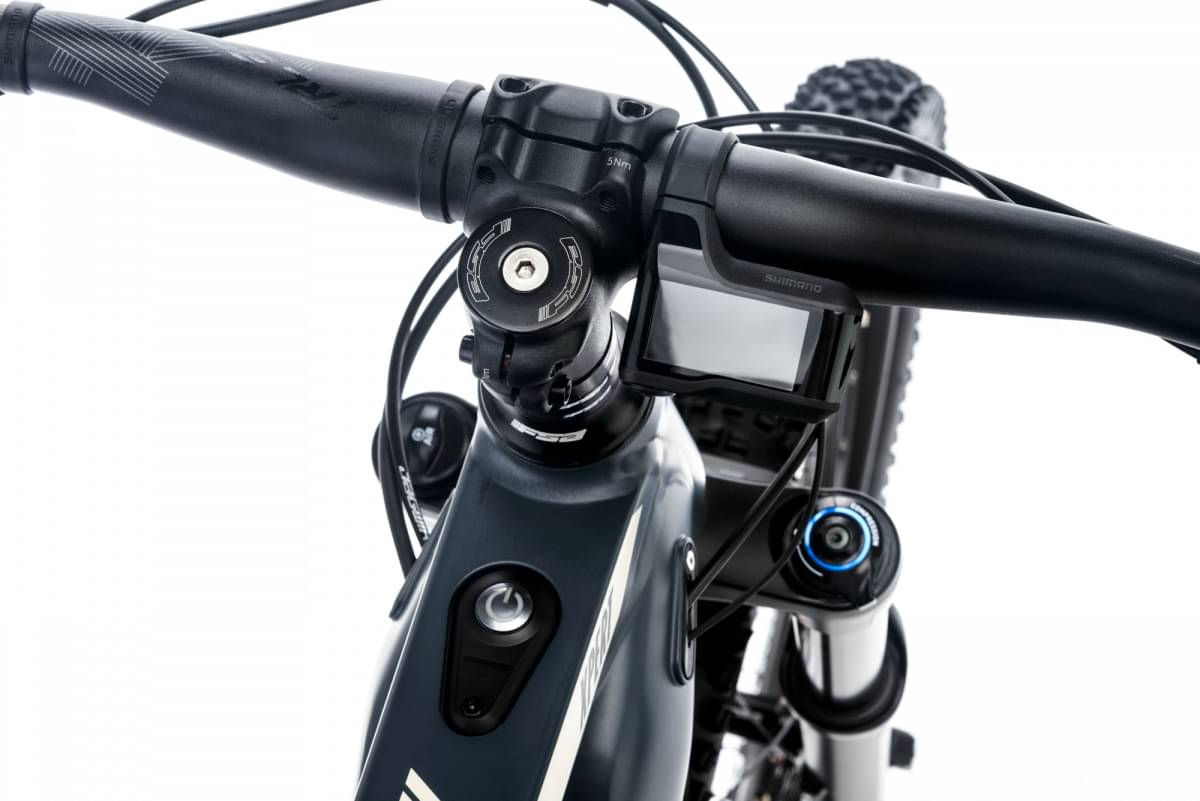

Cockpit
Stem
CTM ASM04 35 mm
Handlebar
CTM HB352, 35dia, 780mm
Headset
FSA Orbit 1.5

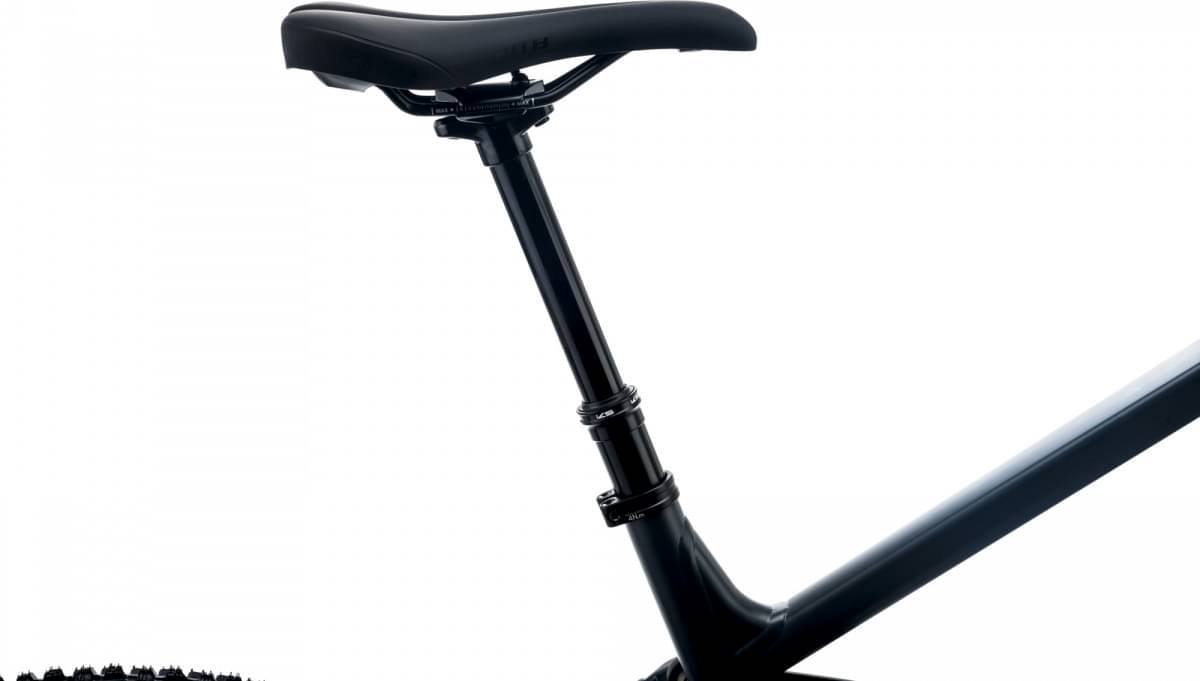

Seat
Saddle
WTB Volt
Seatpost
KS RAGEi (M-125mm/L-150mm/XL-170mm)

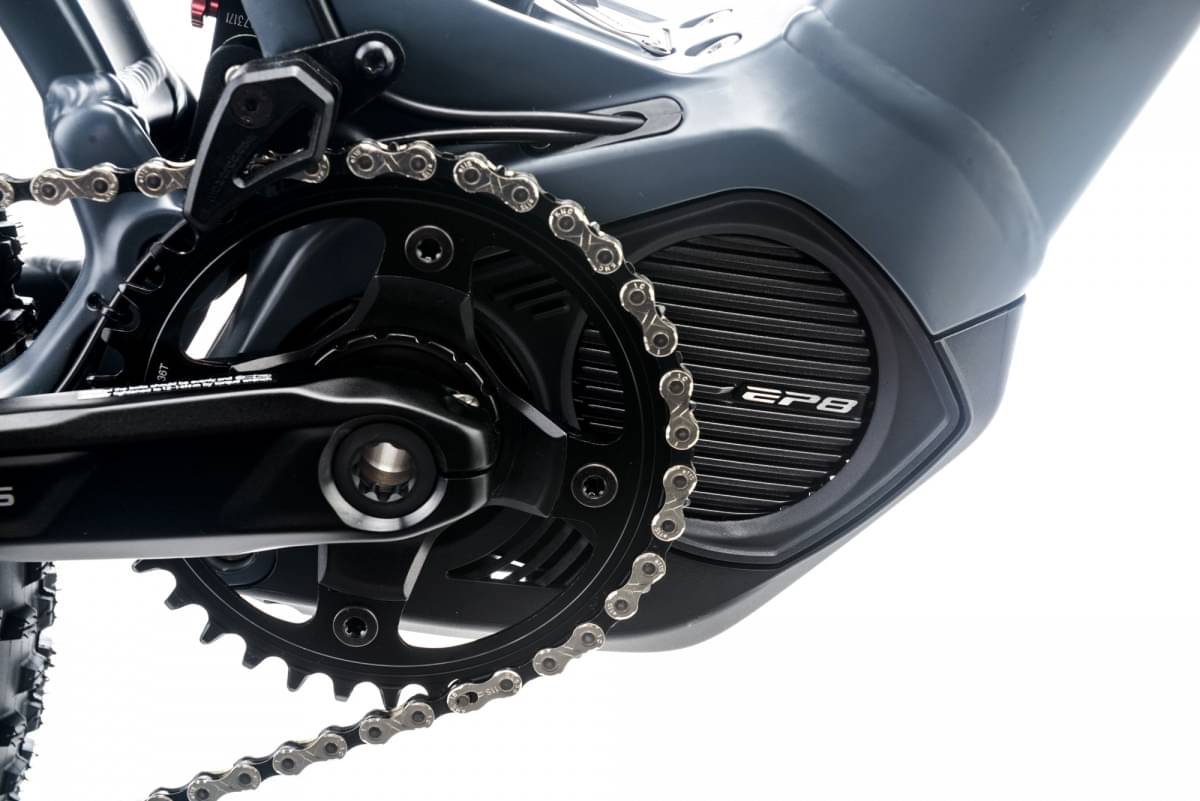

Motor & Battery

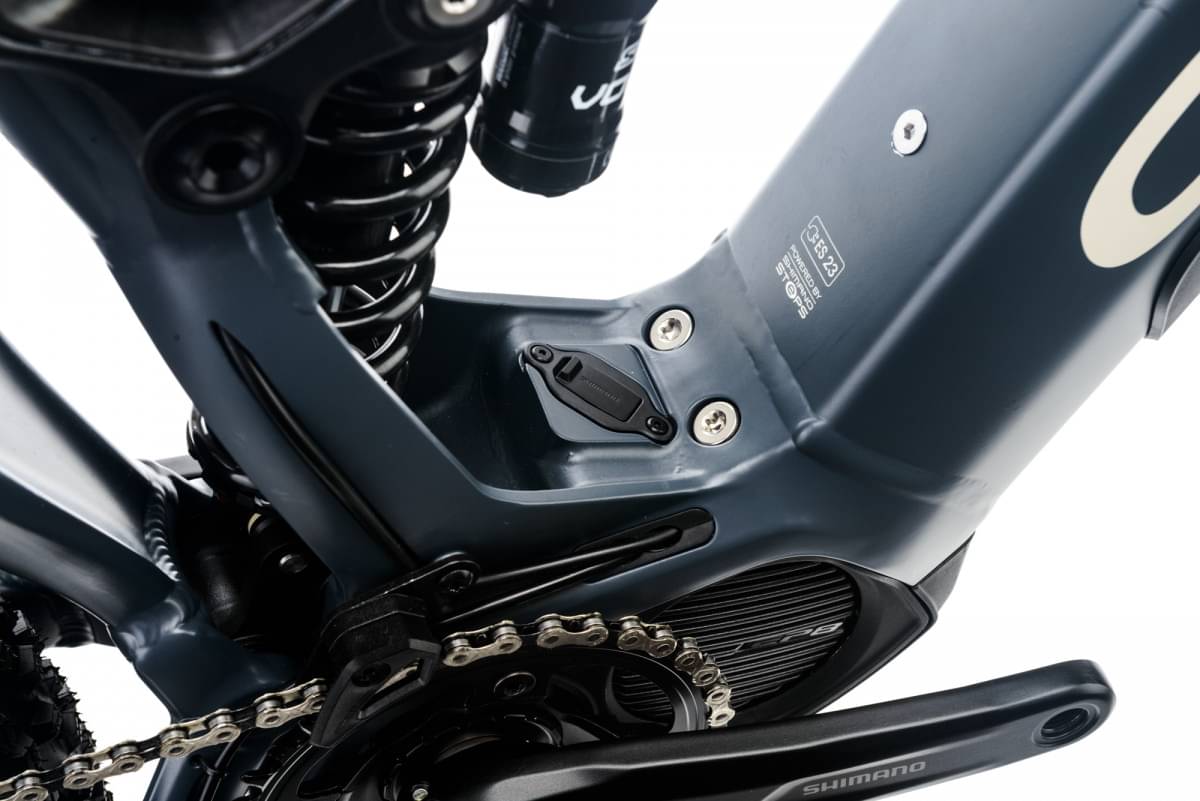

Motor
SHIMANO STEPS EP8 / 250W / 85Nm
Battery
SHIMANO BT-E8036 / 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.287 mm | 1.252 mm | 1.22 mm |
| Front Center | 760 mm | 784 mm | 808 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Stack | 592 mm | 601 mm | 610 mm |
| Reach | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 619 mm | 641 mm | 664 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1220 mm | 1245 mm | 1268 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 180 cm | 190 cm | 205 cm |
