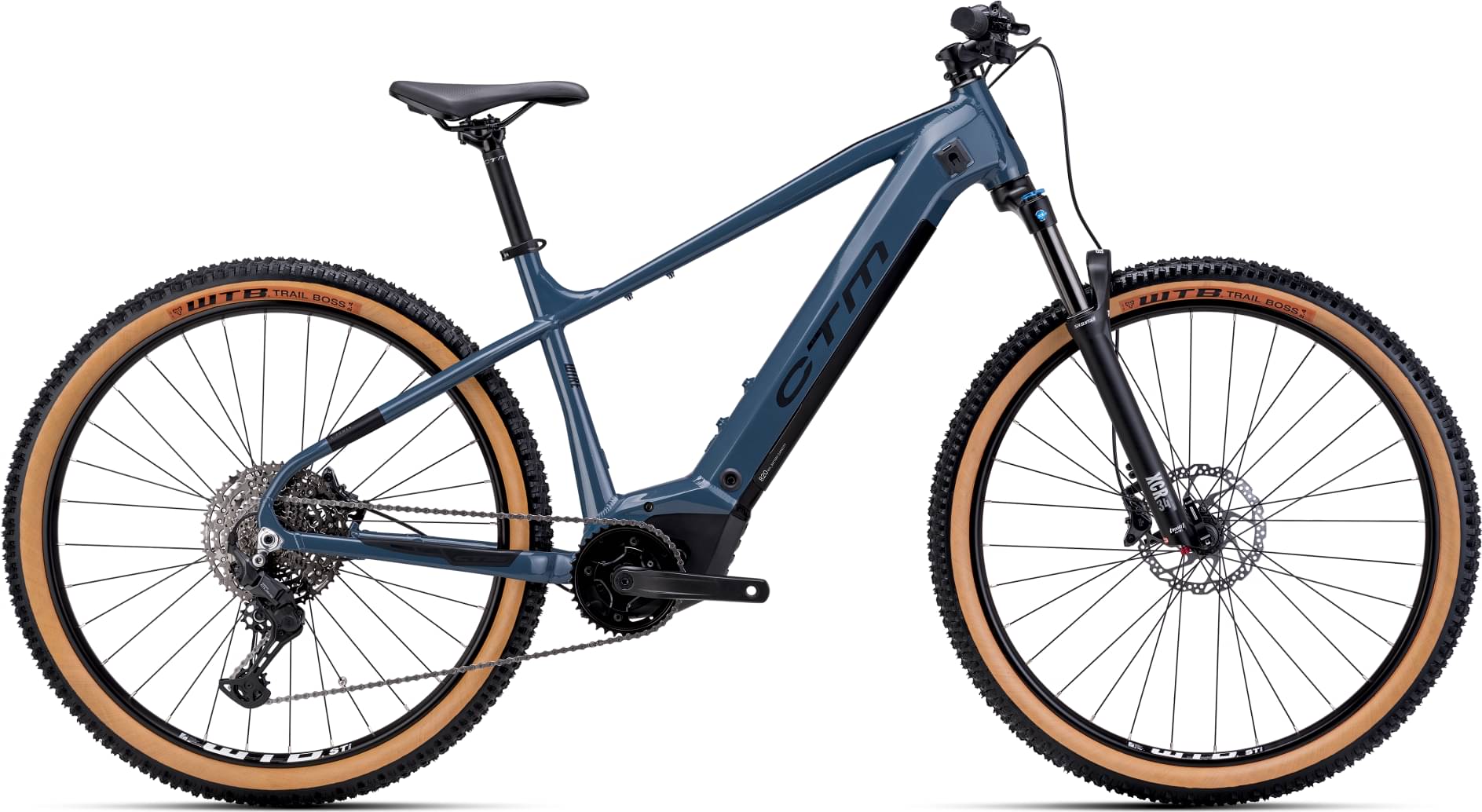

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 250W 95Nm mid-drive -
Battery BMZ V10 820Wh / 36V / 22.8Ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCR34 AIR boost R-2C DS, 120mm, boost™ 15x110axle
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000GS
Shift Levers
Shimano CUES SL-U6000/11sp.
Crank
Samox 38T, 170mm
Chain
Shimano CN-LG500
Pedals
VPE 527
Wheels
Rear Hub
Shimano TC500, CL, F15/R12 thru type axle
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp TanWall
Brakes
Brakes
Shimano MT410 / SMRT54M
Cockpit
Stem
CTM LCS/80mm
Handlebar
CTM rise bar, 720/31.8 mm
Headset
NECO H383
Seat
Saddle
SR Vivo Ergo Man
Seatpost
CTM 350x31.6 mm
Motor & Battery
Motor
PANASONIC GX ULTIMATE / 250W / 95Nm
Battery
BMZ V10 820Wh / 36V / 22.8Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.387 mm | 1.358 mm |
| Front Center | 759 mm | 769 mm | 779 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Stack | 652 mm | 652 mm | 652 mm |
| Reach | 460 mm | 470 mm | 480 mm |
| Top Tube Length | 660 mm | 670 mm | 680 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1233 mm | 1243 mm | 1253 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
