Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALU 6061, M, L, XL

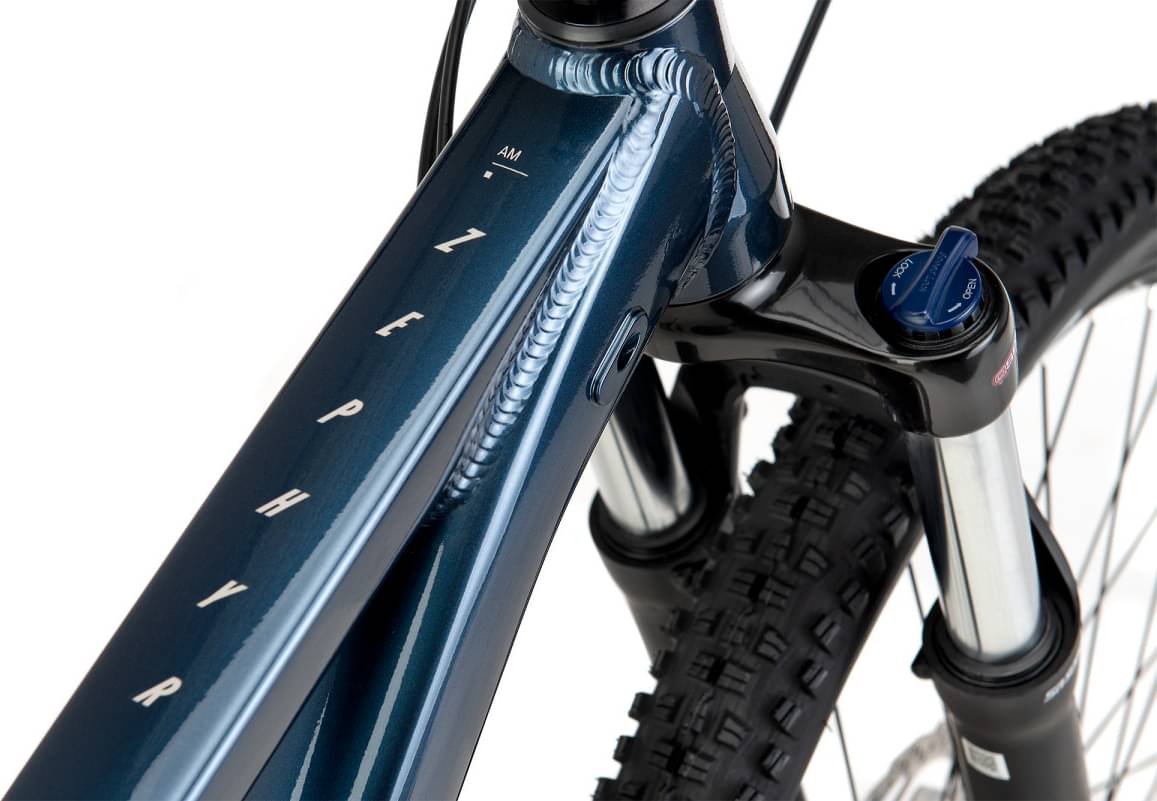

Suspension Fork
Suntour XCM32, UFO DS 120mm, 29"
Drivetrain

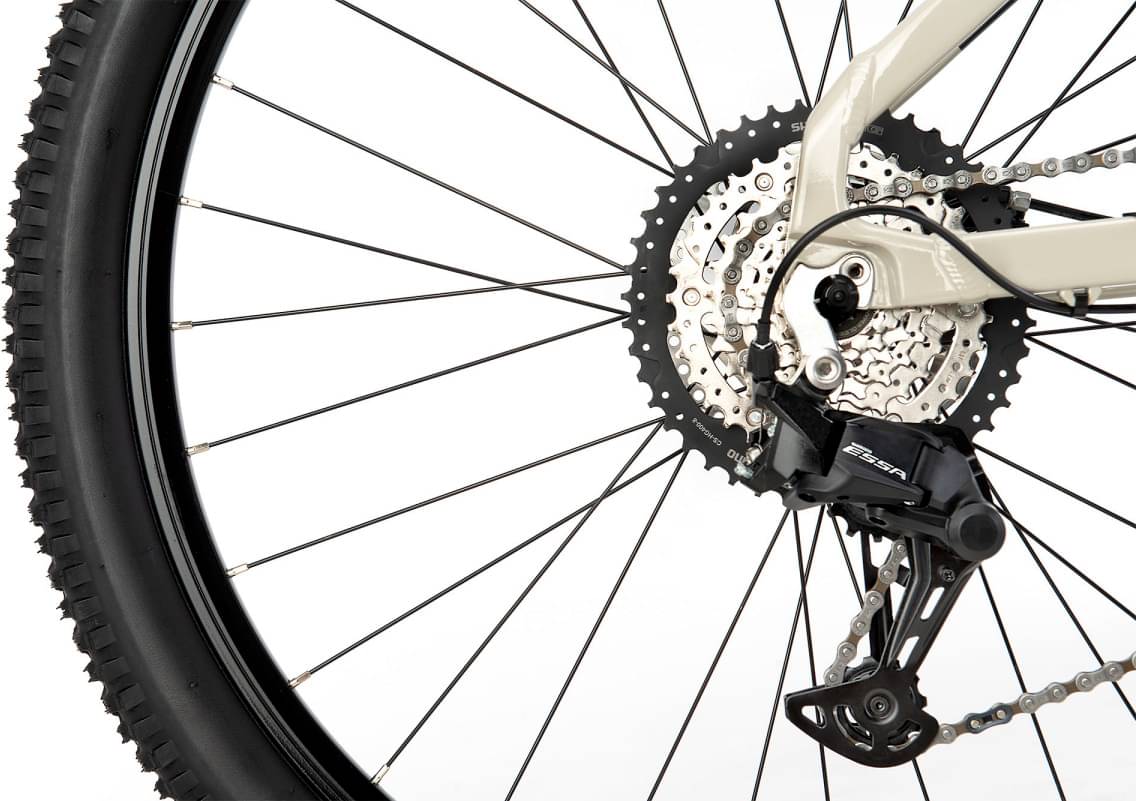

Rear Derailleur
Shimano ESSA RD-U2000

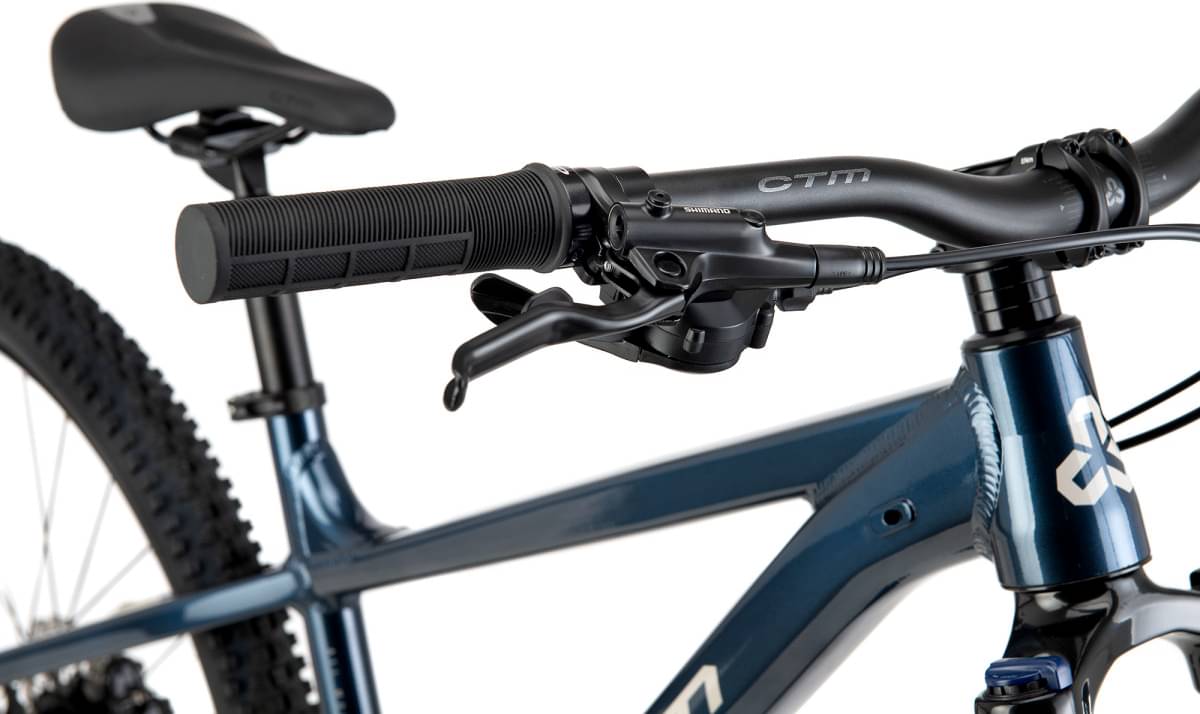

Shift Levers
Shimano SL-M315/8sp.

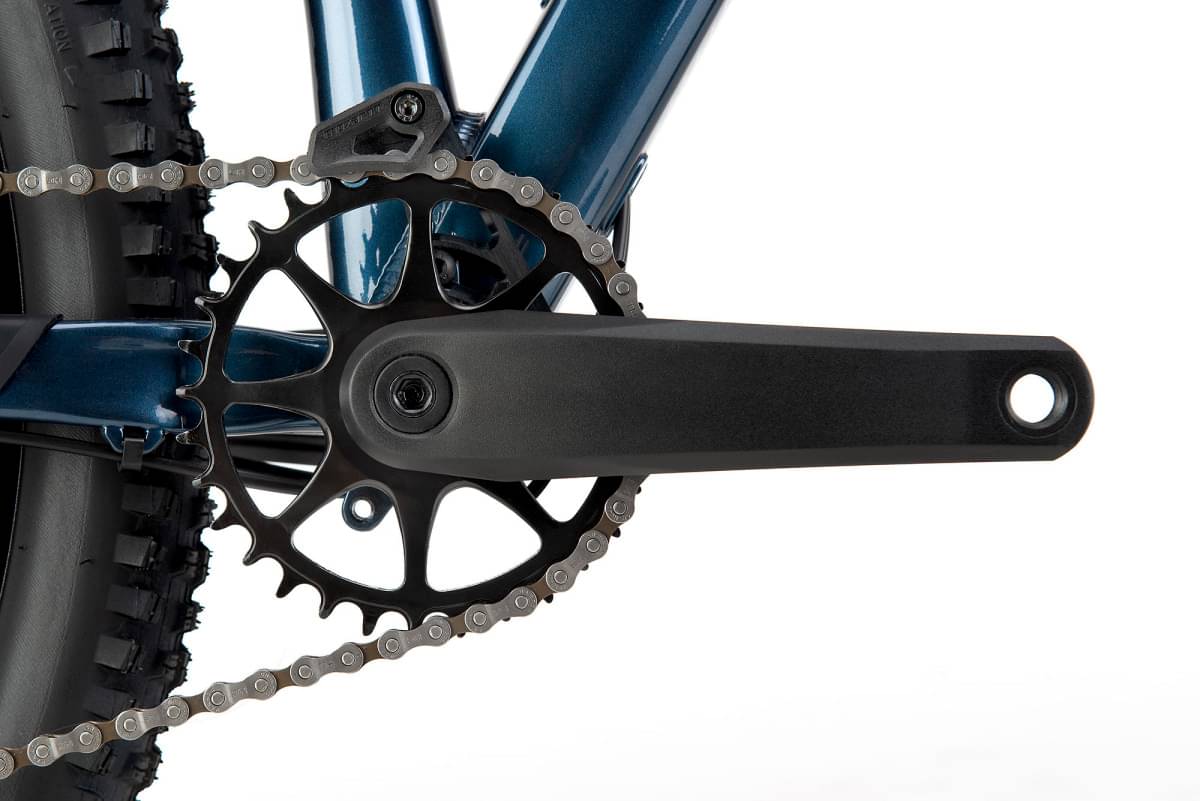

Crank
Samox 32T, 170mm
Chain
KMC Z8
Pedals
SP 610
Wheels
Front Hub
CTM alloy center-lock 32H QR black
Rear Hub
CTM alloy center-lock 32H QR black
Rims
CTM TOP DISC, 622x19 BA, 32H
Brakes
Brakes
Shimano MT200 / SMRT10 S/M
Cockpit

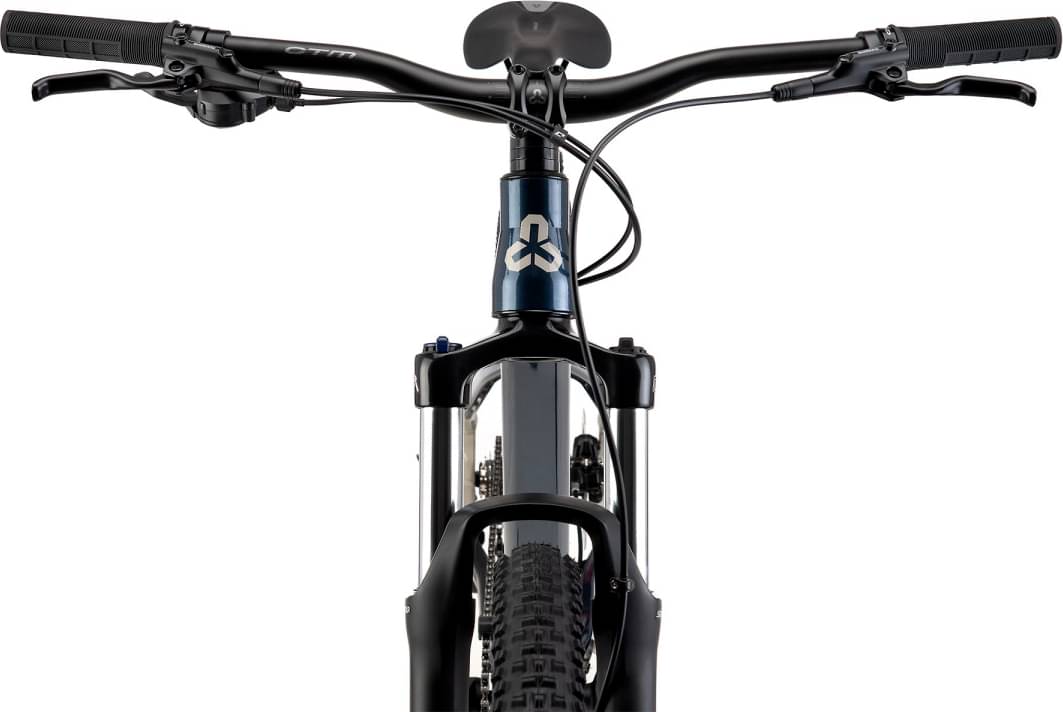

Handlebar
CTM N04, 740/1" rise/31.8mm
Headset
NECO H156
Seat
Saddle
CTM Cloud M
Seatpost
CTM LCSP-3, 350/31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.416 mm | 1.351 mm |
| Front Center | 730 mm | 760 mm | 787 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 616 mm | 630 mm | 635 mm |
| Reach | 420 mm | 445 mm | 470 mm |
| Top Tube Length | 577 mm | 606 mm | 633 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1160 mm | 1191 mm | 1218 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
