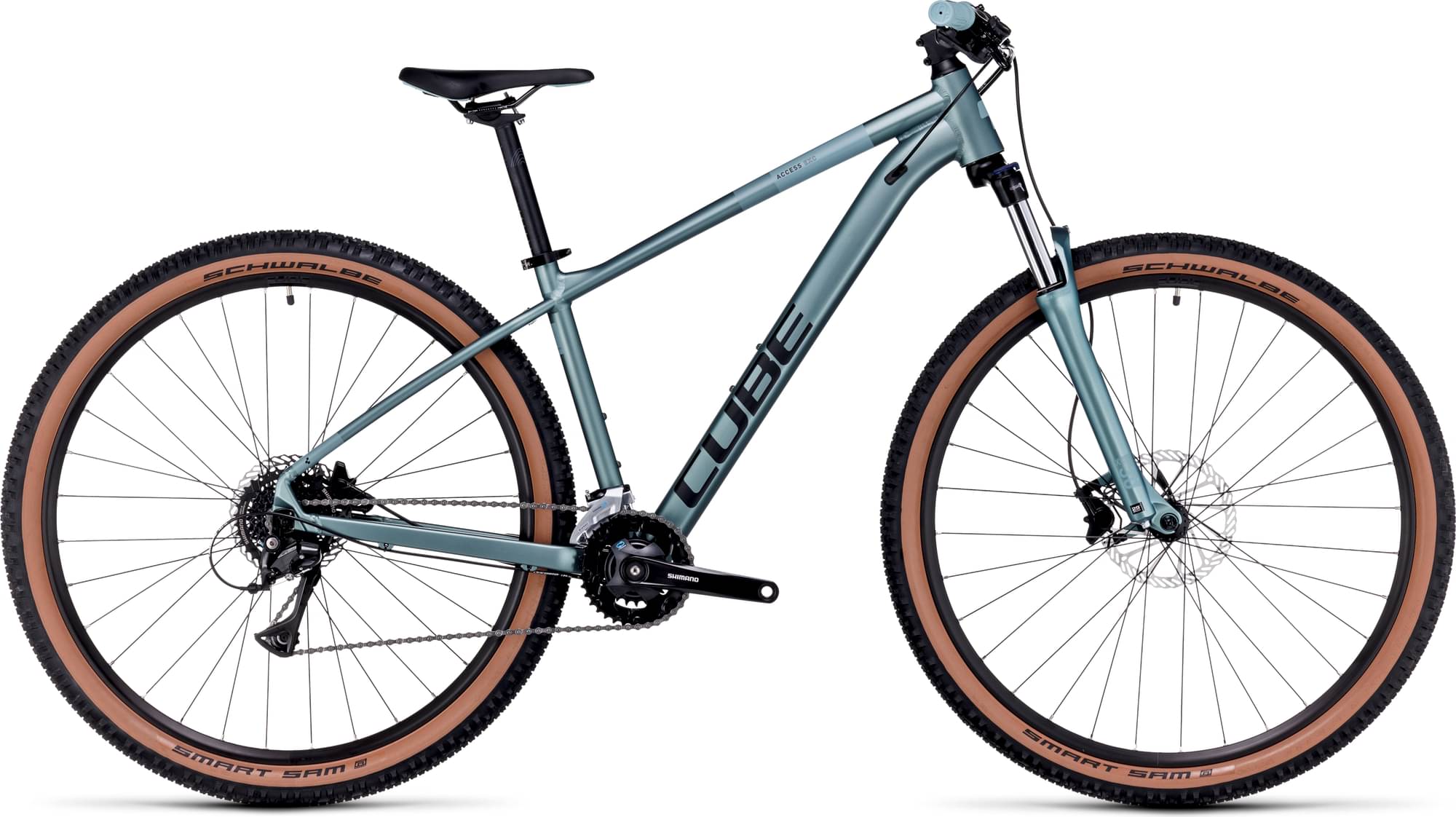

CUBE ACCESS WS EXC 2024
2024 Mountain
Estimate price |
802$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -

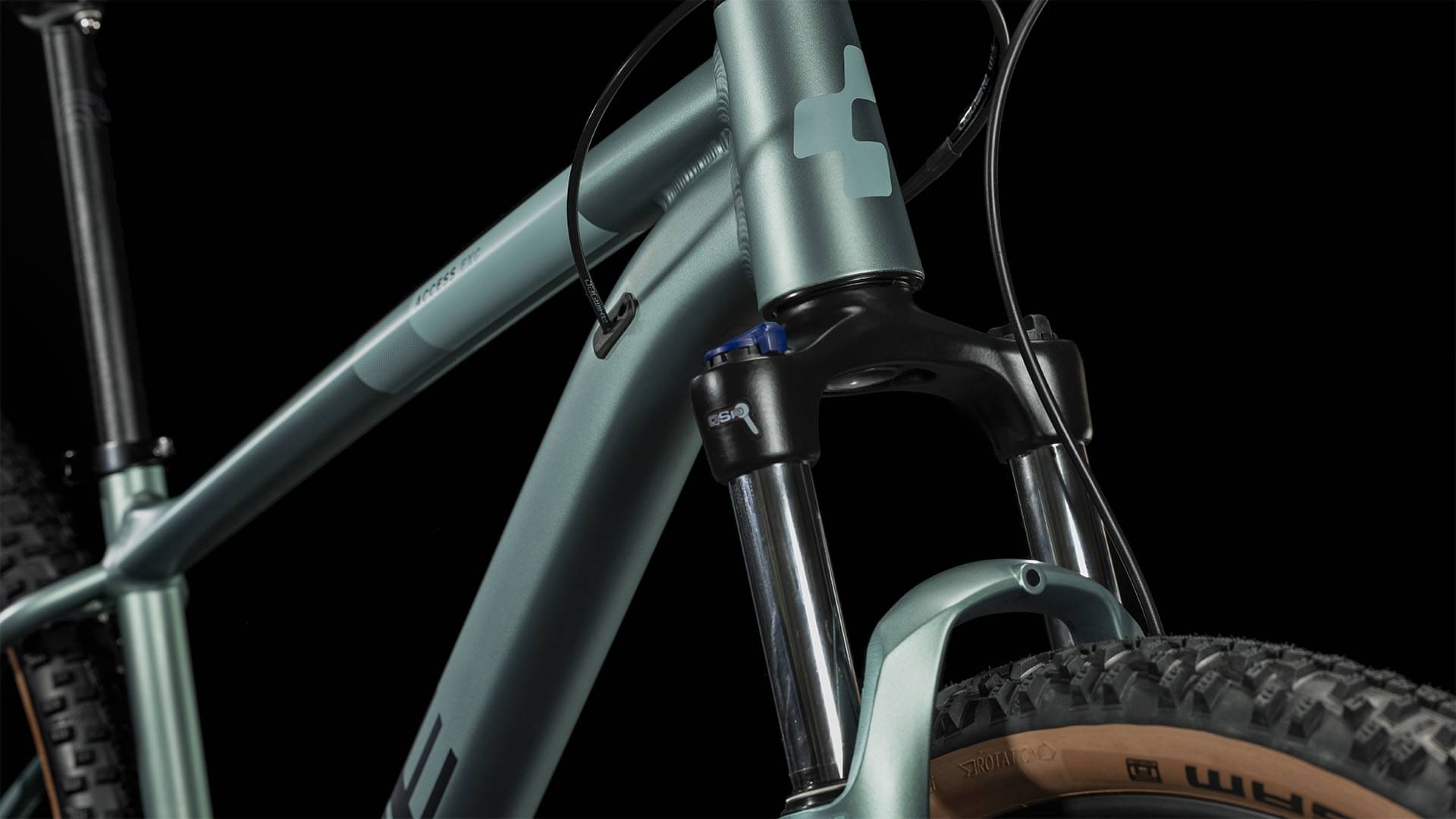

Fork Suntour XCT
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
SR Suntour XCT Disc, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M3020, 8-Speed
Front Derailleur
Shimano FD-M315, Top Swing, 31.8mm Clamp
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T

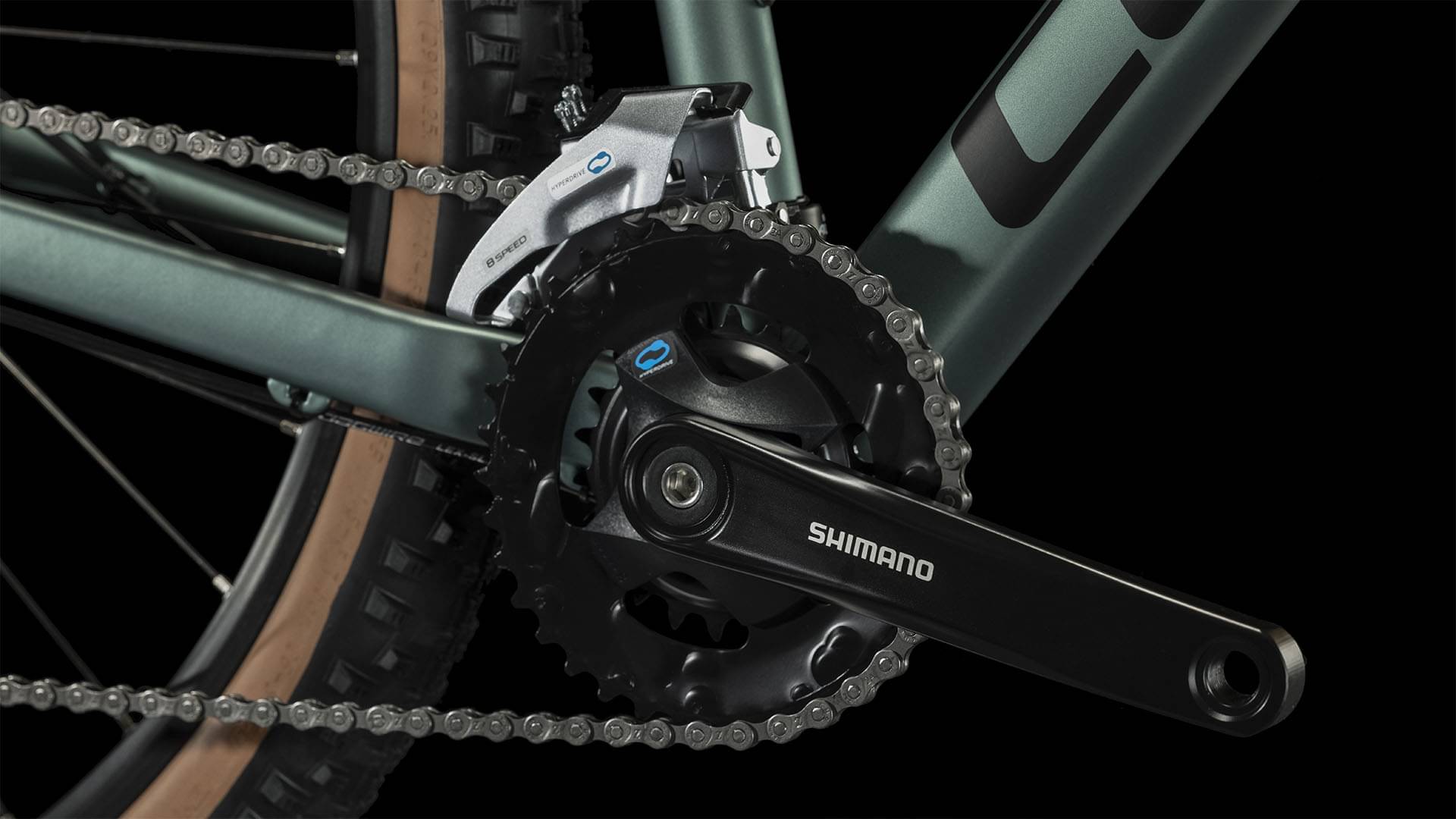

Crank
Shimano FC-M315, 36x22T, 170mm
Bottom Bracket
Thun Paso-ML, 73mm BSA
Chain
KMC Z8.3
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Clarks Clout 1, Hydr. Disc Brake PM/FM (180/160)
Cockpit
Stem
CUBE Performance Stem Race, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite WS
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.587 mm | 1.536 mm | 1.568 mm | 1.529 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 309 mm | 309 mm |
| Front Center | 641 mm | 656 mm | 679 mm | 700 |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm |
| Trail | 95 mm | 95 mm | 98 mm | 98 mm |
| Stack | 600 mm | 602 mm | 632 mm | 642 mm |
| Reach | 378 mm | 392 mm | 403 mm | 420 mm |
| Top Tube Length | 550 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 113 mm | 116 mm | 116 mm | 127 mm |
| Chainstay Length | 427 mm | 427 mm | 450 mm | 450 mm |
| Wheelbase | 1063 mm | 1078 mm | 1121 mm | 1142 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
