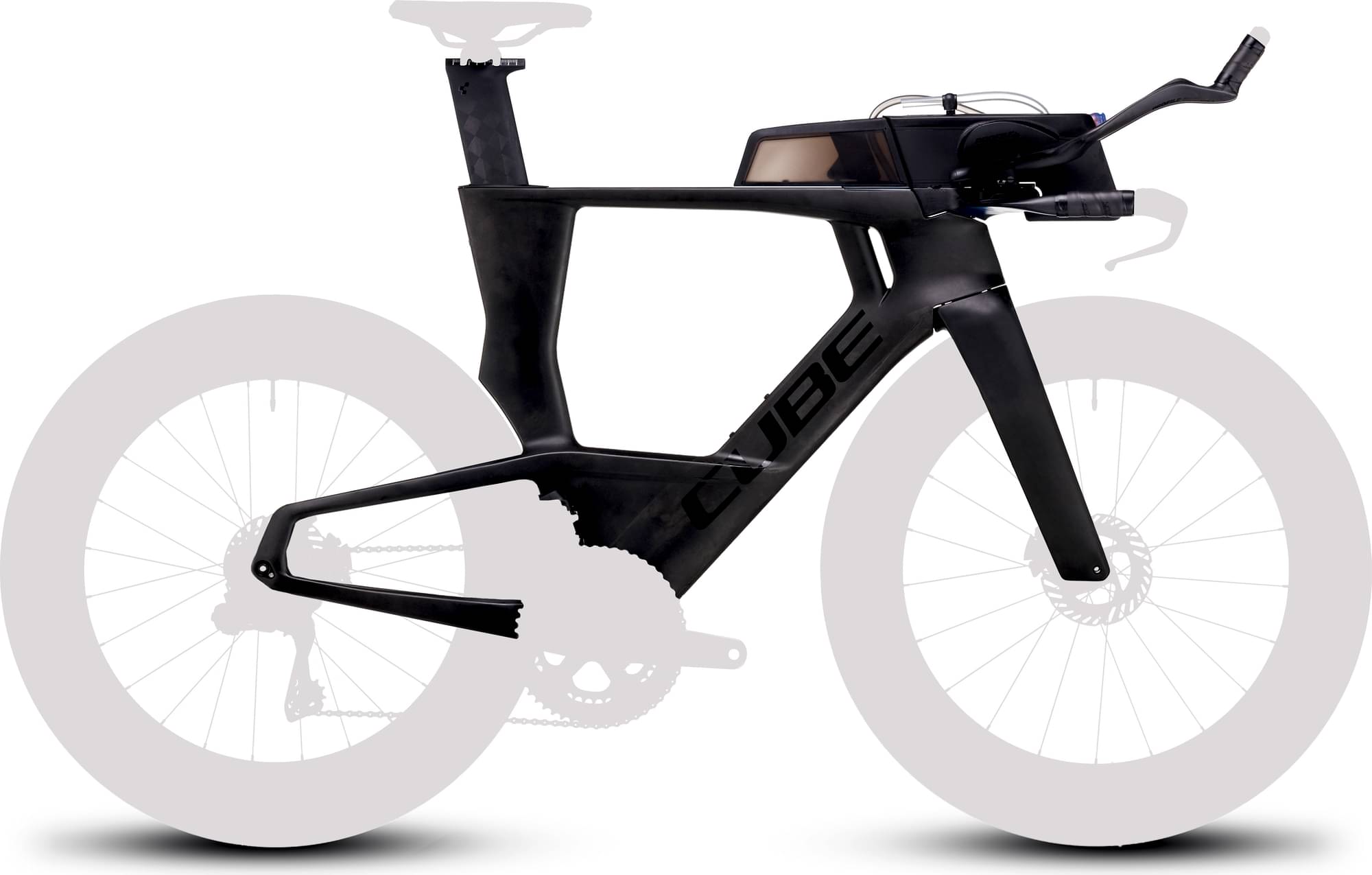

CUBE AERIUM C:68X, FRAME SET 2025
2025 Road
Estimate price |
4,652$
Weight | 5.1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aerium C:68X® Monocoque Advanced Twin Mold Technology, Twin Head Tube, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH
Suspension Fork
Aerium C:68X®, Integrated Cable Routing, Flat Mount Disc, 12x100mm
Cockpit
Handlebar
CUBE Aerium C:68X® Cockpit System
Headset
FSA, 1 1/8" integrated
Seat
Seatpost
CUBE Aerium C:68 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.233 mm | 1.227 mm | 1.228 mm | 1.219 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 582 mm | 595 mm | 617 mm | 645 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 61 mm | 61 mm | 61 mm | 61 mm |
| Stack | 487 mm | 497 mm | 517 mm | 539 mm |
| Reach | 395 mm | 405 mm | 421 mm | 442 mm |
| Top Tube Length | 499 mm | 511 mm | 531 mm | 557 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 535 mm | 545 mm | 566 mm | 588 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 74 mm | 85 mm | 106 mm | 129 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 979 mm | 992 mm | 1015 mm | 1043 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
