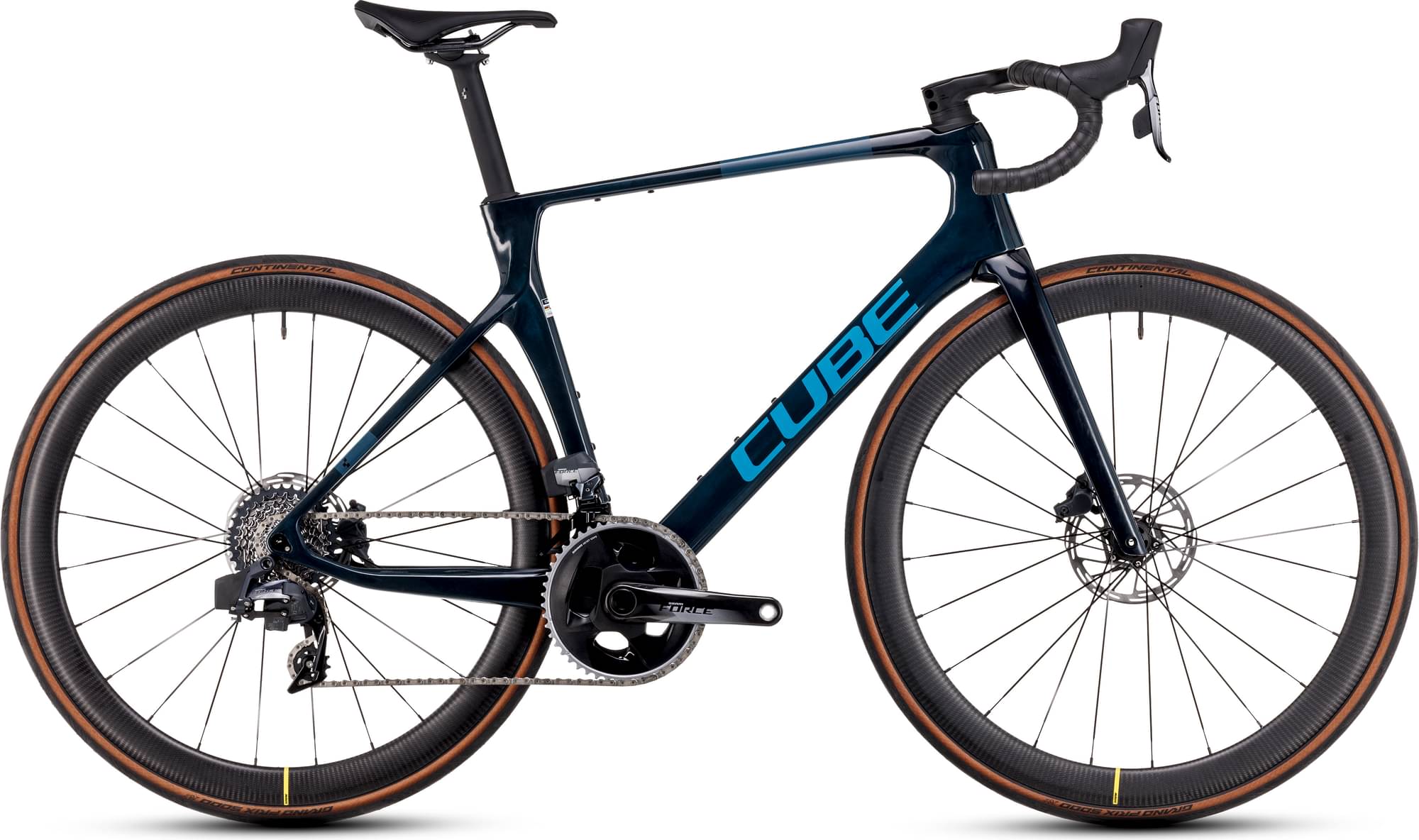

CUBE AGREE C:62, SLX 2024
2024 Road
Estimate price |
4,931$
Weight | 7.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

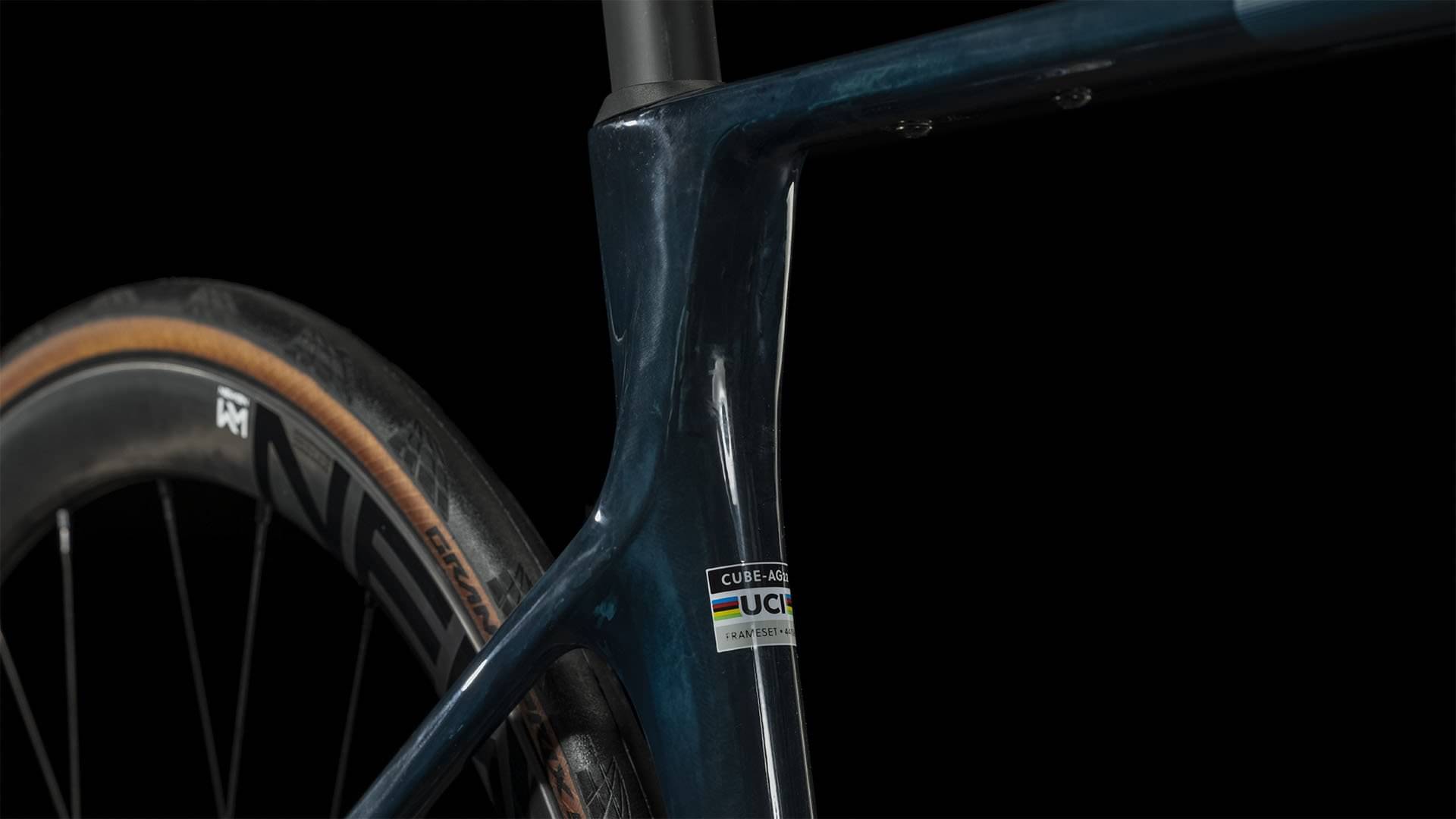

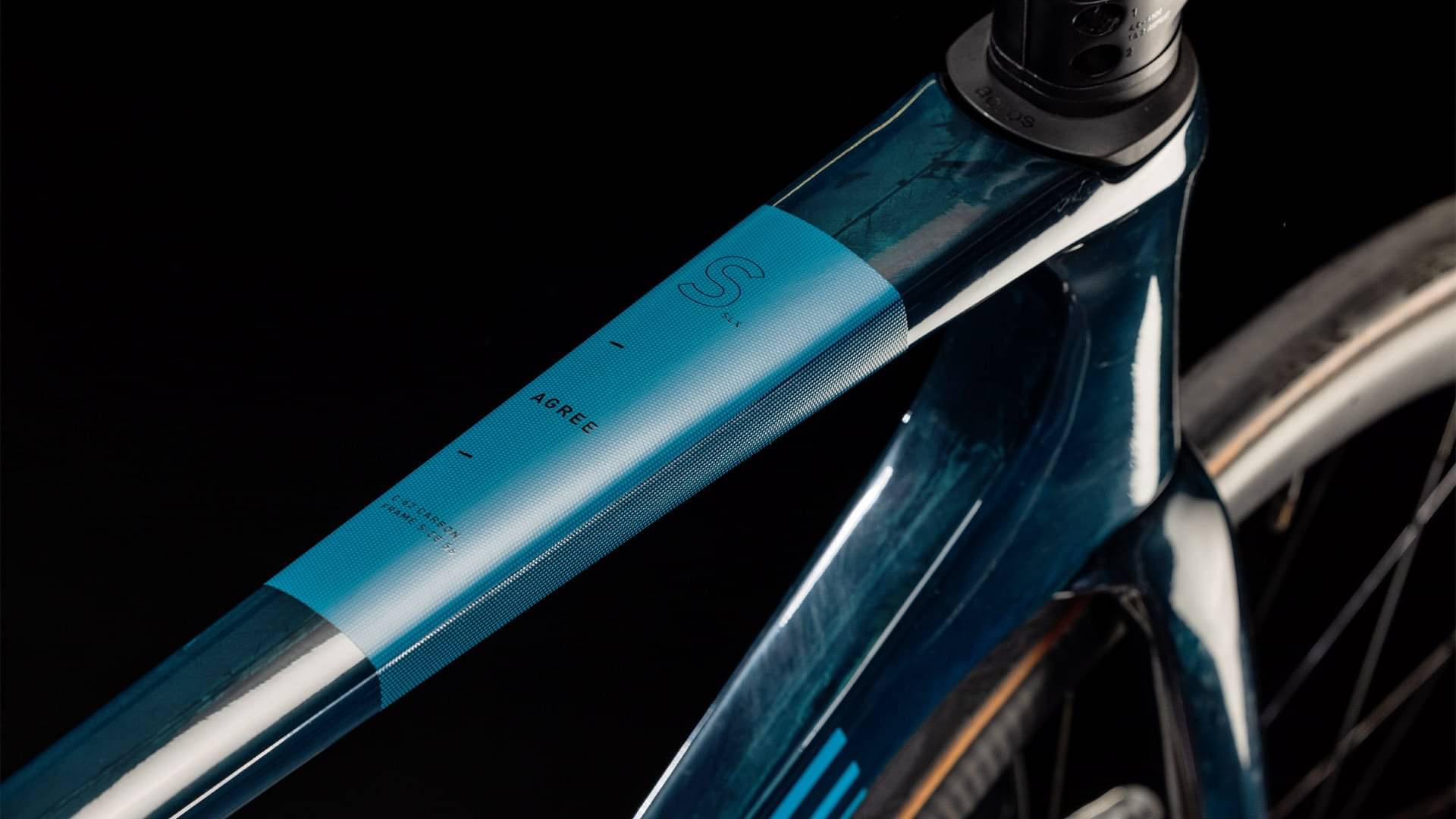

Frame
Frame
C:62® Advanced Twin Mold Technology, Full Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm

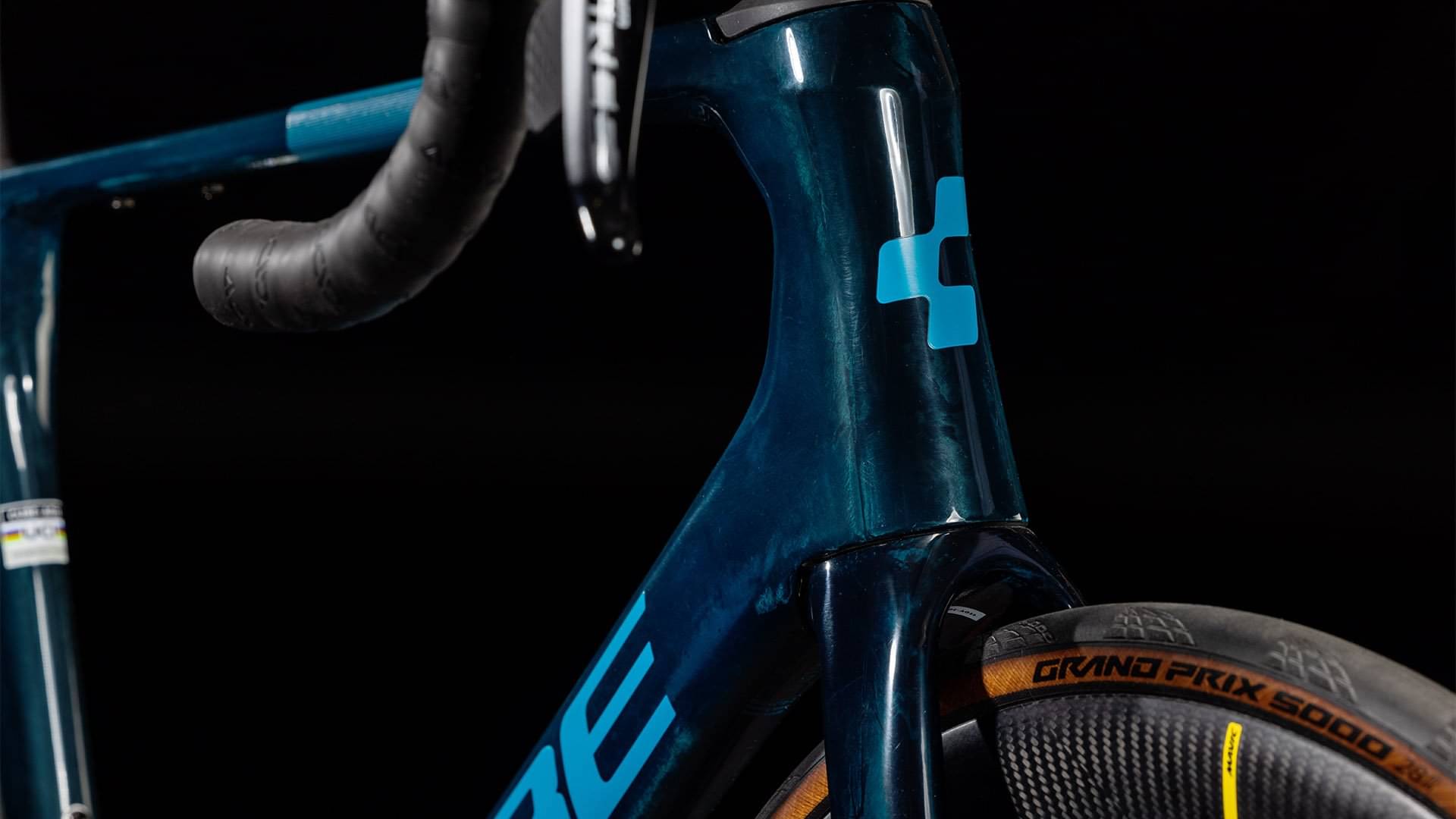

Suspension Fork
CUBE CSL Evo Aero C:62® Technology, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
Drivetrain

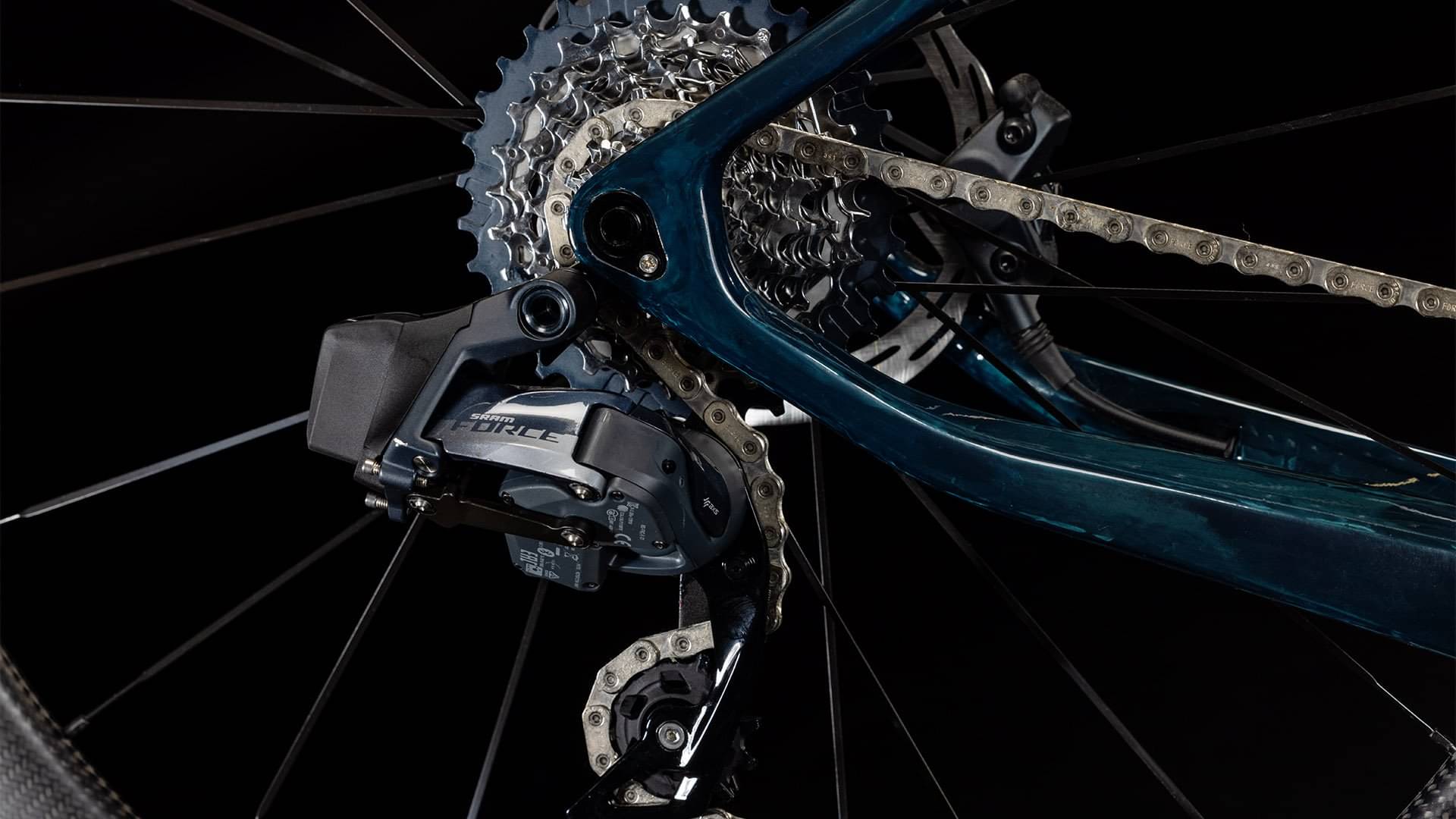

Rear Derailleur
SRAM Force eTap AXS™, 12-Speed
Front Derailleur
SRAM Force eTap AXS™
Shift Levers
SRAM Force eTap AXS™
Cassette
SRAM Force XG-1270, 10-33T

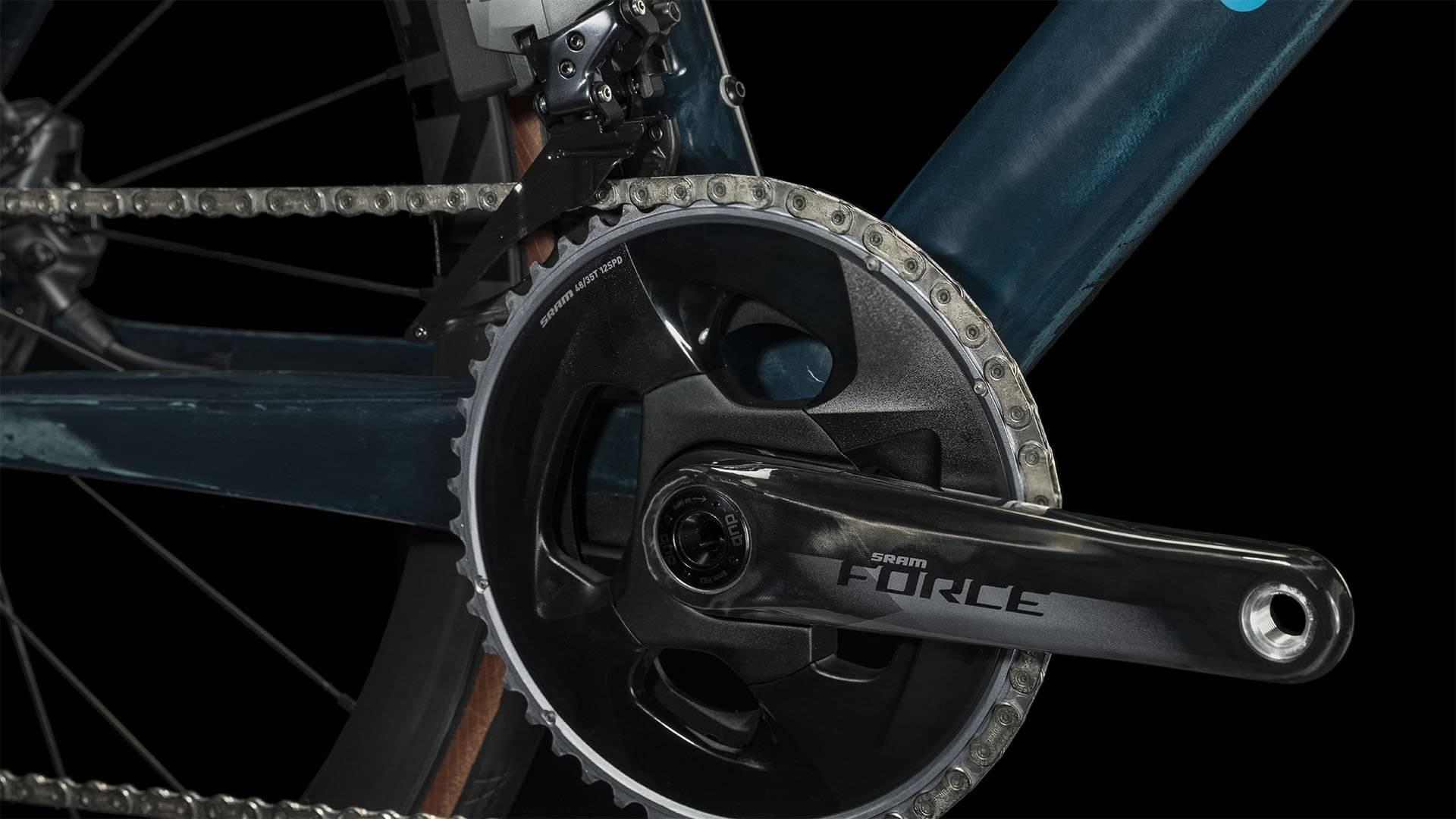

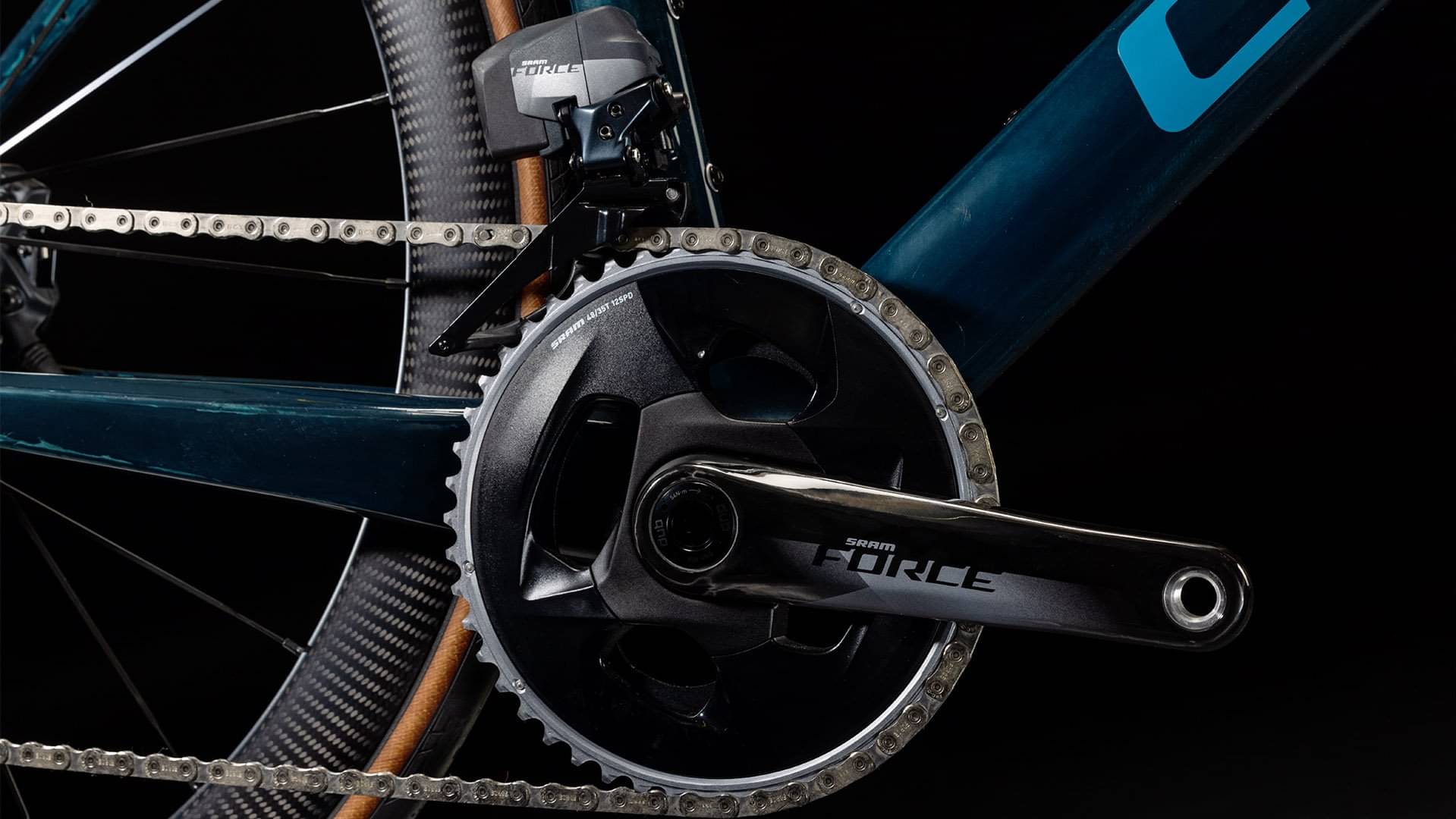

Crank
SRAM Force DUB Carbon, 48x35T
Bottom Bracket
SRAM DUB Road, 86mm Pressfit
Chain
SRAM Force D1
Wheels
Rims
Mavic Cosmic SL 45
Tires
Conti Grand Prix 5000 Kevlar, 28-622
Brakes
Brakes
SRAM Force eTap AXS™ (160/160)
Cockpit
Handlebar
ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
Headset
ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"
Seat

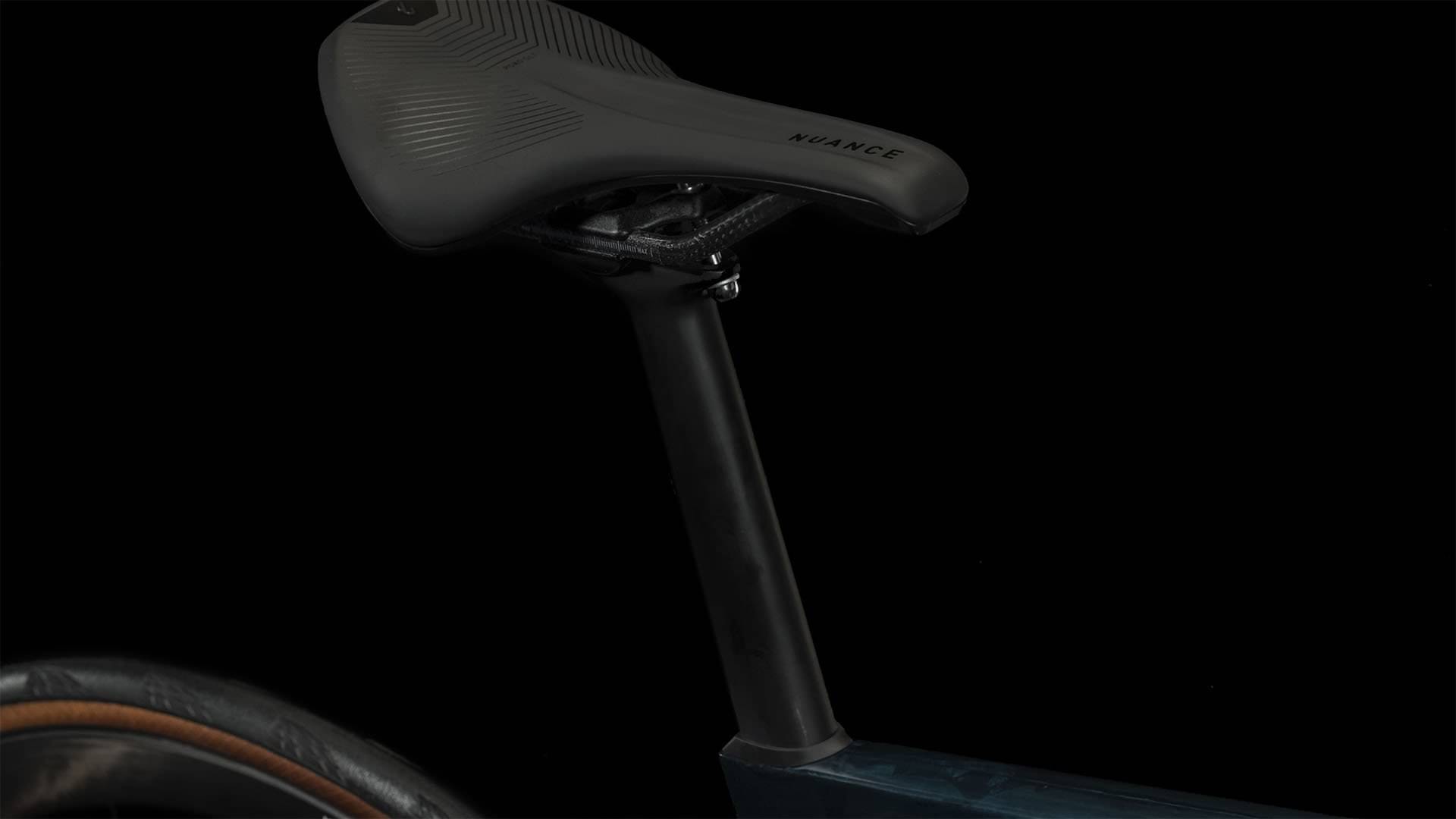

Saddle
Natural Fit Nuance SLT Road Carbon
Seatpost
Agree C:62® Aero, Comfort Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.418 mm | 1.463 mm | 1.5 mm | 1.519 mm | 1.562 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 265 mm | 265 mm | 267 mm | 267 mm |
| Front Center | 586 mm | 593 mm | 605 mm | 615 mm | 625 mm | 635 mm |
| Rake | 50 mm | 50 mm | 50 mm | 51 mm | 50 mm | 50 mm |
| Trail | 60 mm | 57 mm | 54 mm | 52 mm | 54 mm | 54 mm |
| Stack | 523 mm | 543 mm | 572 mm | 591 mm | 606 mm | 628 mm |
| Reach | 378 mm | 383 mm | 391 mm | 394 mm | 399 mm | 402 mm |
| Top Tube Length | 522 mm | 539 mm | 560 mm | 575 mm | 590 mm | 600 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 107 mm | 127 mm | 157 mm | 177 mm | 195 mm | 218 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 987 mm | 994 mm | 1007 mm | 1017 mm | 1027 mm | 1037 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 71 mm | 71 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
