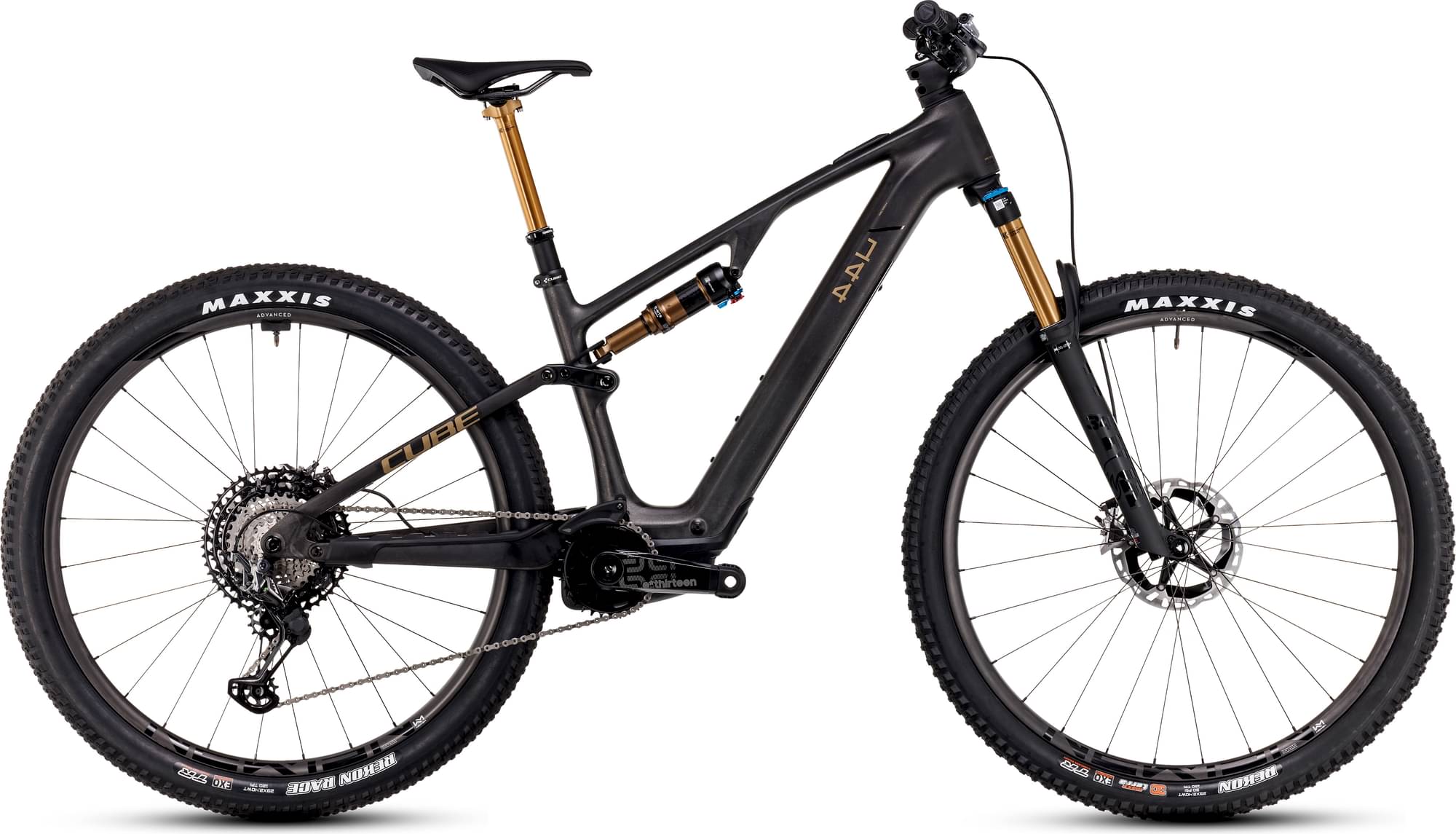

CUBE AMS HYBRID ONE44 C:68X, SLT 400X 29 2023
2023 E-bike
Estimate price |
9,174$
Weight | 16.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XTR, e*thirteen -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch CompactTube 400 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

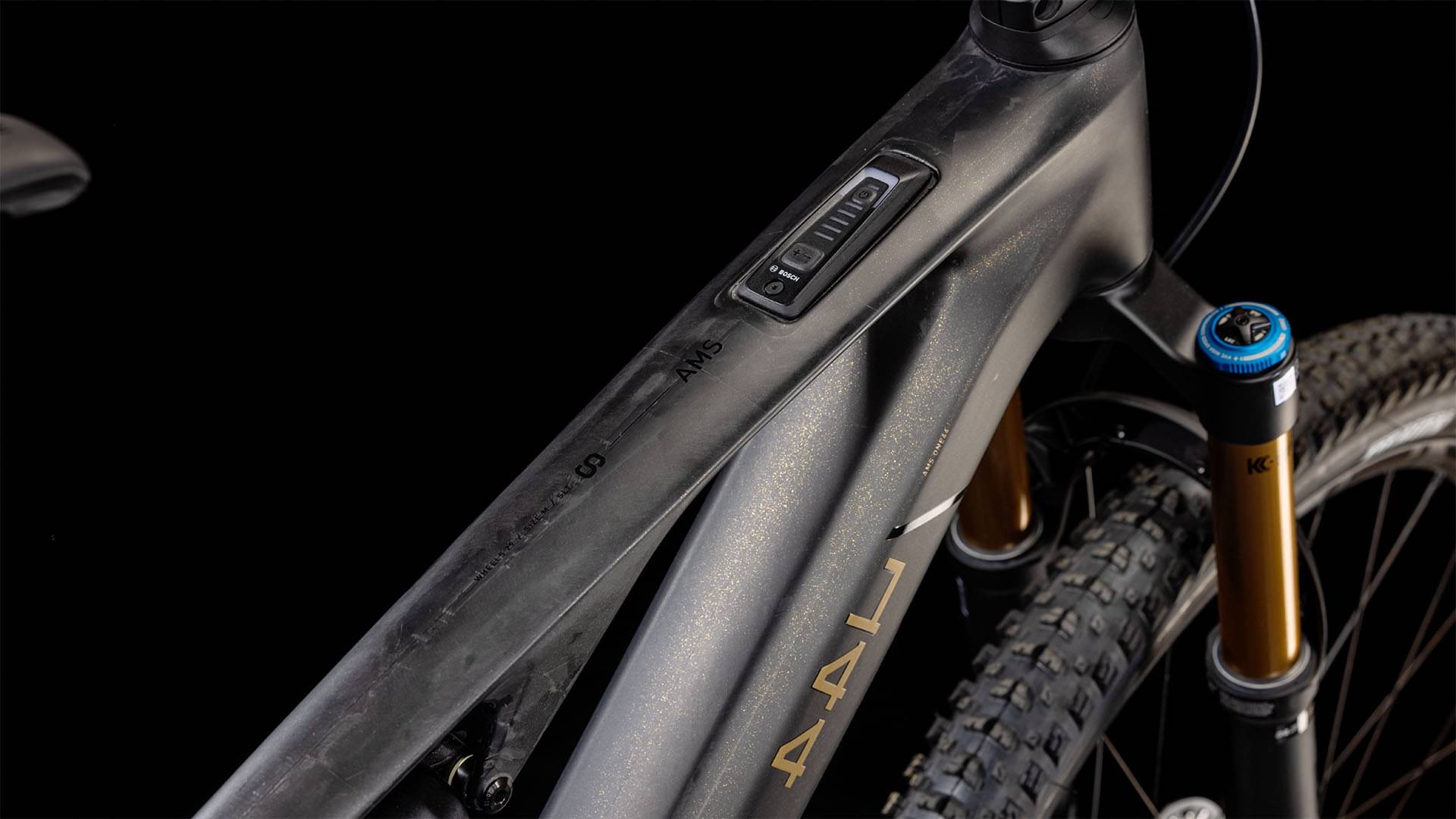

Frame
Frame
C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

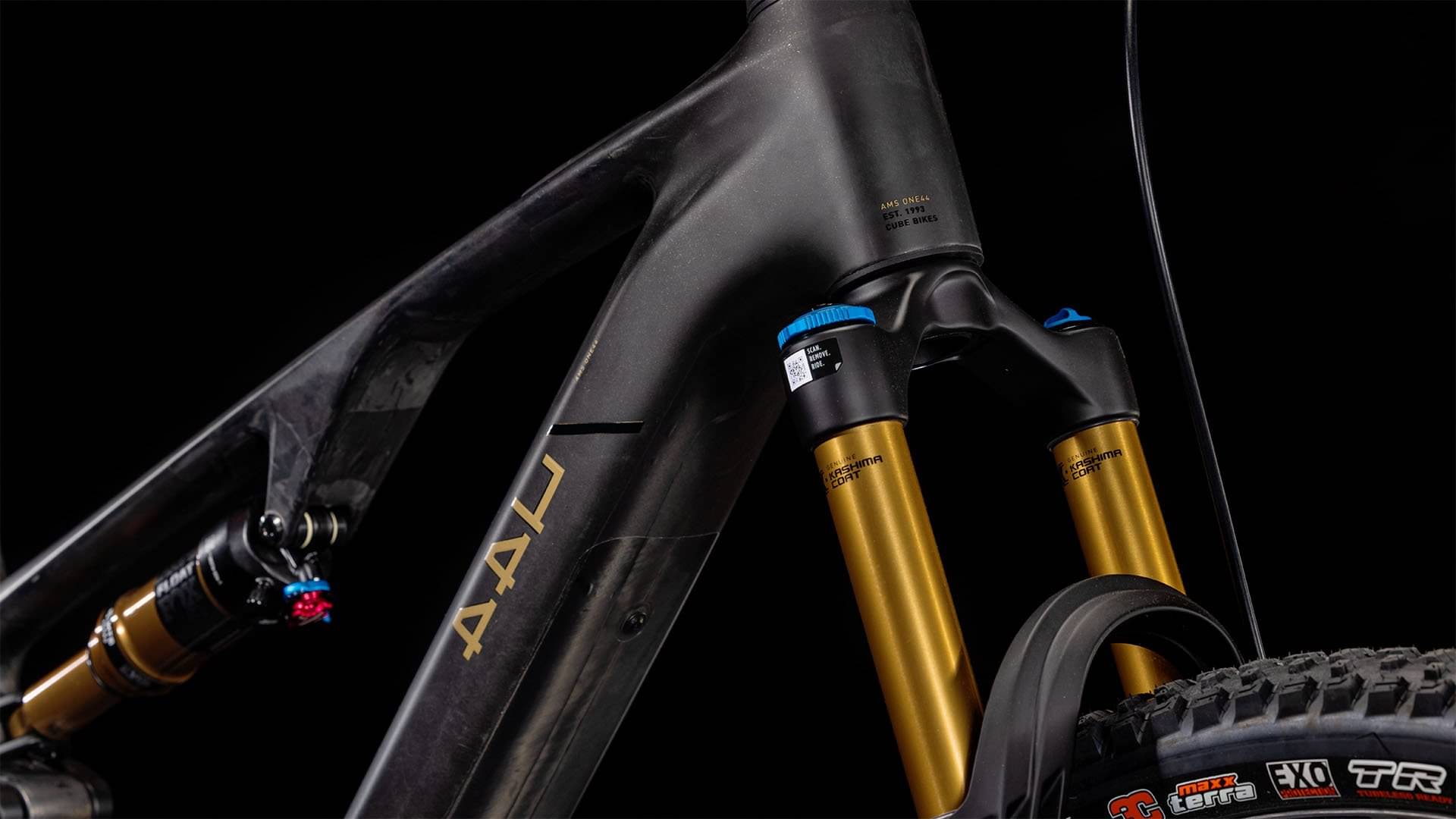

Suspension Fork
Fox 34 Float Factory FIT GRIP2, Tapered, 15x110mm, 140mm, Kashima Coated

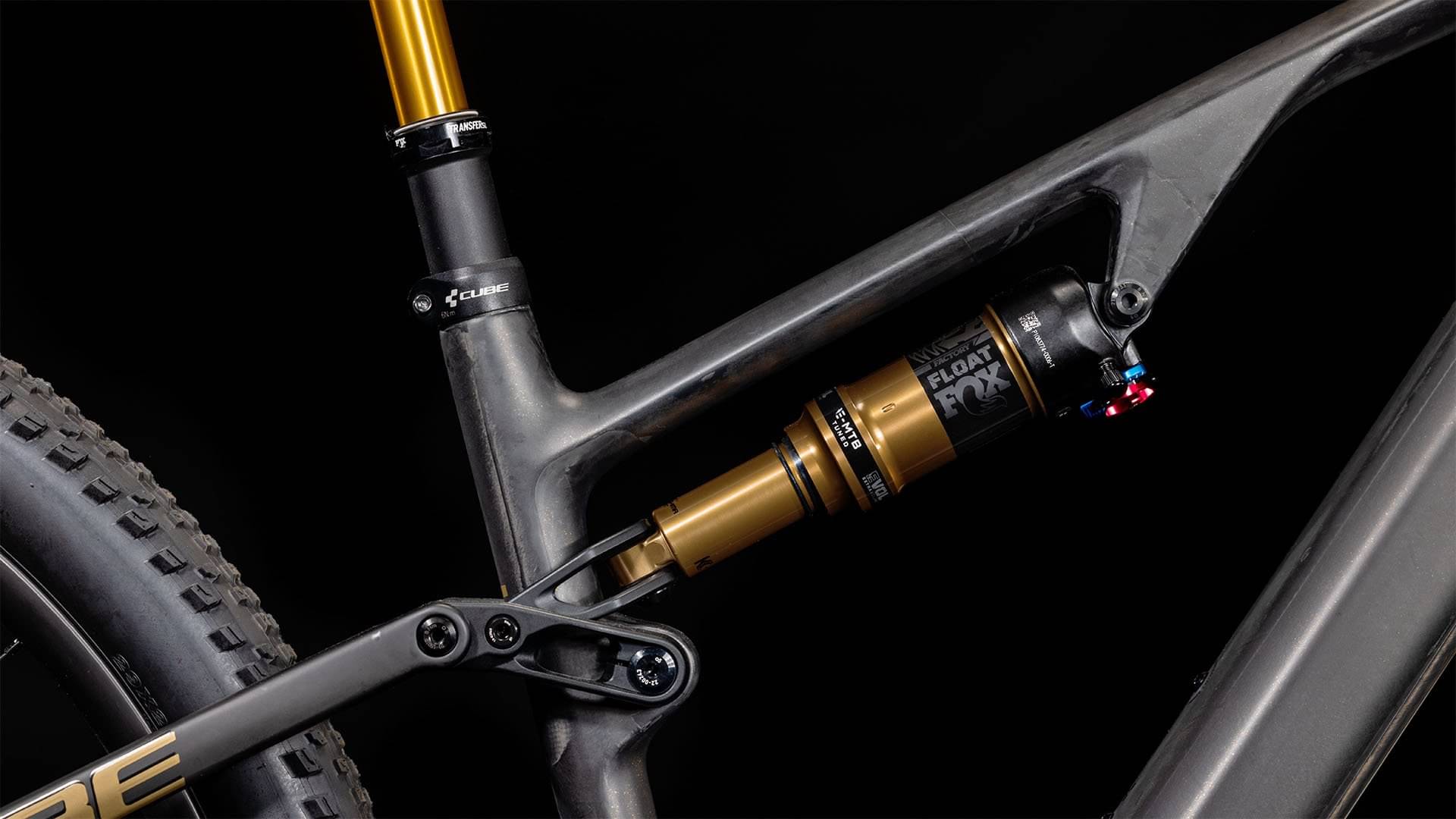

Rear Shock
Fox Float Factory, 210x55mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XTR RD-M9100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XTR SL-M9100-I, Direct Attach
Cassette
Shimano XTR CS-M9101-12, 10-51T

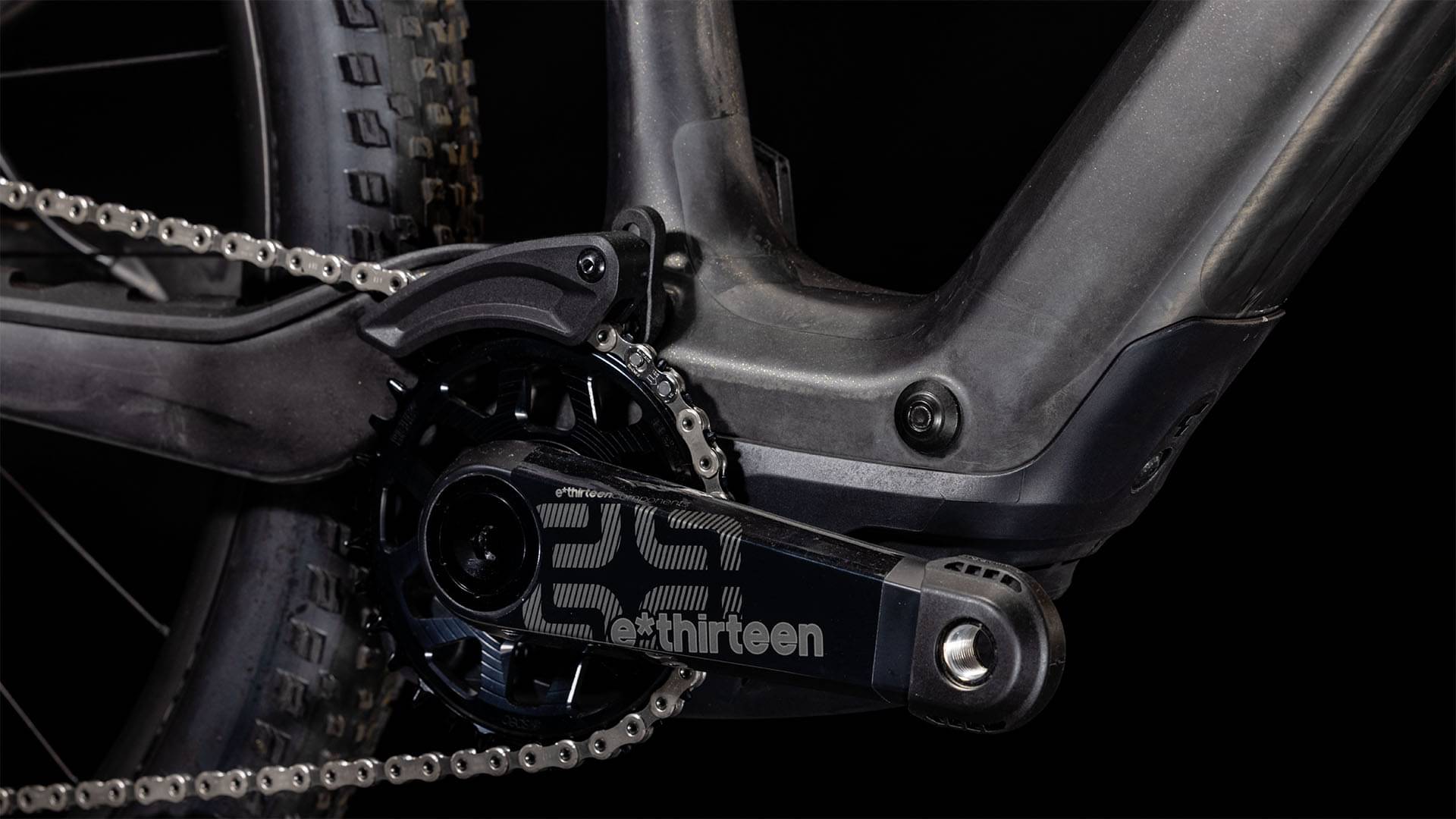

Crank
e*thirteen e*spec Race Carbon Crank, 32T
Chain
Shimano CN-M9100
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Rekon Maxxterra/EXO, Tubeless Ready, 2.4 WT, Rear: Maxxis Rekon Race, EXO, Tubeless Ready, 2.4 WT
Brakes
Brakes
Shimano XTR BR-M9100, Hydr. Disc Brake (180/180)
Cockpit

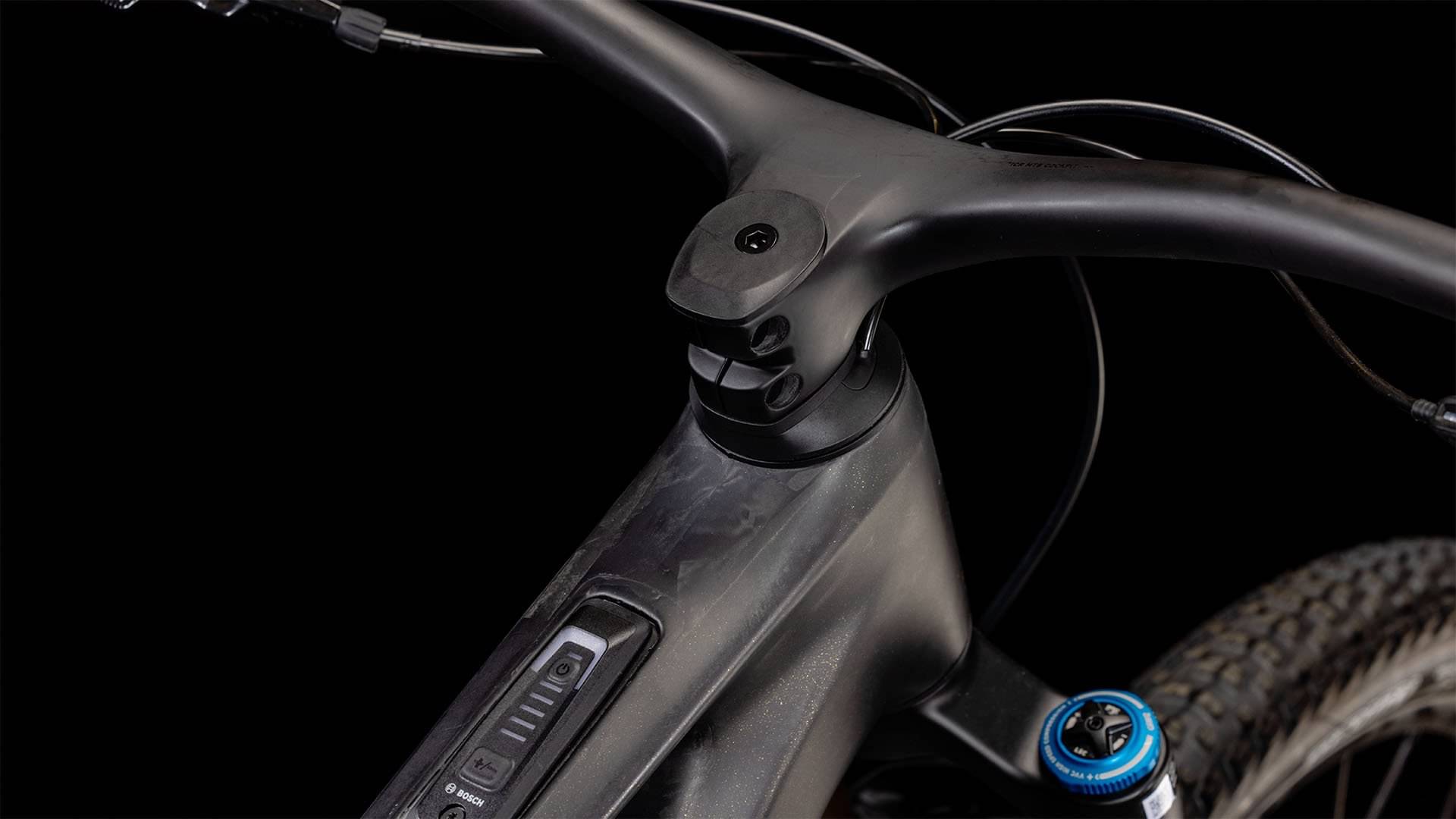

Handlebar
CUBE Stereo Carbon Cockpit System
Grips
ACID Disrupt, Soft Compound
Seat

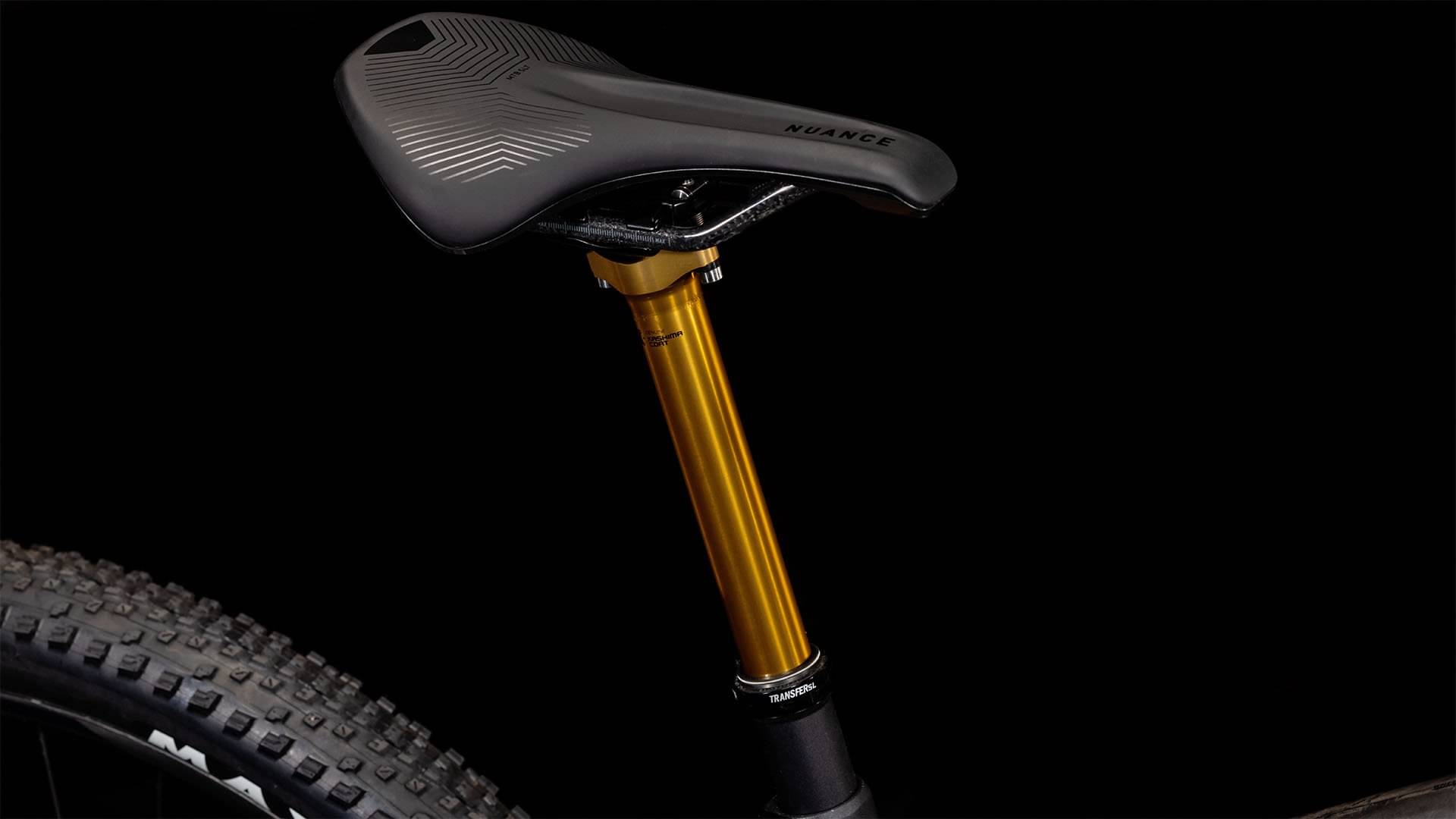

Saddle
Natural Fit Nuance SLT Carbon
Seatpost
Fox Transfer SL Factory, 31.6mm, Kashima Coated
Motor & Battery
Motor
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery
Bosch CompactTube 400
Remote
Bosch System Control, incl. Mini Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.39 mm | 1.335 mm | 1.301 mm |
| Front Center | 745 mm | 769 mm | 798 mm | 834 mm |
| Rake | 45 mm | 45 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 111 mm | 111 mm |
| Stack | 615 mm | 624 mm | 633 mm | 652 mm |
| Reach | 429 mm | 449 mm | 474 mm | 501 mm |
| Top Tube Length | 575 mm | 598 mm | 626 mm | 658 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 102 mm | 112 mm | 122 mm | 142 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1193 mm | 1217 mm | 1246 mm | 1282 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 33 mm | 33 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
