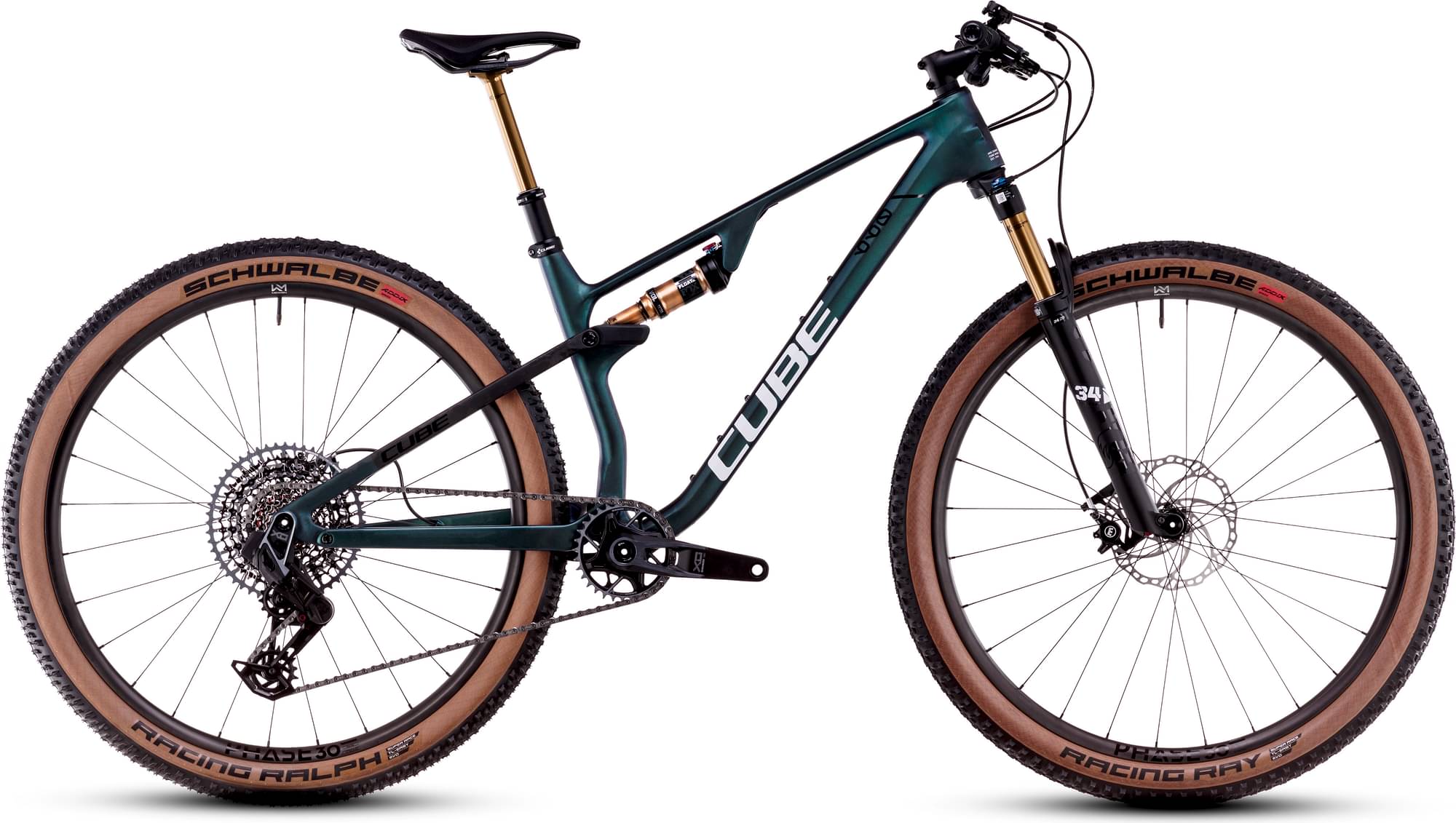

CUBE AMS ZERO99 C:68X SLX 29 2025
2025 Mountain
Estimate price |
7,212$
Weight | 10.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

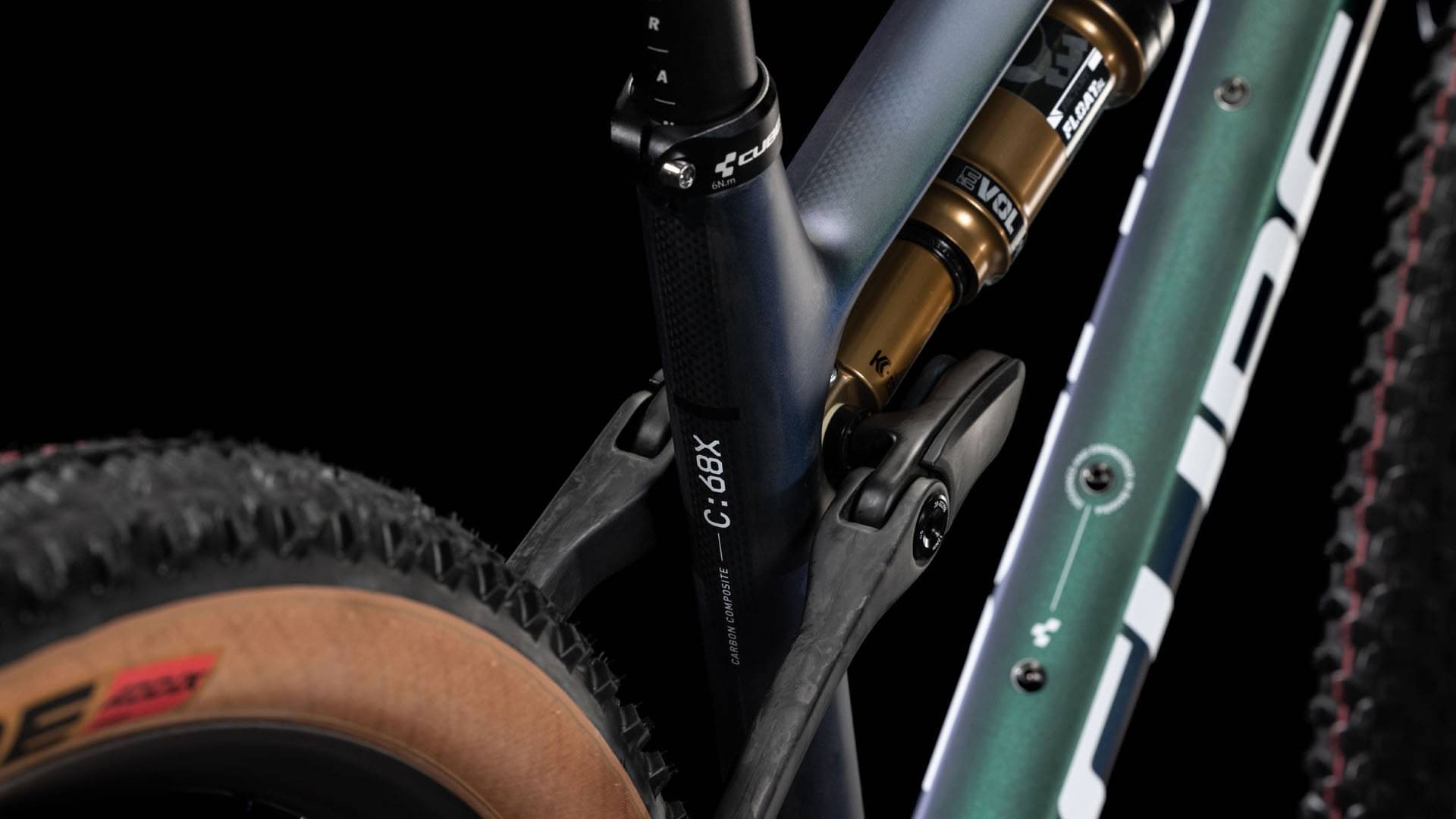

C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Suspension Fork

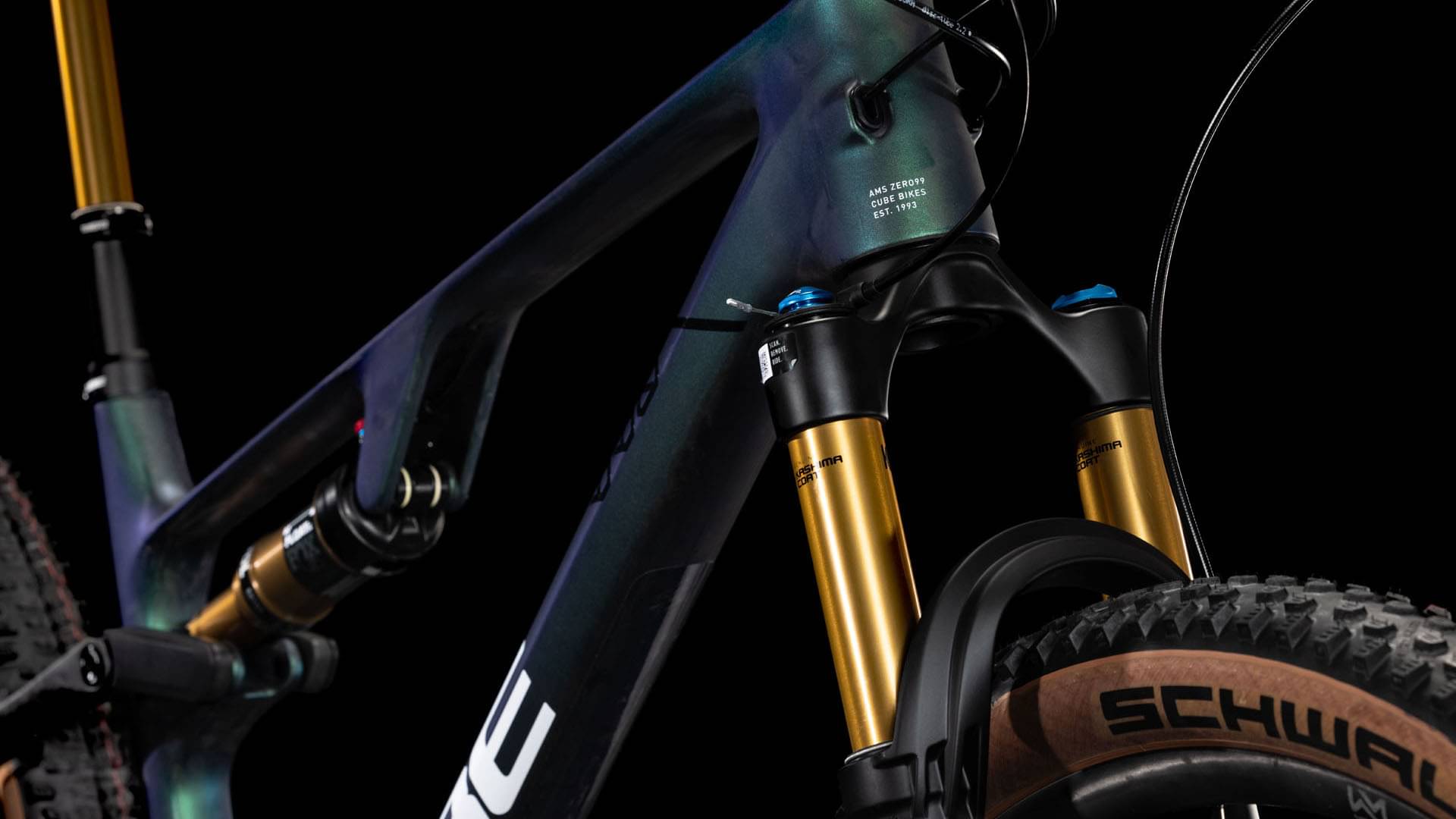

Fox 34 SC Float Factory GRIP SL, 2-Position Remote, Tapered, 15x110mm, 110mm, Kashima Coated
Rear Shock

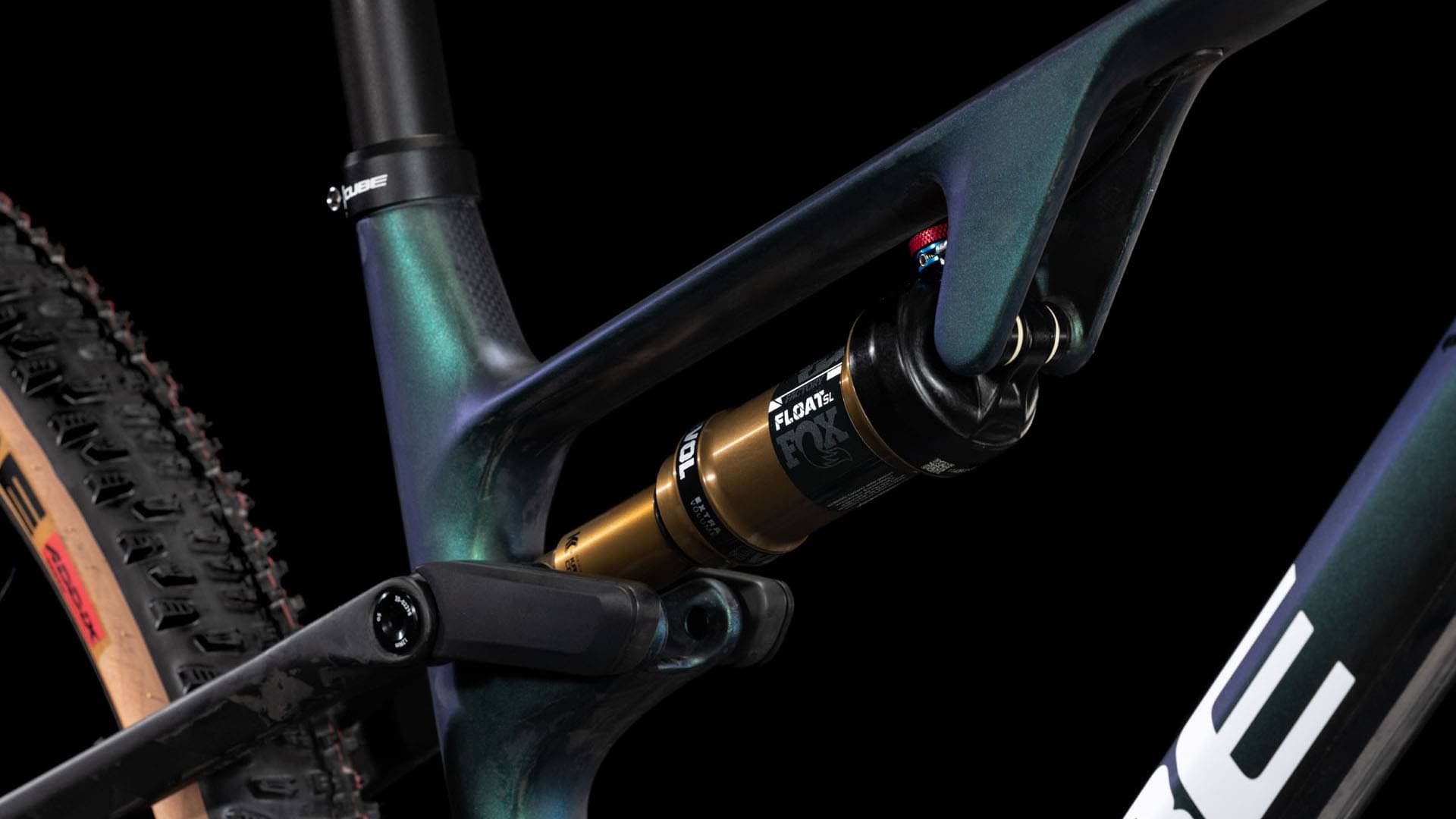

Fox Float SL Factory Remote, 190x40mm, 2-Position Remote, Kashima Coated
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS™ Transmission, 12-Speed
Shift Levers
SRAM AXS™ Pod Controller
Cassette
SRAM XS-1275, 10-52T
Crank

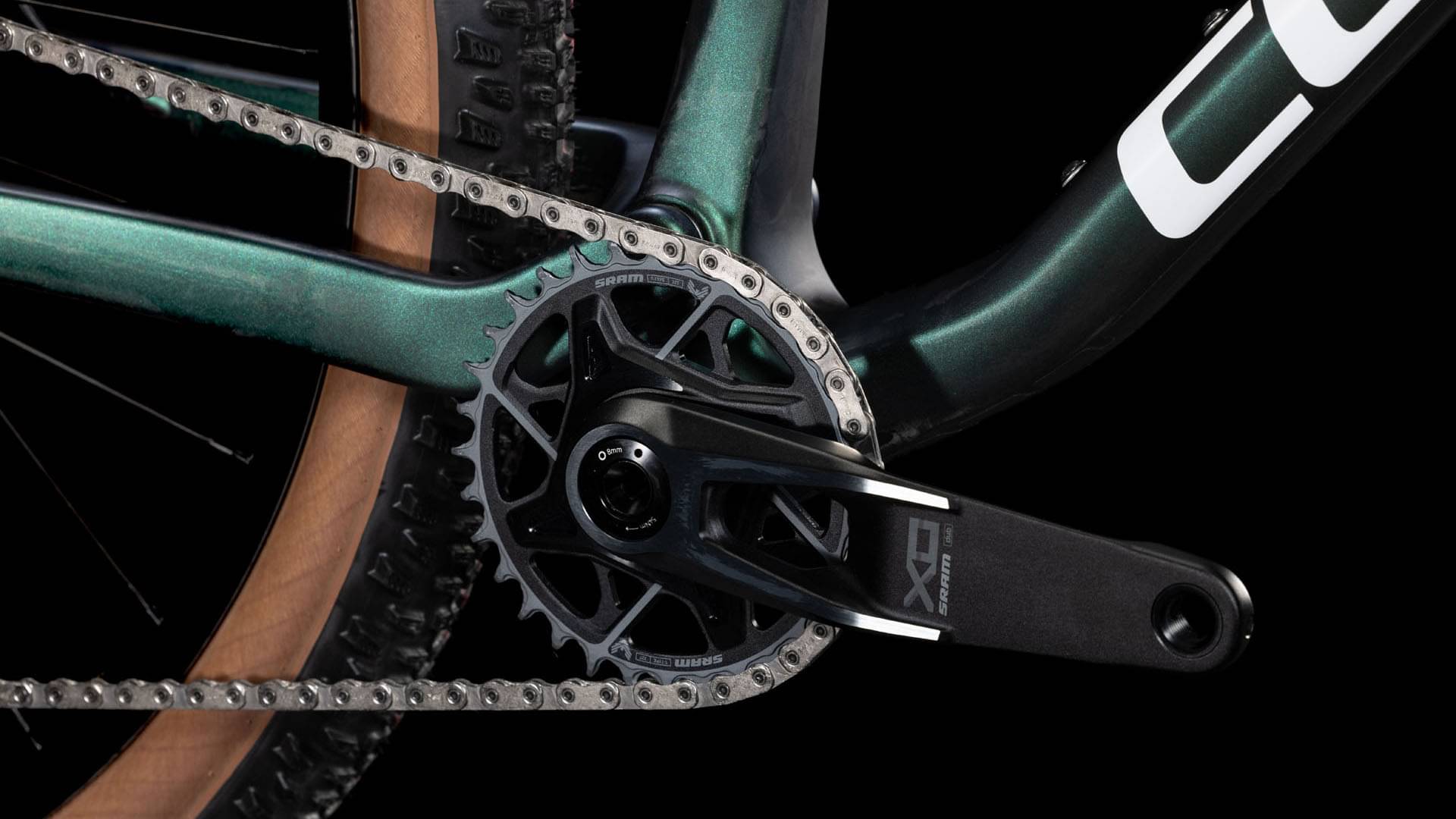

SRAM X0 Eagle™ Transmission, 32T
Bottom Bracket
SRAM DUB MTB Wide, 92mm Pressfit
Chain
SRAM GX Eagle™ Transmission
Wheels
Rims
Newmen Phase 30 light/light Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Racing Ray, Super Race, Addix Speed, Kevlar, 2.35, Rear: Schwalbe Racing Ralph, Super Race, Addix Speed, Kevlar, 2.35
Brakes
Brakes
Magura MT8 SL, Hydr. Disc Brake (180/160)
Cockpit
Stem
Newmen Evolution SL 318.2, 31.8mm
Handlebar
Newmen Advanced 318.0, Carbon, 740mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
Seat
Saddle
ACID Nuance SLT X Carbon
Seatpost
Fox Transfer Factory 30.9mm, Kashima Coated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.421 mm | 1.373 mm | 1.341 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 340 mm |
| Front Center | 698 mm | 724 mm | 750 mm | 776 mm |
| Rake | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 120 mm | 118 mm | 118 mm | 119 mm |
| Stack | 592 mm | 601 mm | 611 mm | 625 mm |
| Reach | 401 mm | 423 mm | 445 mm | 466 mm |
| Top Tube Length | 573 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73.3 ° | 73.4 ° | 73.4 ° | 73.4 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1141 mm | 1167 mm | 1193 mm | 1219 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 34 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
