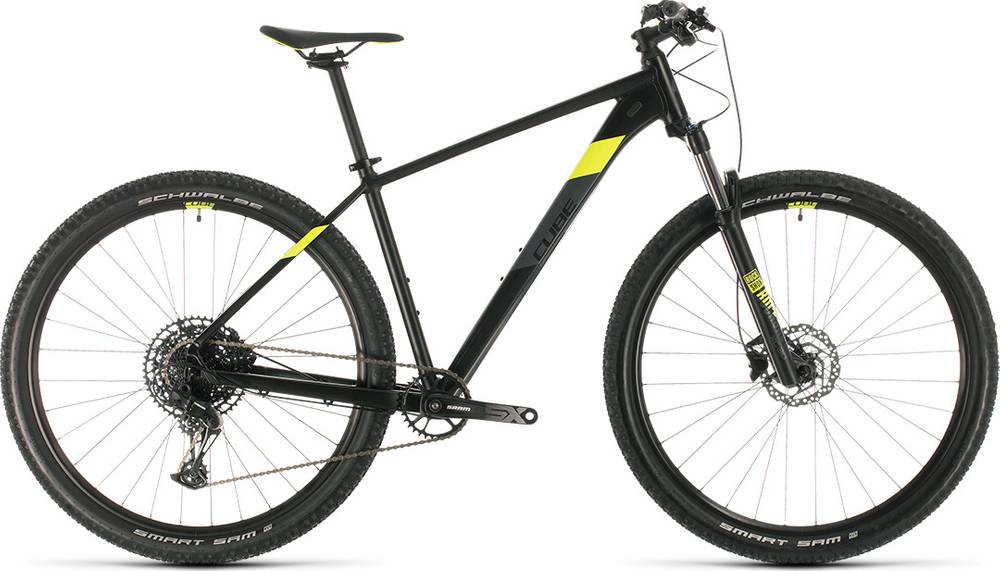

CUBE ANALOG 2020
2020 Mountain
Estimate price |
781$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
RockShox XC 30 TK Coil, 100mm, Remote Lockout
Drivetrain
Rear Derailleur
SRAM SX Eagle™, 11-50T, 1x12
Shift Levers
SRAM SX Eagle™ Trigger
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
SRAM SX Eagle™, 32T
Chain
SRAM SX Eagle™
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SD20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
CUBE FPH863, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 17" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.57 mm | 1.58 mm | 1.53 mm | 1.55 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 309 mm | 304 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 641 mm | 662 mm | 666 mm | 683 mm | 704 mm | 725 mm |
| Rake | 42 mm | 38 mm | 50 mm | 42 mm | 51 mm | 51 mm | 50 mm |
| Trail | 91 mm | 96 mm | 90 mm | 91 mm | 89 mm | 89 mm | 90 mm |
| Stack | 601 mm | 614 mm | 629 mm | 623 mm | 639 mm | 648 mm | 663 mm |
| Reach | 380 mm | 390 mm | 397 mm | 408 mm | 413 mm | 431 mm | 447 mm |
| Top Tube Length | 551 mm | 567 mm | 581 mm | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 405 mm | 420 mm | 450 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 106 mm | 109 mm | 108.5 mm | 129 mm | 119.5 mm | 129.5 mm | 144.5 mm |
| Chainstay Length | 433 mm | 433 mm | 456 mm | 433 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1057 mm | 1068 mm | 1110 mm | 1094 mm | 1131 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 65 mm | 51 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 716 mm | 751 mm | 775 mm | 786 mm | 811 mm | 842 mm | 877 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" | 29" |
About this model
ANALOG belongs to the Cube Analog model. CUBE released 12 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 723$. Comparing the average cost of a Crosscountry bike to this one, you will see that ANALOG price is 163.49% smaller.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, ANALOG has a weight of 13.8 kg (30.42 lbs). In short, the average Crosscountry bike weight is 11.29% lower than this one.
Overview of components
Fork
This bike has the RockShox 30 Silver TK fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on ANALOG are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ANALOG has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
